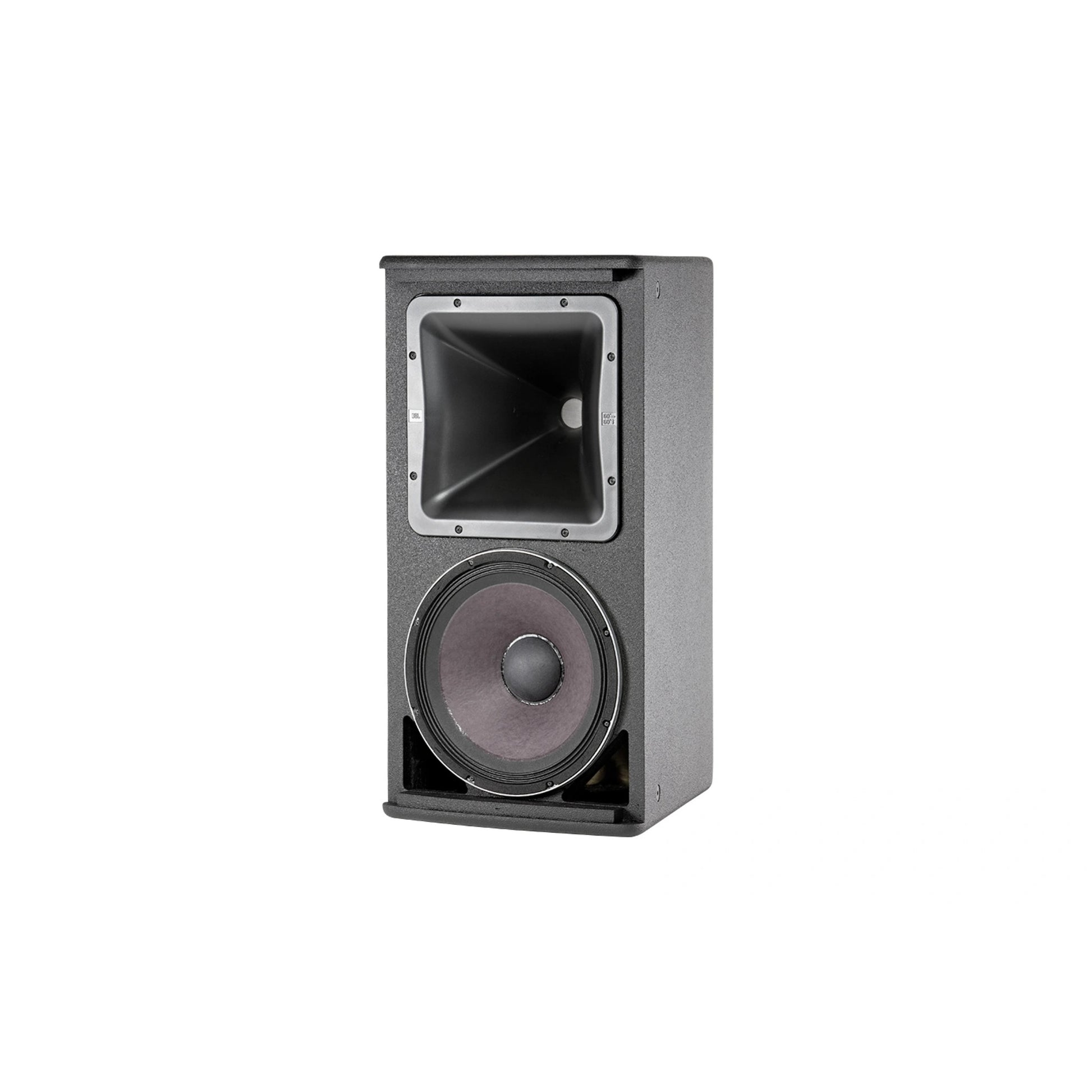

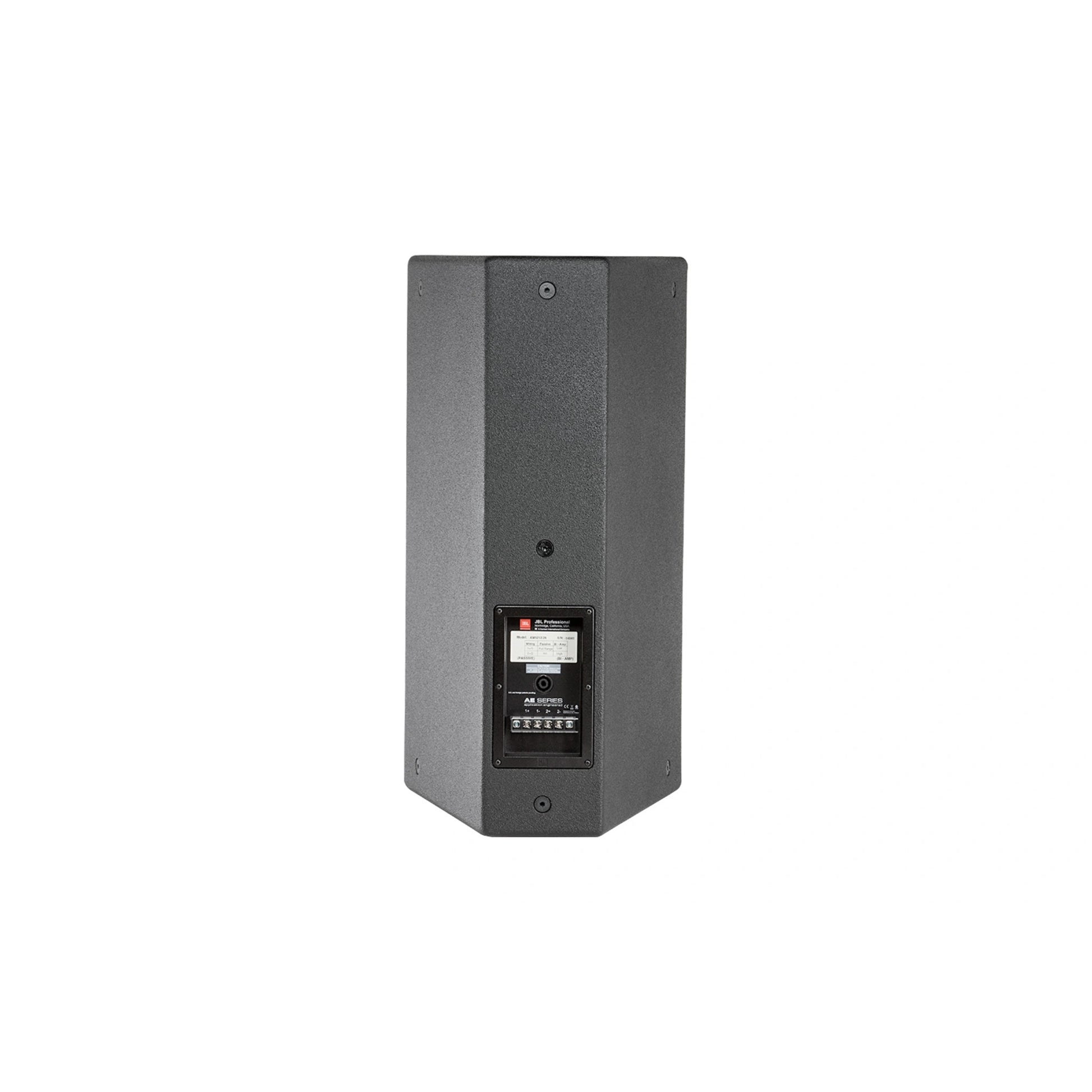

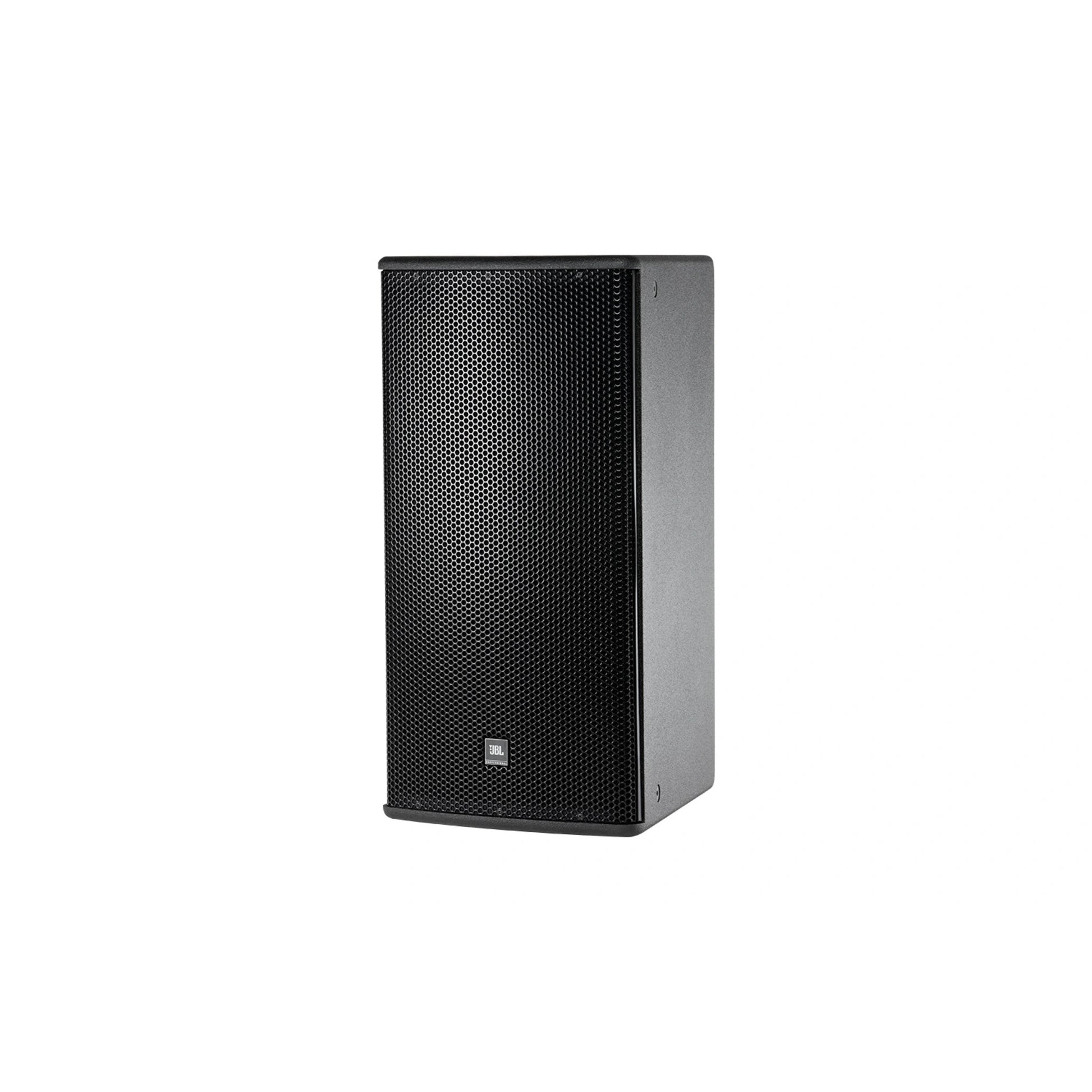

JBL AM5212/00 Medium Power 12" 2-Way Full-Range Loudspeaker

JBL AM5212/00 Medium Power 12" 2-Way Full-Range Loudspeaker

SoundPro Item: 46626 | Part Number: AM5212/00

Regular price $2,500.00
Regular price $2,500.00 Sale price $2,500.00
Your Price Sold out
MSRP: $2,500.00 | MAP: $2,500.00

Usually ships in 5-7 business days

  • Rotatable 100° x 100° Progressive Transition Waveguide Optimizes Coverage Pattern Control
  • 262H Differential Drive Woofer Delivers Extended Low-Frequency Response
  • 2408H Compression Driver Provides Clarity Across Midrange And High Frequencies
  • Bi-Amp And Passive Switchable Crossover Integrates With Any System Architecture
  • Suspension Eyebolts Enable Flexible Rigging And Deployment Options

The JBL AM5212/00 brings professional 2-way performance in a portable format built for touring, temporary installations, and live events. The 262H Differential Drive woofer and 2408H compression driver combination provides articulate midrange and extended high-frequency response across a 43 Hz to 20 kHz bandwidth, making it equally at home reinforcing speech, music, or mixed content in medium-sized venues and outdoor applications.

Its 100° x 100° rotatable Progressive Transition waveguide gives system designers precise pattern control and the flexibility to orient coverage either vertically or horizontally depending on room geometry. The switchable bi-amp and passive crossover modes mean you can integrate the AM5212/00 into existing powered speaker rigs or run it as a standalone passive element driven by external amplification—no proprietary electronics or firmware updates to manage in the field.

With eyebolts for suspension mounting and compatibility with optional rigging hardware, the AM5212/00 scales from ground-stack applications to flown arrays without reinventing your infrastructure.

Downloads

View full details

Specifications

Audio
Frequency Range (-10dB)|37 Hz – 20 kHz
Frequency Response (±3dB)|43 Hz – 20 kHz
Coverage Pattern|100° x 100° (model /00)
Crossover Frequency (Passive)|1.5 kHz
Connectivity
Crossover Modes|Bi-Amp/Passive Switchable
Construction
Low-Frequency Driver|262H Differential Drive 50.8 mm (2 in) Dual Voice Coil
High-Frequency Driver|2408H 38 mm (1.5 in) Exit, 38 mm (1.5 in) Voice-Coil Compression Driver
