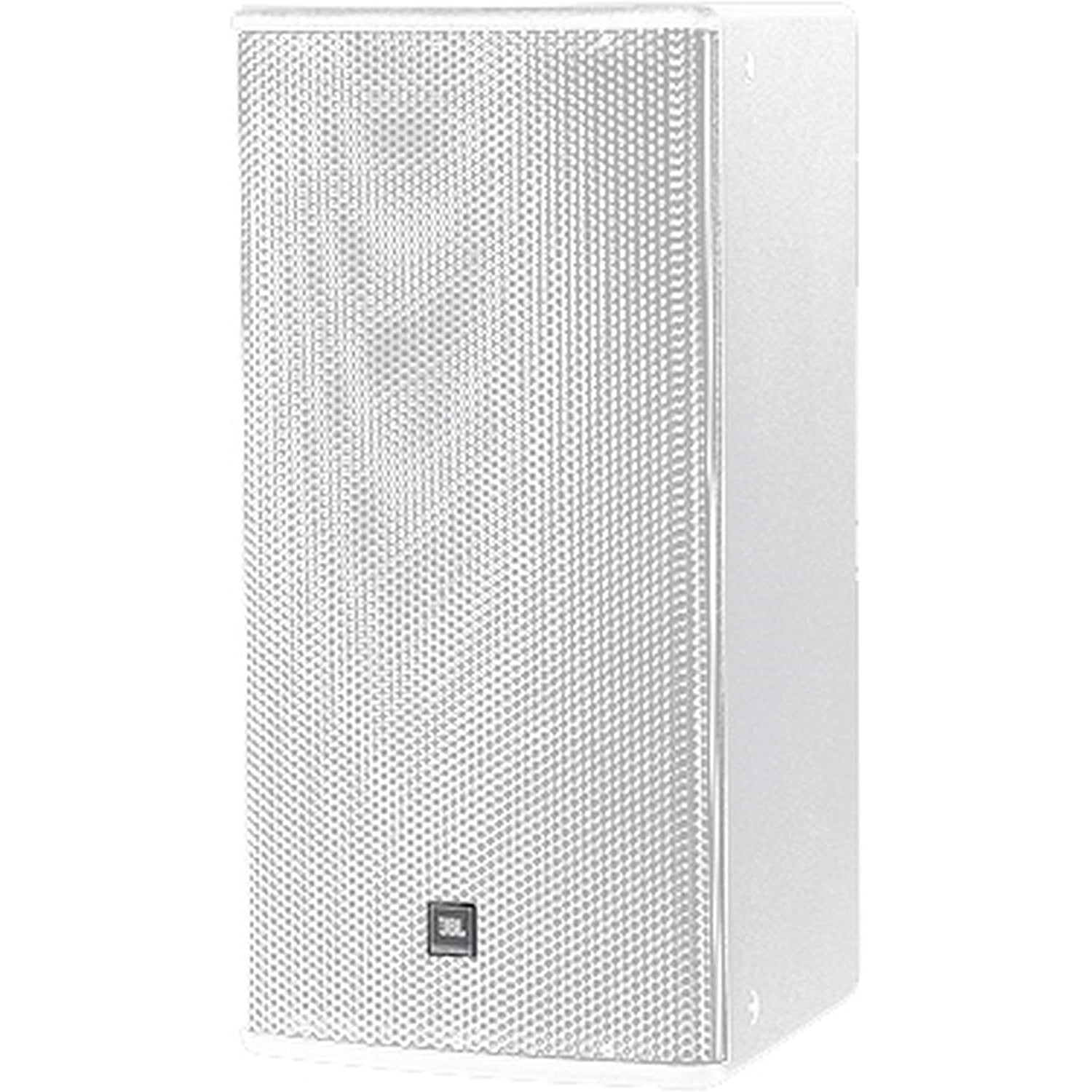

JBL AM5212/64-WH 12" 2-Way Full-Range Portable Speaker | White

JBL AM5212/64-WH 12" 2-Way Full-Range Portable Speaker | White

SoundPro Item: 50346 | Part Number: AM5212/64-WH

$2,500.00
$2,500.00 $2,500.00
Your Price Sold out
MSRP: $2,500.00 | MAP: $2,500.00

Usually ships in 5-7 business days

  • 60° x 40° Rotatable Waveguide For Flexible Vertical Or Horizontal Deployment
  • 262H Differential Drive Dual Voice Coil Low-Frequency Driver Ensures Consistent Bass Coverage
  • 2408H-1 High-Frequency Compression Driver Delivers Clarity And Pattern Control
  • Bi-Amp And Passive Switchable Modes Enable Flexible Amplification Configurations
  • Progressive Transition Waveguide Technology Reduces Distortion And Improves Pattern Accuracy
Log in or register for YOUR best price

The JBL AM5212/64-WH is a professional-grade portable PA loudspeaker built for live sound engineers, touring bands, and installed AV integrators who need reliable mid-sized coverage without external amplification. The 262H Differential Drive low-frequency driver and 2408H-1 compression driver deliver consistent output across the full frequency spectrum, while the 60° x 40° rotatable Progressive Transition waveguide provides controlled dispersion suitable for tight venues, outdoor festivals, and temporary installations.

Bi-amp and passive switching modes give operators flexibility to run the speaker passively from a single amplifier or activate bi-amp mode for dedicated LF and HF amplification and tonal shaping. The white finish integrates seamlessly into corporate events, Houses of Worship, and upscale venue aesthetics. Dual Speakon and 1/4" speaker-level inputs enable quick connection in mobile rigs. This speaker class is preferred when portability and durability matter more than rigging complexity—ideal for rental fleets, event production companies, and permanent installations where occasional relocation is required.

Downloads

View full details

Specifications

Audio
Frequency Range (-10 dB)|37 Hz – 20 kHz
Frequency Response (±3 dB)|43 Hz – 18 kHz
Coverage Pattern|60° x 40°
Crossover Frequency (Passive)|1.5 kHz
Crossover Modes|Bi-amp/Passive switchable
Performance
LF Power Rating (AES, 2 hrs)|400 W
LF Power Rating (AES, 100 hrs)|300 W
LF Peak Power|1600 W (2 hrs), 1200 W (100 hrs)
HF Power Rating (AES, 2 hrs)|40 W
HF Peak Power|160 W (2 hrs)
Construction
LF Driver|262H-1 Differential Drive, 12"
HF Driver|2408H-1 Compression Driver, 1.5" voice coil
Waveguide|Progressive Transition (PT), 60° x 40°, rotatable
Finish|White
