JBL AM5212/66 Two Way Full Range Loud Speaker

JBL AM5212/66 Two Way Full Range Loud Speaker

SoundPro Item: 46628 | Part Number: AM5212/66

$2,500.00
$2,500.00 $2,500.00
Your Price Sold out
MSRP: $2,500.00 | MAP: $2,500.00

Usually ships in 5-7 business days

  • 60° x 60° Coverage
  • 262H-1 Differential Drive® Low-Frequency Driver
  • 2408H-1 High-Frequency Compression Driver
  • Large PT™ Progressive Transition waveguide for excellent pattern control and low distortion
  • Rotatable waveguide for vertical or horizontal orientation
  • Bi-Amp/Passive Switchable
  • Available in Black, White and WRC/WRX weather resistant finishes
  • Applications
  • Performing arts facilities
  • Theatrical sound design
  • Auditoriums
  • Worship facilities
  • Live clubs
  • Dance clubs
  • Sports facilities
  • Themed entertainment venues
Log in or register for YOUR best price

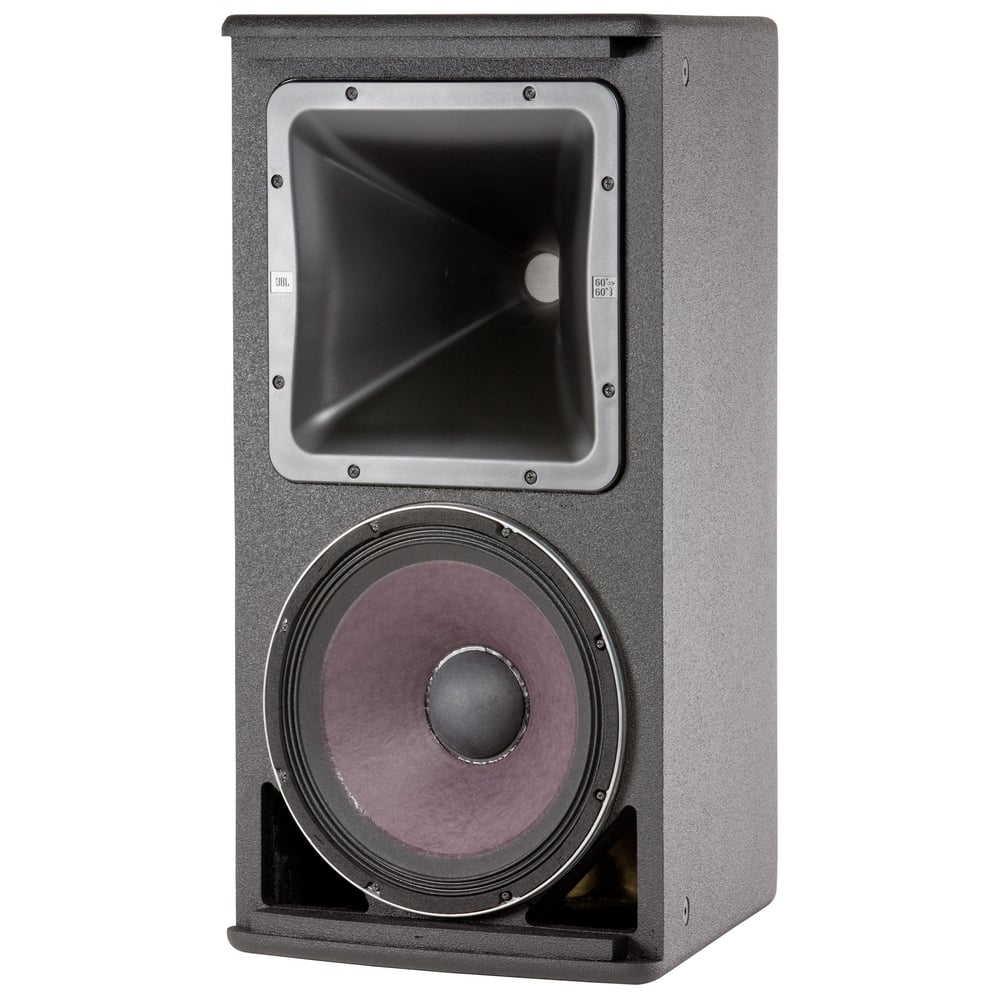

The AM5212/66 is a medium power, lightweight, 2-way, full-range loudspeaker system comprised of the JBL Differential Drive® dual voice coil and dual magnetic gap 262H-1 300 mm (12 in) low frequency driver and 2408H-1 high frequency 38 mm (1.5 in) exit, 38 mm (1.5 in) voice-coil compression driver. The large format PT™ Progressive Transition waveguide provides excellent 60° x 60° coverage. The waveguide is rotatable so the loudspeaker system can be used in either the vertical or horizontal orientation. High-slope passive networks minimize band overlap. Well-controlled off-axis response enhances arrayability.

View full details

Specifications

'General Information
Manufacturer
Harman International Industries, Inc
Manufacturer Part Number
AM5212/66
Brand Name
JBL Professional
Product Line
Professional
Product Model
AM5212/66
Product Name
AM5212/66 2-Way Loudspeaker System with 1 x 12" LF
Product Type
Speaker
Technical Information
Crossover Type
2-way
RMS Output Power
300 W
PMPO Output Power
1200 W
Driver Type
11.81" Woofer
1.50" Tweeter
Minimum Frequency Response
43 Hz
Maximum Frequency Response
20 kHz
Impedance
8 Ohm
Crossover Frequency
2 kHz
Sound Pressure Level
130 dB
Sensitivity
114 dB
Physical Characteristics
Color
Black
Material
Birch Plywood
Steel
Miscellaneous
Certifications & Standards
Mil-Std 810IP-x3 per IEC529
Warranty
Limited Warranty
5 Year
