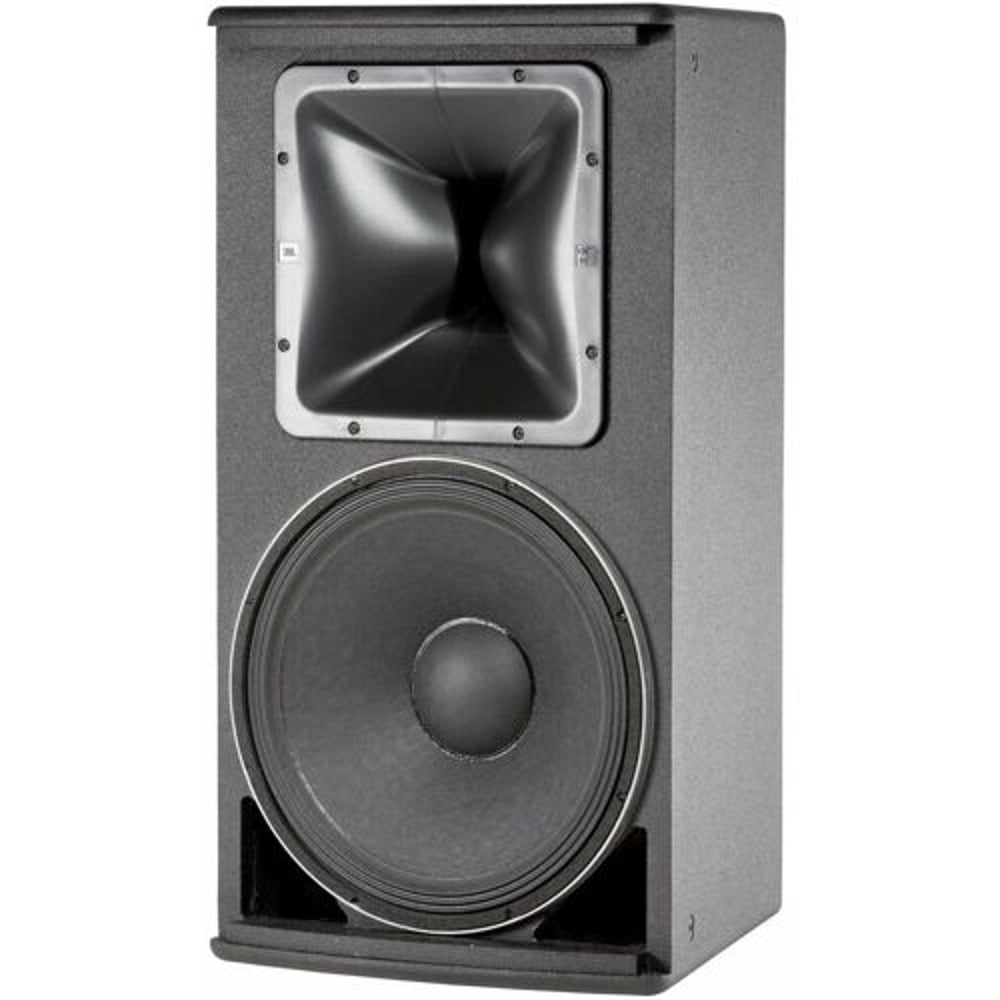

JBL AM5215/66 Two-Way Full Range Loudspeaker
JBL AM5215/66 Two-Way Full Range Loudspeaker
SoundPro Item: 50364 | Part Number: AM5215/66
Usually ships in 5-7 business days
- Crossover Type: 2-way
- RMS Output Power: 350 W
- PMPO Output Power: 1400 W
- Woofer Driver Size: 14.96"
- Tweeter Driver Size: 1.50"
- Minimum Frequency Response: 41 Hz
- Maximum Frequency Response: 20 kHz
- Sensitivity: 98 dB
- Impedance: 8 Ohm
- Product Color: Black
- Height: 30.8"
- Width: 16.6"
- Depth: 19.84"
- Weight (Approximate): 55.12 lb
- Limited Warranty: 5 Year
The AM5215/66 is a medium power, lightweight, 2-way, full-range loudspeaker system comprised of the JBL Differential Drive® dual voice coil and dual magnetic gap 265H-1 380 mm (15 in) low frequency driver and 2408H-1 high frequency 38 mm (1.5 in) exit, 38 mm (1.5 in) voice-coil compression driver. The large format PT™ Progressive Transition waveguide provides excellent 60° x 60° coverage. The waveguide is rotatable so the loudspeaker system can be used in either the vertical or horizontal orientation. High-slope passive networks minimize band overlap. Well-controlled off-axis response enhances arrayability.
