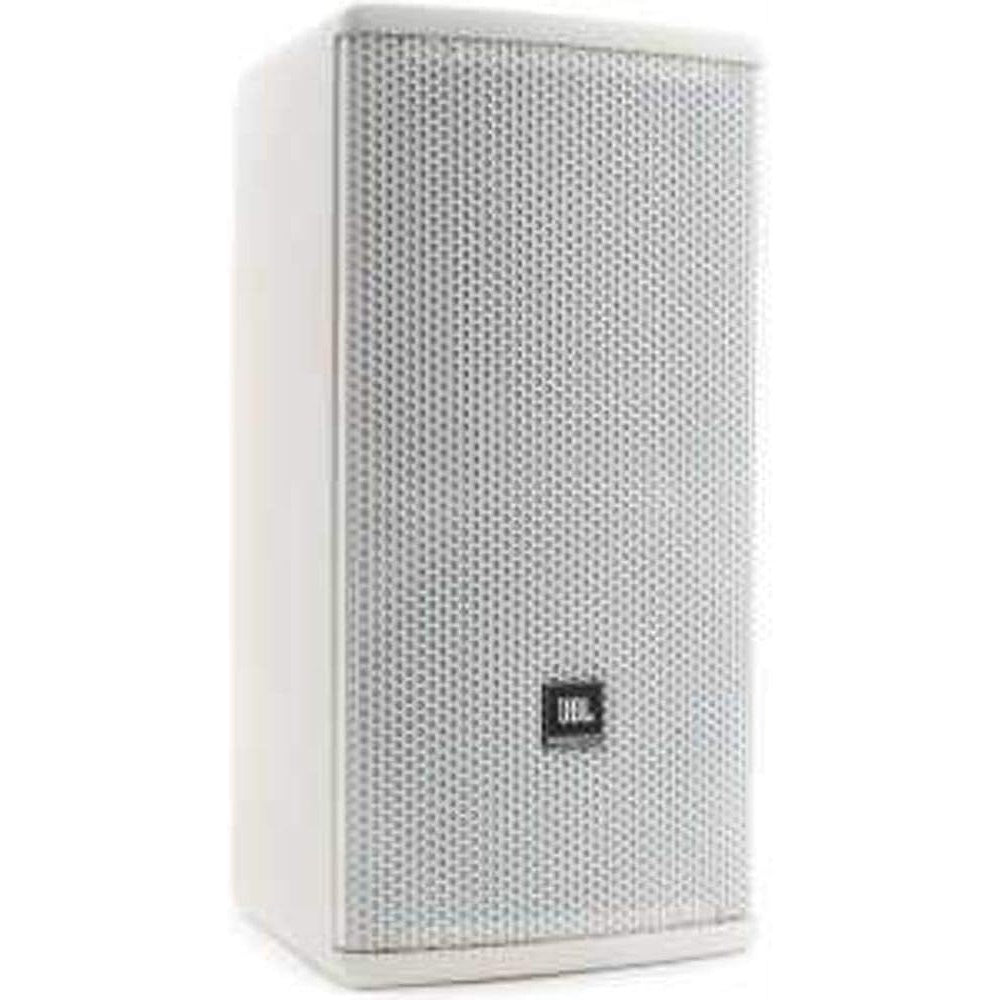

JBL AM7212/66-WH 12" 2-Way Full-Range Loudspeaker | White

JBL AM7212/66-WH 12" 2-Way Full-Range Loudspeaker | White

SoundPro Item: 50399 | Part Number: AM7212/66-WH

$3,780.00
$3,780.00 $3,780.00
Your Price Sold out
MSRP: $3,780.00 | MAP: $3,780.00

Usually ships in 5-7 business days

  • 60° x 60° Rotatable Waveguide Ensures Consistent Coverage In Any Orientation
  • 2262H Differential Drive Low-Frequency Driver Delivers Extended Bass With Reduced Distortion
  • 2432H Compression Driver Provides Clarity Across Vocals And High-Frequency Instruments
  • Bi-Amp And Passive Switchable Operation Optimizes Response For Your System Architecture
  • Progressive Transition Waveguide Minimizes Beamwidth Variance For Predictable Dispersion
Log in or register for YOUR best price

The AM7212/66-WH is a high-power portable loudspeaker engineered for touring productions, venue reinforcement, and live sound applications where consistent pattern control and low distortion are non-negotiable. Its 2262H Differential Drive low-frequency driver and 2432H compression driver combination ensures articulate mids and highs across a 60° x 60° coverage pattern, eliminating dead zones and feedback hotspots in medium to large venues.

Built for both bi-amp and passive operation, the system includes FIR tuning sets that optimize frequency response and phase alignment in either mode—giving you flexibility in system architecture without compromising audio quality. The rotatable Progressive Transition waveguide allows vertical or horizontal mounting, critical for adapting to asymmetrical stage layouts or ceiling-hung arrays. Available in white finish, it integrates seamlessly into professional installations while maintaining the durability required for repeated transport and outdoor use.

Downloads

View full details

Specifications

Drivers
LF Driver|1 x JBL 2262H, 300mm (12") Differential Drive with 75mm (3") dual voice coil
HF Driver|JBL 2432H, 38mm (1.5") exit compression driver, 75mm (3") voice coil
Frequency
Frequency Range (-10dB)|36 Hz - 20 kHz
Frequency Response (±3 dB)|42 Hz - 20 kHz
Coverage Pattern
Coverage (AM7212/66)|60° x 60°
System
System Type|12" Two-Way, High Power, Full-Range
Operating Modes|Bi-Amp/Passive Switchable
Waveguide|60° x 60° Rotatable Progressive Transition
Finish|White
