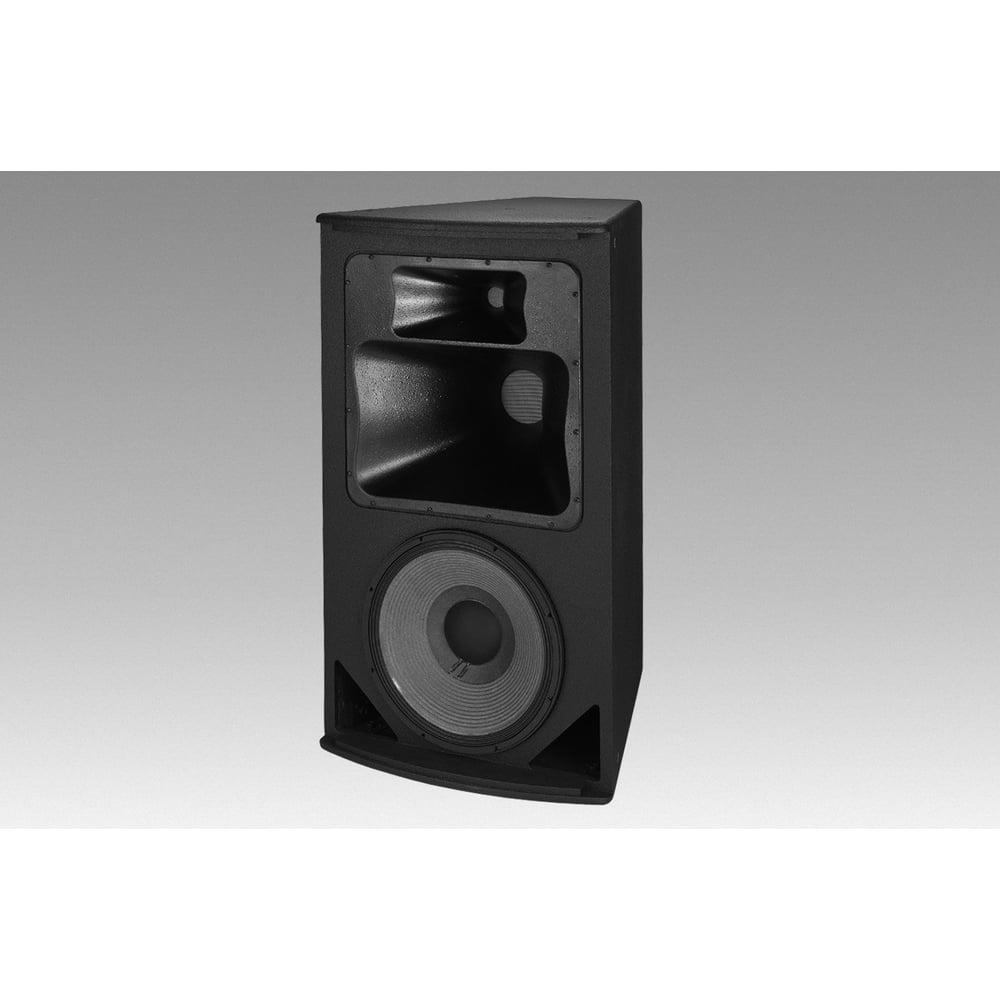

JBL AM7315/64-WH 3-Way Full Range Loudspeake
JBL AM7315/64-WH 3-Way Full Range Loudspeake
SoundPro Item: 206373
Usually ships in 5-7 business days
- 60° x 40° Coverage, rotatable for use in either vertical or horizontal orientation
- 2265H Differential Drive® Low-Frequency Driver
- CMCD™ Cone Midrange Compression Driver provides low midrange distortion, increased sensitivity, extended bandwidth and improved phase coherency
- 2432H High-Frequency Compression Driver
- PT™ Progressive Transition Waveguide for excellent pattern control with low distortion
- Bi-Amp/Tri-Amp Switchable
- Optional planar array frame kit
- Applications
- Performing Arts Facilities
- Theatrical Sound Design
- Auditoriums
- Worship Facilities
- Live Clubs
- Dance Clubs
- Sports Facilities
- Themed Entertainment Venues
AM7315/64 is a high power 3-way full-range loudspeaker system comprised of one 380 mm (15 in) Differential Drive® low frequency driver, one 200 mm (8 in) CMCD Cone Midrange Compression Driver, and one 38 mm (1.5 in) exit/75 mm (3 in) voice-coil HF compression driver. The multi-band PT Progressive Transition mid-high frequency waveguide provides well-controlled 60° by 40° coverage and is rotatable for cabinet positioning in either horizontal or vertical orientation. High-slope crossovers minimize band overlap and well-controlled off-axis response enhances arrayability. The cabinet is fitted with M10 threaded suspension points. Preengineered array bracketry is available. AM7315/64 is part of JBL's AE Application Engineered Series, a versatile family of loudspeakers for a wide variety of fixed installation applications.
Specifications
