JBL ASB7118 Ultra High-Power 18" Subwoofer System

JBL ASB7118 Ultra High-Power 18" Subwoofer System

SoundPro Item: 23320 | Part Number: ASB7118

$5,000.00
$5,000.00 $5,000.00
Your Price Sold out
MSRP: $5,000.00 | MAP: $5,000.00

Usually ships in 5-7 business days

  • 2269H 18" Differential Drive Dual Voice Coil Transducer With Neodymium Magnet
  • 2000 Watts Continuous Pink Noise Power Handling For Extended Session Monitoring
  • Ultra Long Excursion Design Minimizes Distortion Across Low-Frequency Range
  • Large Vent Area Enables High Output Without Port Chuffing Or Noise
  • FIR Tuning Set Aligns Phase Profile To Integrate With Full-Range Studio Monitors
  • Multiply Hardwood Enclosure With DuraFlex Finish Resists Cosmetic Damage
Log in or register for YOUR best price

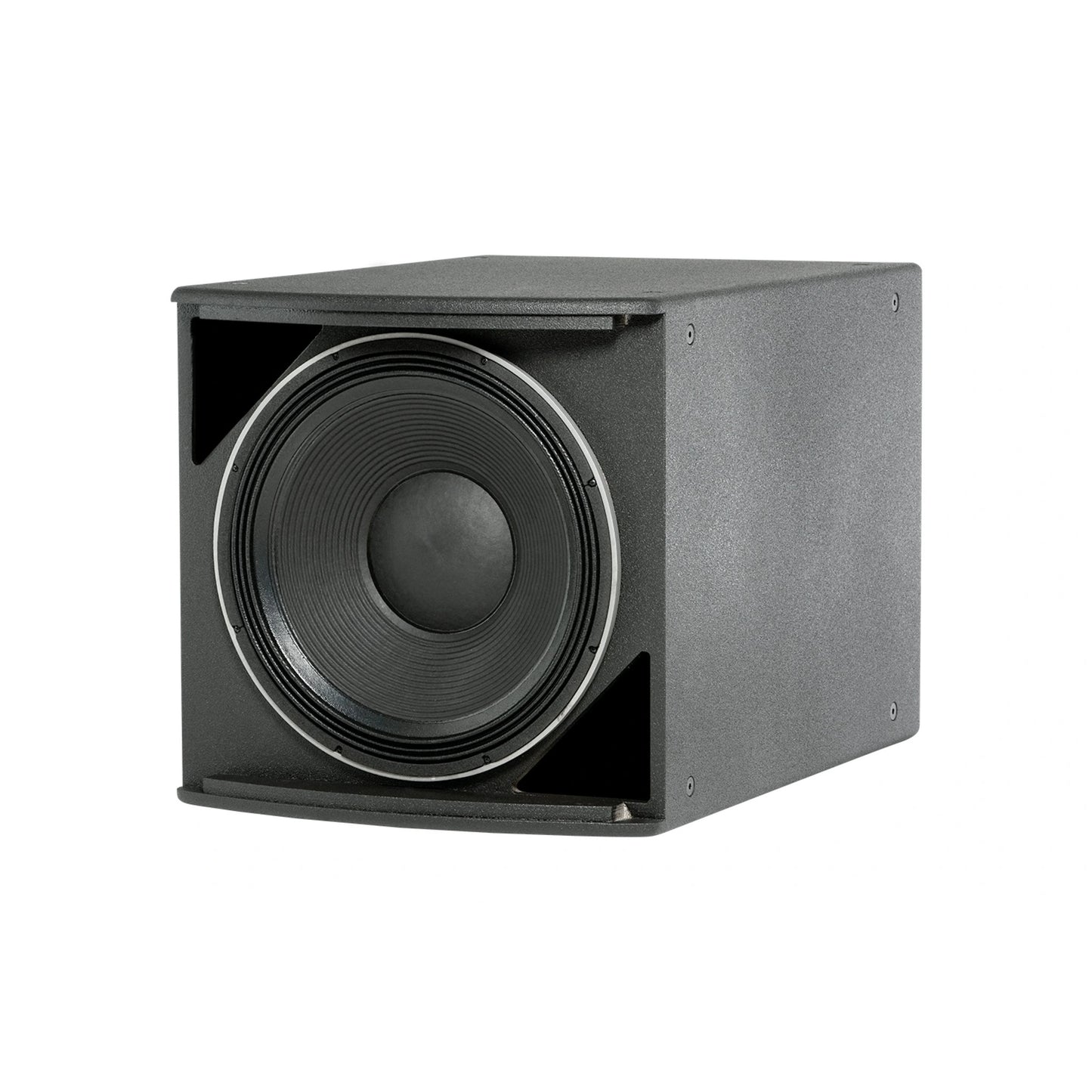

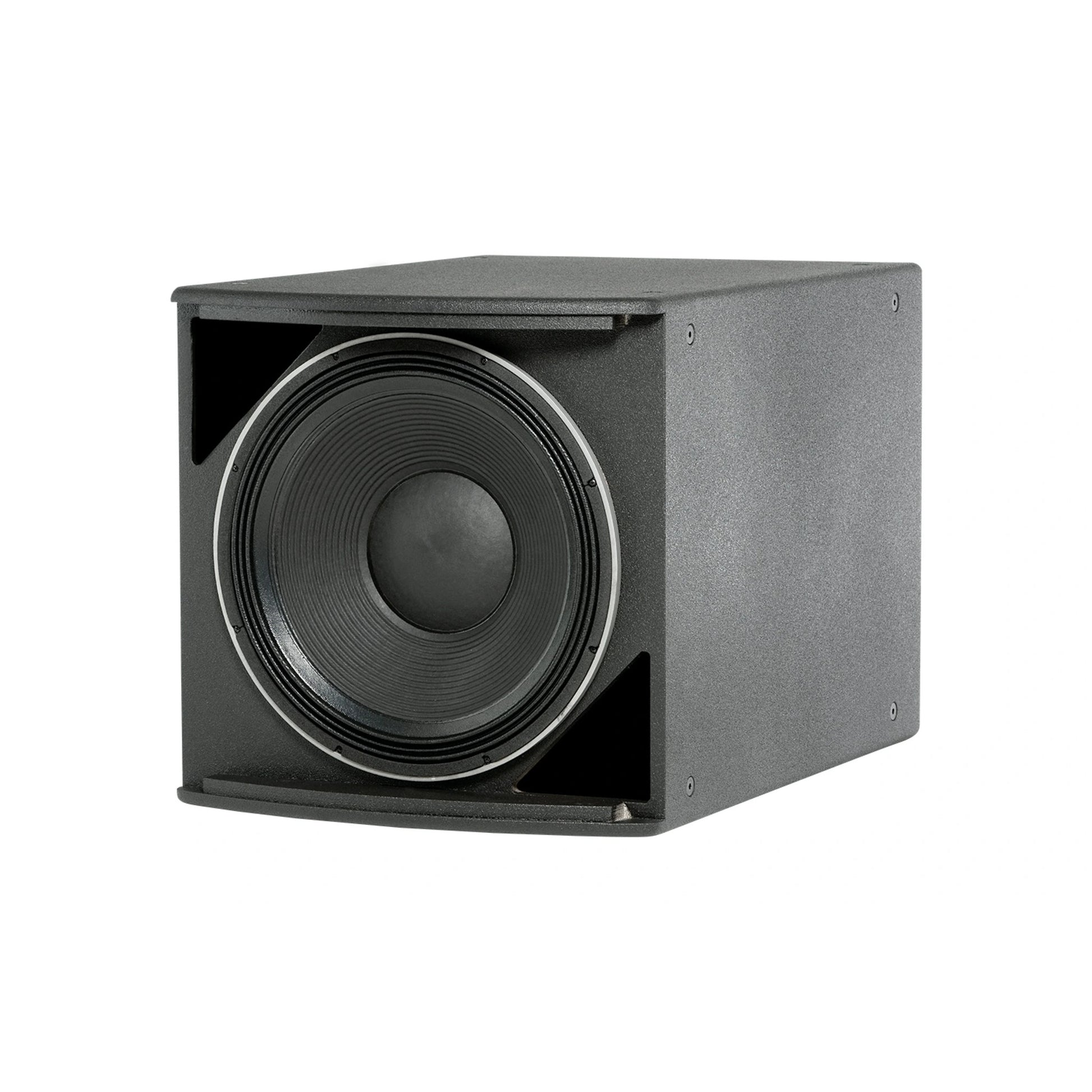

The JBL ASB7118 is a passive subwoofer system designed for professional studio environments where accurate bass response is critical to mixing and mastering decisions. Built around a 2269H 18-inch Differential Drive dual voice coil transducer, this unit delivers extended low-frequency information from 34 Hz upward, making it suitable for ground-stacked deployments or suspended mounting configurations.

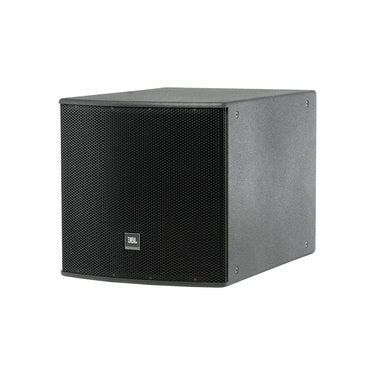

Unlike powered systems, the ASB7118 integrates into existing studio speaker chains via external amplification, giving engineers full control over gain staging and allowing phase matching through FIR tuning parameters. The large vent area minimizes port noise while the hardwood enclosure with DuraFlex finish and 14-gauge steel grille provides isolation and mechanical stability in demanding monitoring applications.

Nominal 8-ohm impedance and system sensitivity of 96 dB-SPL at 1W make the ASB7118 compatible with standard studio power amplifiers and active crossovers, supporting both stereo and surround monitoring setups where extended bass coherence across multiple units is required.

Downloads

View full details

Specifications

Transducer
Transducer Model|2269H
Transducer Type|18" Dual Voice Coil Dual Gap
Magnet Type|Neodymium
Nominal Impedance|8 ohms
Audio Performance
Frequency Range (-10dB)|22 Hz - 1 kHz
Frequency Response (±3 dB)|34 Hz - 1 kHz
System Sensitivity|96 dB-SPL, 1W (2.83V) @ 1m
Maximum SPL (1m) Continuous|25 Hz - 200 Hz: 129 dB-SPL
Maximum SPL (1m) Peak|25 Hz - 200 Hz: 135 dB-SPL
Power Handling
Transducer Power Rating (AES)|2000 W continuous (8000 W peak), 2 hrs
System Power Rating|1200 W continuous (4800 W peak), 100 hrs
Construction
Enclosure Material|Multiply Hardwood
Enclosure Finish|DuraFlex
Grille|14-Gauge Steel
Suspension Points|Sixteen M10
