Specifications
Frequency Response
Frequency Range (-10 dB)|39 Hz – 20 kHz
Frequency Response (±3 dB)|86 Hz – 17 kHz
Coverage
Coverage Pattern|120° x 60°, Rotatable Waveguide
Audio
Sensitivity|100 dB
Continuous Power (Pink Noise, 100 Hr)|400W
Peak Power|1600W
Drivers

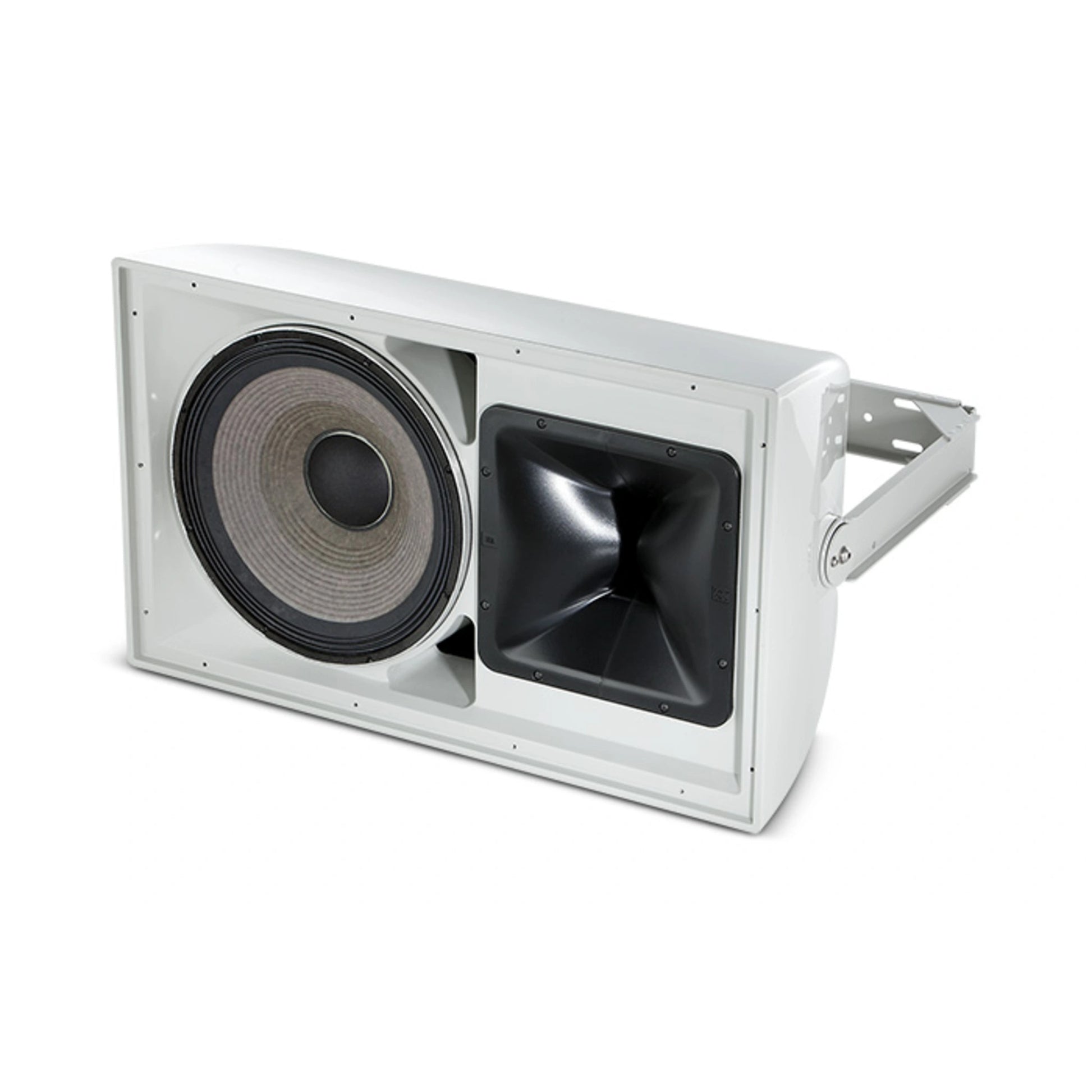

Low-Frequency Driver|15" (380 mm) Differential Drive 2265H
High-Frequency Driver|1.5" (38 mm) Compression Driver 2432H
Connectivity
Transformer|400W 70V/100V Multi-Tap With 8 Ohm Direct
Construction
Enclosure Material|All Fiberglass
Finish|Light Grey (Also Available In Black)
Waveguide|Large PT Progressive Transition, Rotatable
Environmental
IP Rating|IP-55C
Certification|EN54-24
Included Items

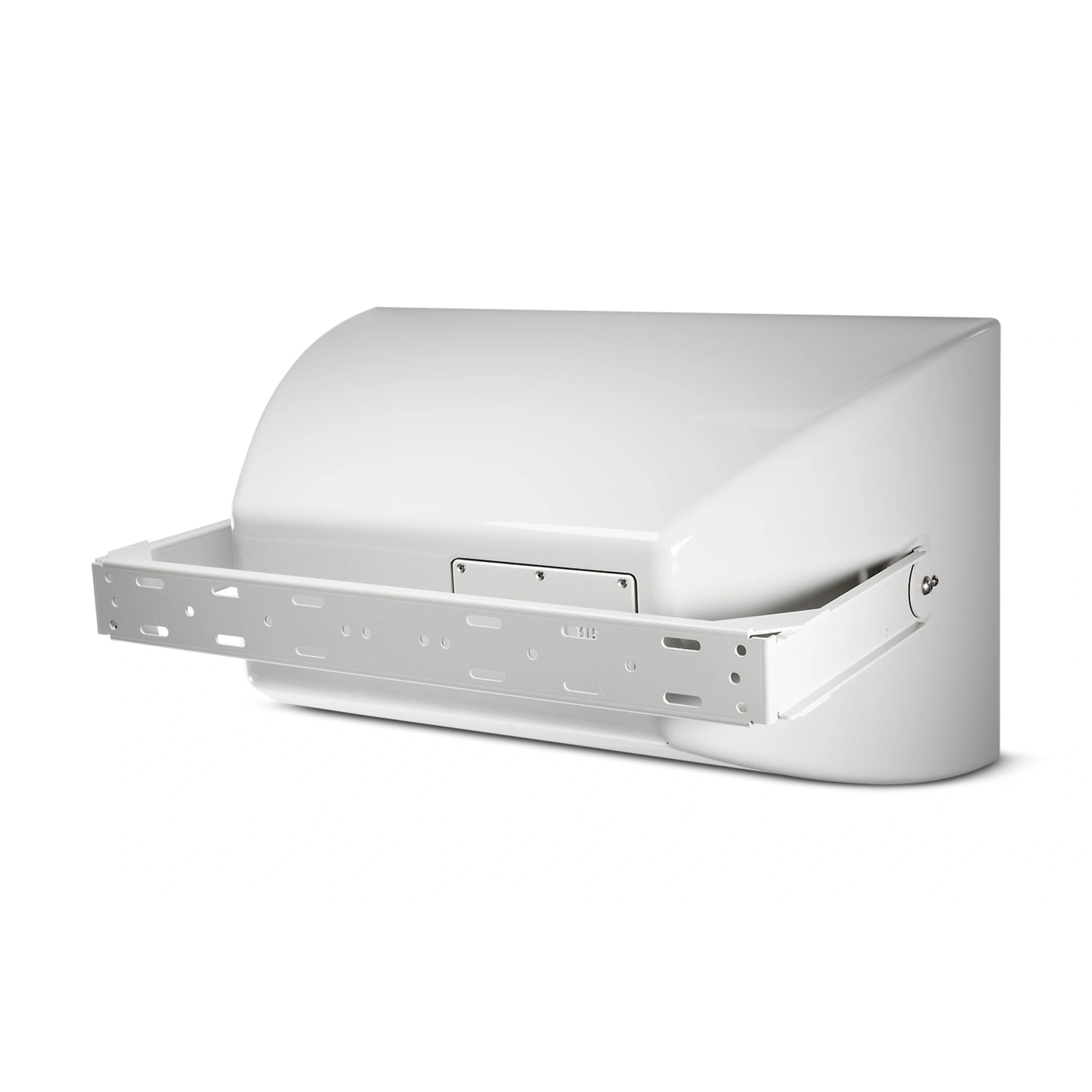

Mounting Hardware|U-Bracket
