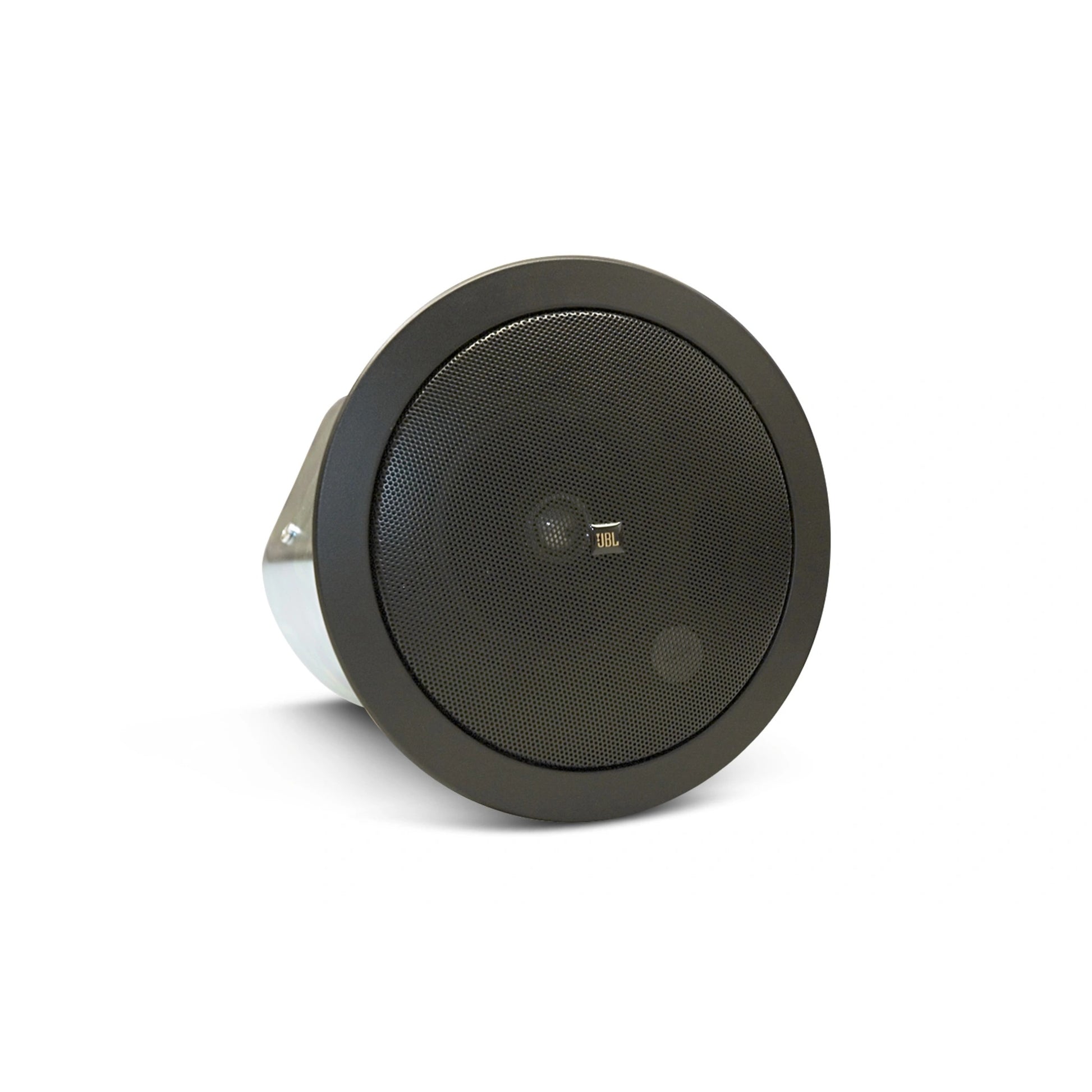

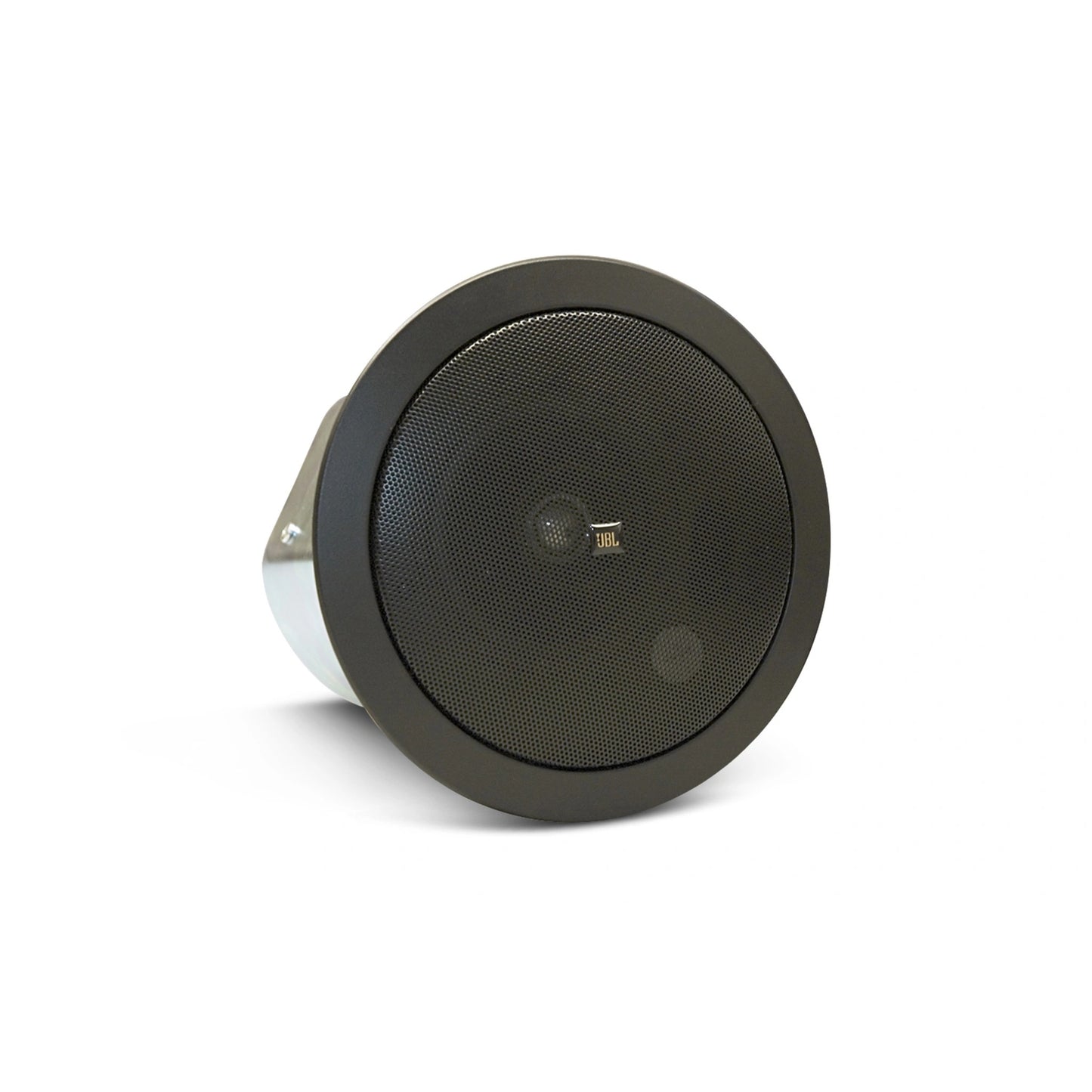

JBL C24CT-BK Professional 2-Way Coaxial Ceiling Speaker

JBL C24CT-BK Professional 2-Way Coaxial Ceiling Speaker

SoundPro Item: 14144 | Part Number: C24CT-BK

$175.00
$175.00 $175.00
Your Price Sold out
MSRP: $175.00 | MAP: $175.00

Usually ships in 5-7 business days

  • Coaxially Mounted 4-Inch Woofer And 0.75-Inch Titanium-Coated Tweeter For Integrated Acoustic Performance
  • Wide 130-Degree Conical Coverage Reduces Required Speaker Count And Overall System Cost
  • 102 dB Maximum SPL Capability Supports High-Output Paging And Foreground Audio Applications
  • Multi-Tap 70V/100V Transformer Enables Flexible Voltage Configuration And System Integration
  • Complete Installation Package Includes Backcan, Grille, And Tile Rails For Fast Deployment
  • Black Finish Integrates Seamlessly Into Dark Ceiling Environments
Log in or register for YOUR best price

The JBL C24CT-BK is a professional pendant ceiling speaker engineered for installed sound systems in commercial, hospitality, and institutional environments. Its coaxially aligned 4-inch woofer and 0.75-inch titanium-coated tweeter work together to produce high sound levels with minimal distortion across an 80 Hz to 20 kHz frequency range, making it suitable for both background music and foreground paging applications.

Built for integrators and facility managers, the C24CT-BK ships with integrated backcan, grille, and tile rails for fast installation and straightforward retrofit into existing ceiling infrastructure. The 130-degree conical coverage pattern reduces the total speaker count required per space, lowering material and labor costs while maintaining consistent acoustic coverage. Its multi-tap 70V/100V transformer accommodates system flexibility and simplifies voltage-matched installation across larger facility networks.

The black baffle and grille blend into dark ceilings, making it ideal for venues where aesthetics matter. Each unit arrives fully assembled and ready for hanging, supporting rapid deployment and dealer inventory management.

Downloads

View full details

Specifications

Acoustic Performance
Frequency Range
80 Hz - 20 kHz
Maximum SPL (1m)
102 dB
Sensitivity
86 dB
Coverage Angle
130° conical
Directivity Factor (Q)
2.4 dB
Directivity Index (DI)
3.8 dB
Drivers
Woofer Diameter
4"
Woofer Material
Polypropylene-Coated
Tweeter Diameter
0.75"
Tweeter Material
Titanium-Coated
Electrical
Continuous Power Rating (Pink Noise)
40W
Transformer Type
30W 70V/100V Multi-Tap
Transformer Taps (70V)
30W, 15W, 7.5W, 3.7W
Included Items
Backcan
Yes
Grille
Yes
Tile Rails
Yes
