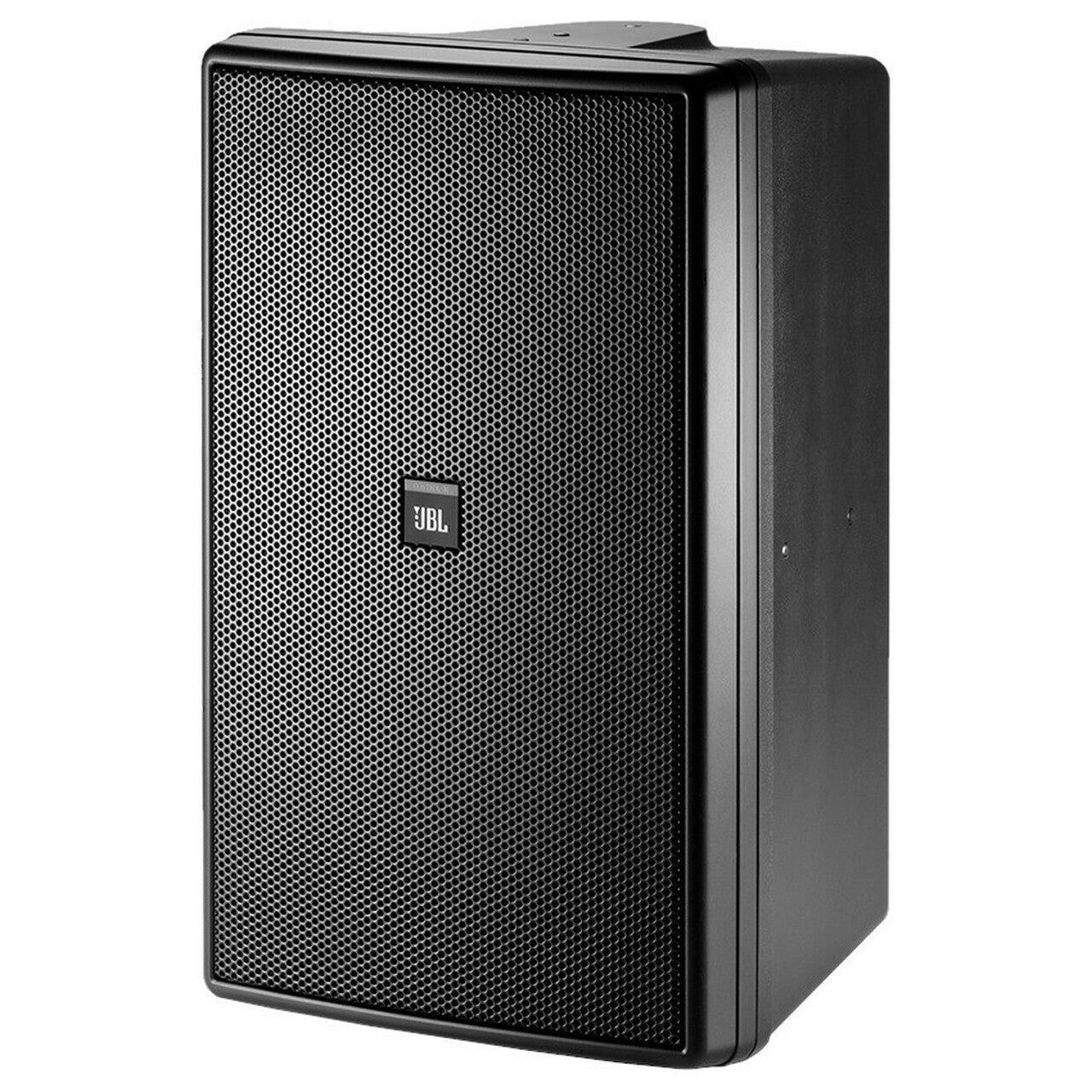

• JBL Control 31 10" 2-Way Monitor Speaker
1 1

JBL Control 31 10-Inch Surface Mount Speaker | Color: Black

JBL Control 31 10-Inch Surface Mount Speaker | Color: Black

SoundPro Item: 74046 | Part Number: CONTROL 31

$855.00
$1,026.00 $855.00
Your Price Sold out
MSRP: $1,026.00 | MAP: $855.00

Usually ships in 5-7 business days

  • 250 Watt capability (in 8O thru setting), plus 150 Watt transformer for 70V or 100V distributed lines, with 8O thru bypass
  • Extended bandwidth, extremely smooth frequency response
  • Highly outdoor-capable design with included WeatherMax™ multi-layer grille and optional marine-kit grille for salt-air environments
  • 110° x 110° symmetrical coverage
  • Includes InvisiBall™ mounting hardware plus ten 6 mm attachment points for suspension and optional U-bracket
  • Included sealed input panel cover and screw-down input terminals for secure connection
  • Components:
    • 250 mm (10 in) woven fiberglass cone LF driver with 52 mm (2 in) voice coil
    • High-output 2414H-C compression driver with 25 mm (1 in) exit, unique (patented) design and high-temperature polymer diaphragm
Log in or register for YOUR best price

The Control 31 utilizes high-power components, computer optimized horn, and a complex network to achieve smooth, powerful high-fidelity performance, extended bandwidth, and well-controlled defined coverage from a compact loudspeaker.

View full details
  • Frequency Range (-10dB) 33Hz – 19kHz
  • Frequency Response (±3 dB) 42Hz – 14kHz
  • Power Ratings 250 W (1000 W peak), 2 hrs. 200 W (800 W peak), 100 hrs.
  • Maximum SPL (1m) 116 dB continuous (123 dB peak)
  • Sensitivity 92 dB
  • Coverage Angle 110° x 110°
  • Directivity Factor (Q) 5.7, averaged 500 Hz to 10 kHz
  • Directivity Index (DI) 7.3 dB, averaged 500 Hz to 10 kHz
  • Impedance 8 ohms
  • Crossover Type 2nd order low-pass, 2nd order high-pass, plus conjugate shaping circuitry.
  • Transformer Taps 70V: 150W, 75W, 38W, 19W 100V: 150W, 75W, 38W Insertion Loss: <0.65 dB at any tap setting Thru Setting: 8Ω nominal
  • Recommended High-Pass Protective 40 Hz high-pass (24 dB/oct) for any transformer tap and for 8Ω operation
  • Drivers
    • LF: 250 mm (10 in) woven-fiberglass cone with pure butyl rubber surround, 52 mm (2 in) voice coil on high-temperature fiberglass voice coil former, optimized cone geometry, linear suspension spider, FEA-optimized motor construction, aluminum ring on pole piece.
    • HF: JBL 2414H-C compression driver with 25 mm (1 in) diaphragm and voice coil diameter, high temperature polymer diaphragm, JBL-patented design, fluid-cooled.
  • Enclosure High impact Polystyrene (HIPS) with 10% glass fill plus patent-pending internal 5 mm foamed polyurethane secondary mold for additional cabinet density.
  • Grille Zinc-plated and thermoset-composite coated steel, WeatherMax™ multi-layer foam with tight-weave mesh vapor barrier.
  • Mounting hardware InvisiBall wall-mounting system included. Ten 6 mm attachment points on cabinet for suspending or for optional U-bracket. One 6 mm secondary safety attachment point (for forged shoulder steel eyebolt, not included) on back panel.
  • Outdoor Capability IP-55 per IEC529. Exceeds MilSpec 810 for humidity, salt-spray, temperature & UV. Passes MilStd-202F for salt spray. Optional MTC-30MK marine-kit grille increases longevity in highly corrosive environments.
  • Input Connectors Screw-down terminal strip, zinc-plated copper based, nickel-plated metal screws and washers. Accepts up to 9 mm outside 4 mm inside open lugs (#6, #8, or #10 lug), plus bare wire (up to 12 AWG / 2.5 mm2).
  • Safety Agency Transformer is listed per UL1876
  • Colors Black (RAL9004) or white (-WH, RAL9003)
  • Dimensions (H x W x D) 593 x 372 x 345 mm (23.3 x 14.6 x 13.5 in)
  • Net Weight (each) 18.8 kg (41.5lb)
  • Shipping Weight (ea) 22 kg (48.5 lb)
