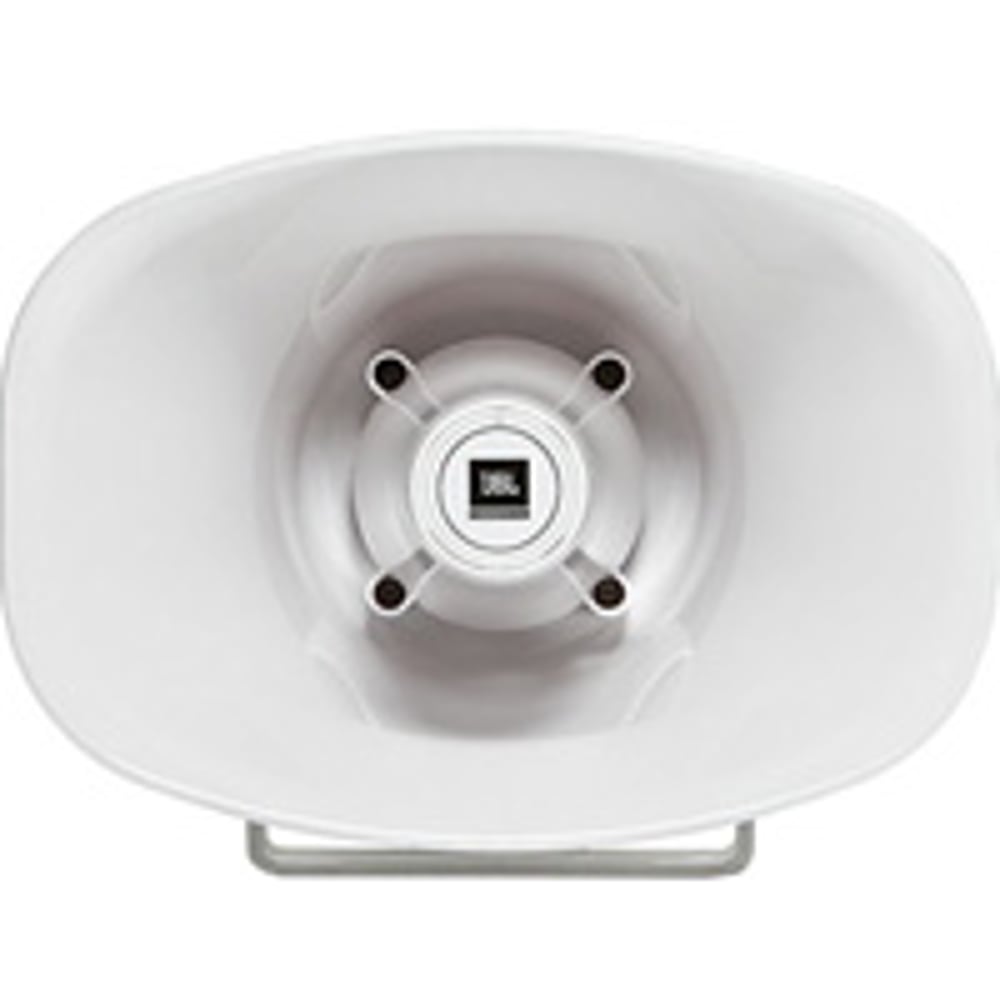

JBL CSS-H30 30 Watt Paging Horn
JBL CSS-H30 30 Watt Paging Horn
SoundPro Item: 14947 | Part Number: CSS-H30
Usually ships in 5-7 business days
- Excellent voice range clarity for announcement and paging
- High sensitivity delivers high sound levels with minimal power amplification
- Wide 50° horizontal by 70° vertical coverage for long throw capability
- Phenolic diaphragm driver for outdoor durability and high reliability
- UL-registered 30W multi-tap transformer, with 8Ω direct bypass
- Built-in high-pass filter enhances reliability by protecting against low frequency damage
- IP65-rated weather-resistant with included stainless steel bracket and hardware
- Color: RAL9016 (horn and bracket)
The white Commercial Solutions Series CSS-H30 30W Paging Horn from JBL provides excellent voice range clarity for public address systems, announcement/paging, intercom, security, alarm, and industrial applications. Designed for demanding environmental conditions, the IP65-rated CSS-H15 is highly weather resistant, so it can be used in either indoor or outdoor applications. The focused coverage pattern is suitable for applications that require long throw capability. This paging horn is suitable for public access areas, warehouses, factories, schools, recreational facilities, commercial buildings, distribution centers, civic centers, and other commercial sound and protective-signaling systems. The CSS-H30 Paging Horn includes a UL-registered 30W multi-tap transformer for use with 70V or 100V distributed speaker lines. The power tap switch is screwdriver-adjustable for easily changing settings from 30W, 15W, 7.5W, 3.8W (and 1.9W at 70V only). For non-distributed systems there is an 8Ω bypass position. Connection is via bare wire on a built-in jacketed cable with water-tight entrance to the speaker. The transducer diaphragm is made of sturdy phenolic material to enhance durability, especially in outdoor applications, and to resist deformation under stressful temperature conditions. To further increase reliability, a 350 Hz high-pass filter is built-in to protect the paging horn against damage from frequencies below the operational frequency band. The horn is made of sturdy ABS plastic and the exterior hardware is made of corrosion-resistant stainless steel.
Specifications
