JBL Control 412C/T-U 3" Full-Range Ceiling Speaker | White

JBL Control 412C/T-U 3" Full-Range Ceiling Speaker | White

SoundPro Item: 202139 | Part Number: JBL-C412C/T-U

$150.00
$150.00 $150.00
Your Price Sold out
MSRP: $150.00 | MAP: $150.00

Usually ships in 5-7 business days

  • 3 in driver supports full-range program audio

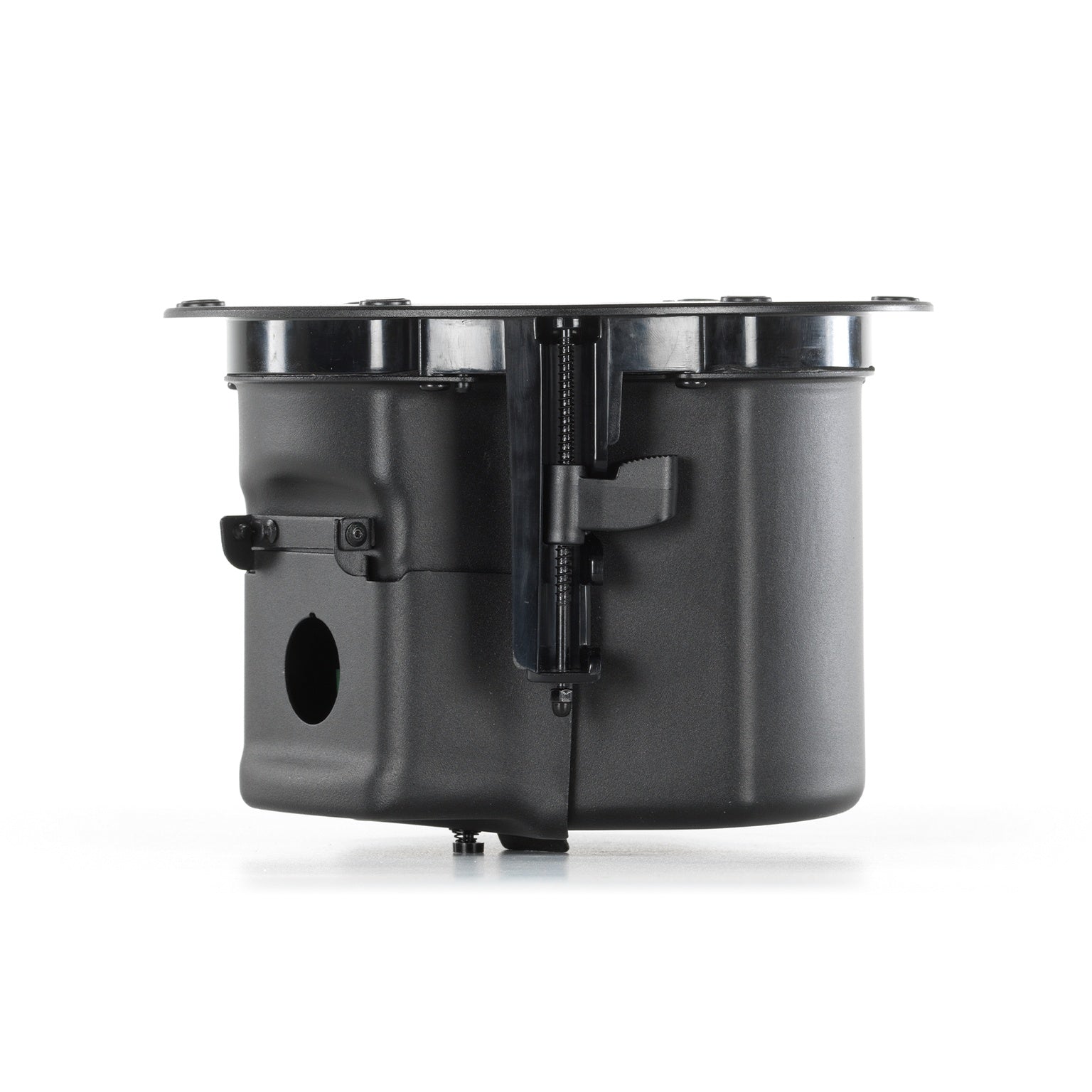

  • Integrated backcan suits plenum ceiling spaces
  • 70V/100V taps plus 8-ohm direct connection
  • Magnetic grille can be painted to match decor

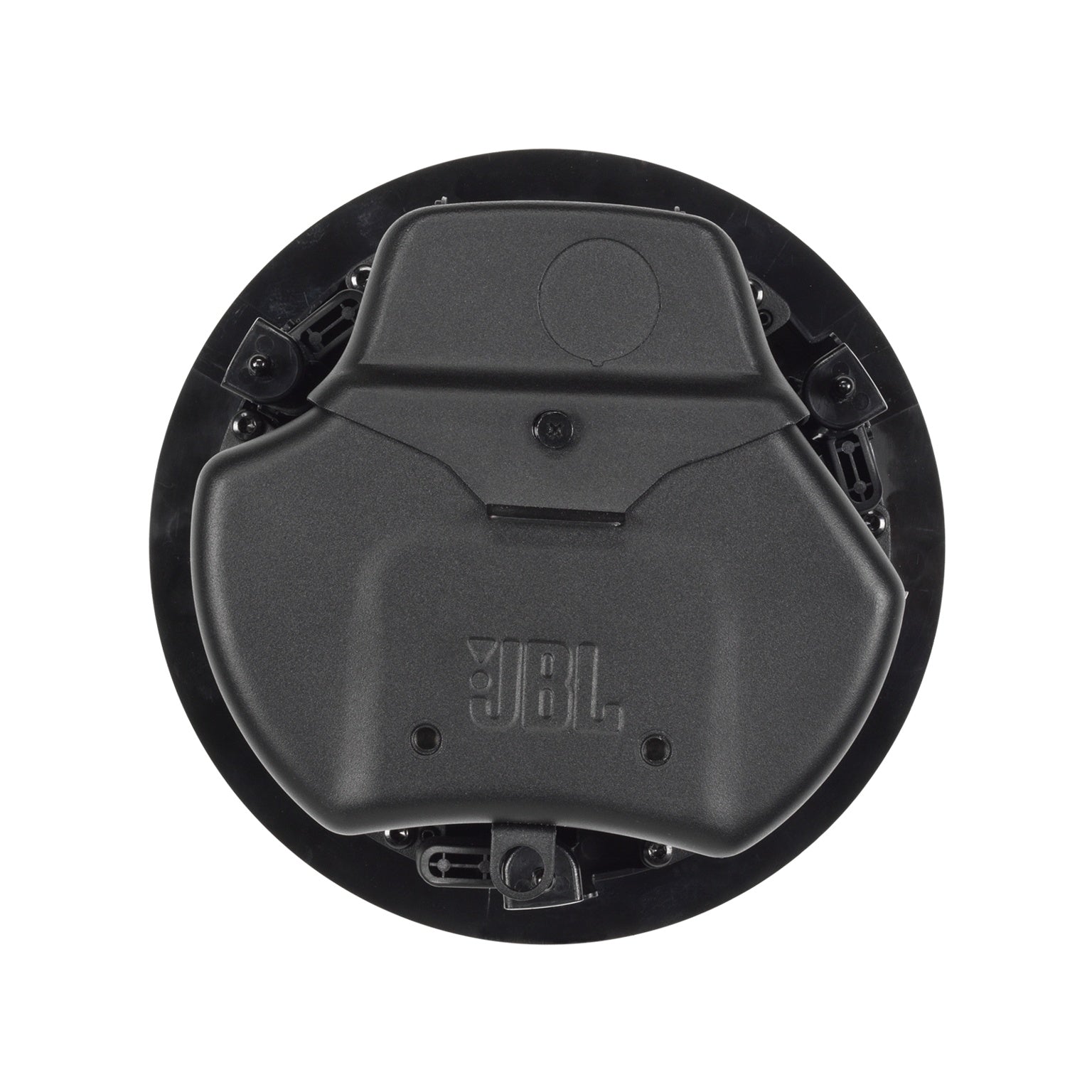

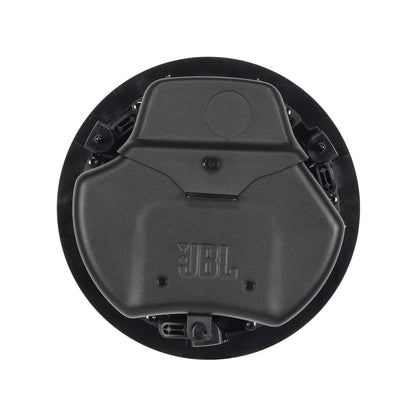

  • Top or side entry simplifies cable routing
  • Captive dogears fit varied ceiling thickness
  • IP33 rating supports added environmental cover
Log in or register for YOUR best price

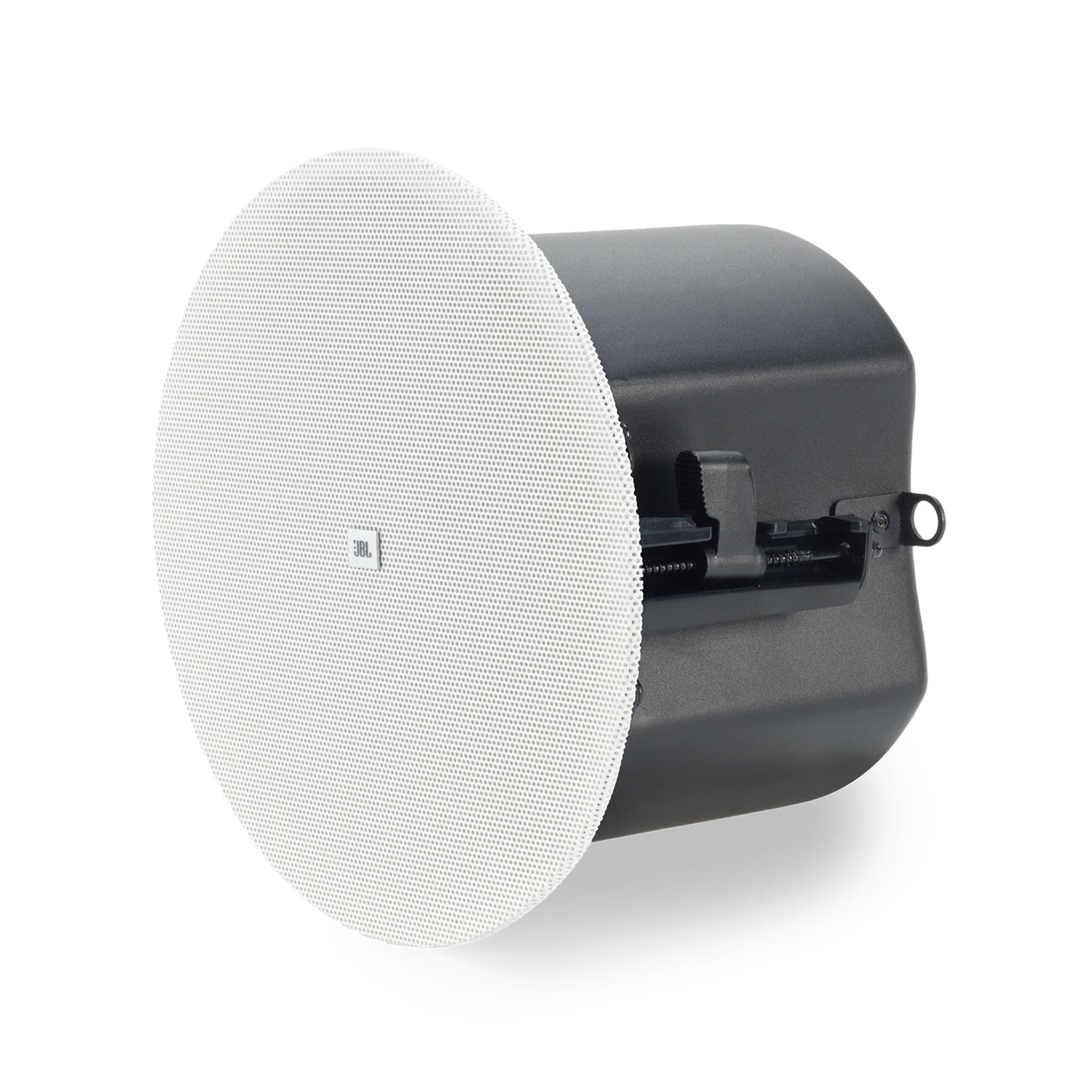

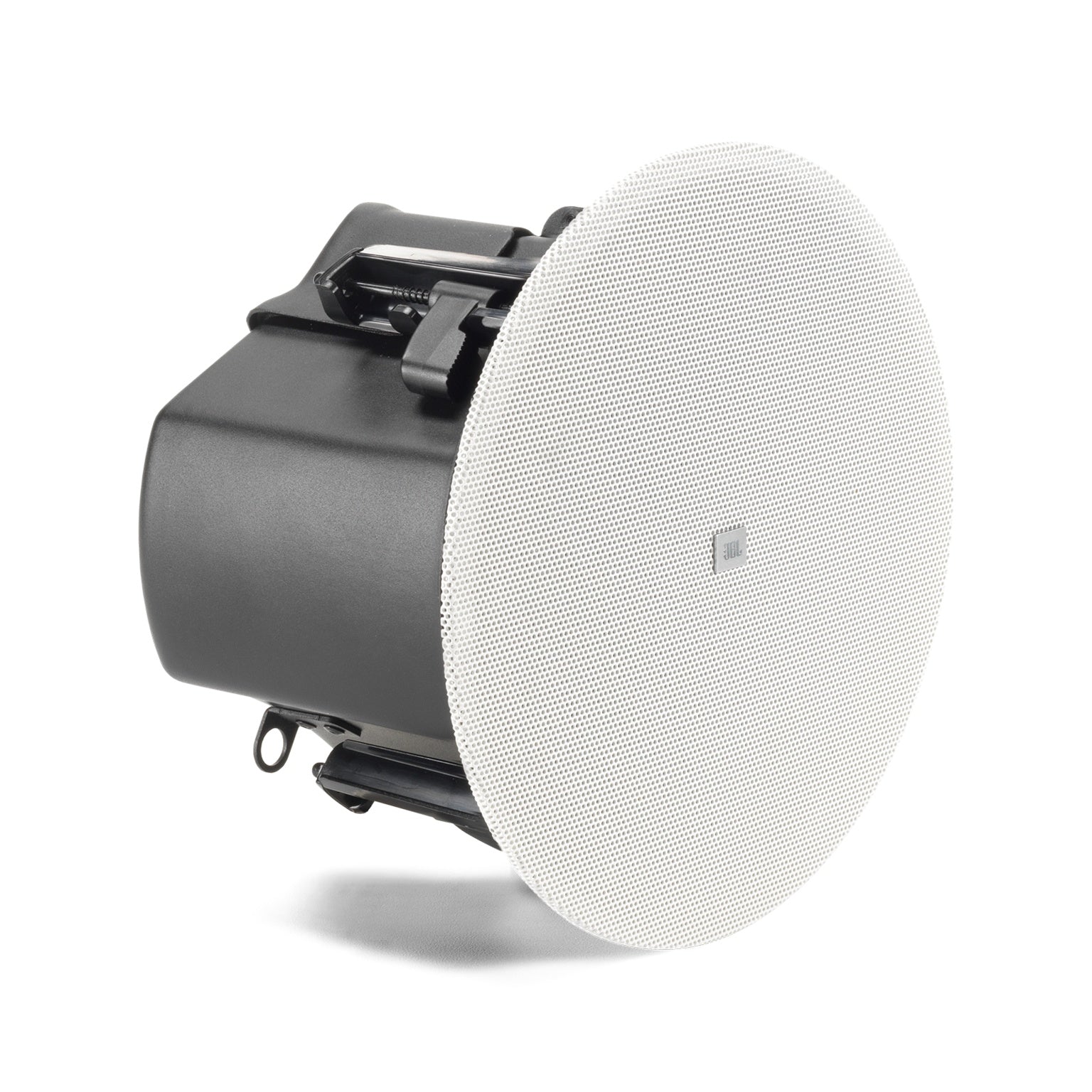

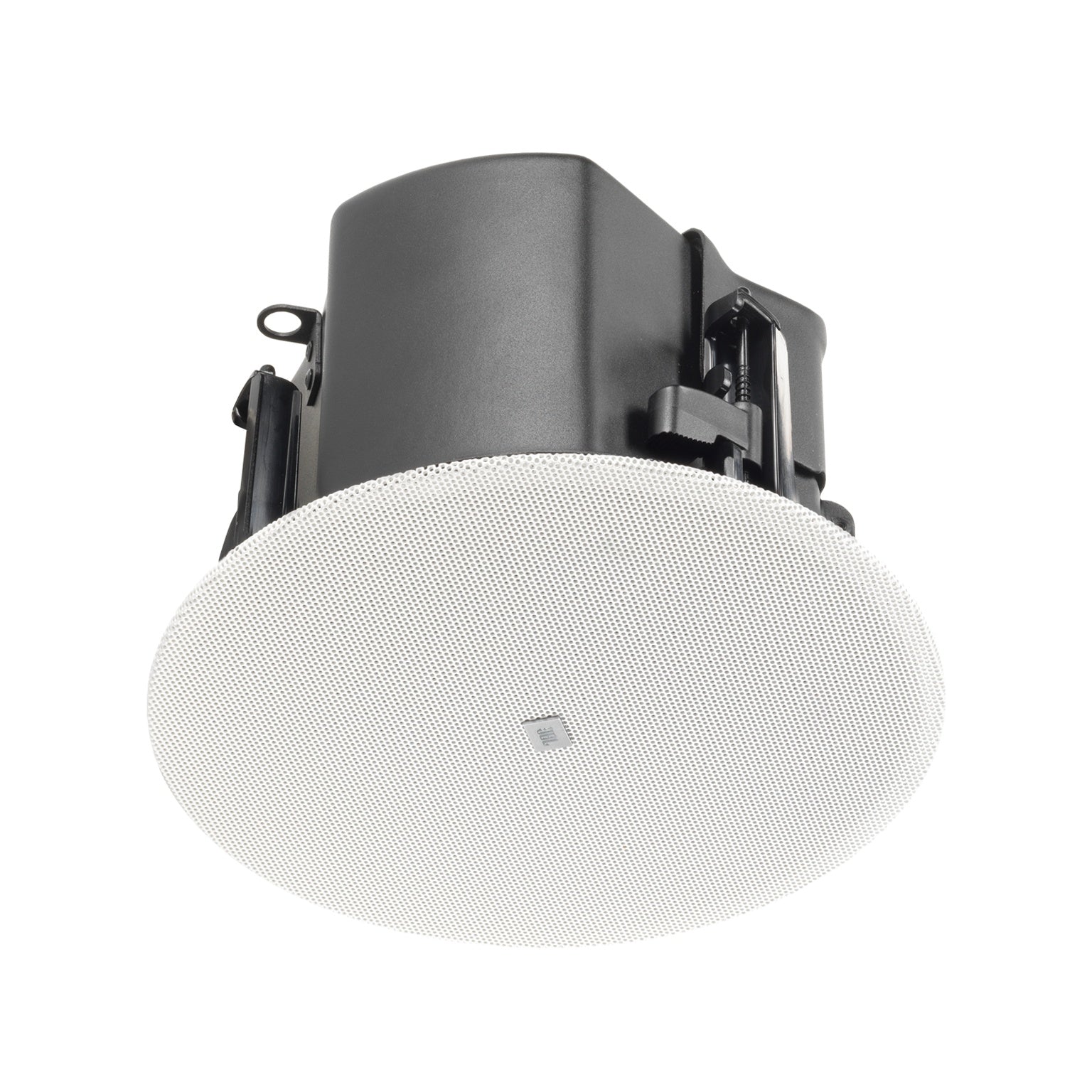

The JBL Control 412C/T is a full-range ceiling loudspeaker in the Control 400 Standard Coverage Series, built around a 76 mm (3 in) driver and an integrated enclosure for installation in most ceiling plenum spaces.

It supports 70V/100V distributed audio and 8-ohm direct connection, allowing flexible system configuration for commercial audio projects. A full-face magnetic grille is paintable for clean visual integration, while the terminal cover supports top or side cable entry.

For installation adaptability, the captive dogear design accommodates a range of ceiling thicknesses, and the enclosure is rated IP33.

View full details

Specifications

Performance
Frequency Range (-10 dB)
68Hz - 17kHz
Power Capacity
30W (120W Peak) Cont. Pink Noise (2 hrs) 20W (80W Peak) Cont. Pink Noise (100 hrs)
Sensitivity (1m/1W)
84dB
Coverage Angle
160° conical
Maximum SPL (1m)
99 dB continuous pink noise (105 dB peak)
Nominal Impedance
8Ω
Transformer Taps
70 V: 15 W, 7.5 W, 3.8 W & 1.9 W 100 V: 15 W, 7.5 W, 3.8 W
Drivers

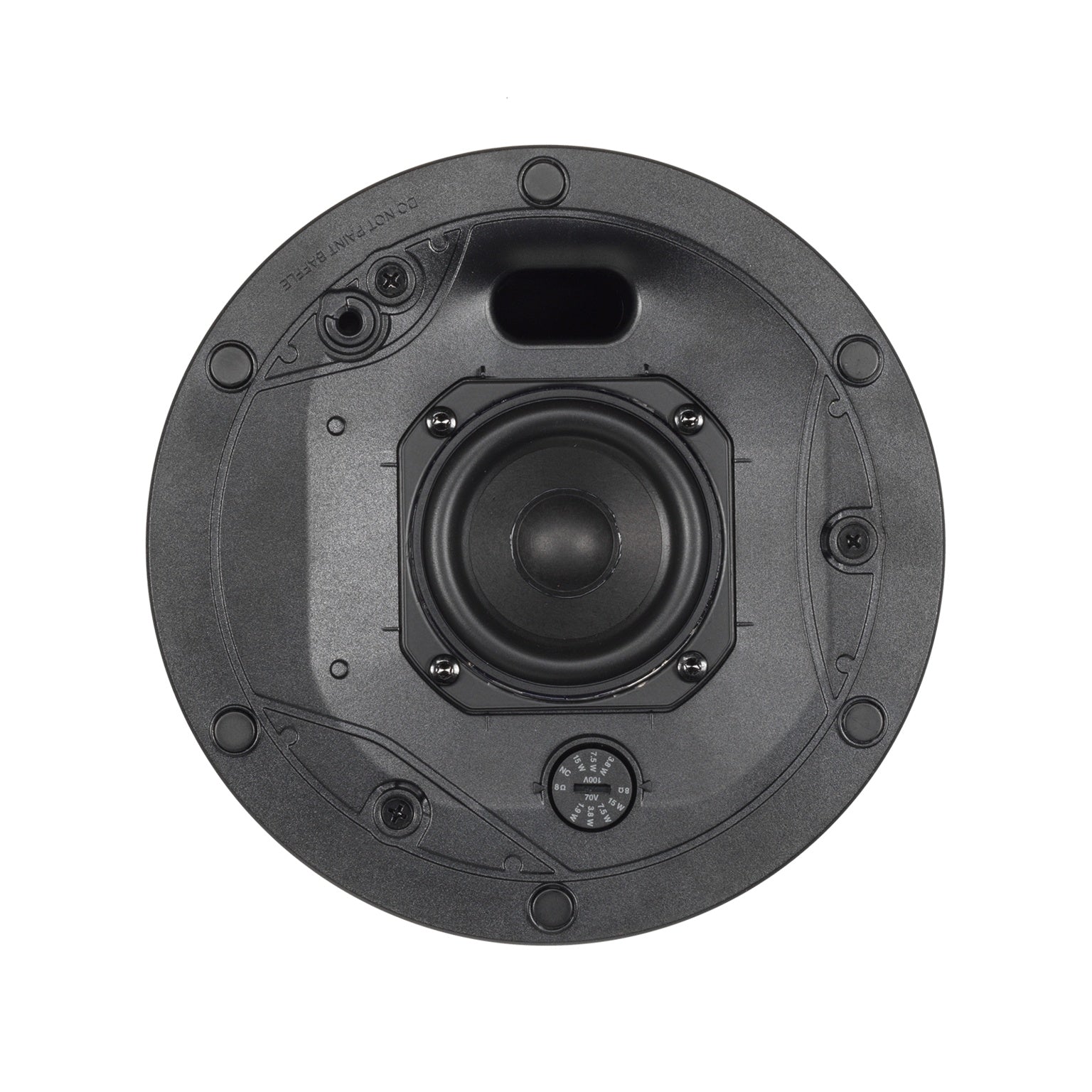

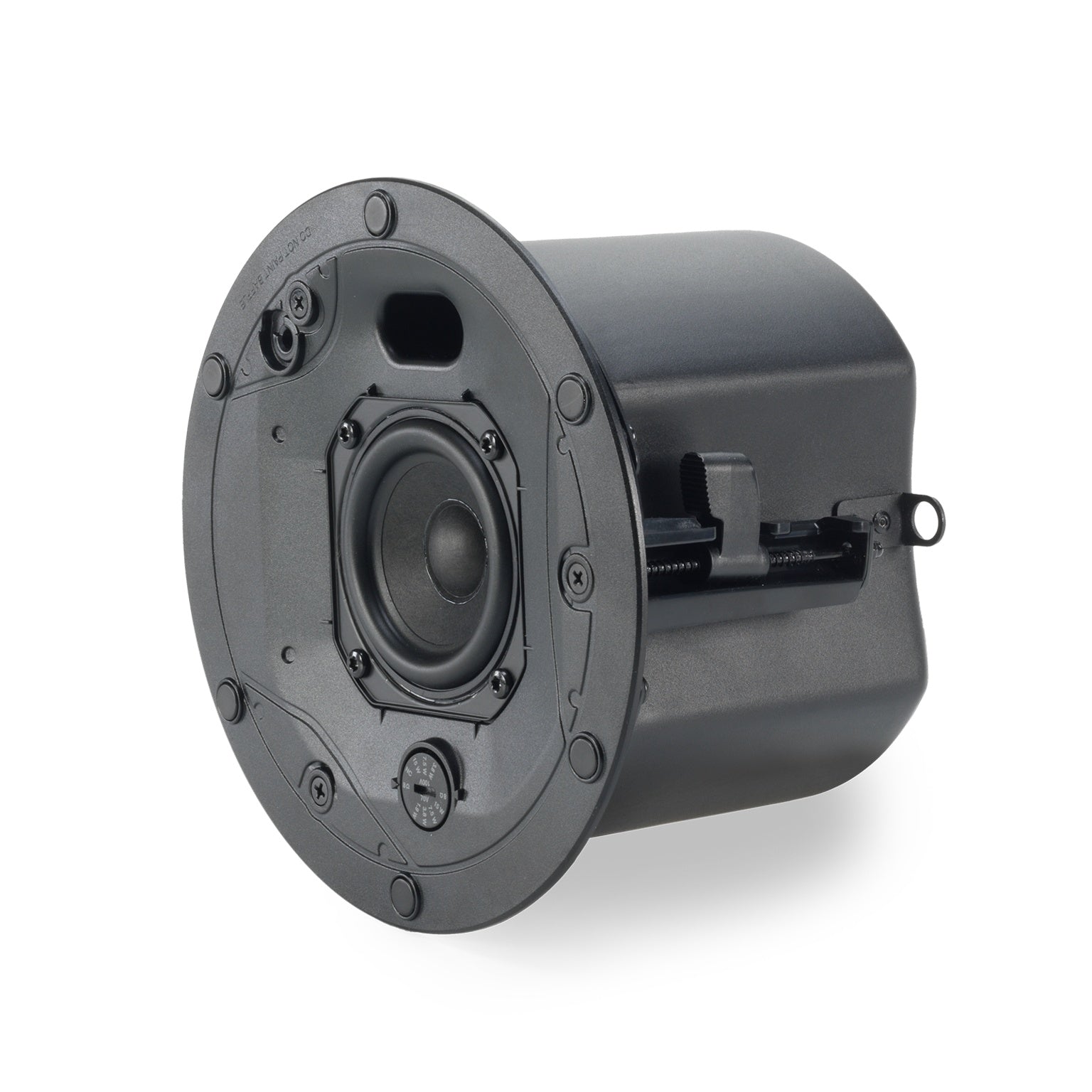

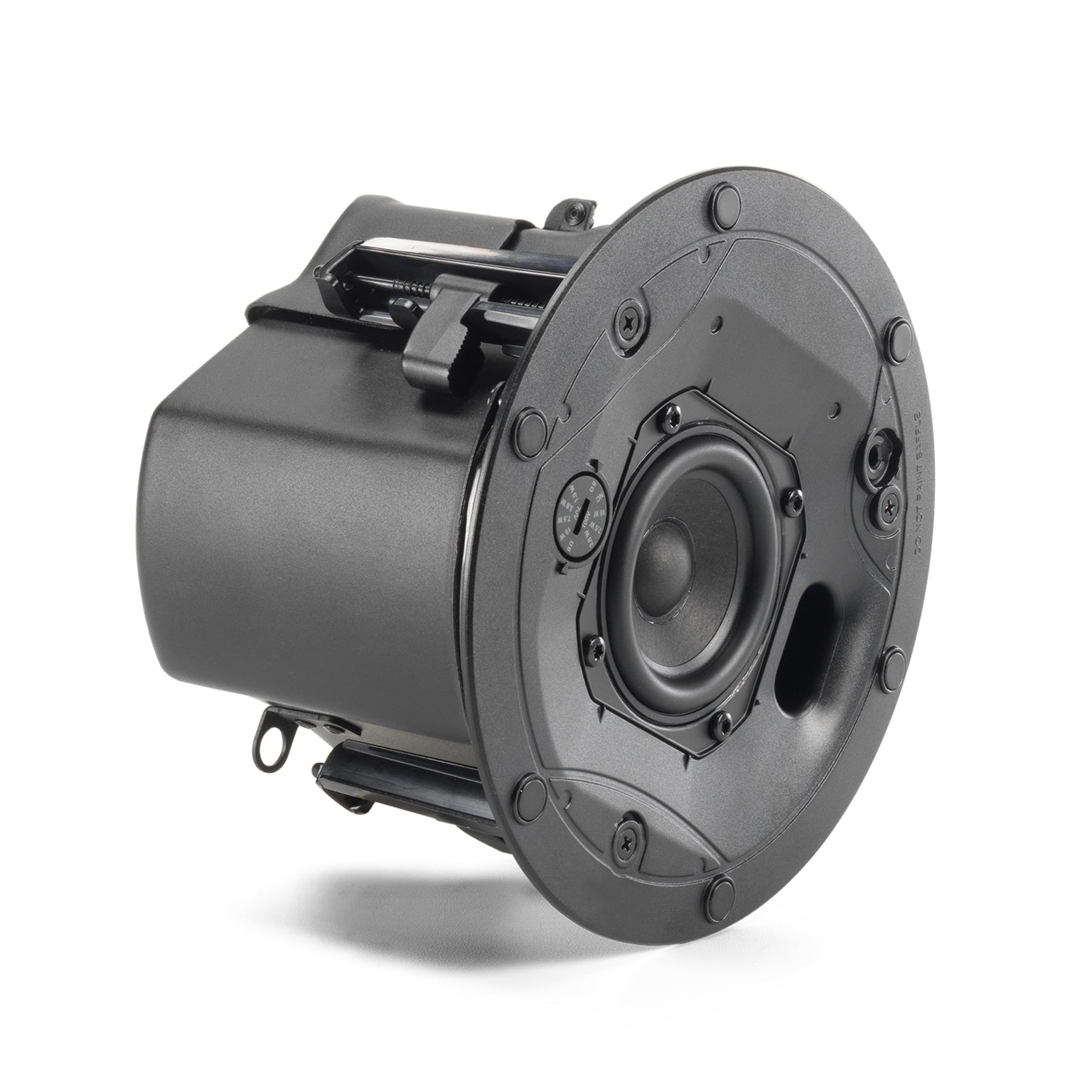

76 mm (3 in) full range driver with paper cone and SBR surround
Installation
Ceiling Cutout Size
168 mm (6.6 in)
Dimensions
143 mm (5.7 in) H x 203 mm (8.1 in) dia. 134 mm (5.4 in) from bottom of ceiling tile to top of backcan
Color
Stock grille is White (RAL9003), paintable
Compliance and Environmental
Safety Agency Rating
Suitable for use in air handling spaces per UL 2043, NFPA 90A & NFPA 70, CSA C22.2 no. 205 listed. Listing per UL 1480A Speakers for Commercial and Professional Use. UL registered Transformer.
Environmental
IP rating: IP33 per EN/IEC 60529. Operating temperature: 0° C to 45 °C.
Accessories
Optional Accessories
JBL-MTC-414BG black (RAL9004) round grille JBL-MTC-414SG white (RAL9003) square grille JBL-MTC-414WG white (RAL9003) weather grille JBL-MTC-424NC new construction bracket JBL-MTC-424MR mud-ring construction bracket JBL-MTC-48TRX4 tile rail for 4' x 4' ceiling tiles
Weights and Identification
Net Weight (ea)
1.75 kg (3.86 lbs)
Shipping Weight (pair)
7.92 kg (17.46 lbs)
SKU Numbers
JBL-C412C/T
