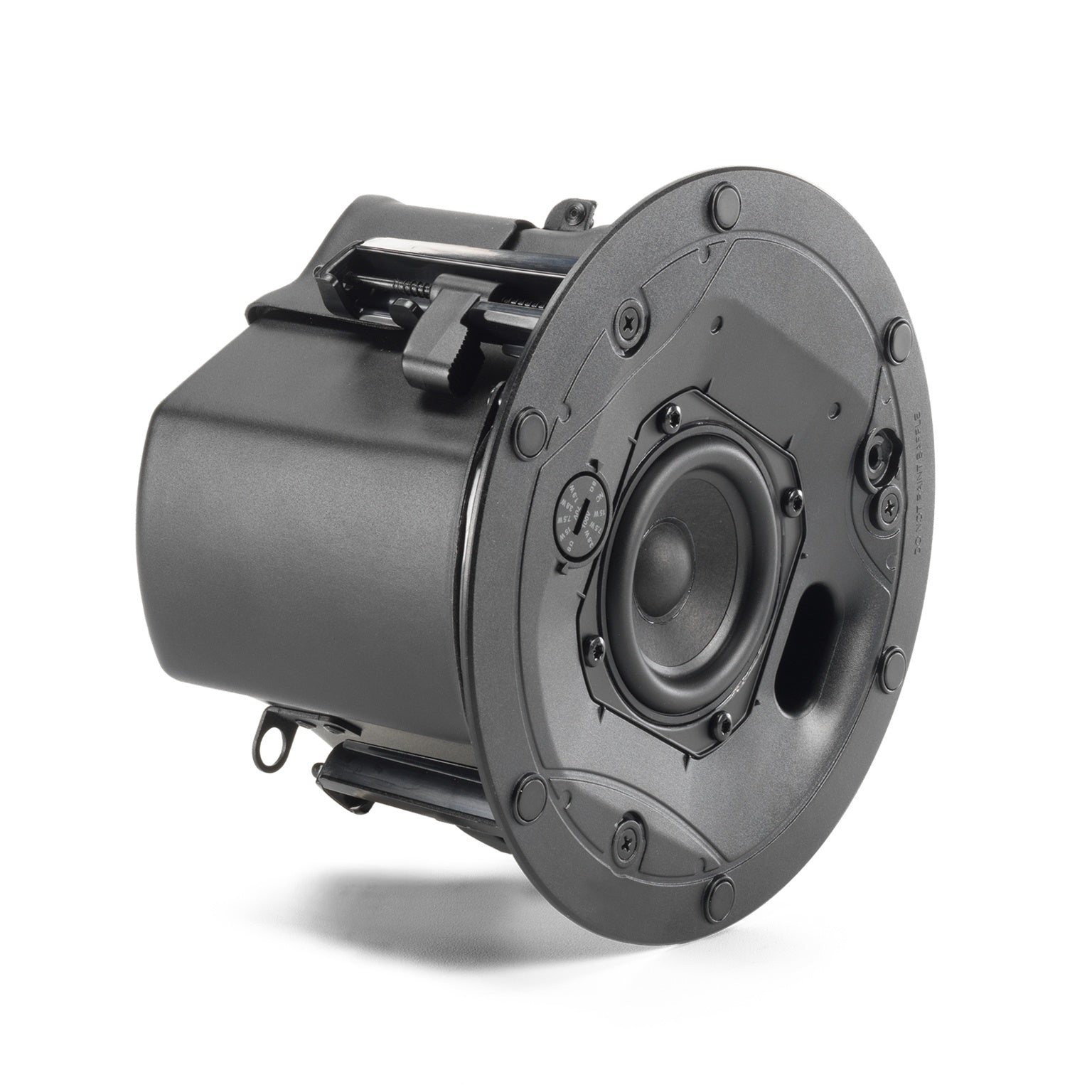

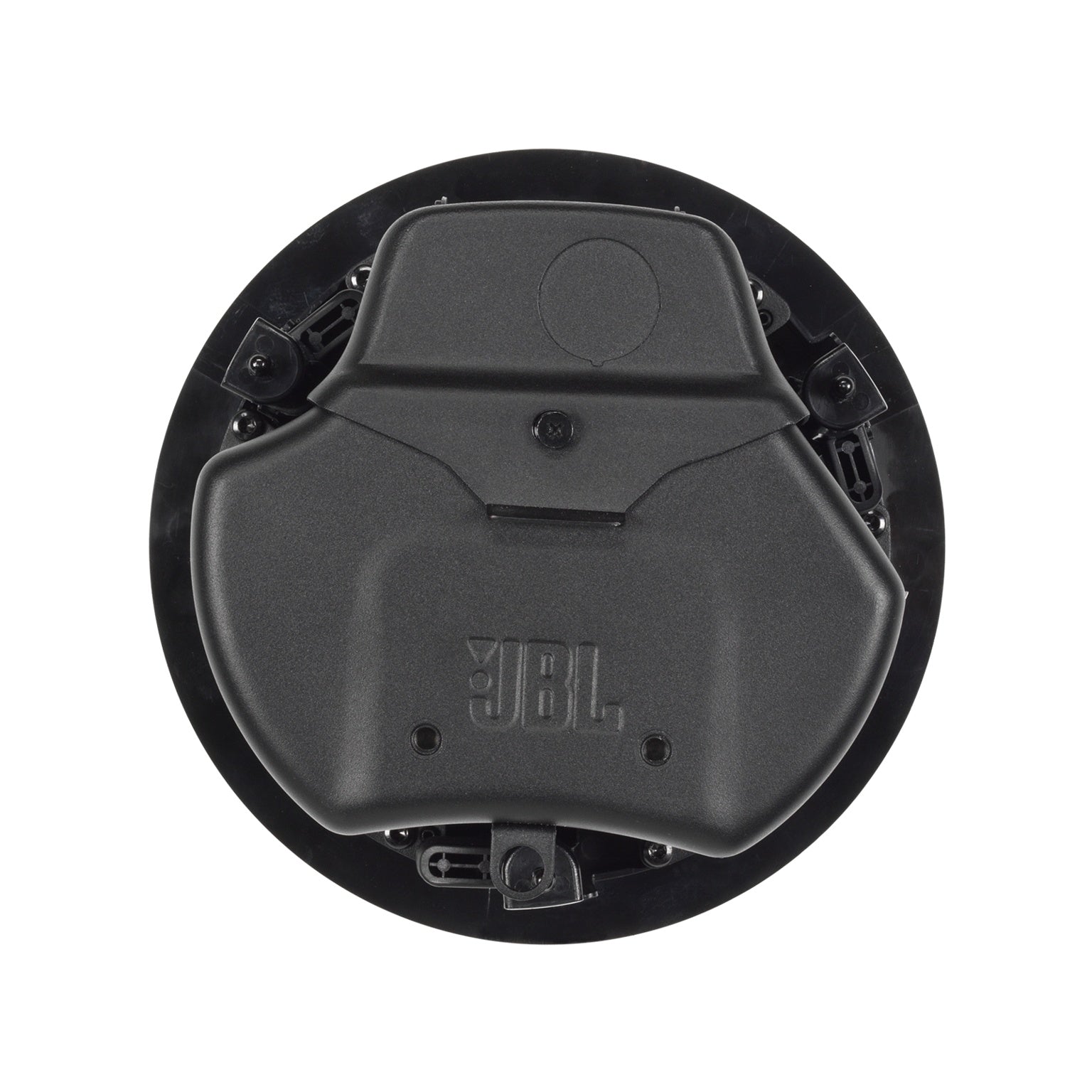

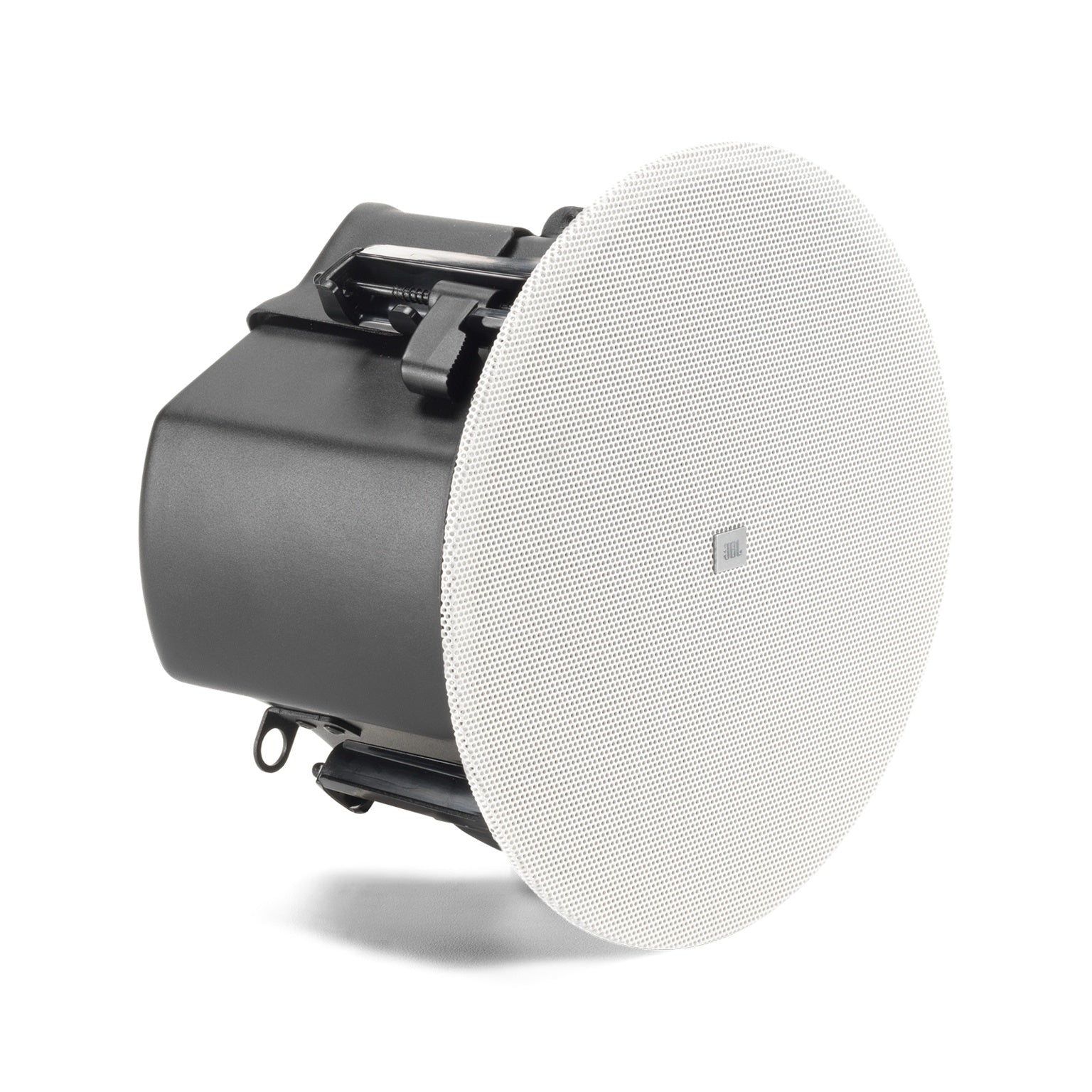

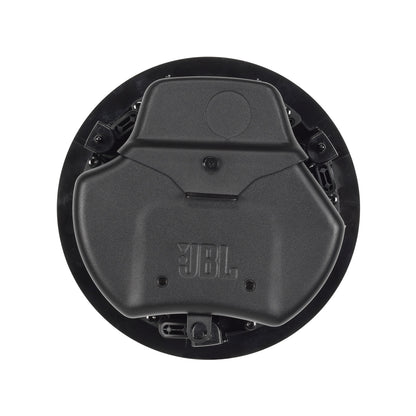

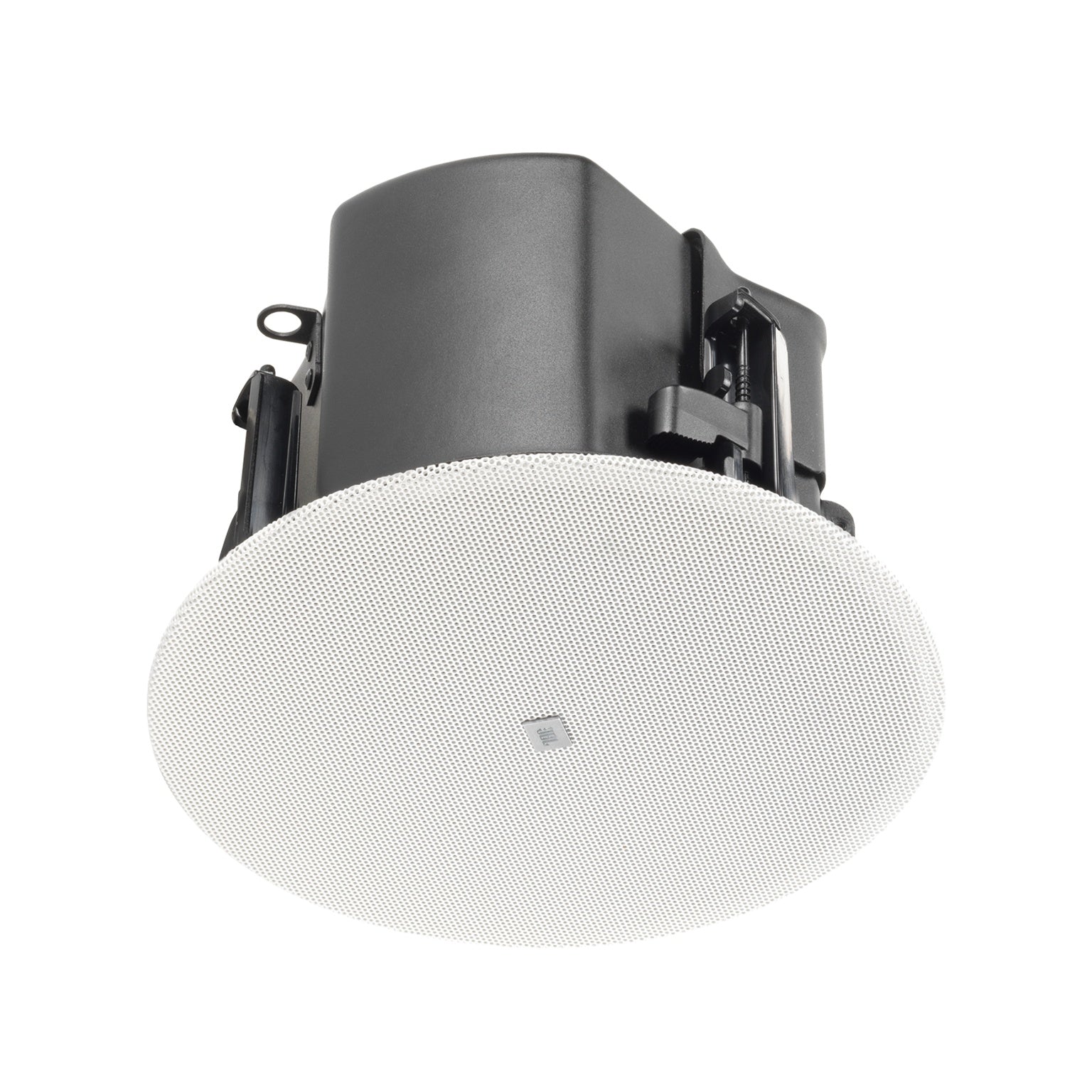

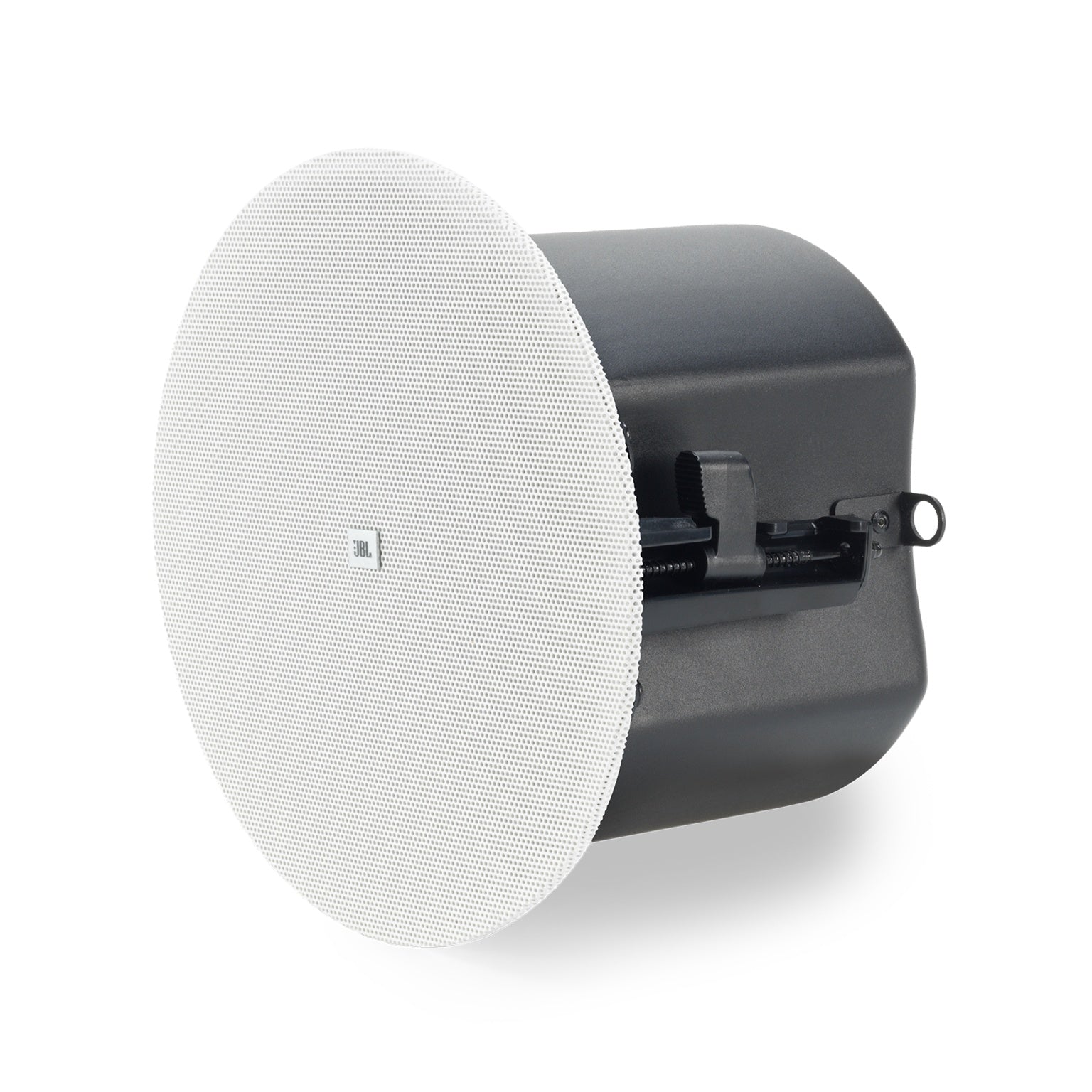

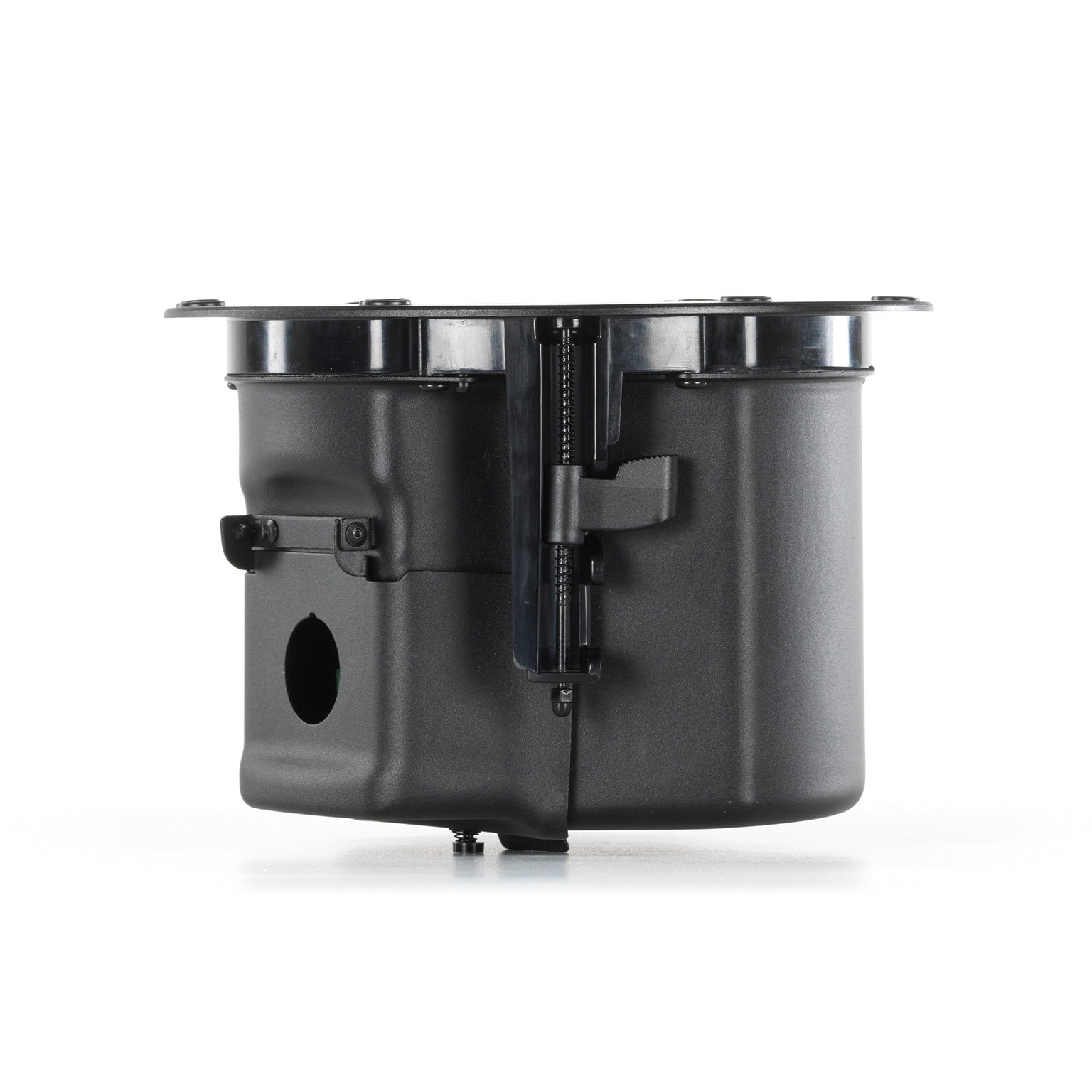

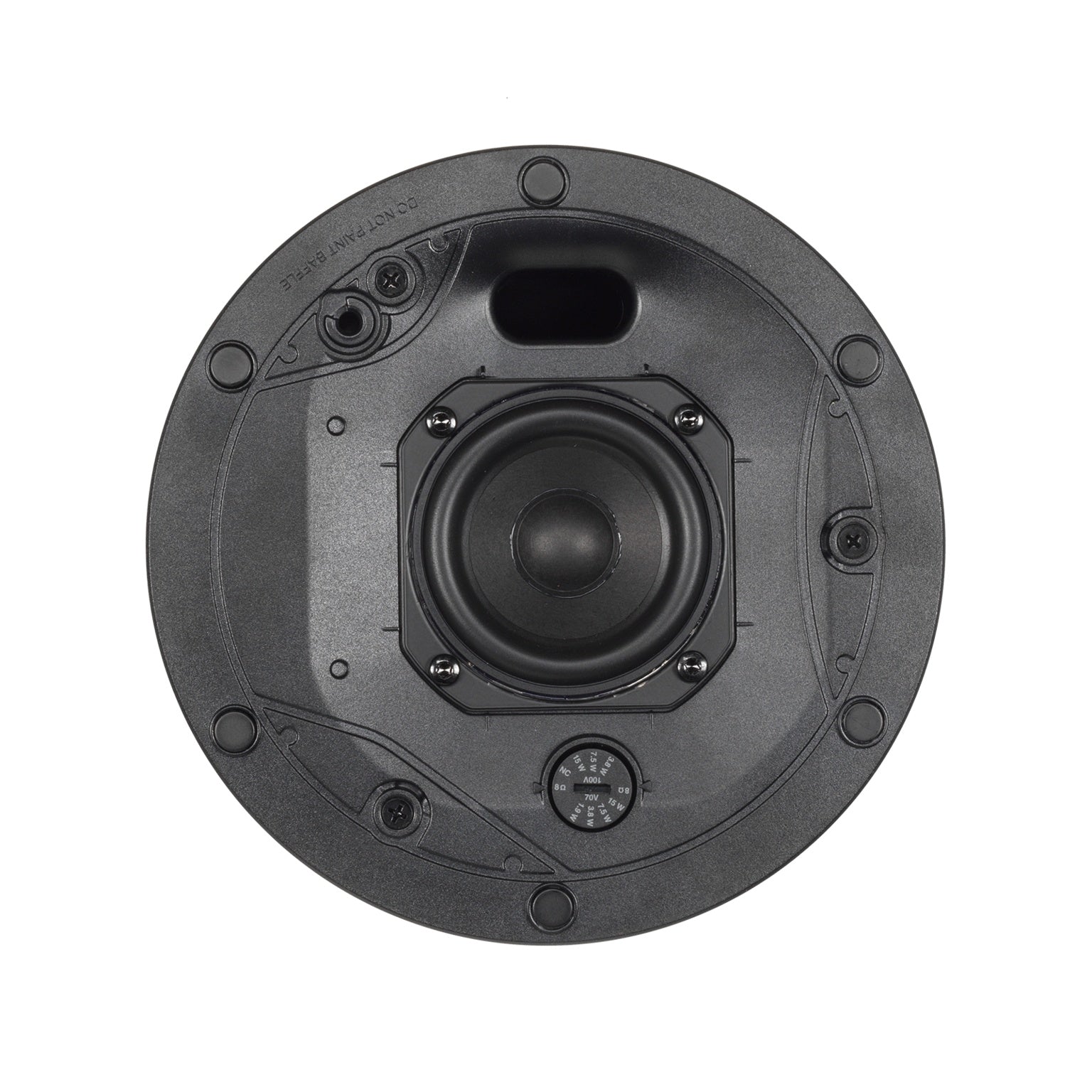

JBL Control 412C/T-VA-U Full-Range Ceiling Speaker EN54-24 Certified | White

JBL Control 412C/T-VA-U Full-Range Ceiling Speaker EN54-24 Certified | White

SoundPro Item: 202141 | Part Number: JBL-C412C/T-VA-U

$186.00
$186.00 $186.00
Your Price Sold out
MSRP: $186.00 | MAP: $186.00

Usually ships in 5-7 business days

  • 3 in driver supports full-range voice reproduction
  • Integrated back can suits plenum spaces
  • 70V/100V taps plus 8-ohm direct connection
  • Paintable magnetic grille fits room aesthetics
  • Top or side entry simplifies cable routing
  • Captive dogears fit varied ceiling thicknesses
  • IP33 rating supports protected indoor use
Log in or register for YOUR best price

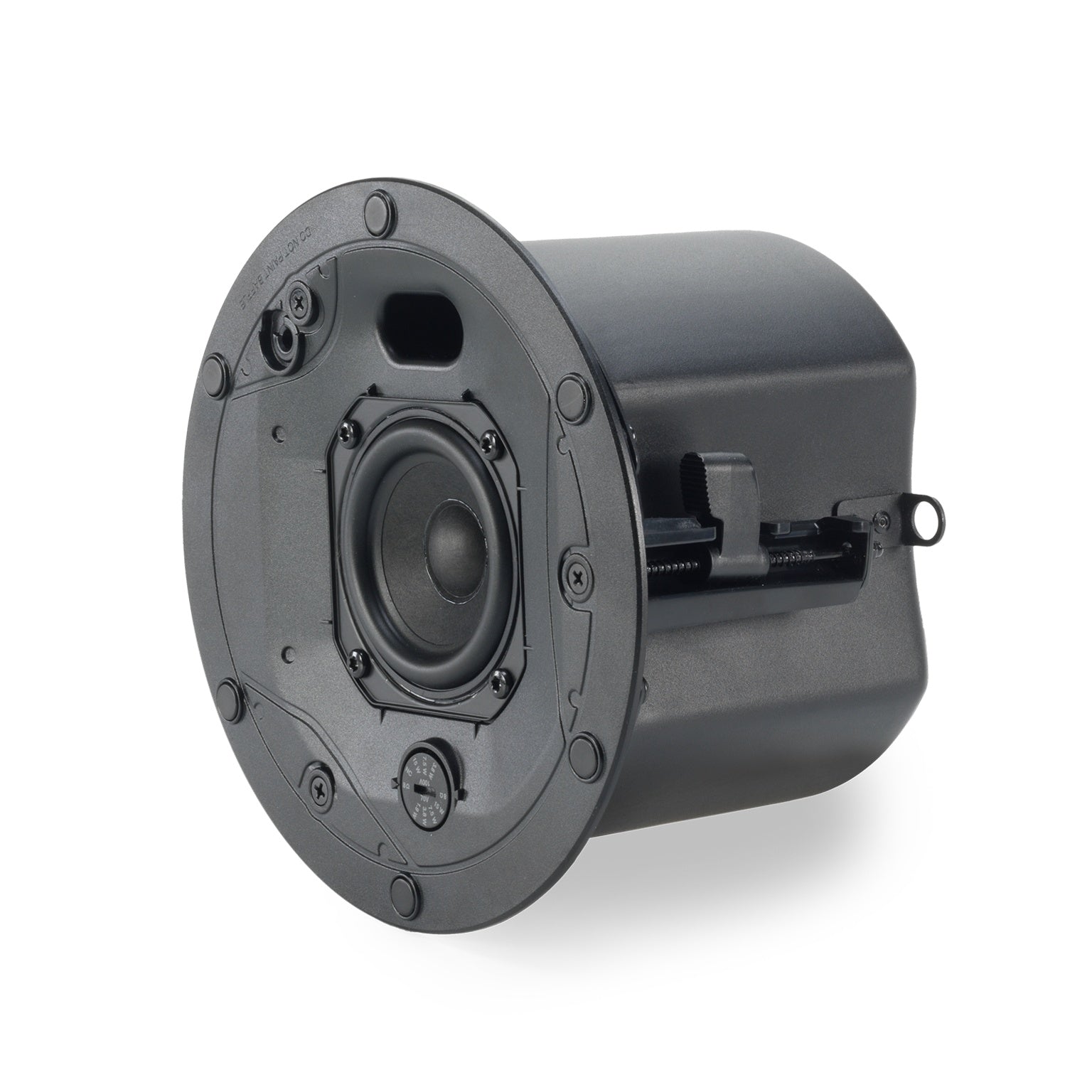

The JBL Control 412C/T-VA is a full-range ceiling loudspeaker in the Control 400 Standard Coverage Series, built around a 3 in driver and an integrated enclosure for ceiling plenum installation. It supports 70V/100V distributed lines as well as low-impedance operation for flexible system design.

Configuration is streamlined with top or side cable entry and a captive dogear mounting design that adapts to varying ceiling thicknesses. EN54-24 certification and IP33 rating make it suitable for life safety and protected indoor installed sound applications.

View full details

Specifications

Performance
Frequency Range (-10 dB)
68Hz - 17kHz
Power Capacity
30W (120W Peak) Cont. Pink Noise (2 hrs) 20W (80W Peak) Cont. Pink Noise (100 hrs)
Sensitivity (1m/1W)
84dB
Coverage Angle
160° conical
Maximum SPL (1m)
99 dB continuous pink noise (105 dB peak)
Nominal Impedance
8Ω
Transformer Taps
70 V: 15 W, 7.5 W, 3.8 W & 1.9 W 100 V: 15 W, 7.5 W, 3.8 W
Drivers
76 mm (3 in) full range driver with paper cone and SBR surround
Physical
Ceiling Cutout Size
168 mm (6.6 in)
Dimensions
163 mm (6.5 in) H x 203 mm (8.1 in) dia. 154 mm (6.2 in) from bottom of ceiling tile to top of gland nut.
Color
Stock grille is White (RAL9003), paintable (please read the user manual before painting)
Net Weight (ea)
1.76 kg (3.88 lbs)
Shipping Weight (pair)
7.94 kg (17.5 lbs)
Compliance
Safety Agency Rating
EN 54-24:2008 certified Type A. Designed in accordance with BS 5839-8 and EN 50849. Suitable for use in air handling spaces per UL 2043, NFPA 90A & NFPA 70, CSA C22.2 no. 205 listed. Listing per UL 1480A Speakers for Commercial and Professional Use. UL registered Transformer.
Environmental
IP rating: IP33 per EN/IEC 60529. Operating temperature: 0° C to 45 °C.
Accessories
Optional Accessories
JBL-MTC-414BG black (RAL9004) round grille JBL-MTC-414SG white (RAL9003) square grille JBL-MTC-414WG white (RAL9003) weather grille JBL-MTC-424NC new construction bracket JBL-MTC-424MR mud-ring construction bracket JBL-MTC-48TRX4 tile rail for 4' x 4' ceiling tiles
SKU Numbers
JBL-C412C/T-VA
