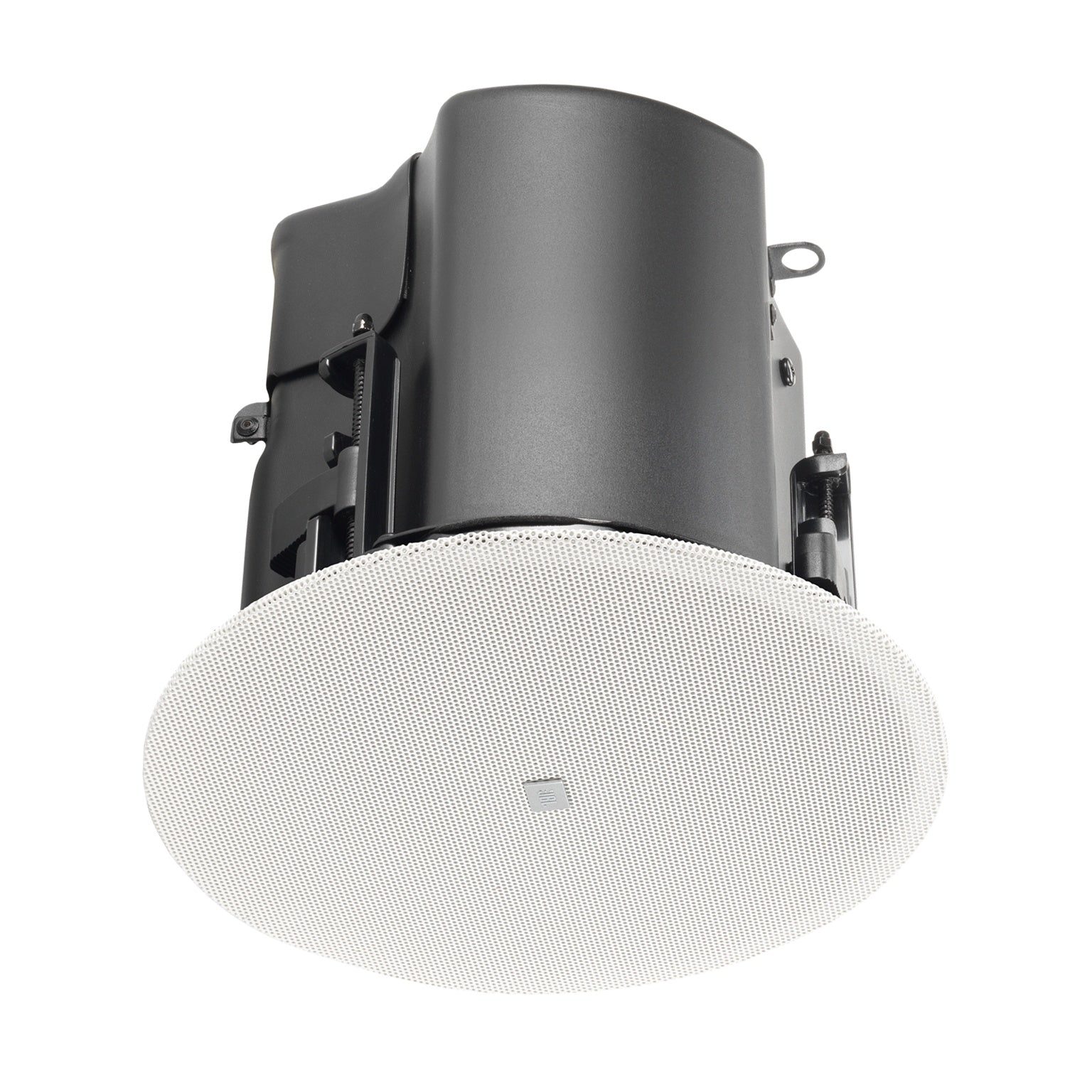

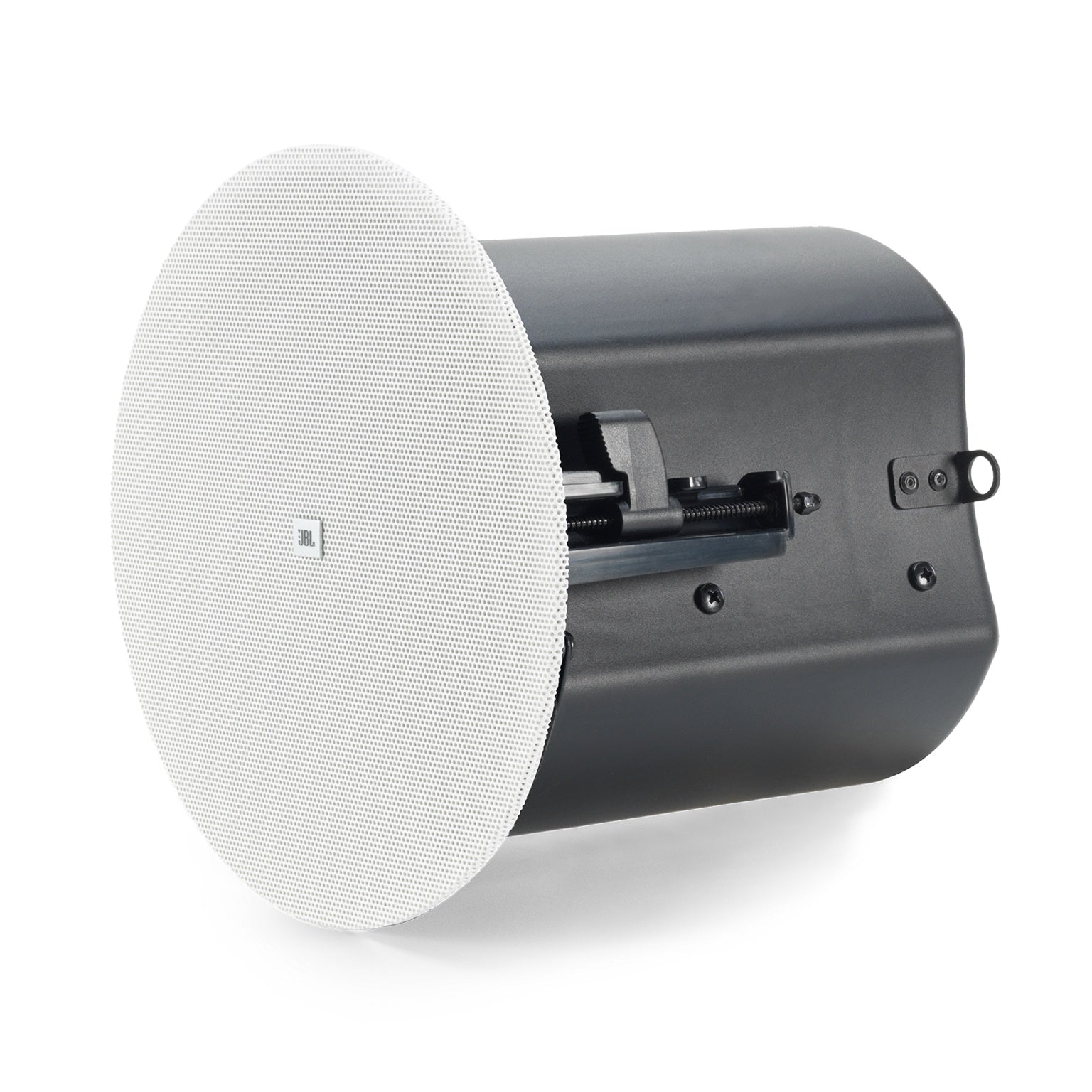

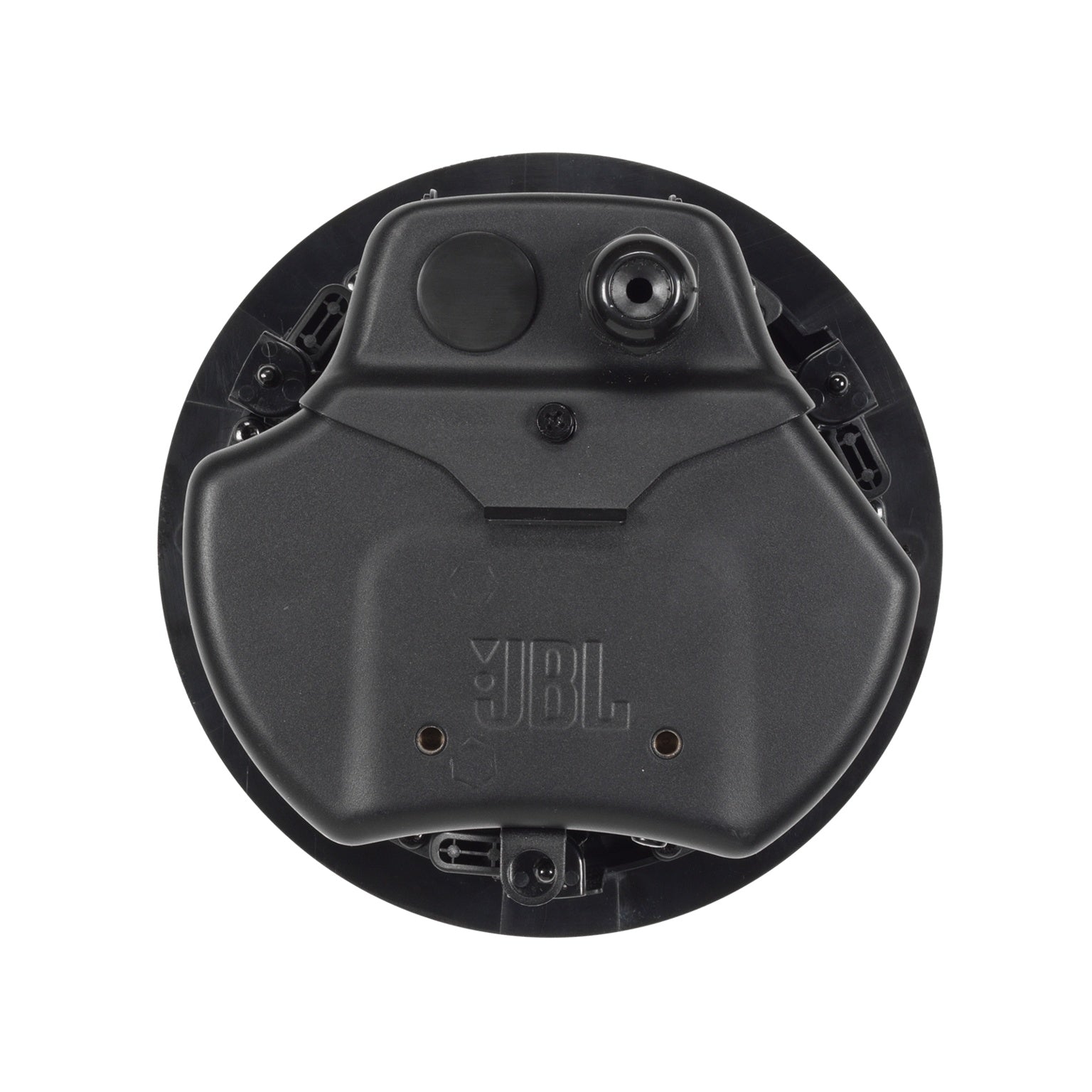

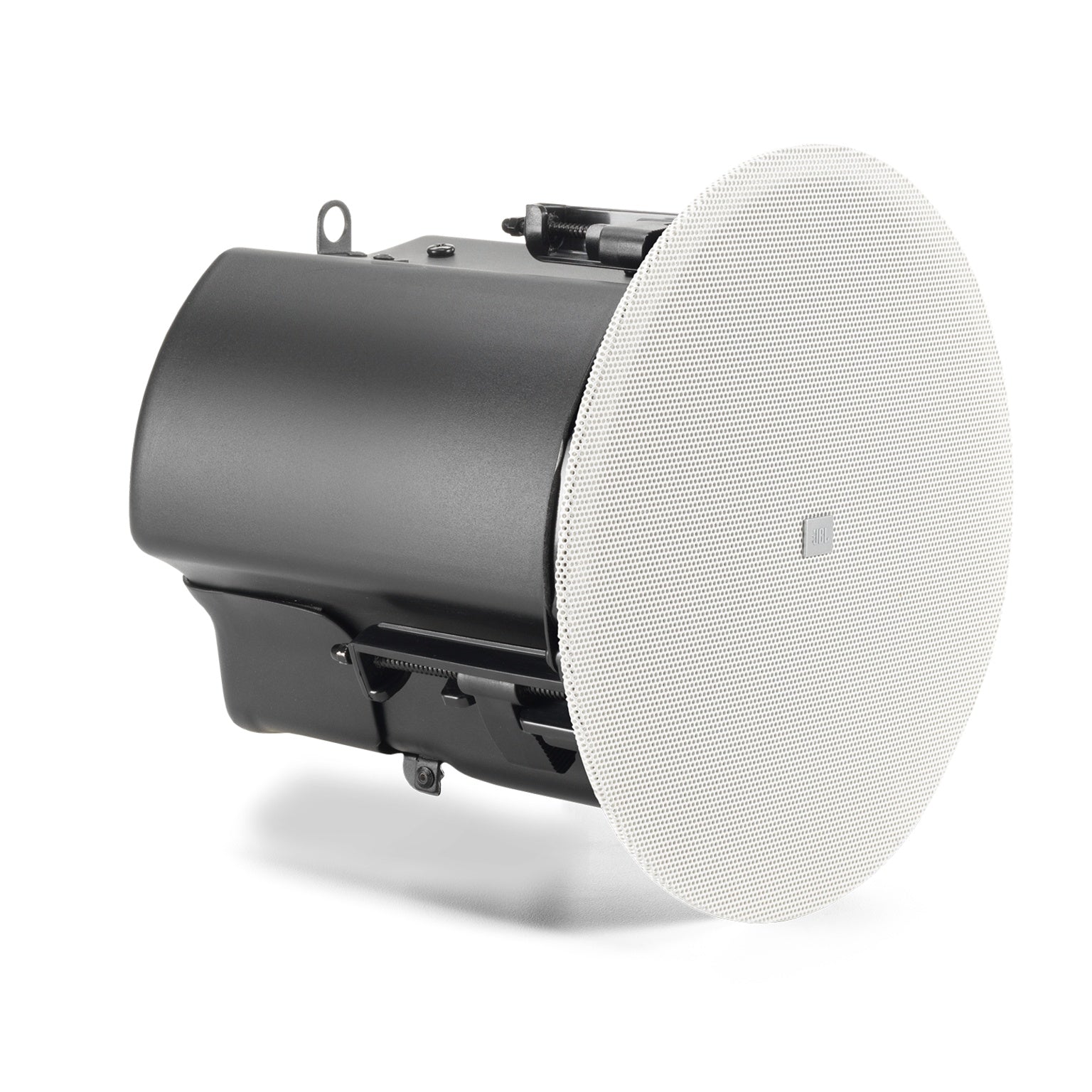

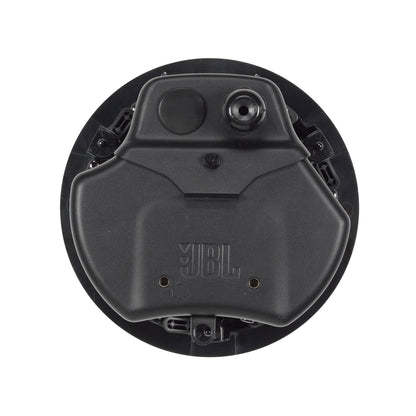

JBL Control 414C/T-VA-U Two-Way Ceiling Speaker EN54-24 Certified | White

JBL Control 414C/T-VA-U Two-Way Ceiling Speaker EN54-24 Certified | White

SoundPro Item: 202142 | Part Number: JBL-C414C/T-VA-U

$260.00
$260.00 $260.00
Your Price Sold out
MSRP: $260.00 | MAP: $260.00

Usually ships in 5-7 business days

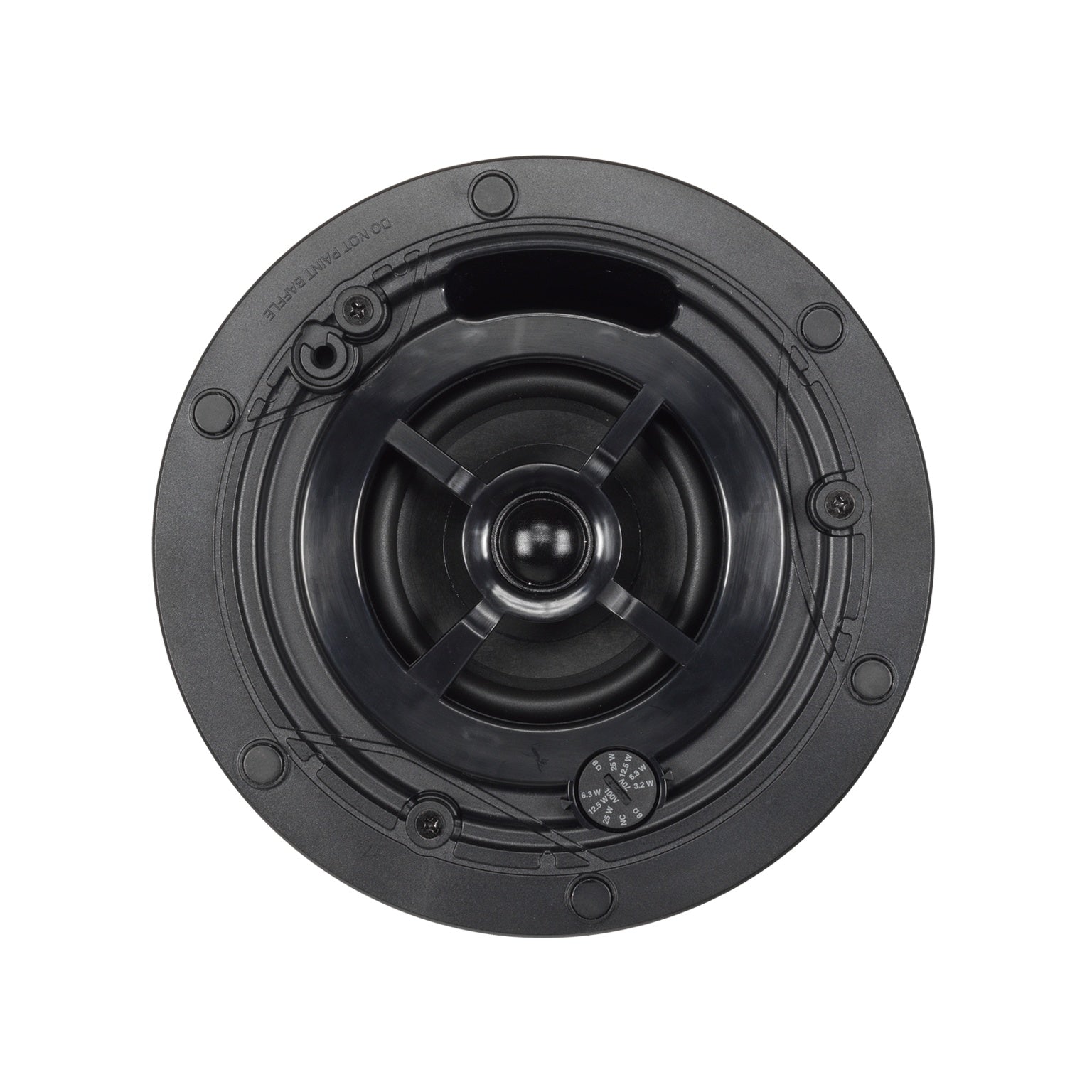

  • 4 in woofer with soft-dome HF for balanced output

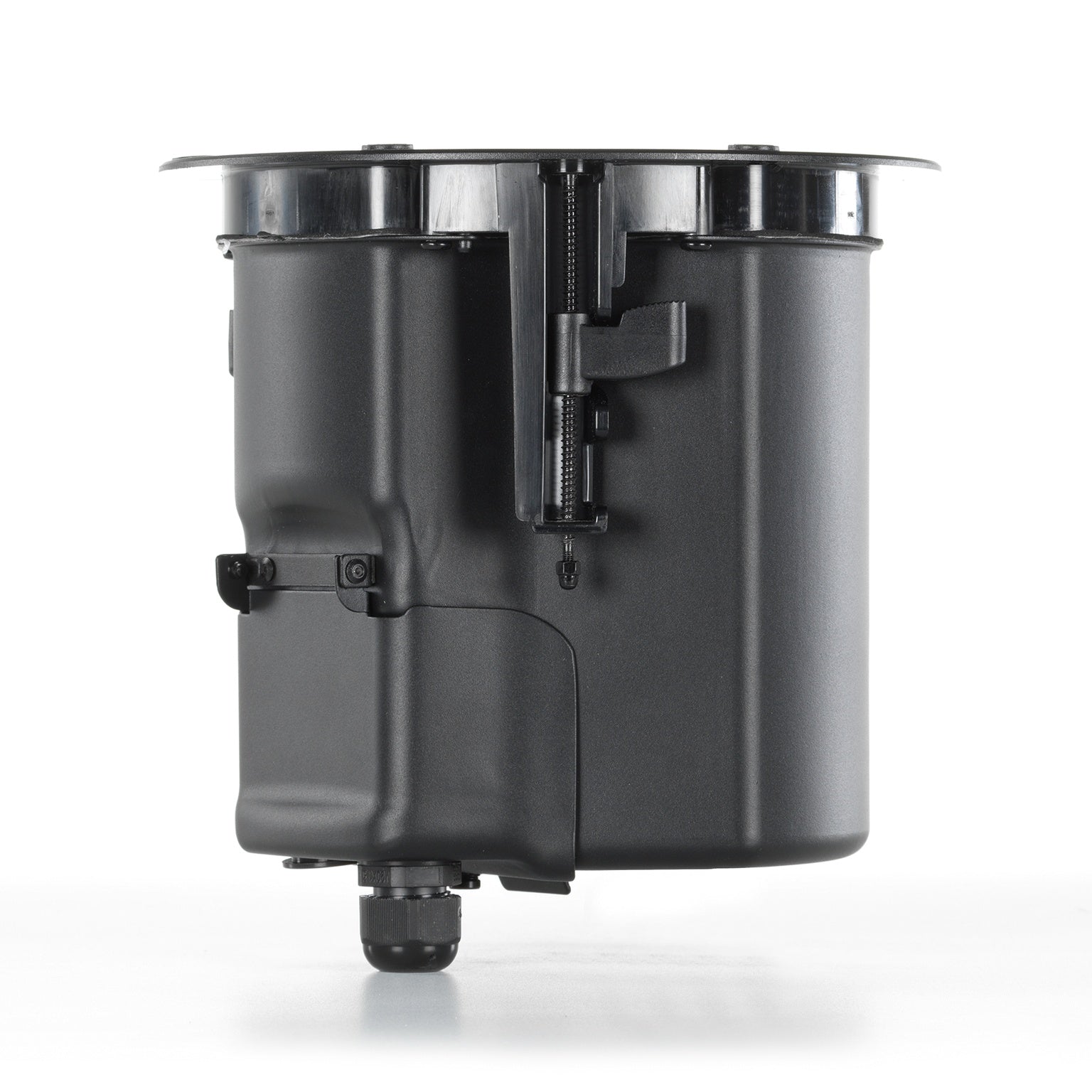

  • Integrated backcan suits plenum ceiling installs
  • 70V/100V taps plus 8-ohm direct connection
  • Magnetic grille can be painted to match finishes

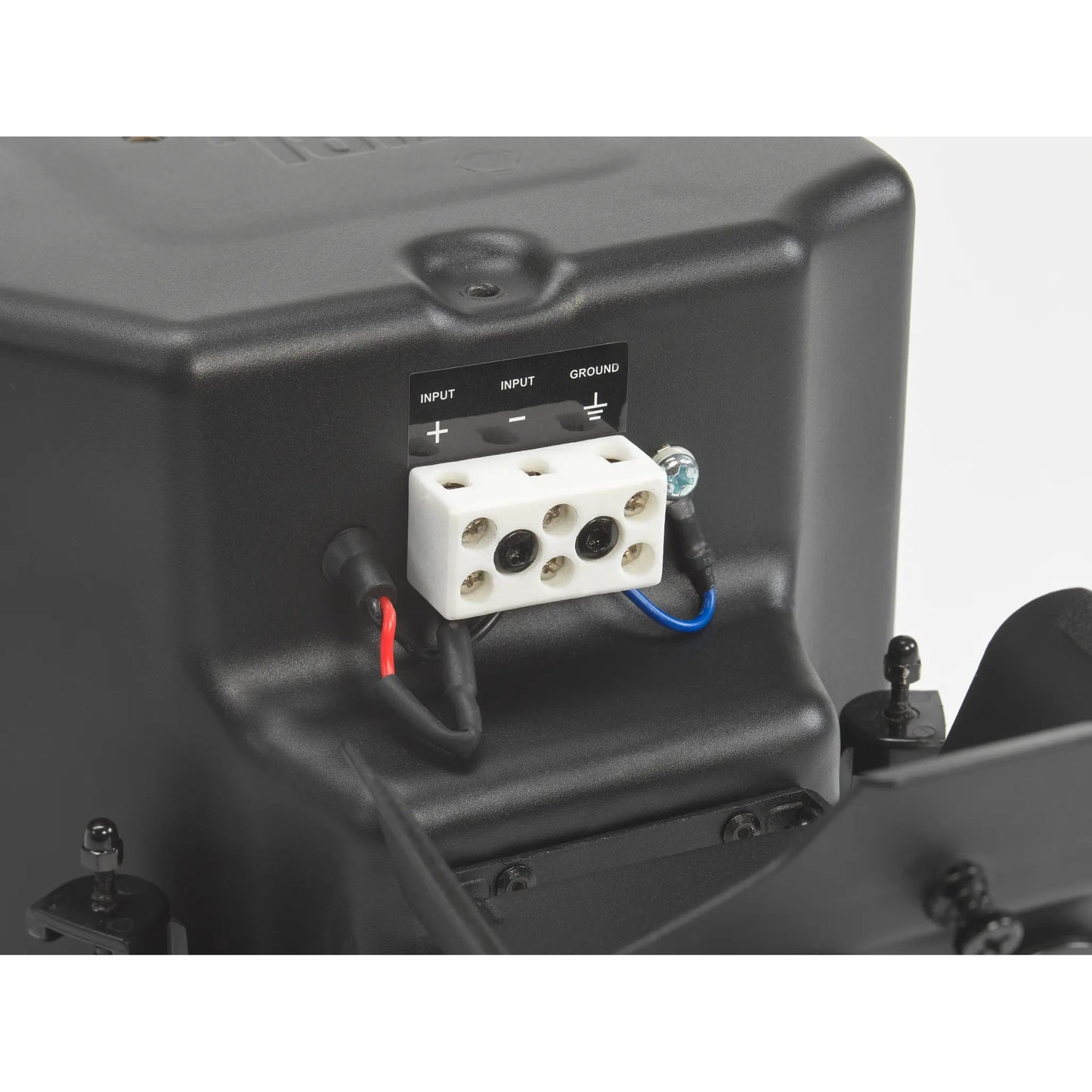

  • Top or side cable entry eases wiring layout
  • Captive dogears fit varied ceiling thicknesses
  • IP33 rating supports protected indoor locations
Log in or register for YOUR best price

This two-way coaxial ceiling loudspeaker is built for installed audio applications where clean appearance and adaptable configuration are required. Its integrated enclosure suits most ceiling plenum spaces, and the included magnetic grille can be painted to match the room finish.

Support for 70V/100V distributed lines and 8-ohm direct input allows system configuration across a range of commercial audio designs. EN54-24 certification and installation-focused details make it appropriate for life safety projects that require consistent deployment.

View full details

Specifications

Performance
Frequency Range (-10 dB)
65Hz - 20kHz
Power Capacity
45W (180W Peak) Cont. Pink Noise (2 hrs) 30W (120W Peak) Cont. Pink Noise (100 hrs)
Sensitivity (1m/1W)
86dB
Coverage Angle
130° conical
Maximum SPL (1m)
103 dB continuous pink noise (109 dB peak)
Nominal Impedance
8Ω
Transformer Taps
70 V: 25 W, 12.5 W, 6.3 W & 3.2 W 100 V: 25 W, 12.5 W, 6.3 W
Drivers

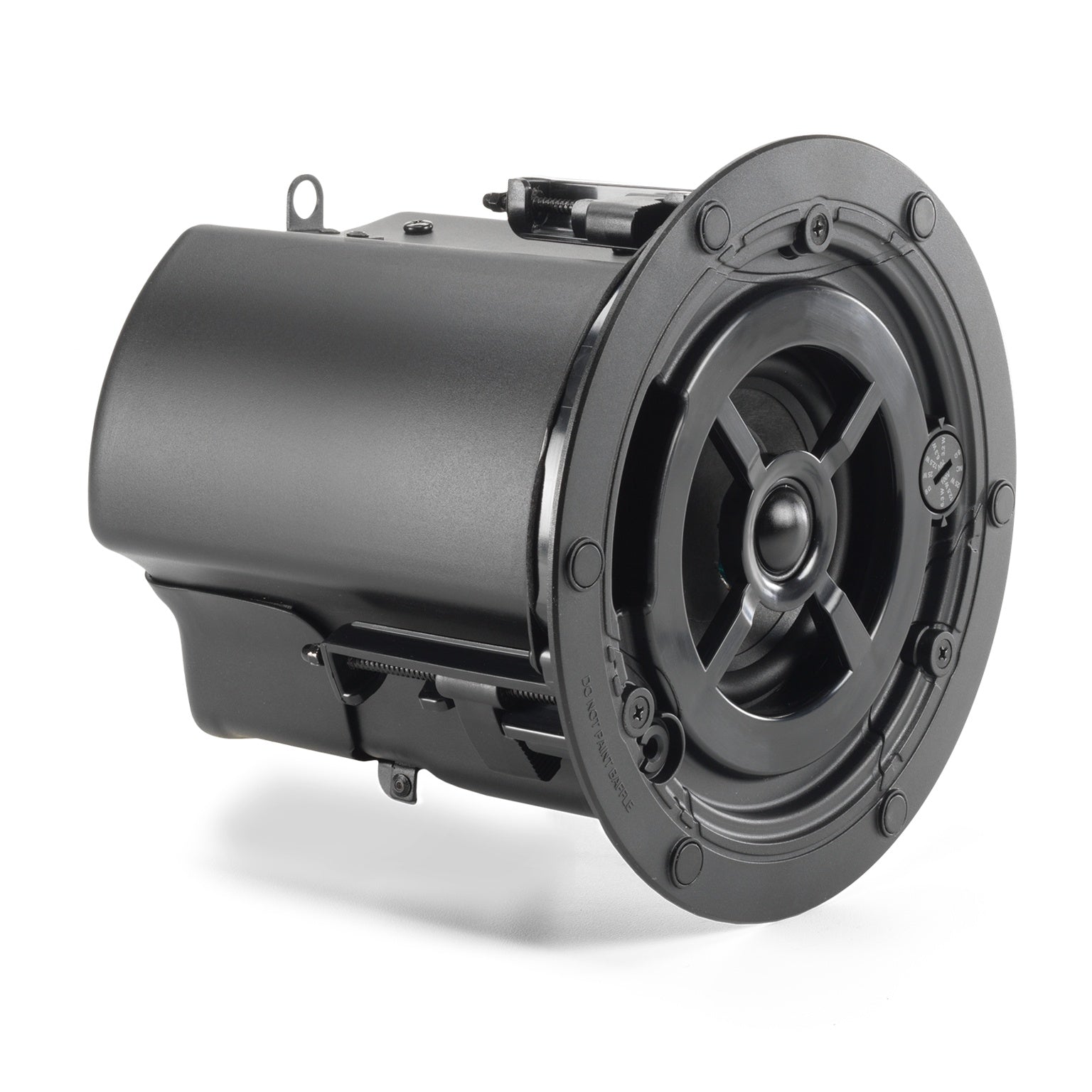

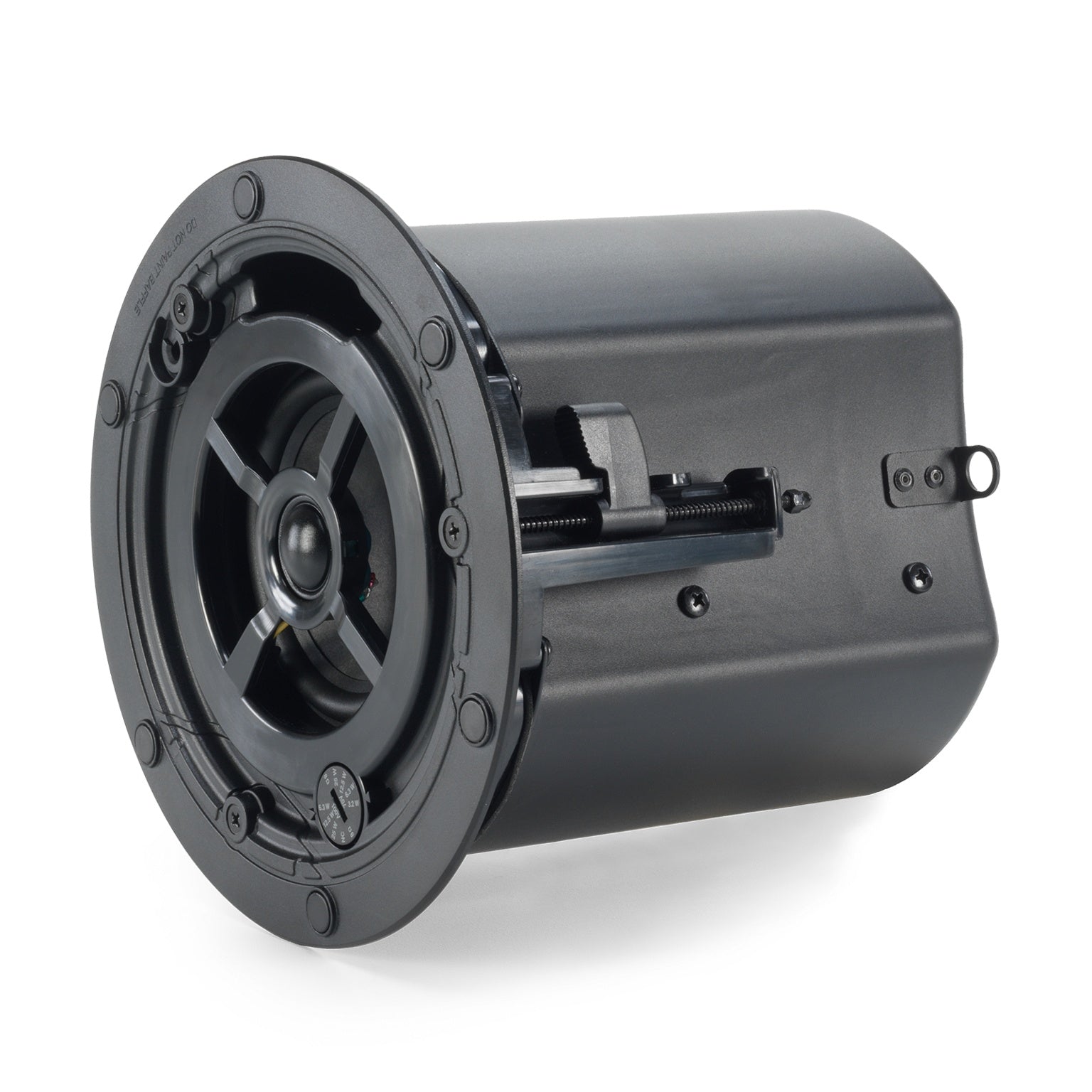

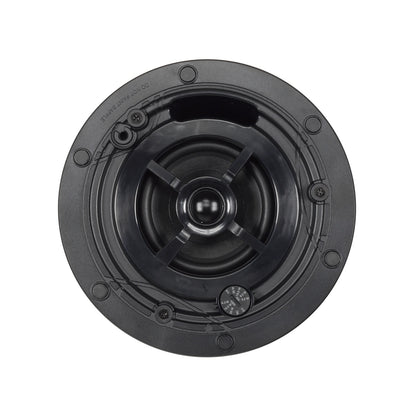

LF: 100 mm (4.0 in) with paper cone, SBR surround. HF: 20 mm (0.75 in) soft dome
Physical
Ceiling Cutout Size
168 mm (6.6 in)
Dimensions
206 mm (8.2 in) H x 203 mm (8.1 in) dia. 197 mm (7.9 in) from bottom of ceiling tile to top of gland nut.
Color
Stock grille is White (RAL9003), paintable (please read the user manual before painting)
Net Weight (ea)
2.50 kg (5.51 lbs)
Shipping Weight (pair)
9.52 kg (20.99 lbs)
Compliance
Safety Agency Rating
EN 54-24:2008 certified Type A. Designed in accordance with BS 5839-8 and EN 50849. Suitable for use in air handling spaces per UL 2043, NFPA 90A & NFPA 70, CSA C22.2 no. 205 listed. Listing per UL 1480A Speakers for Commercial and Professional Use. UL registered Transformer.
Environmental
IP rating: IP33 per EN/IEC 60529. Operating temperature: 0° C to 45 °C.
Accessories
Optional Accessories
JBL-MTC-414BG black (RAL9004) round grille JBL-MTC-414SG white (RAL9003) square grille JBL-MTC-414WG white (RAL9003) weather grille JBL-MTC-424NC new construction bracket JBL-MTC-424MR mud-ring construction bracket JBL-MTC-48TRX4 tile rail for 4' x 4' ceiling tiles
SKU Numbers
JBL-C414C/T-VA
