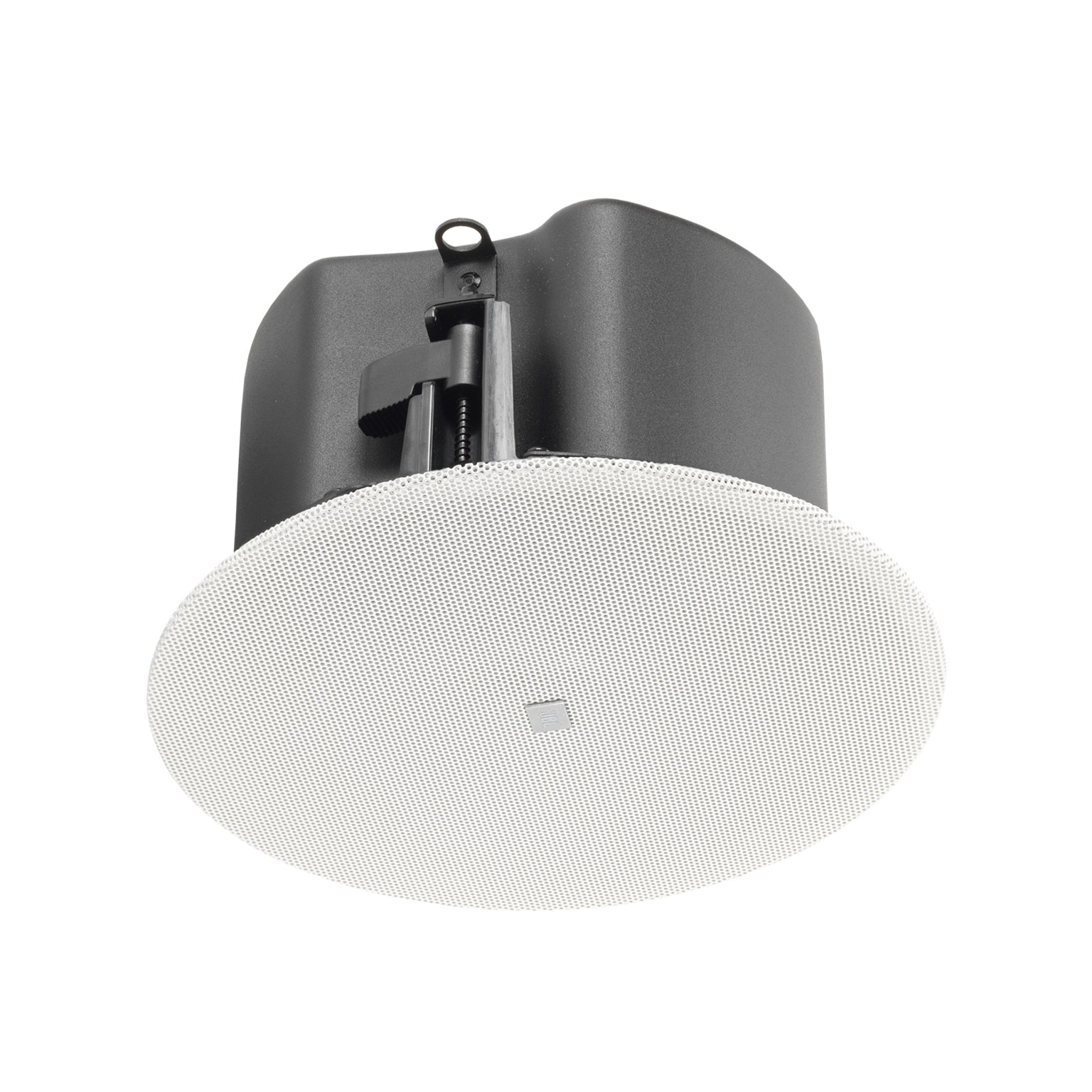

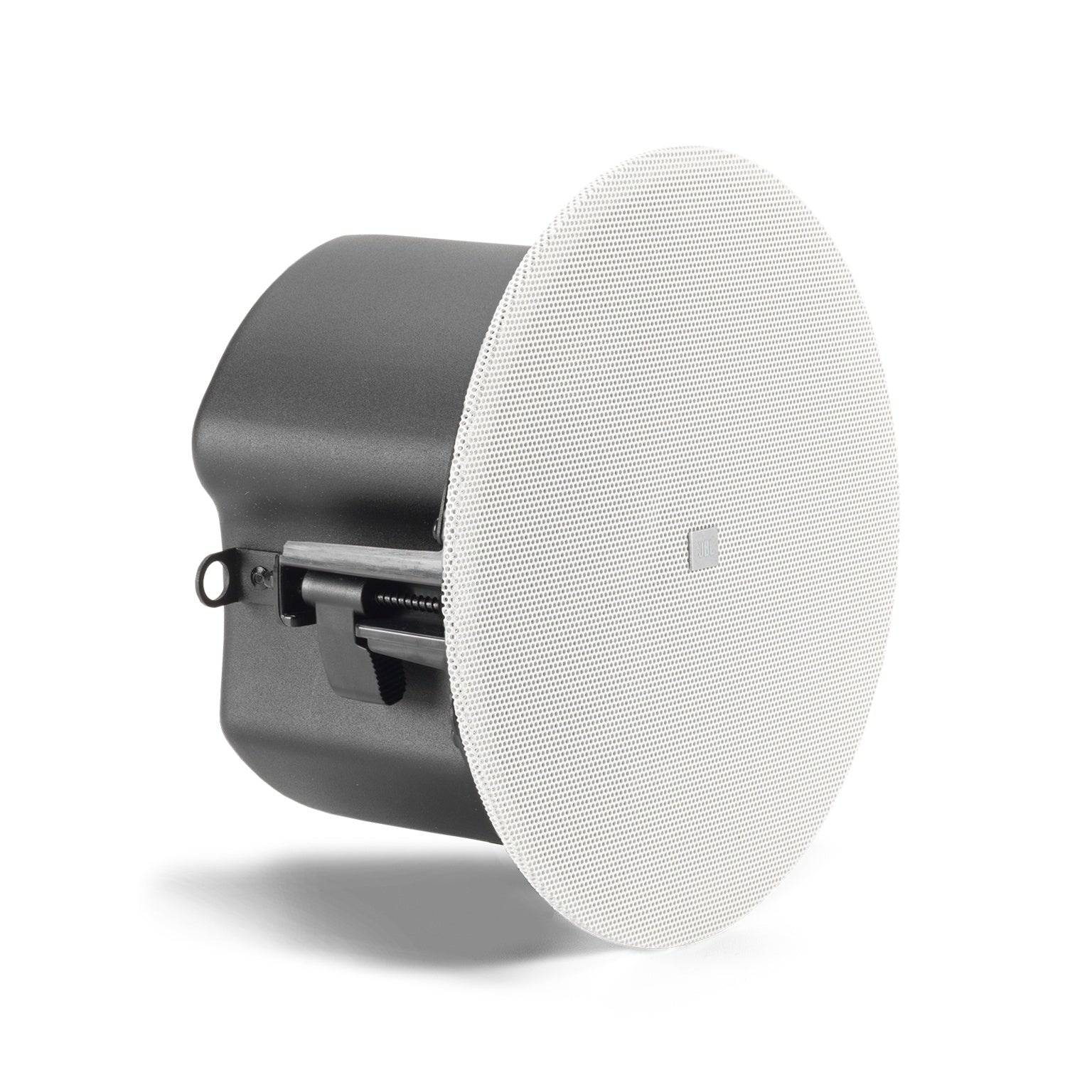

JBL Control 414MPT-U Micro Plus Two-Way Ceiling Speaker, Low-Profile | White

JBL Control 414MPT-U Micro Plus Two-Way Ceiling Speaker, Low-Profile | White

SoundPro Item: 202145 | Part Number: JBL-C414MPT-U

$223.00
$223.00 $223.00
Your Price Sold out
MSRP: $223.00 | MAP: $223.00

Usually ships in 5-7 business days

  • Shallow depth fits tight plenum spaces
  • 70V/100V taps support distributed audio
  • Top or side entry simplifies cable routing
  • Magnetic grille can be painted to match
  • Captive dogears suit varied ceiling builds
  • IP32 rating supports indoor environment use
  • 160° conical coverage aids broad dispersion
Log in or register for YOUR best price

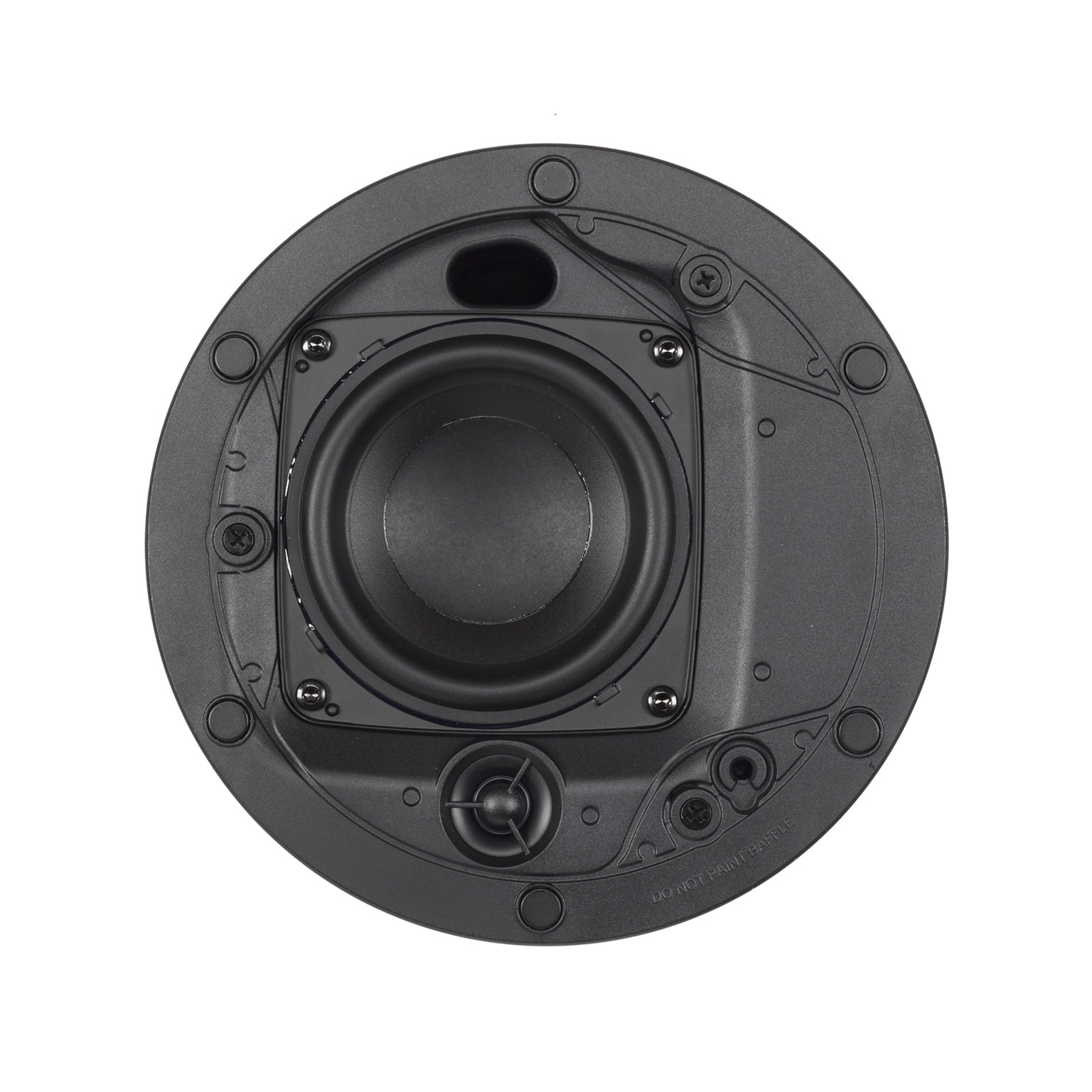

This ceiling loudspeaker uses a 4 in woofer and 0.5 in PEI dome tweeter in a low-profile enclosure suited to spaces with restricted plenum depth. Its integrated backcan supports distributed audio configurations with built-in 70V/100V transformer taps.

Installation is streamlined with top or side cable entry and captive dogear mounting for varied ceiling thicknesses. A full-face magnetic grille ships in white and can be painted to match interior finishes.

View full details

Specifications

Performance
Frequency Range (-10 dB)
69Hz - 25kHz
Power Capacity
25 W (100 W Peak) Cont. Pink Noise Power (100 hrs)
Sensitivity (1m/1W)
85dB
Coverage Angle
160° conical
Maximum SPL (1m)
99 dB continuous pink noise (105 dB peak)
Nominal Impedance
n/a

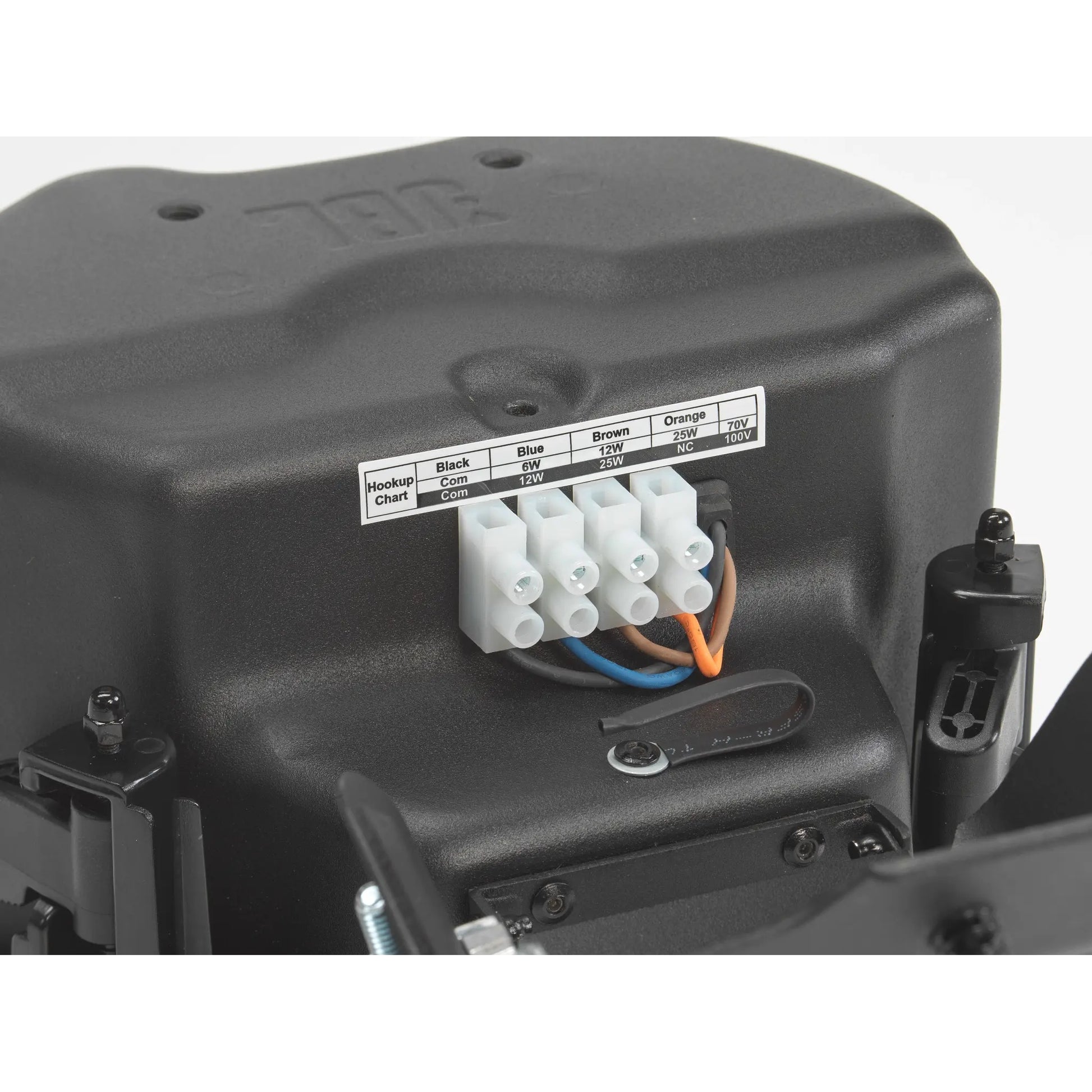

Transformer Taps
70 V: 25 W, 12 W & 6 W 100 V: 25 W, 12 W
Drivers
Drivers

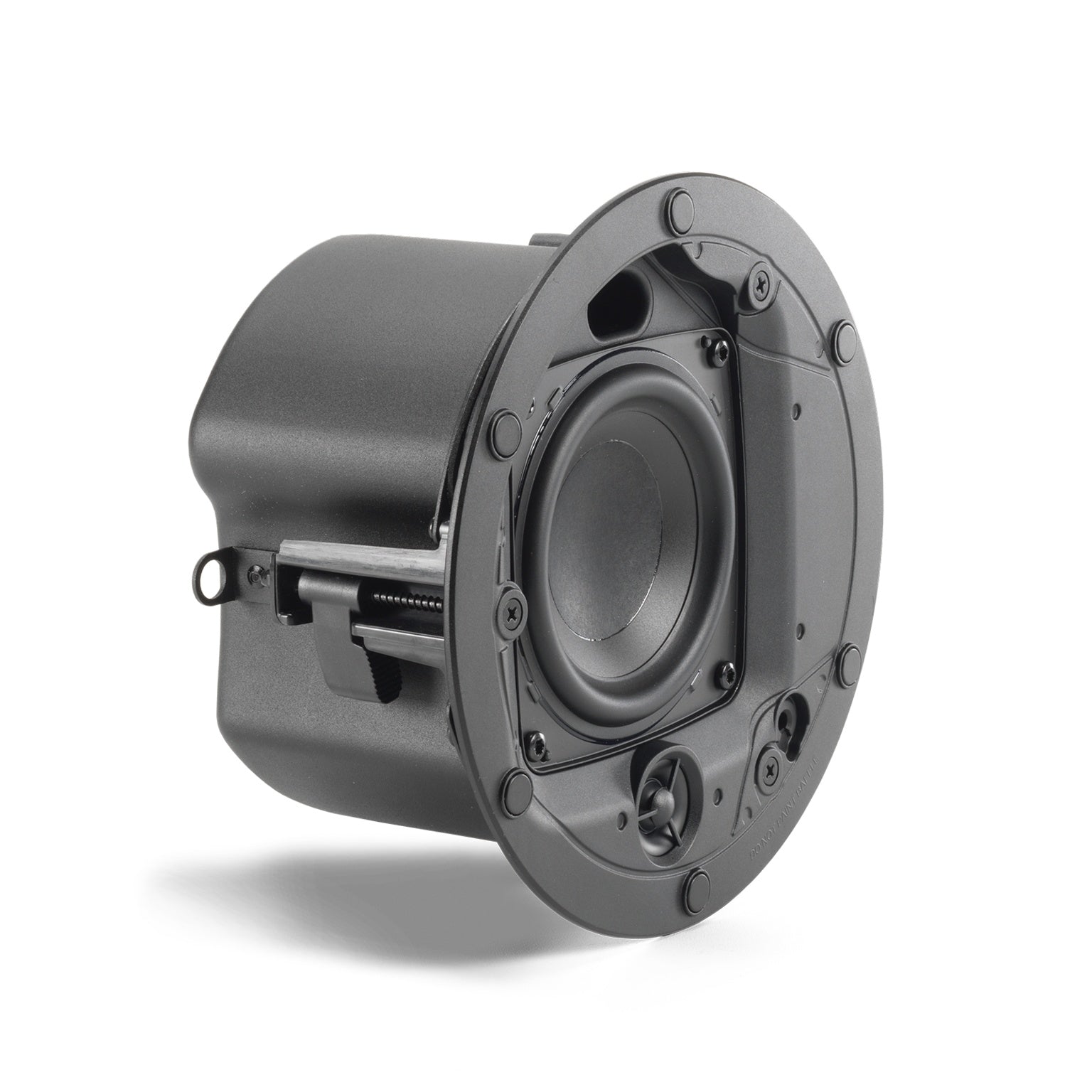

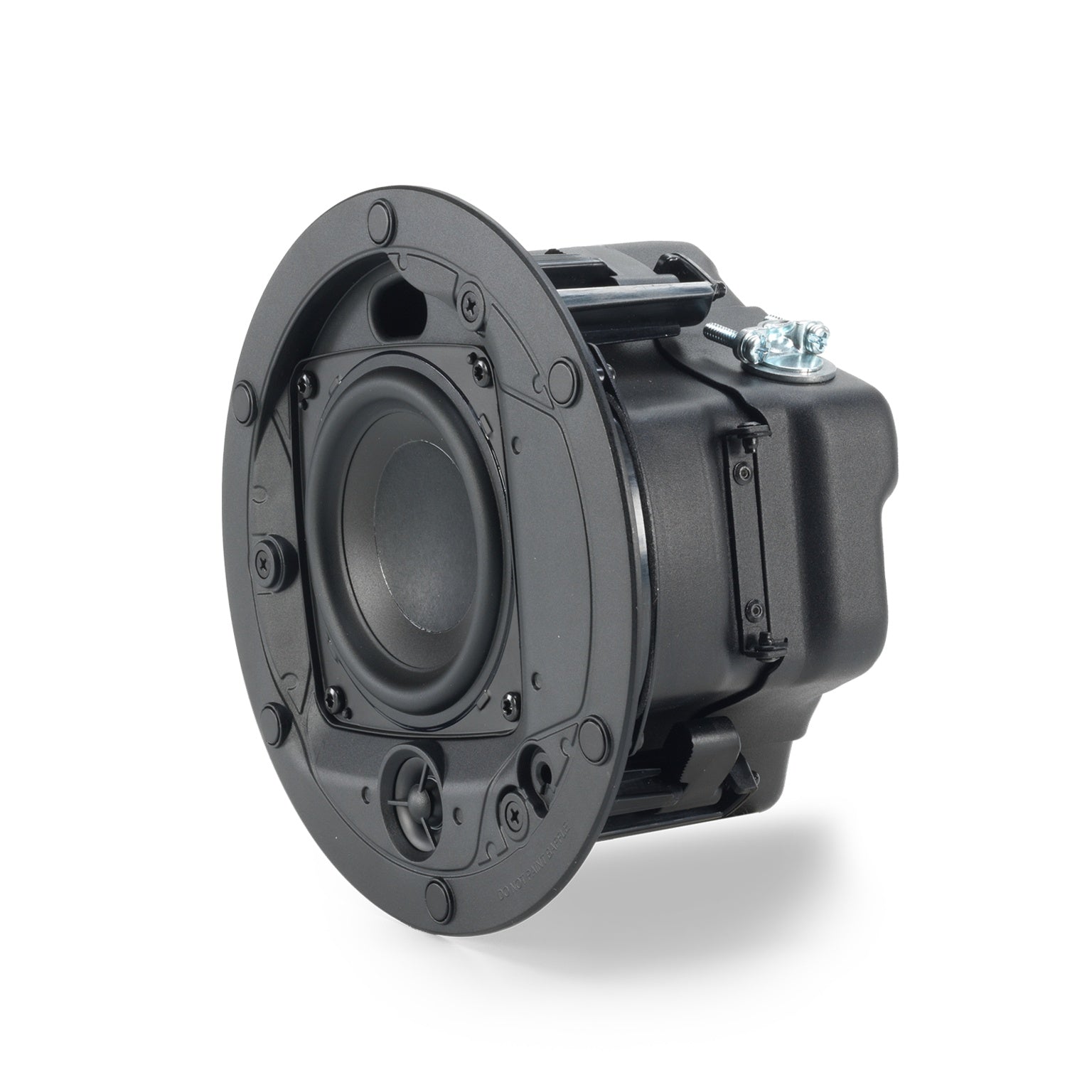

LF: 103 mm (4 in) with PP cone and paper cup, SBR surround HF: 13 mm (0.5 in) PEI dome
Dimensions
Ceiling Cutout Size
168 mm (6.6 in)
Dimensions
114 mm (4.6 in) H x 203 mm (8.1 in) dia. 105 mm (4.2 in) from bottom of ceiling tile to top of backcan
Compliance
Safety Agency Rating
Suitable for use in air handling spaces per UL 2043, NFPA 90A & NFPA 70, CSA C22.2 no. 205 listed. Listing per UL 1480A Speakers for Commercial and Professional Use. UL registered Transformer.
Environmental
IP rating: IP32 per EN/IEC 60529. Operating temperature: 0° C to 45 °C.
Accessories
Optional Accessories
JBL-MTC-414BG black (RAL9004) round grille JBL-MTC-414SG white (RAL9003) square grille JBL-MTC-414WG weather grille JBL-MTC-424NC new construction bracket JBL-MTC-424MR mud-ring construction bracket JBL-MTC-48TRX4 tile rail for 4' x 4' ceiling tiles
Physical
Color
Stock grille is White (RAL9003), paintable
Net Weight (ea)
2.12 kg (4.67 lbs)
Shipping Weight (pair)
8.6 kg (18.96 lbs)
SKU Numbers
JBL-C414MPT
