JBL Control 416C/T Ceiling Speaker with 70V/100V Tap

JBL Control 416C/T Ceiling Speaker with 70V/100V Tap

SoundPro Item: 202140 | Part Number: JBL-C416C/T-U

$247.00
$247.00 $247.00
Your Price Sold out
MSRP: $247.00 | MAP: $247.00

In stock and ready to ship

  • 6.5 in coaxial design supports full-range playback
  • Integrated enclosure fits plenum ceiling spaces
  • 70V/100V taps plus 8Ω input add system flexibility
  • Magnetic paintable grille blends with interiors
  • Top or side cable entry eases wire routing
  • Captive dogears fit varied ceiling thicknesses
  • IP33 rating supports indoor environmental protection
Log in or register for YOUR best price

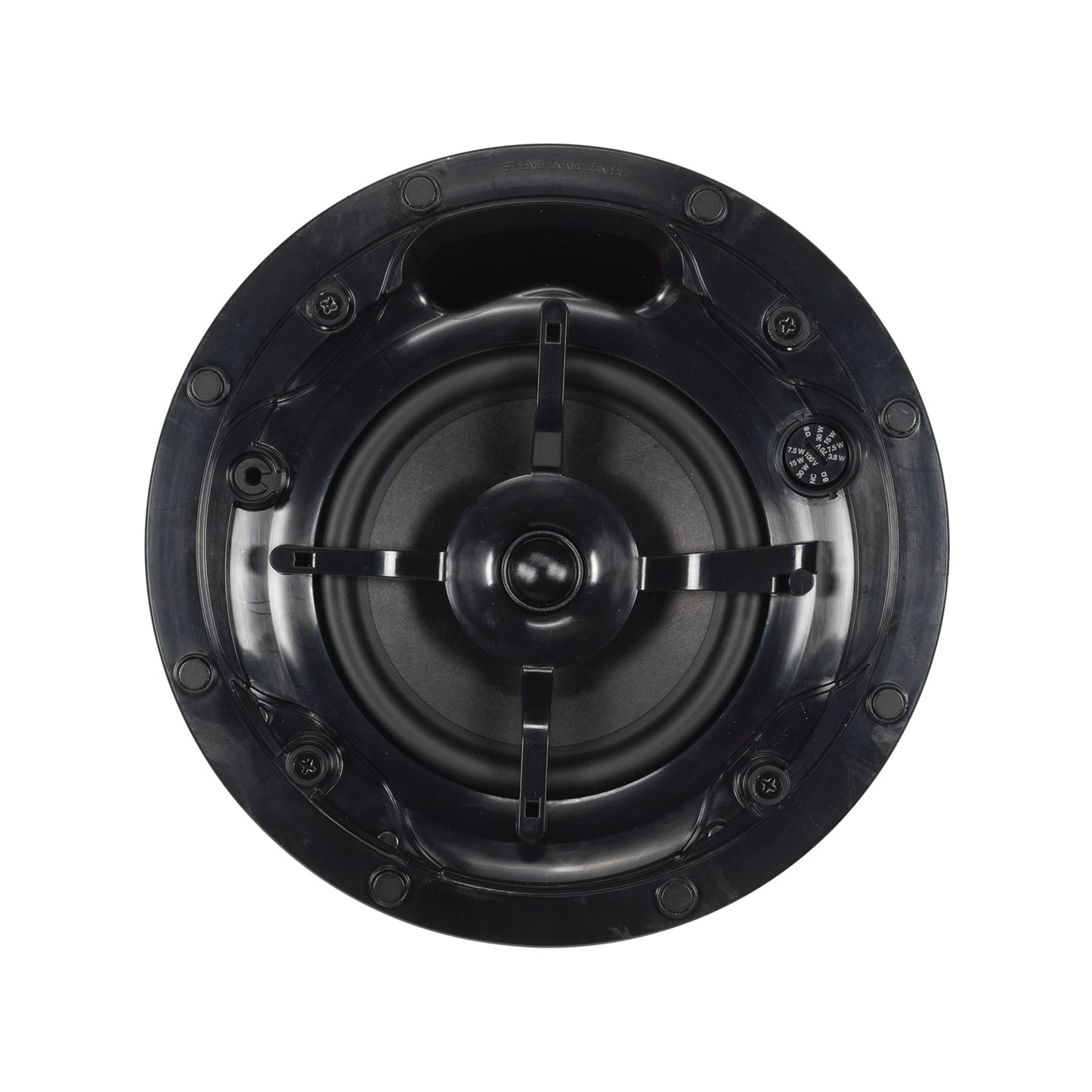

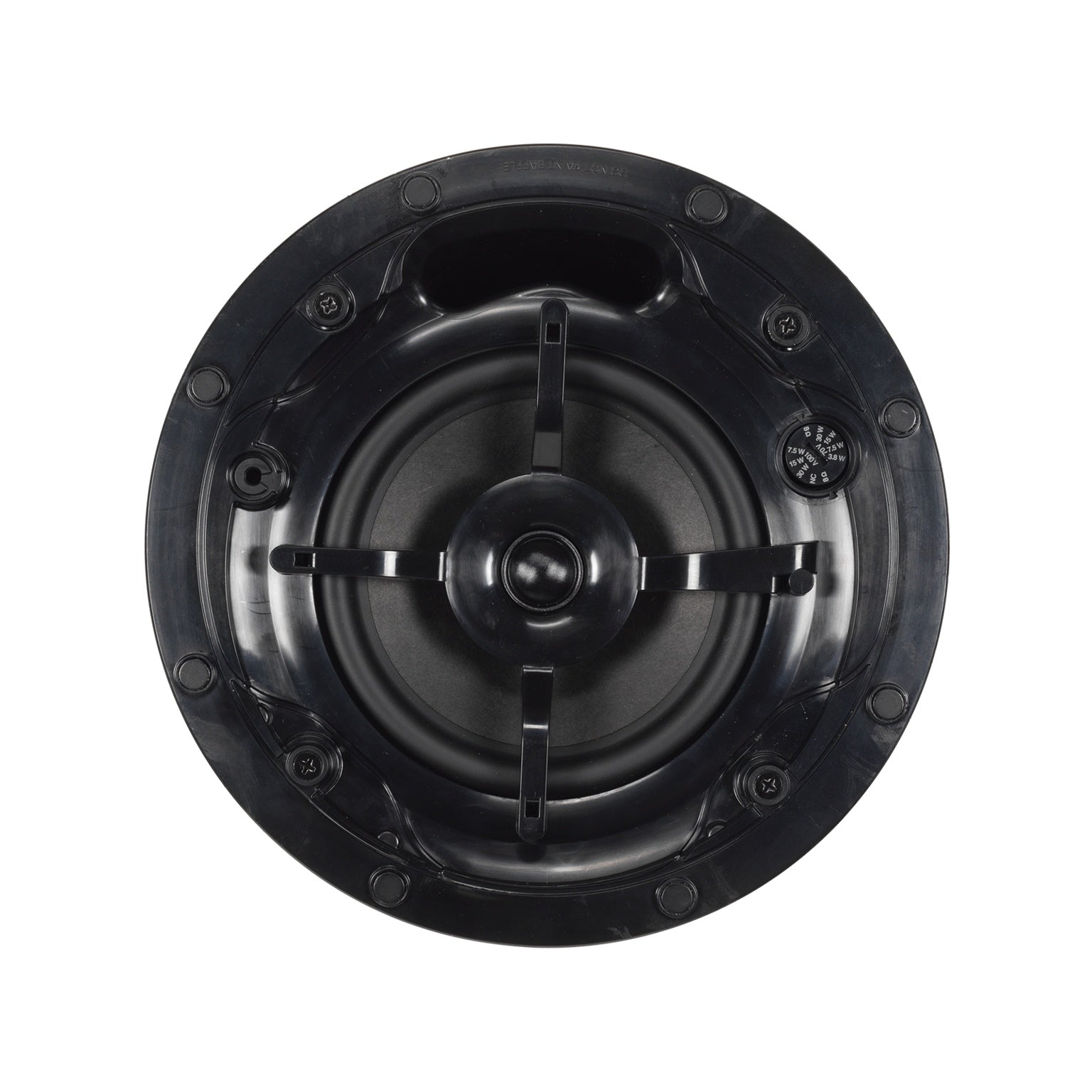

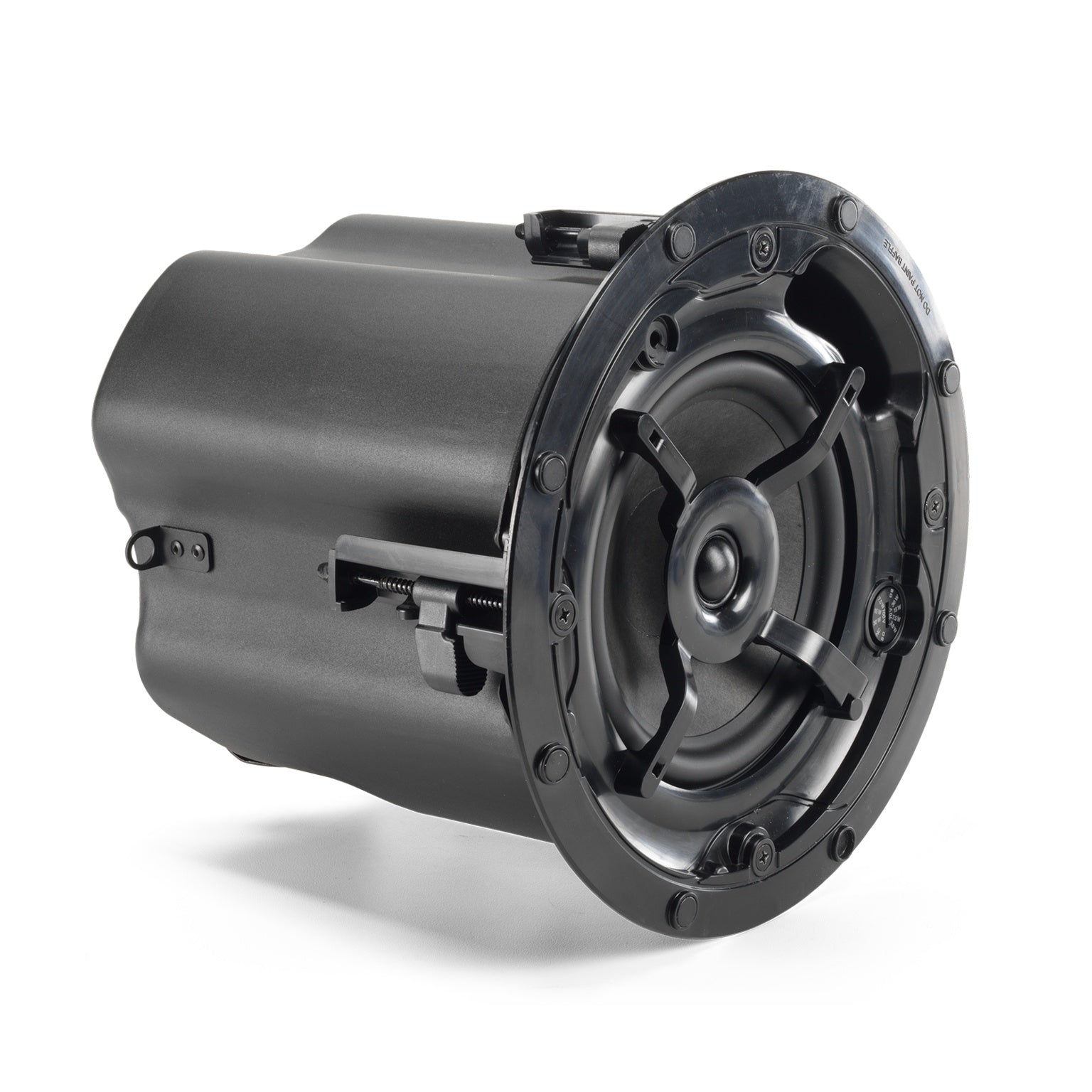

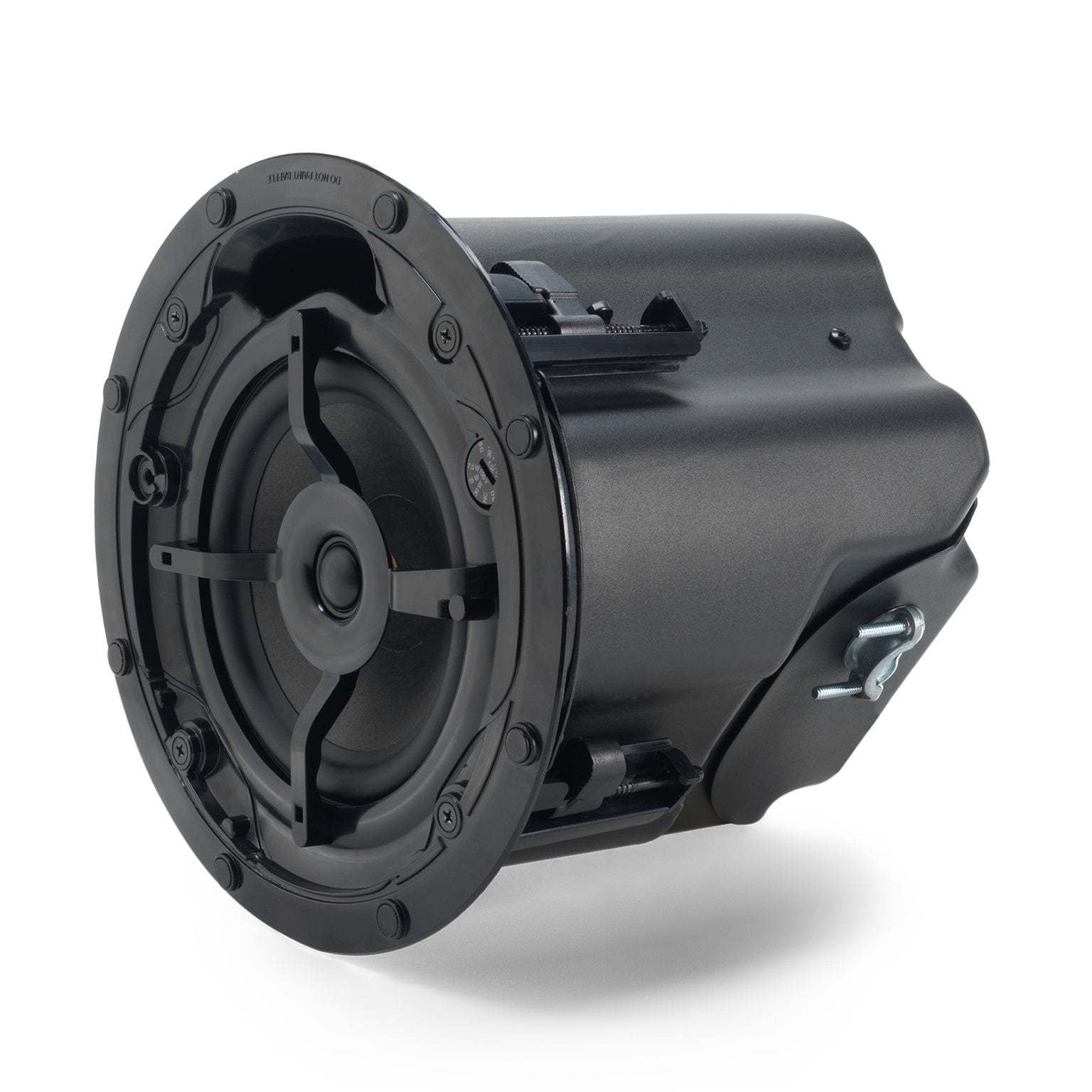

The JBL Control 416C/T is a two-way coaxial ceiling loudspeaker designed for installed audio systems. Its 6.5 in woofer, 20 mm soft-dome tweeter, and 120° conical coverage support consistent performance across coverage areas.

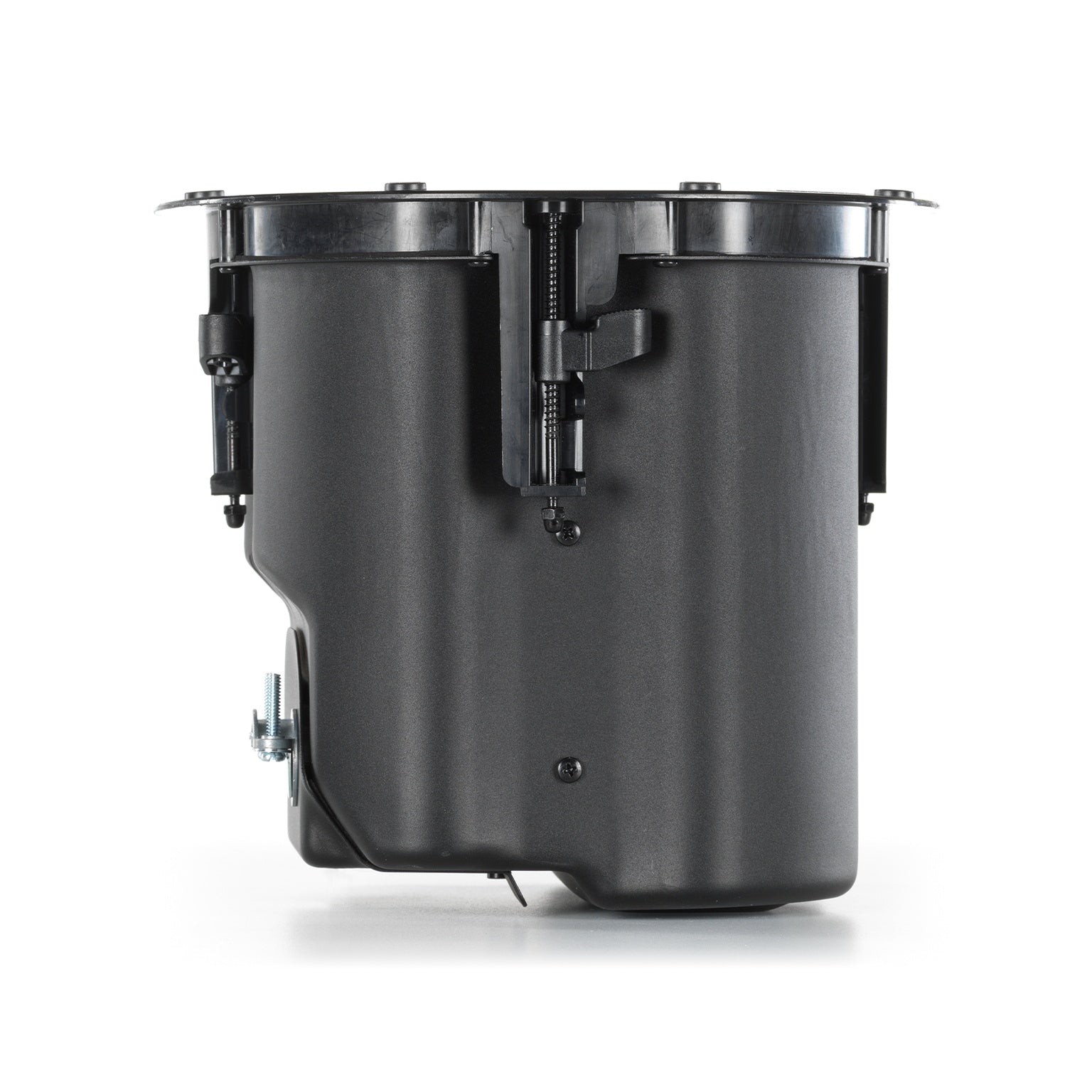

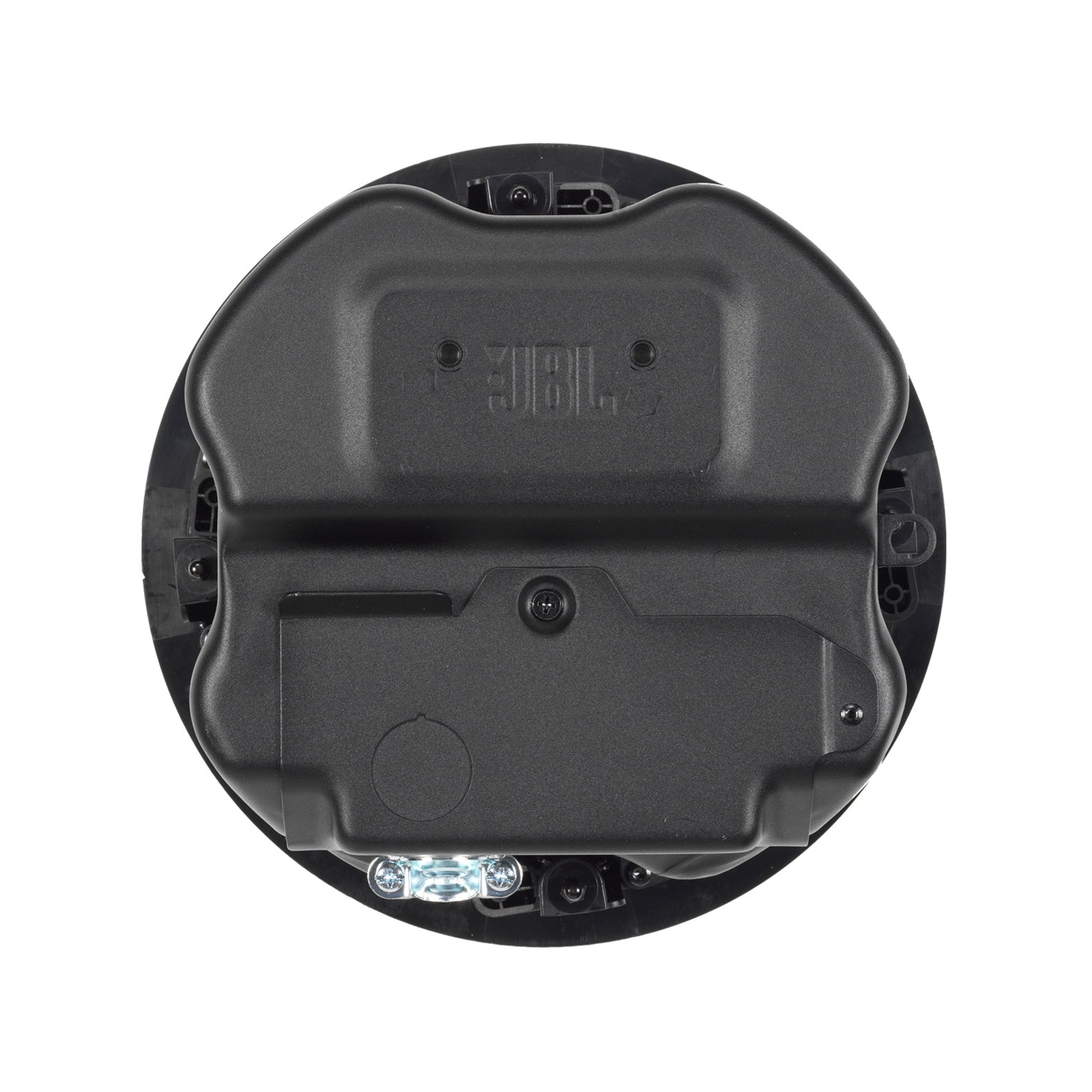

An integrated enclosure suits most ceiling plenum spaces, while top or side cable entry and captive dogear mounting help streamline installation. The model supports 70V/100V distributed lines as well as low-impedance operation for system flexibility.

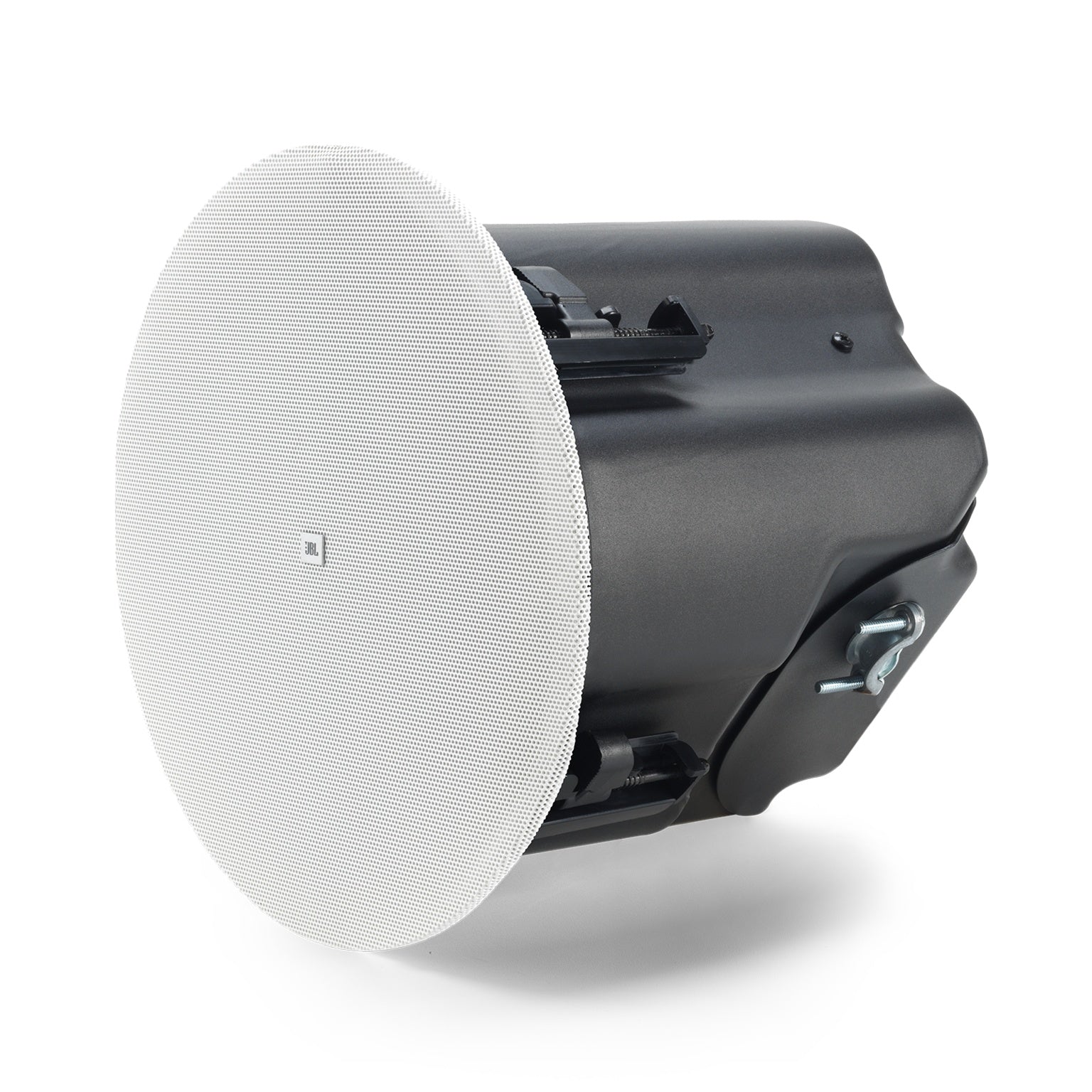

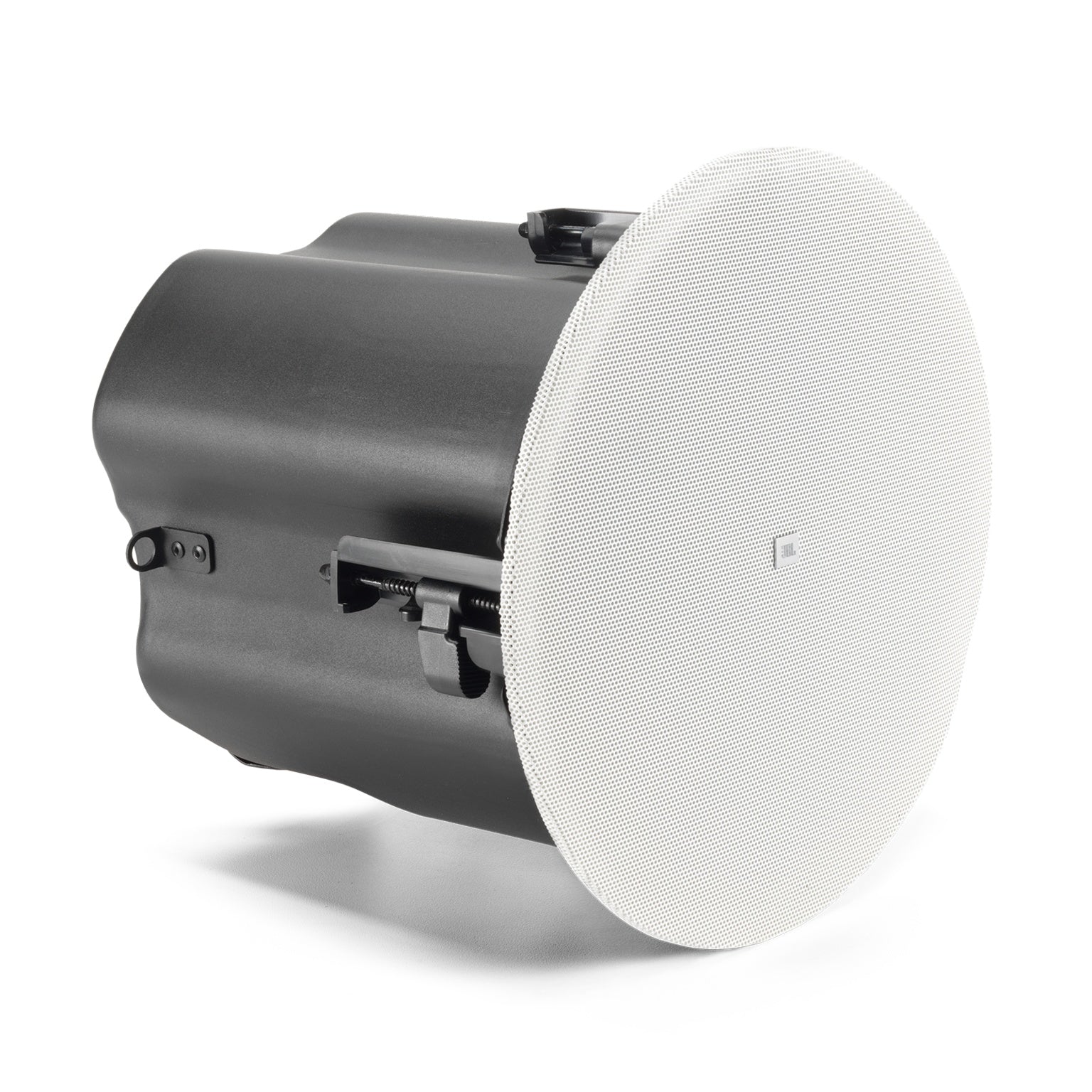

A full-face magnetic grille is included and can be painted to suit interior finishes. IP33 protection adds suitability for demanding indoor environments.

View full details

Specifications

Speaker
Frequency Range (-10 dB)
61Hz - 20kHz
Power Capacity
75W (300W Peak) Cont. Pink Noise (2 hrs) 50W (200W Peak) Cont. Pink Noise (100 hrs)
Sensitivity (1m/1W)
89dB
Coverage Angle
120° conical
Maximum SPL (1m)
108 dB continuous pink noise (114 dB peak)
Nominal Impedance
8Ω
Transformer Taps
70 V: 30 W, 15 W, 7.5 W & 3.8 W 100 V: 30 W, 15 W, 7.5 W
Drivers
LF: 165 mm (6.5 in) with paper cone, SBR surround. HF: 20 mm (0.75 in) soft dome
Installation
Ceiling Cutout Size
223 mm (8.8 in)
Dimensions
233 mm (9.3 in) H x 261 mm (10.4 in) dia. 222 mm (8.9 in) from bottom of ceiling tile to top of backcan
Color
Stock grille is White (RAL9003), paintable
Compliance
Safety Agency Rating
Suitable for use in air handling spaces per UL 2043, NFPA 90A & NFPA 70, CSA C22.2 no. 205 listed. Listing per UL 1480A Speakers for Commercial and Professional Use. UL registered Transformer.
Environmental
IP rating: IP33 per EN/IEC 60529. Operating temperature: 0° C to 45 °C.
Weights & Identification
Net Weight (ea)
3.75 kg (8.27 lbs)
Shipping Weight (pair)
12.64 kg (27.87 lbs)
SKU Numbers
JBL-C416C/T
