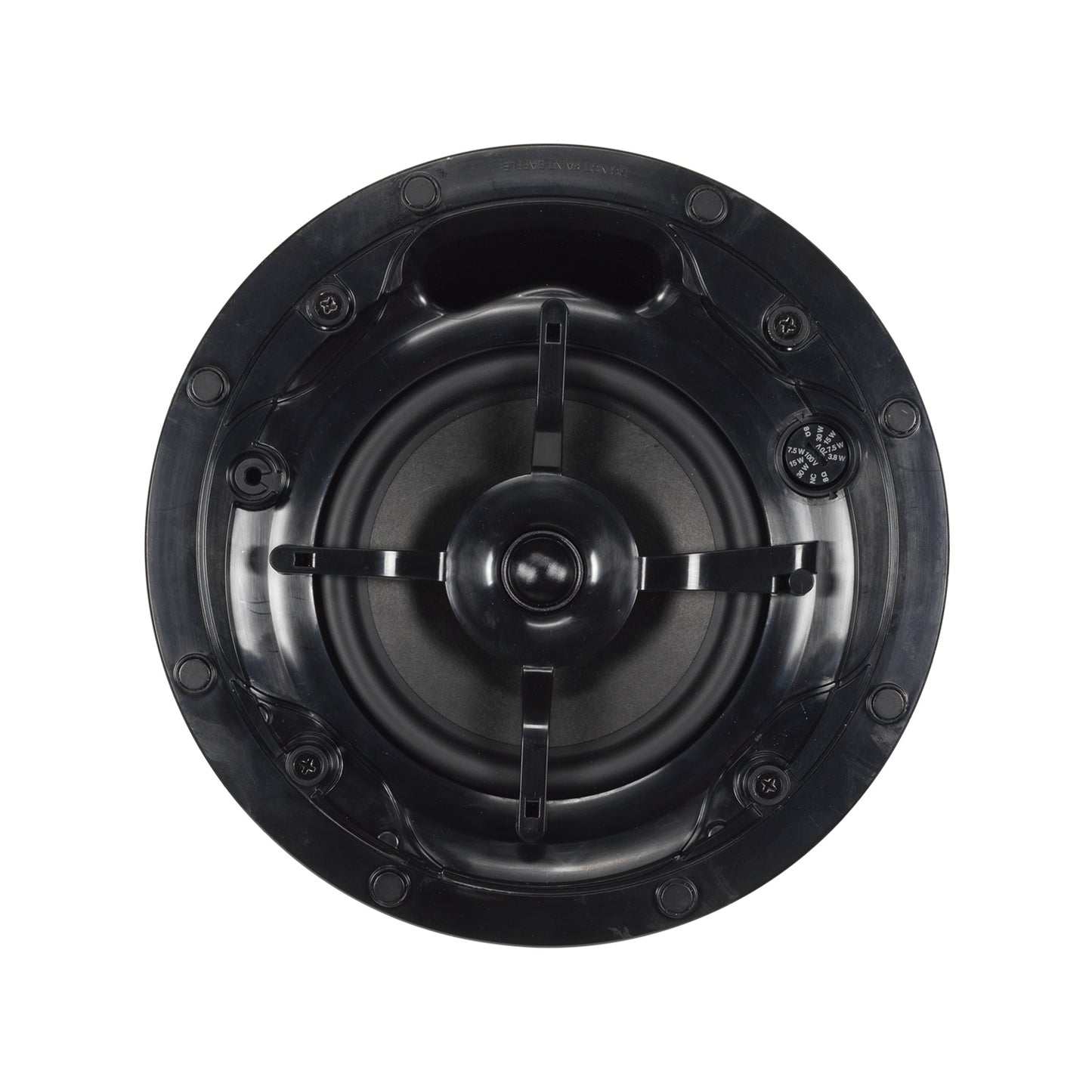

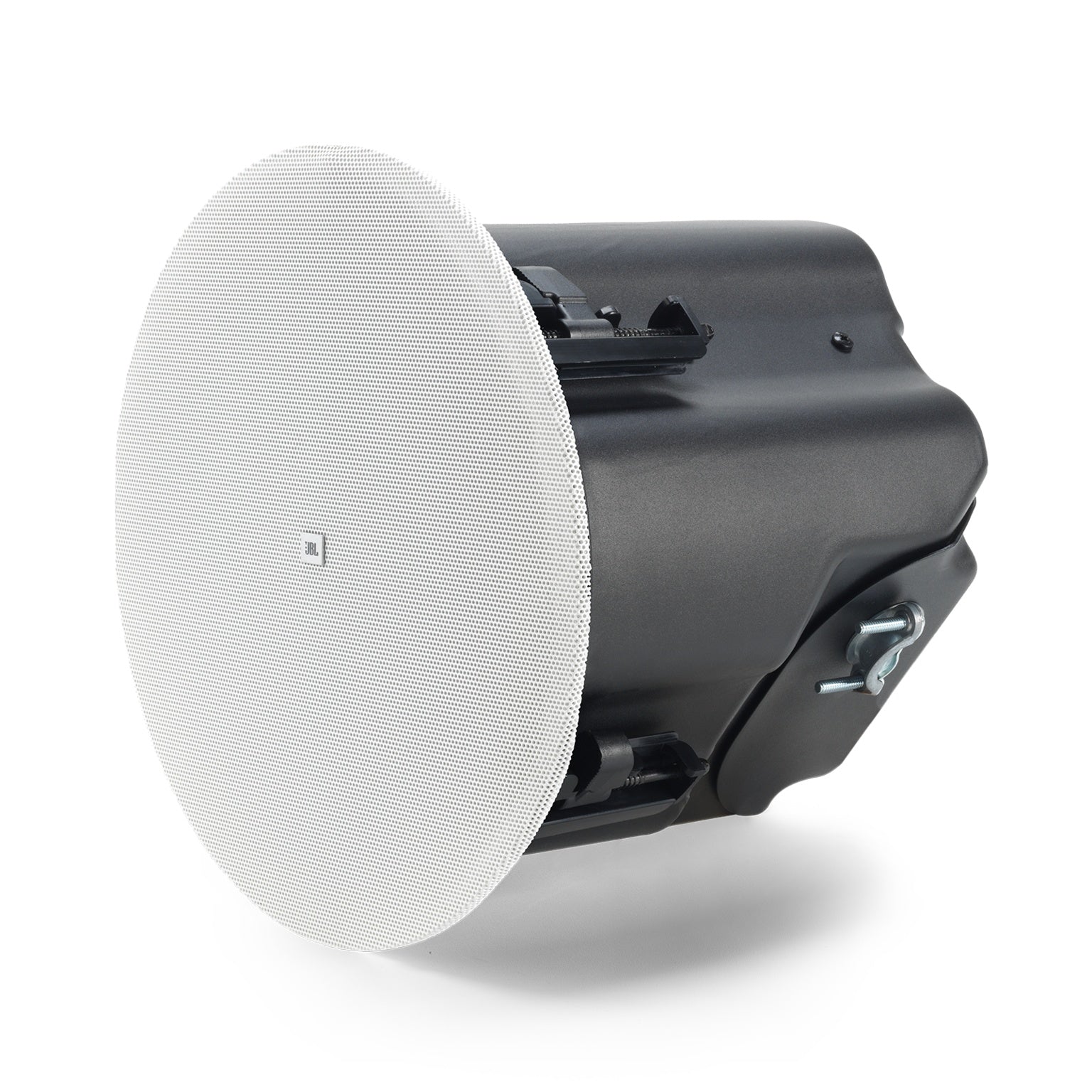

JBL Control 416C/T-VA-U Two-Way Coaxial Ceiling Speaker EN54-24 Rated | White

JBL Control 416C/T-VA-U Two-Way Coaxial Ceiling Speaker EN54-24 Rated | White

SoundPro Item: 202143 | Part Number: JBL-C416C/T-VA-U

$330.00
$330.00 $330.00
Your Price Sold out
MSRP: $330.00 | MAP: $330.00

Usually ships in 5-7 business days

  • Integrated enclosure fits plenum ceiling spaces
  • 70V/100V taps support distributed audio lines
  • 8-ohm input allows direct amplifier connection
  • Paintable magnetic grille matches room finishes
  • Top or side cable entry eases wiring access
  • Dogear design fits varied ceiling thicknesses
  • IP33 rating supports indoor environmental use
Log in or register for YOUR best price

This two-way coaxial in-ceiling loudspeaker is built for installed audio systems requiring flexible configuration. It combines a 6.5 in woofer with a soft-dome tweeter, and the integrated enclosure is suited to most ceiling plenum spaces.

Support for 70V/100V distributed lines and 8-ohm direct connection allows use across a range of system layouts. EN54-24 certification and installation-focused details make it appropriate for life safety applications where compliant ceiling mounting and repeatable setup are required.

View full details

Specifications

Performance
Frequency Range (-10 dB)
61Hz - 20kHz
Power Capacity
75W (300W Peak) Cont. Pink Noise (2 hrs) 50W (200W Peak) Cont. Pink Noise (100 hrs)
Sensitivity (1m/1W)
89dB
Coverage Angle
120° conical
Maximum SPL (1m)
108 dB continuous pink noise (114 dB peak)
Nominal Impedance
8Ω
Transformer Taps
70 V: 30 W, 15 W, 7.5 W & 3.8 W 100 V: 30 W, 15 W, 7.5 W
Drivers
Drivers
LF: 165 mm (6.5 in) with paper cone, SBR surround. HF: 20 mm (0.75 in) soft dome
Installation
Ceiling Cutout Size
223 mm (8.8 in)
Dimensions
249 mm (9.9 in) H x 261 mm (10.4 in) dia. 238 mm (9.5 in) from bottom of ceiling tile to top of gland nut.
Compliance
Safety Agency Rating
EN 54-24:2008 certified Type A. Designed in accordance with BS 5839-8 and EN 50849. Suitable for use in air handling spaces per UL 2043, NFPA 90A & NFPA 70, CSA C22.2 no. 205 listed. Listing per UL 1480A Speakers for Commercial and Professional Use. UL registered Transformer.
Environmental
IP rating: IP33 per EN/IEC 60529. Operating temperature: 0° C to 45 °C.
Finish and Weight
Color
Stock grille is White (RAL9003), paintable (please read the user manual before painting)
Net Weight (ea)
3.76 kg (8.29 lbs)
Shipping Weight (pair)
12.66 kg (27.91 lbs)
Accessories
Optional Accessories
JBL-MTC-416BG black (RAL9004) round grille JBL-MTC-416SG white (RAL9003) square grille JBL-MTC-416WG weather grille JBL-MTC-426NC new construction bracket JBL-MTC-426MR mud-ring construction bracket JBL-MTC-48TRX4 tile rail for 4' x 4' ceiling tiles
SKU Numbers
JBL-C416C/T-VA
