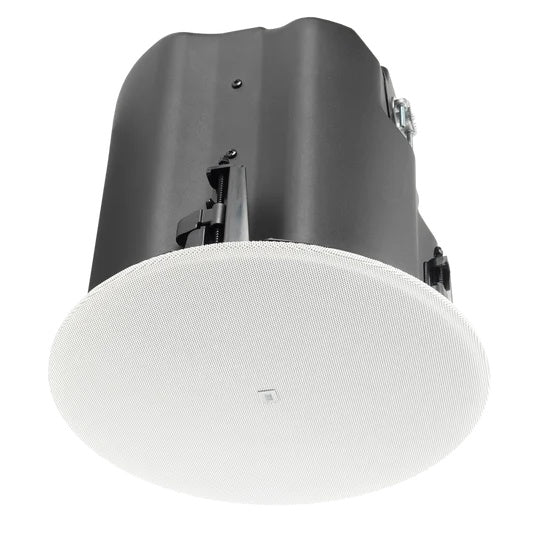

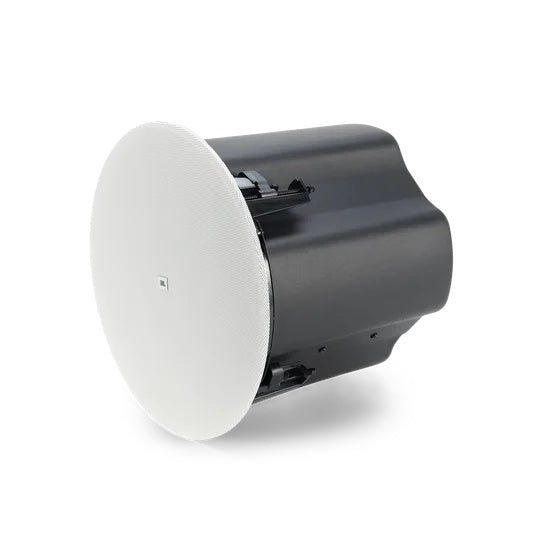

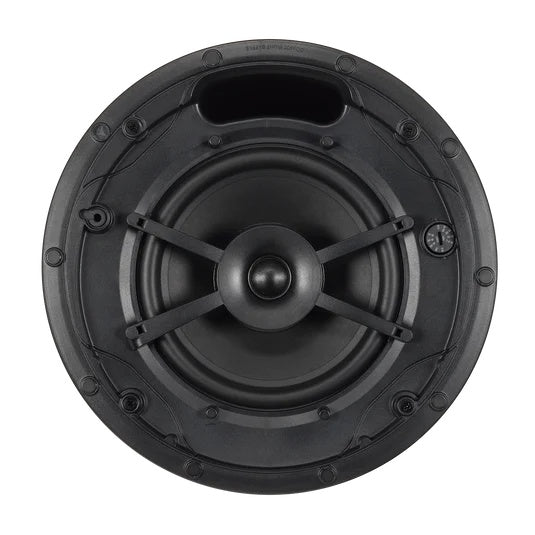

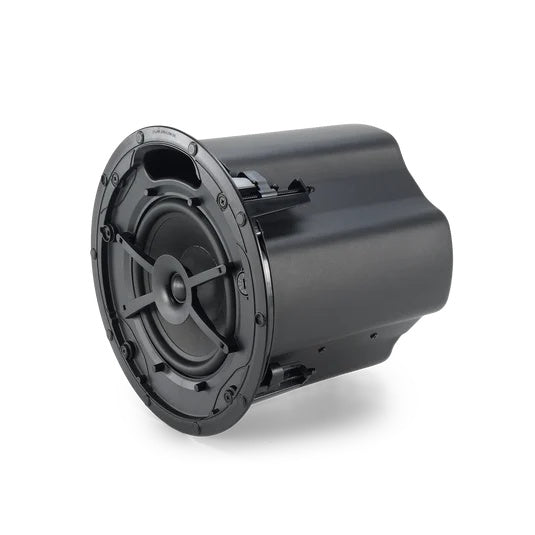

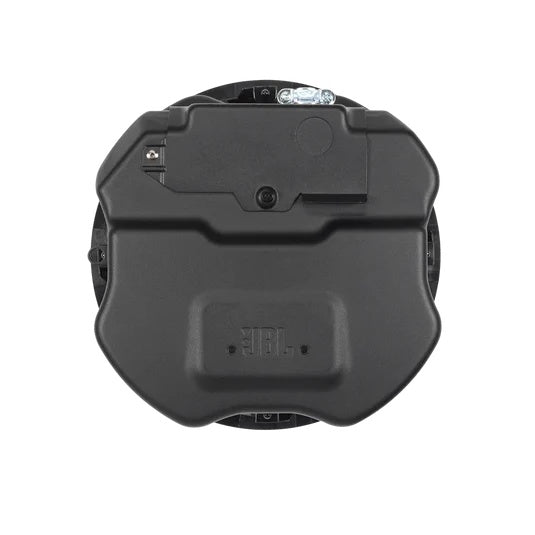

JBL JBL-C418C/T-U Control 418C/T 8" Ceiling Loudspeaker

JBL JBL-C418C/T-U Control 418C/T 8" Ceiling Loudspeaker

SoundPro Item: 202117 | Part Number: JBL-C418C/T-U

$340.00
$340.00 $340.00
Your Price Sold out
MSRP: $340.00 | MAP: $340.00

Usually ships in 5-7 business days

  • 200mm Woofer And 25mm Soft-Dome Tweeter Deliver Balanced Midrange And Clear High-Frequency Detail
  • 100° Conical Coverage Pattern Fills Ceiling Spaces With Even Acoustic Distribution
  • Built-In 70V/100V Multi-Tap Transformer Plus Direct 8-Ohm Input For Installation Flexibility
  • IP33 Environmental Rating Supports Plenum And Damp Installation Environments
  • Top And Side Cable Entry Options Simplify Rough-In And Retrofit Wiring
  • Robust Dogears Accommodate Ceiling Thicknesses From 0.5" To 1.5"
  • Full-Face Magnetic Grille Accepts Standard Paint For Seamless Aesthetic Integration
Log in or register for YOUR best price

The JBL Control 418C/T is a two-way ceiling loudspeaker designed for integrators and system designers deploying scalable audio in hospitality, corporate, retail, and institutional environments. The 8-inch woofer and 1-inch soft-dome tweeter deliver consistent coverage across a 100° conical pattern, making it ideal for medium-sized ceiling spaces where even sound distribution is critical to speech intelligibility and background music performance.

Built-in 70V and 100V step-down transformers eliminate the need for external equipment, allowing direct connection to installed audio infrastructure. The 8-ohm direct input option provides flexibility for low-impedance applications. Dual cable entry points (top and side) simplify rough-in and retrofit installations in existing ceiling plenums. Paintable magnetic grilles, robust dogears for variable ceiling thicknesses, and IP33 environmental sealing ensure durability and aesthetic integration across commercial spaces.

Whether deploying a single zone or a multi-zone system, the Control 418C/T's transformer-equipped design, 113 dB continuous SPL capability, and professional construction make it the practical choice for commercial installers seeking reliable, code-compliant ceiling audio without external accessories.

View full details

Specifications

Dimensions
Woofer Diameter
8.00"
Tweeter Diameter
1.00"
Coverage Angle
100° conical
Audio
Frequency Range (-10 dB)
57 Hz–20 kHz
Nominal Impedance
8 ohms
Sensitivity (1m/1W)
92 dB
Performance
Power Capacity (90W Rated)
360W Peak
Power Capacity (Full 135W Rating)
540W Peak
Maximum SPL (1m)
113 dB continuous pink noise, 119 dB peak
Electrical
Transformer Taps
70V, 100V
Direct Input
8 ohms
Environmental
IP Rating
IP33
Construction
Woofer Type
200mm coaxial
Tweeter Type
25mm soft-dome
Grille Type
Full-face magnetic, paintable
