Specifications
Electrical
AC Power
Voltage Range Nominal : 100-240 VAC, 50/60 Hz, Limits : 80-260 VAC, 50/60 Hz, Connectors : Dual (IN/OUT) Neutrik powerCON TRUE1 TOP®
Current Draw
120V, 208V, 240V, Idle : 0.3A, 0.2A, 0.2A, Standby : 0.2A, 0.2A, 0.2A, Continuous: 4.0A, 2.1A, 1.9A, Maximum Instantaneous Peak: 18.1A, 8.6A, 7.3A, Peak Inrush: 2.9A, 5.1A, 5.9A
Voltage Range Nominal
100-240 VAC, 50/60 HzLimits : 80-260 VAC, 50/60 HzConnectors : Dual (IN/OUT) Neutrik powerCON TRUE1 TOP®
Audio
Audio Input
Input Type : Balanced line level, Connectors : (2) Neutrik XLR (IN/OUT), Nominal Input Sensitivity : +6 dBu (system starts limiting with broadband noise and music), Maximum Input Level : 21 dBu, Input Impedance : 100 kΩ
Construction
Grille
Powder coated 1.8 mm (14-gauge) hex perforated steel with acoustically transparent black cloth backing
Included Items

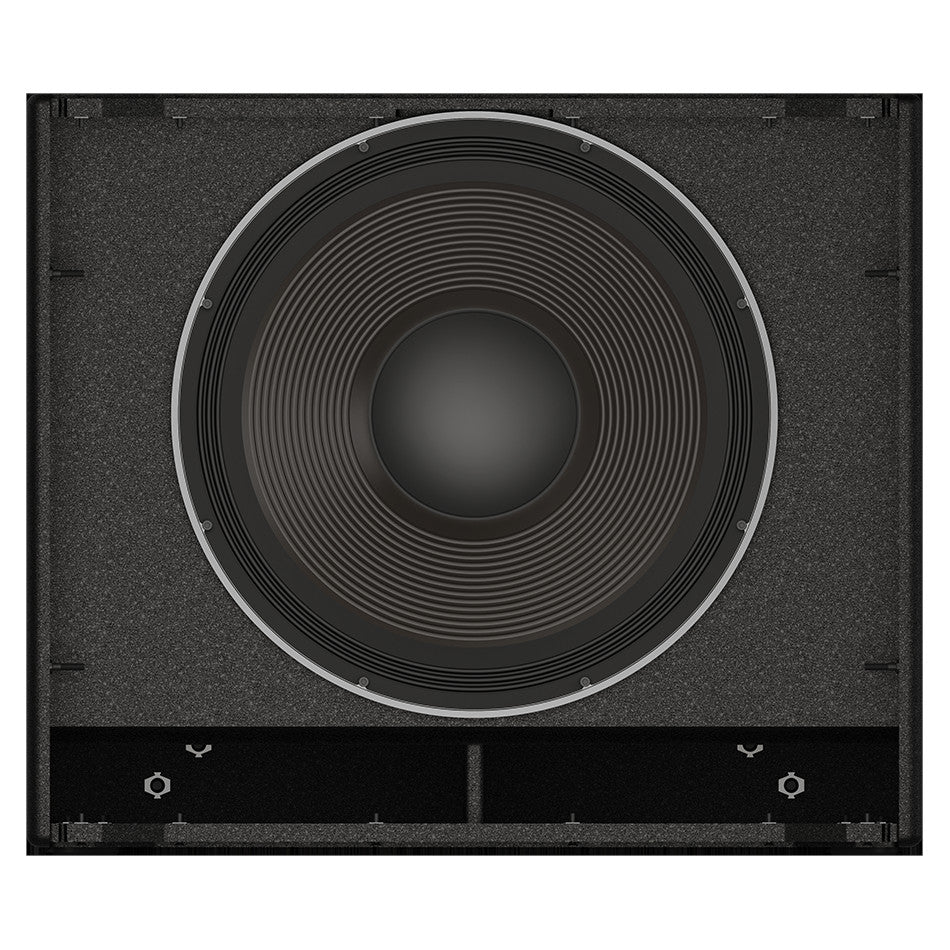

SRX918S Single 18" Powered Subwoofer
1x
PowerCON True1 Connectors
2x
General
Acoustical
Coverage Pattern Options [1]: Omnidirectional or Cardioid, Maximum Peak Output [2]: 134 dB (Preset: 80 Hz), System Type : Active Subwoofer
Transducers
Low Frequency : (1) JBL 2279G-1, 18 in diameter, 4 ohms, dual 3.0 in diameter voice coil, ferrite Differential Drive®
DSP
Sample Rate 48 kHz, Bit Depth : 24 bit
Networking
Type : TCP/IP, Protocol : Harman HControl, Speed : Dual 100 Mbps ports, Connectors : (2) Neutrik etherCON®
Physical
Enclosure: 18 mm plywood, Black DuraFlexTM finish, two integral recessed handles, IP Rating: IP54, Grille: Powder coated 1.8 mm (14-gauge) hex perforated steel with acoustically transparent black cloth backing, Dimensions (H x W x D) : 22.6x26.9x26.9 in (575x684x683 mm), Net Weight: 44.5 kg (98 lbs)
Type
TCP/IP
Speed
Dual 100 Mbps ports
Idle
0.3A, 0.2A, 0.2A
Standby
0.2A, 0.2A, 0.2A
