Specifications
Electrical
AC Power - Voltage Range
Nominal: 100-240 VAC, 50/60 Hz, Limits: 80-260 VAC, 50/60 Hz, Connectors : Dual (IN/OUT) Neutrik powerCON TRUE1 TOP®
Current Draw
120V, 208V, 240V, Standby : 0.2A, 0.2A, 0.2A, Idle: 0.3A, 0.2A, 0.2A, Continuous: 4.8A, 2.4A, 2.1A, Maximum Instantaneous Peak: 18.2A, 8.6A 7.3A, Peak Inrush: 2.9A, 5.1A, 5.9A
Audio
Audio Input
Input Type: Balanced line level, Connectors: (2) Neutrik XLR (IN/OUT), Nominal Input Sensitivity: +6 dBu (system starts limiting with broadband noise and music), Maximum Input Level: 21 dBu, Input Impedance: 100 kΩ
Included Items

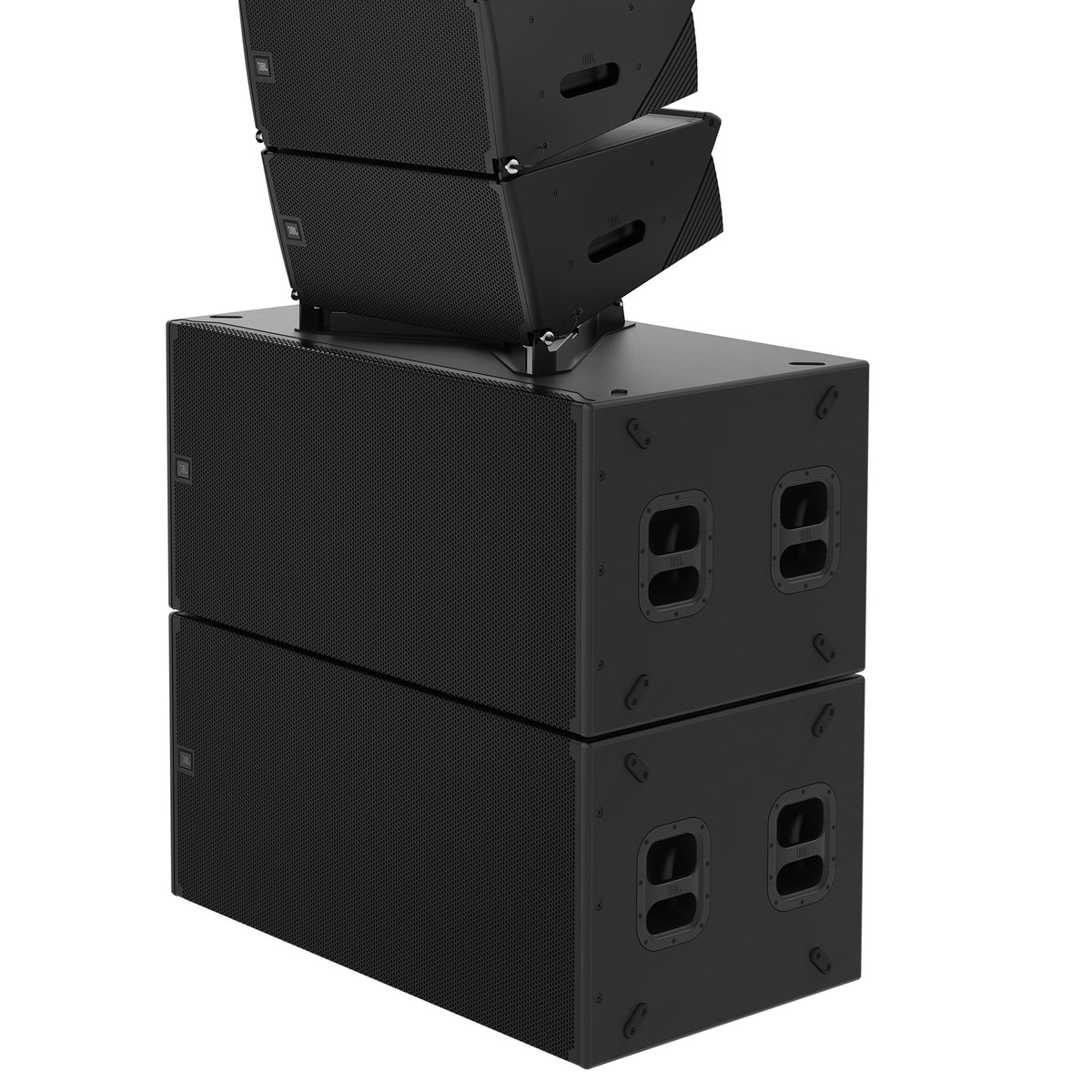

SRX928S Dual 18" Powered Subwoofer
1x
PowerCON True1
2x
General
Transducers
Low Frequency : (2) JBL 2279H-1, 18 in diameter, 8 ohms, dual 3.0 in diameter voice coil, ferrite Differential Drive®
DSP
Sample Rate: 48 kHz, Bit Depth: 24 bit
Amplifier
Type: Class-D, Number of Channels: (1), Continuous Power: 1100 Watts, Peak Power: 2500 Watts
Networking
Type: TCP/IP, Protocol: Harman HControl, Speed: Dual 100 Mbps ports, Connectors: (2) Neutrik etherCON®
Physical
Enclosure: 18 mm plywood, Black DuraFlexTM finish, four integral recessed handles, IP Rating: IP54, Grill: Powder coated 1.8 mm (14-gauge) hex perforated steel with acoustically transparent black cloth backing, Dimensions (HxWxD): 22.2x47.4x26.8 in (565x1,205x681 mm), Net Weight: 155 lbs (70.3 kg)
System Type
Active Subwoofer
(10 dB)
31 Hz-100 Hz (Preset: 80 Hz)
(-3 dB)
39 Hz-80 Hz (Preset: 80 Hz)
Type
Class-D
Speed
Dual 100 Mbps ports
Nominal
100-240 VAC, 50/60 Hz
Limits
80-260 VAC, 50/60 Hz
Standby
0.2A, 0.2A, 0.2A
Idle
0.3A, 0.2A, 0.2A
Grill
Powder coated 1.8 mm (14-gauge) hex perforated steel with acoustically transparent black cloth backing
RF
Frequency Range
Coverage Pattern Options: Omnidirectional or Cardioid, Maximum Peak Output: 140 dB (Preset: 80 Hz)
