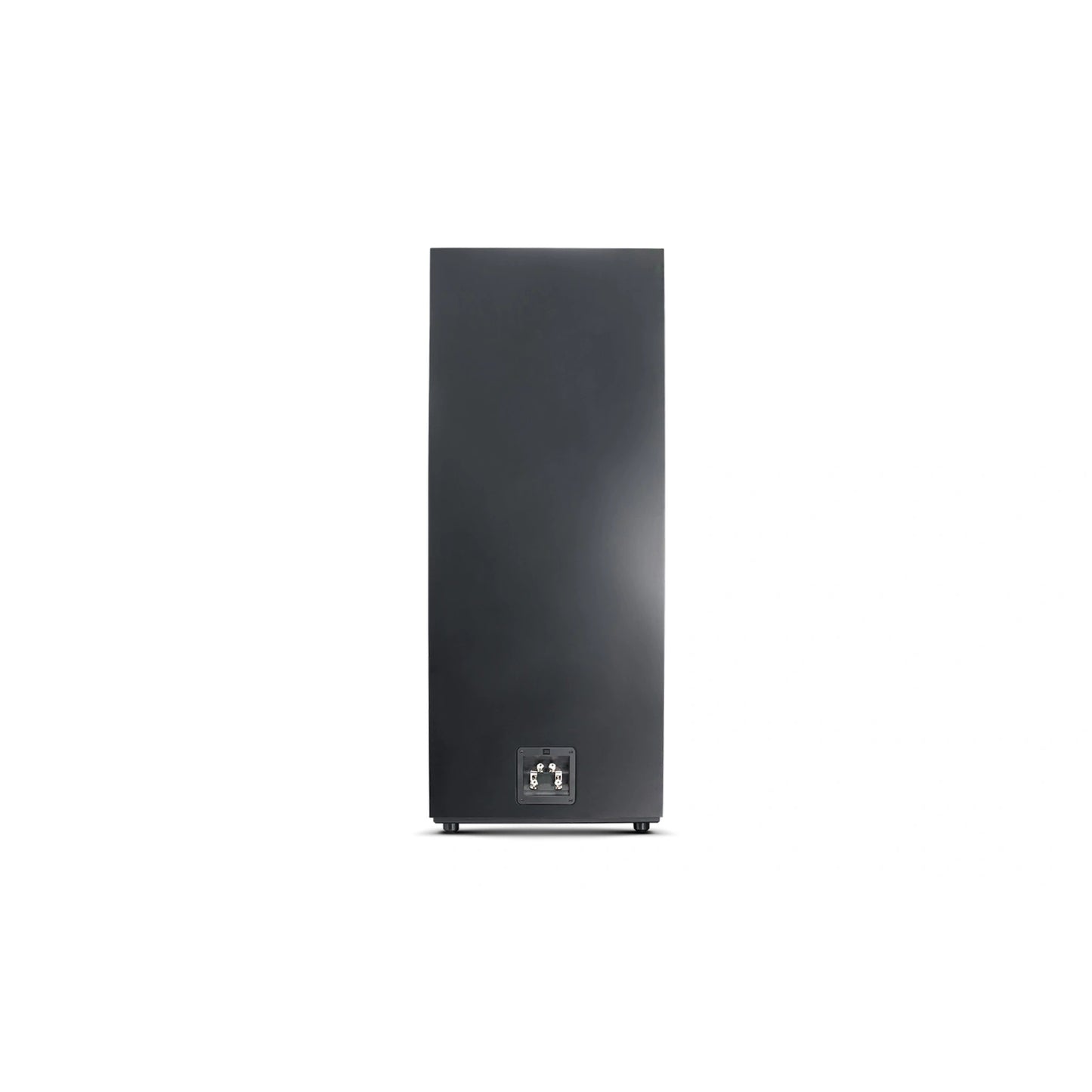

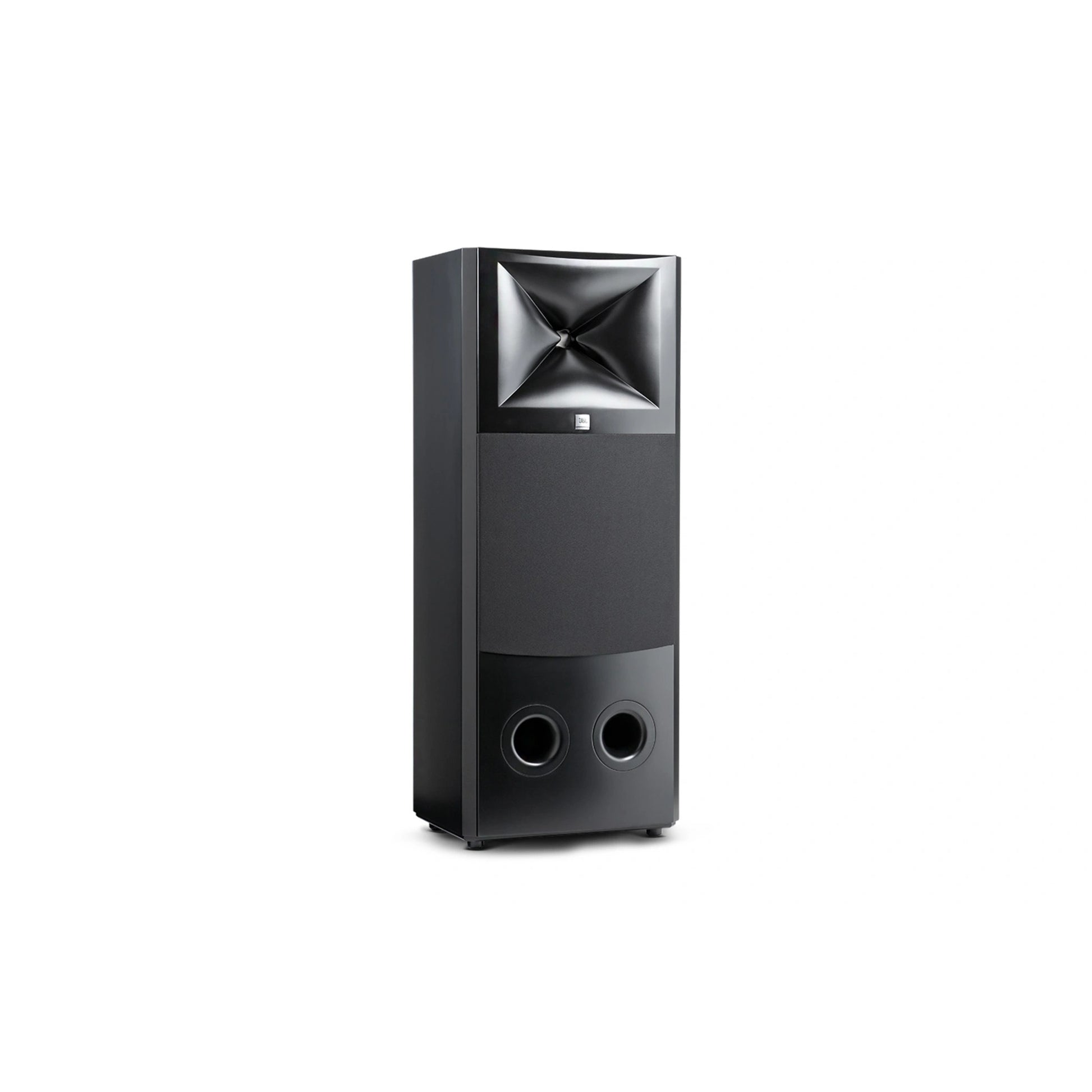

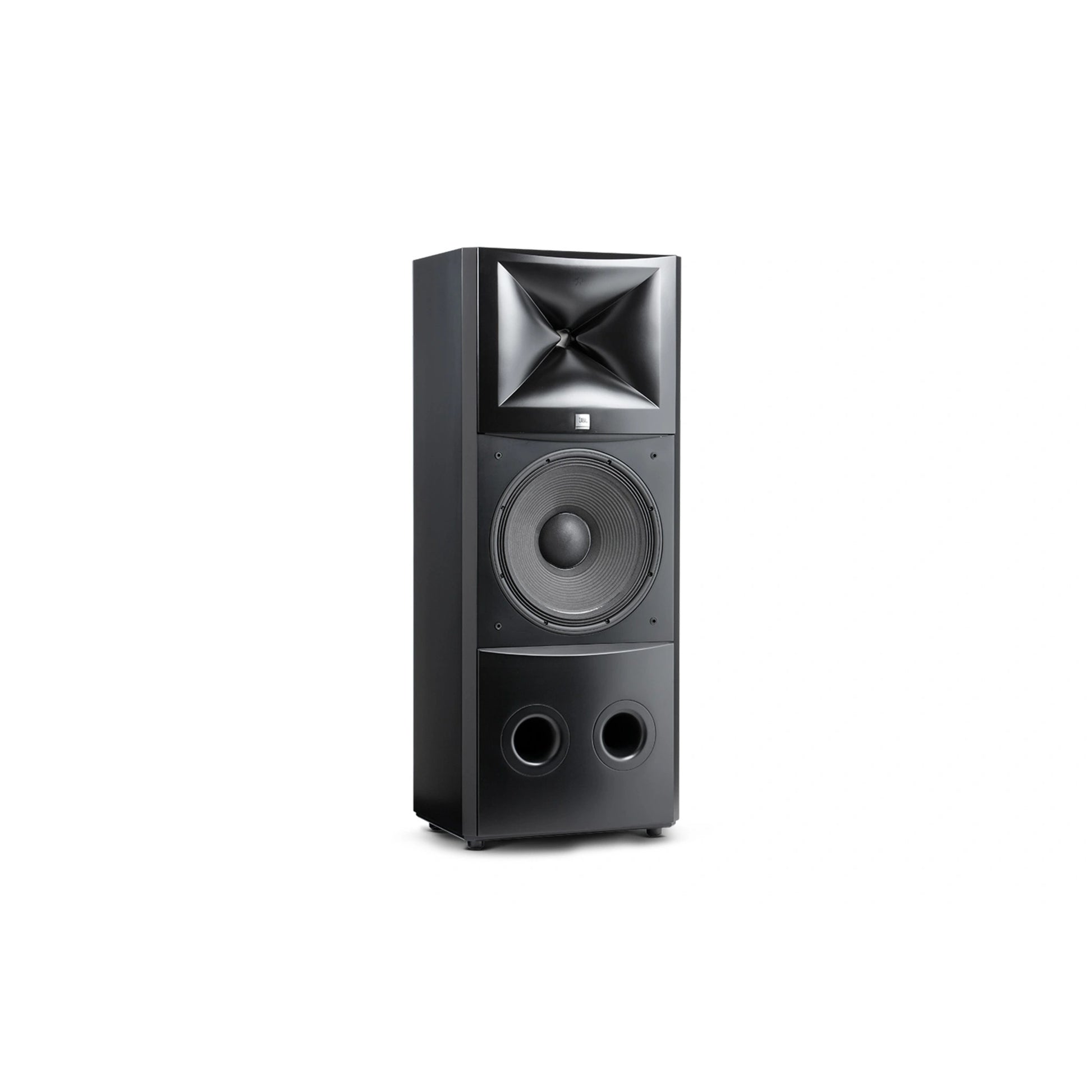

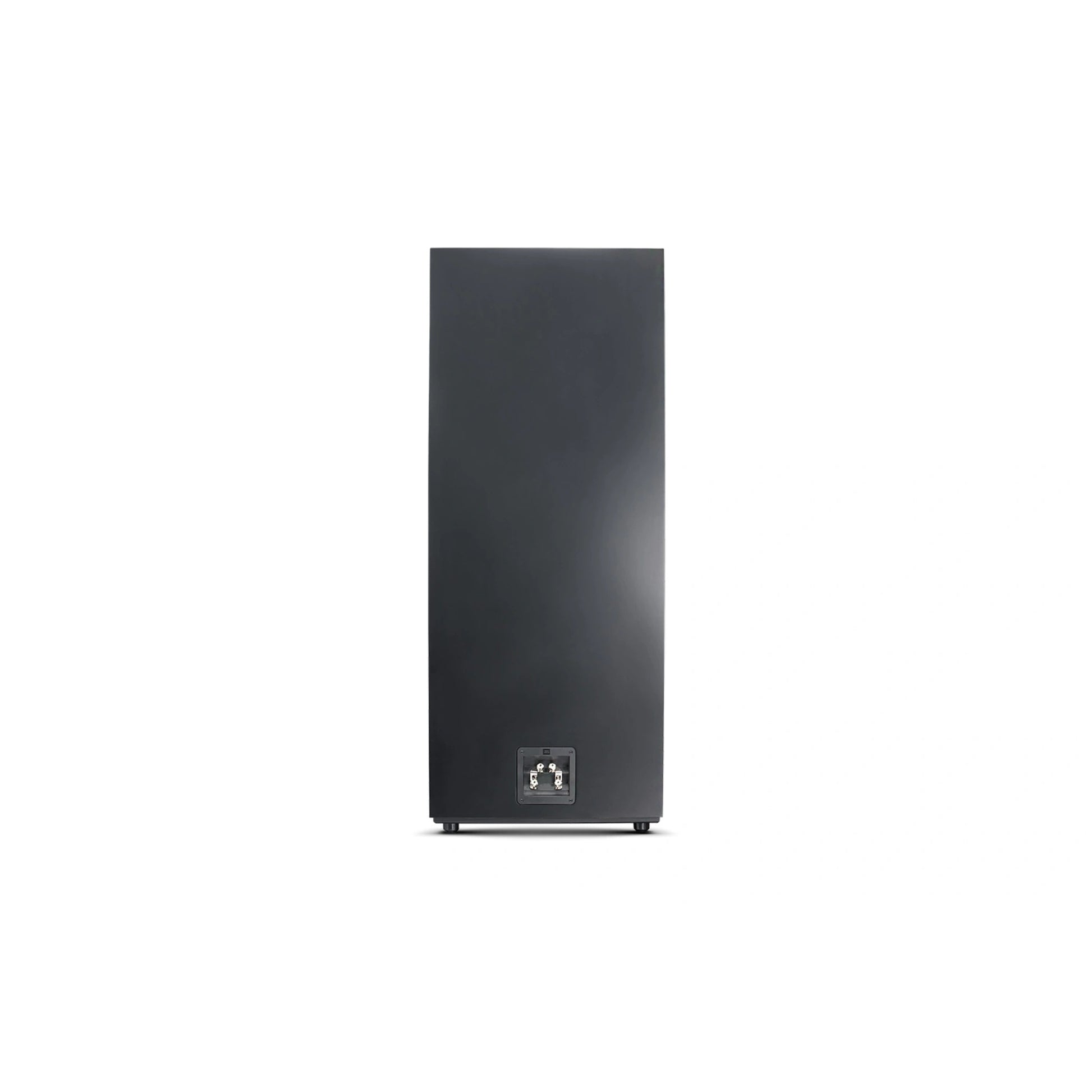

JBL M2 Master Reference 2-Way Floor Standing Studio Monitor

JBL M2 Master Reference 2-Way Floor Standing Studio Monitor

SoundPro Item: 77595 | Part Number: M2

Regular price $7,499.00
Regular price $9,373.75 Sale price $7,499.00
Your Price Sold out
MSRP: $9,373.75 | MAP: $7,499.00

Usually ships in 5-7 business days

  • D2430K Dual-Diaphragm Compression Driver For Exceptional High-Frequency Detail
  • 15-Inch Differential Drive Woofer With Extended Bass Performance
  • Patented Low-Frequency Port Design Minimizes Power Compression
  • LSR Linear Spatial Reference Design Provides Uniform Directivity
  • 123 dB Maximum SPL Handles Dynamic Range Demands
  • Floor Standing Or Soffit Mountable Installation Flexibility

The JBL M2 is a 2-way passive studio monitor engineered for critical mastering, mix, and broadcast control room applications where accuracy and dynamic headroom matter most. Its dual-diaphragm, dual-voice-coil compression driver delivers exceptional high-frequency detail and uniform directivity, creating a smooth in-room response across listening positions. The 15-inch Differential Drive woofer extends bass performance while a patented low-frequency port design reduces power compression and distortion—essential for reproducing the full dynamic range of cinema mixes and music productions.

Designed around JBL's Linear Spatial Reference (LSR) topology, the M2 provides 123 dB maximum SPL capability, 92 dB sensitivity, and 120° × 100° coverage to accommodate both conventional and soffit-mounted installations. The compact footprint and floor-standing or wall-mount flexibility make it suitable for diverse control room layouts without sacrificing the extended bass and imaging precision that production and mastering engineers demand.

View full details

Specifications

Acoustical
Frequency Response (±3 dB)|20 Hz–40 kHz
Sensitivity|92 dB
Maximum SPL|123 dB
Coverage Angle|120° H x 100° V
Crossover Frequency|800 Hz
Drivers
HF Driver|D2430K Dual Diaphragm Dual Voice Coil Compression Driver
LF Driver|2216Nd 15 in (381 mm) Differential Drive Woofer
Configuration
System Format|2-Way Floor Standing or Soffit Mountable
