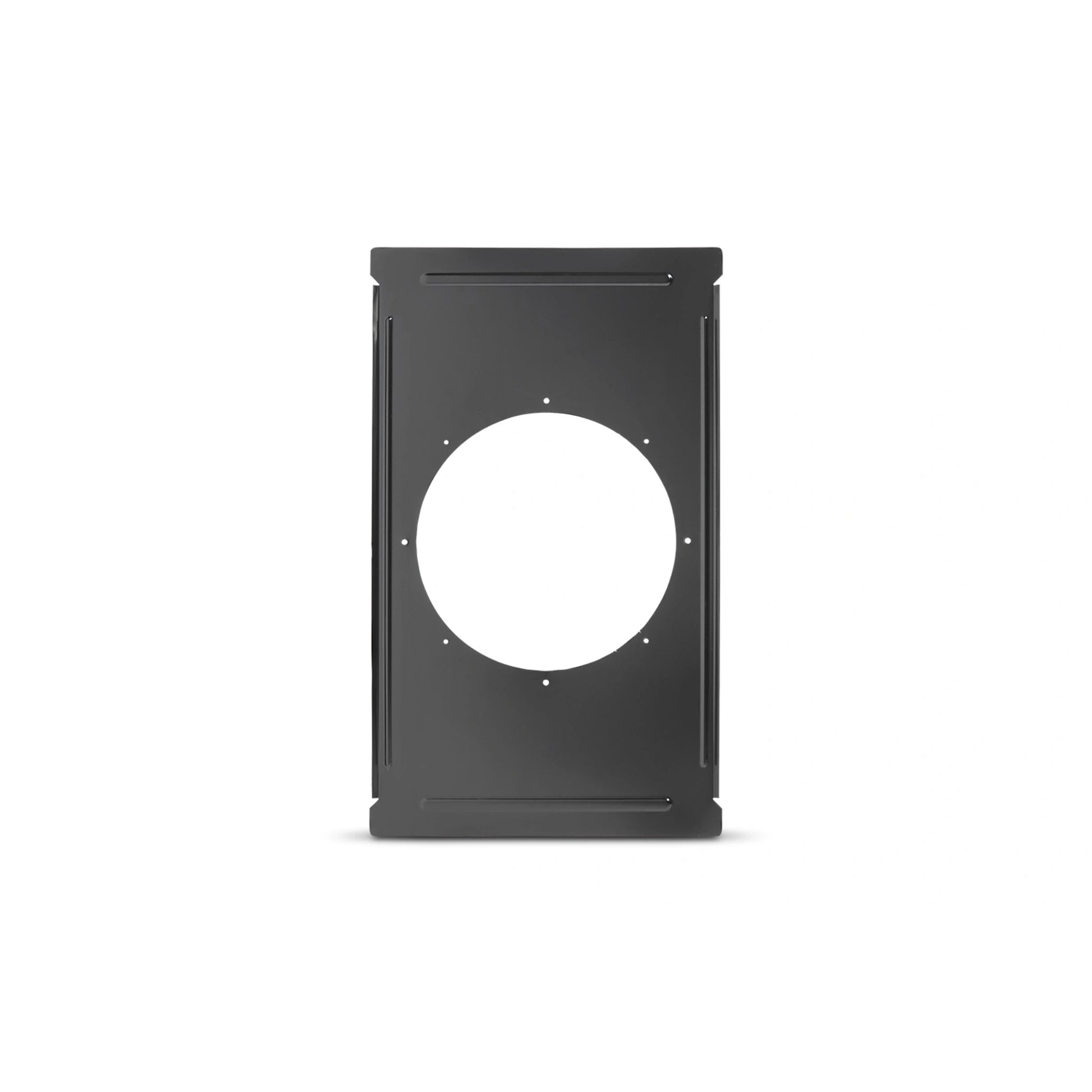

JBL MTC-81TB8 Tile Bridge For 8138 Speaker Mount

JBL MTC-81TB8 Tile Bridge For 8138 Speaker Mount

SoundPro Item: 17863 | Part Number: MTC-81TB8

$31.00
$31.00 $31.00
Your Price Sold out
MSRP: $31.00 | MAP: $31.00

Usually ships in 5-7 business days

  • Load-Bearing Design Eliminates Ceiling Tile Sag By Transferring Weight To Building Structure
  • 19-Gauge Steel With Black Polymer E-Coating For Rust And Corrosion Resistance
  • Compatible With 610 mm And 600 mm Tile Grid Spacing
  • Four Clip-Nut Attachment Points For Secure 8138 Speaker Mounting
  • Four Thru-Holes On Standard Mounting Circle For Quick Backcan Connection
Log in or register for YOUR best price

The JBL MTC-81TB8 tile bridge is engineered for integrators installing the 8138 speaker into drop ceiling environments. This load-bearing component transfers speaker and backcan weight directly to the building's structural support system, eliminating the deflection and sagging that occurs when ceiling tiles alone must support speaker mass.

The bridge accommodates both 610 mm and 600 mm tile grid spacing, making it suitable for most North American commercial installations. Its 19-gauge steel construction with polymer e-coating resists rust and corrosion in humid or variable environmental conditions. Four clip-nuts secure the speaker to the bridge, while four thru-holes on a standard mounting circle allow fast attachment to the MTC-81BB8 backcan.

Specify this bridge for any 8138 installation where ceiling tile deflection is a concern. It reduces callbacks and structural liability by properly distributing load according to building code requirements.

Downloads

View full details

Specifications

Dimensions
Length
23.6"
Width
14.0"
Mounting Circle Diameter
11.25"
Weight
Net Weight Each
2.0 lbs
Construction
Material
19 gauge (1.0 mm thickness) steel
Finish
Black polymer e-coating
Attachment Method
4 clip-nuts for 4 mm tapping screws
Thru-Holes
4 on 286 mm (11.25 in) mounting circle
Compatibility
Speaker Model
8138
Backcan Model
MTC-81BB8
Tile Grid Spacing
610 mm (24 in), 600 mm (23.6 in)
