JBL VTX A8 MF Vtx A8 Mini Frame

JBL VTX A8 MF Vtx A8 Mini Frame

SoundPro Item: 109667 | Part Number: VTX A8 MF

Pricing available upon request

Pricing available upon request

Your Price Sold out

Usually ships in 5-7 business days

  • Compact and lightweight design
  • Compatible with VTX A8 and VTX B18 enclosures
  • Single-point and side-by-side pick-point options
  • 0.5-degree pick-point resolution
  • 3-part collapsible design
  • Compatible shackle size: 1/2 in
Log in or register for YOUR best price

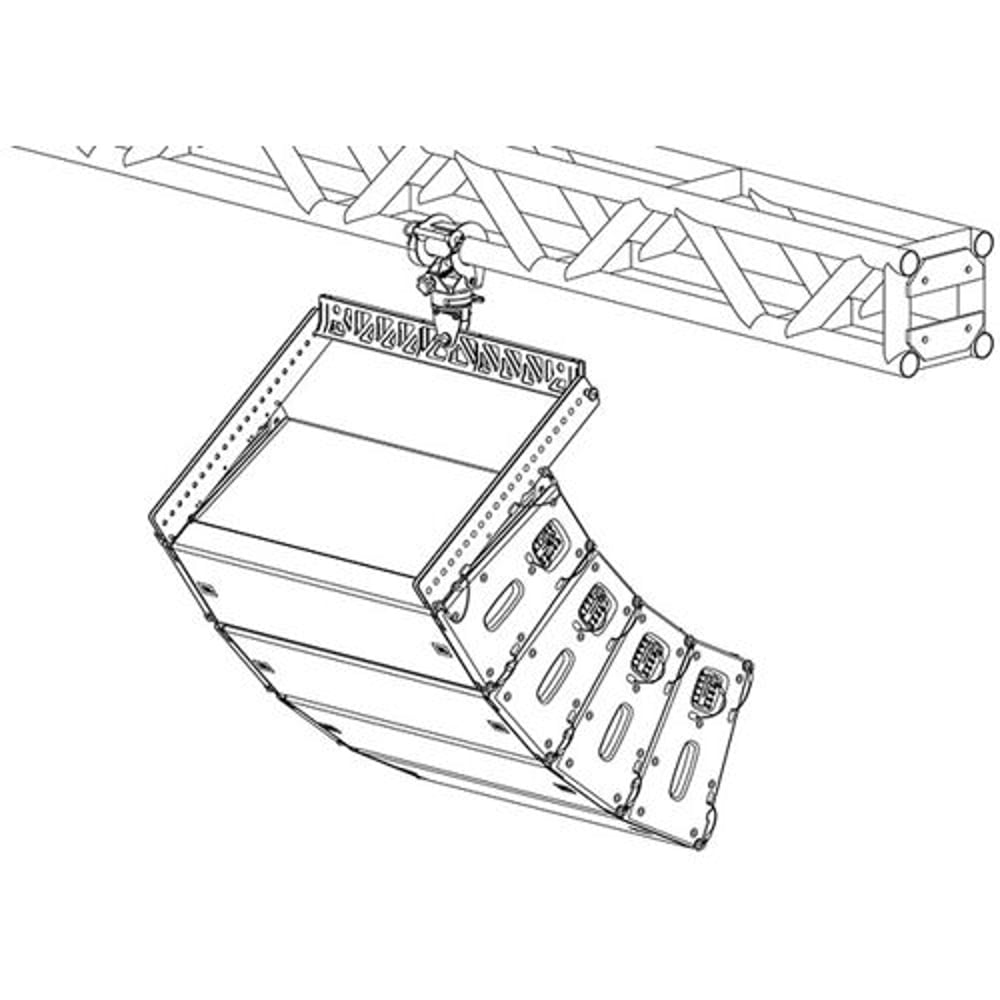

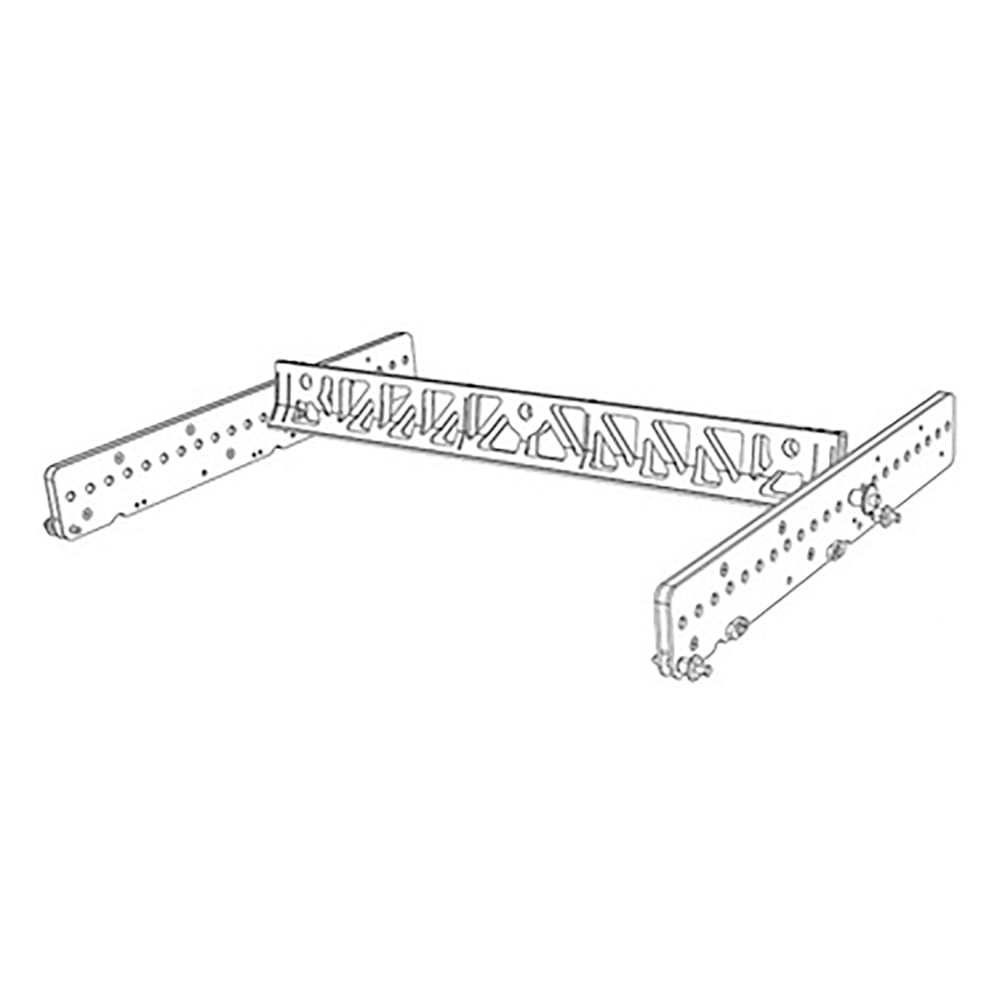

The VTX A8 MF mini frame is a lightweight, compact and inexpensive array frame used for suspending smaller VTX A8 and VTX B18 arrays. The mini frame was designed to work primarily with single-point or side-by-side suspension methods. For single-point applications, the mini frame can be used in conjunction with the VTX RC500 rotating clamp, allowing smaller VTX A8/B18 arrays to be suspended from standard size trusses or pipes. The side-by-side suspension points are especially useful when suspending VTX A8/B18 arrays from telescopic boom lifts. The three-piece design is comprised of two sidearms and one spreader-bar. The sidearms connect to the cabinets, and the spreader bar can be pinned to one of the 22 positions on the sidearms, providing excellent tilt resolution. The three pieces can be collapsed and pinned together for storage.
