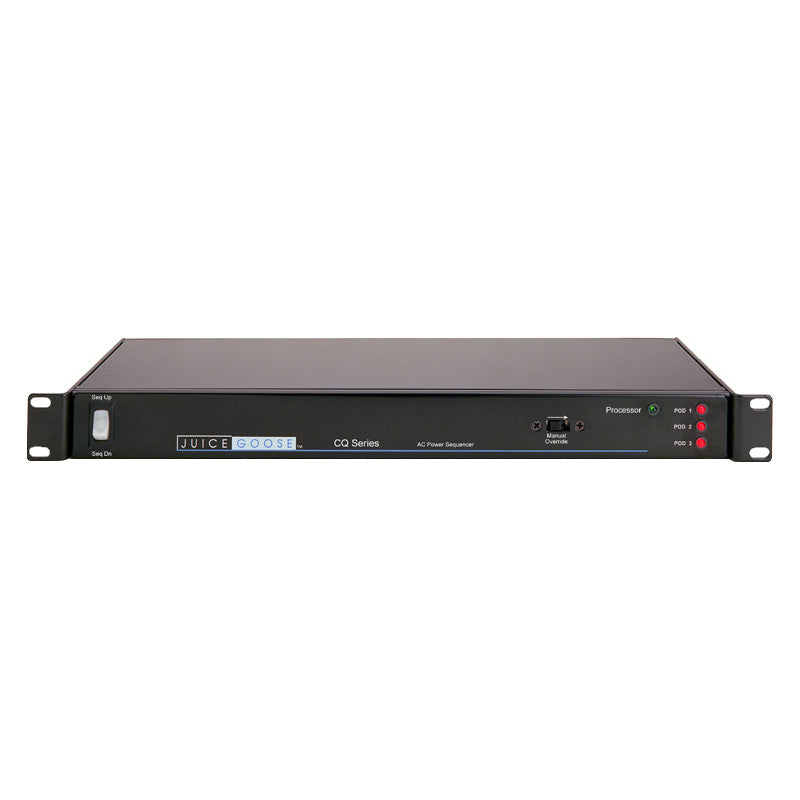

Juice Goose CQ1515-RX 20A 3-Step Rackmount Sequencer

The CQ 1515-RX combines reliable AC power sequencing with the proven performance of the Juice Goose RX Series surge protection and filtration.

Each CQ Series product contains the circuitry needed for sequenced activation and plug-and-play coordination with other CQ Series models or RC Series accessories. All power up and power down sequences are performed automatically. Commands are passed from one CQ Series unit to the next.

The CQ 1515-RX is a single space rack mount device featuring 7 AC power outputs on the rear of the chassis with a combined rating of 15 amps. One output is unswitched. The remaining 6 outputs are grouped into 3 Power Pods of two outputs each. Each Power Pod is an individual sequence event. All outputs have premium, RX Series surge protection and line noise filtration.

Because the CQ 1515-RX is a self contained sequencing circuit, it can be the master or slave in a power sequencing system. Eight wire RJ-45 cable can be connected to this unit's Signal Input and/or Signal Output connectors to link it's operations with other CQ or control devices.

This product features LEDs on the front of the chassis for real time monitoring of the sequencing functions. Individual LEDs light when power is applied to its power pod.
