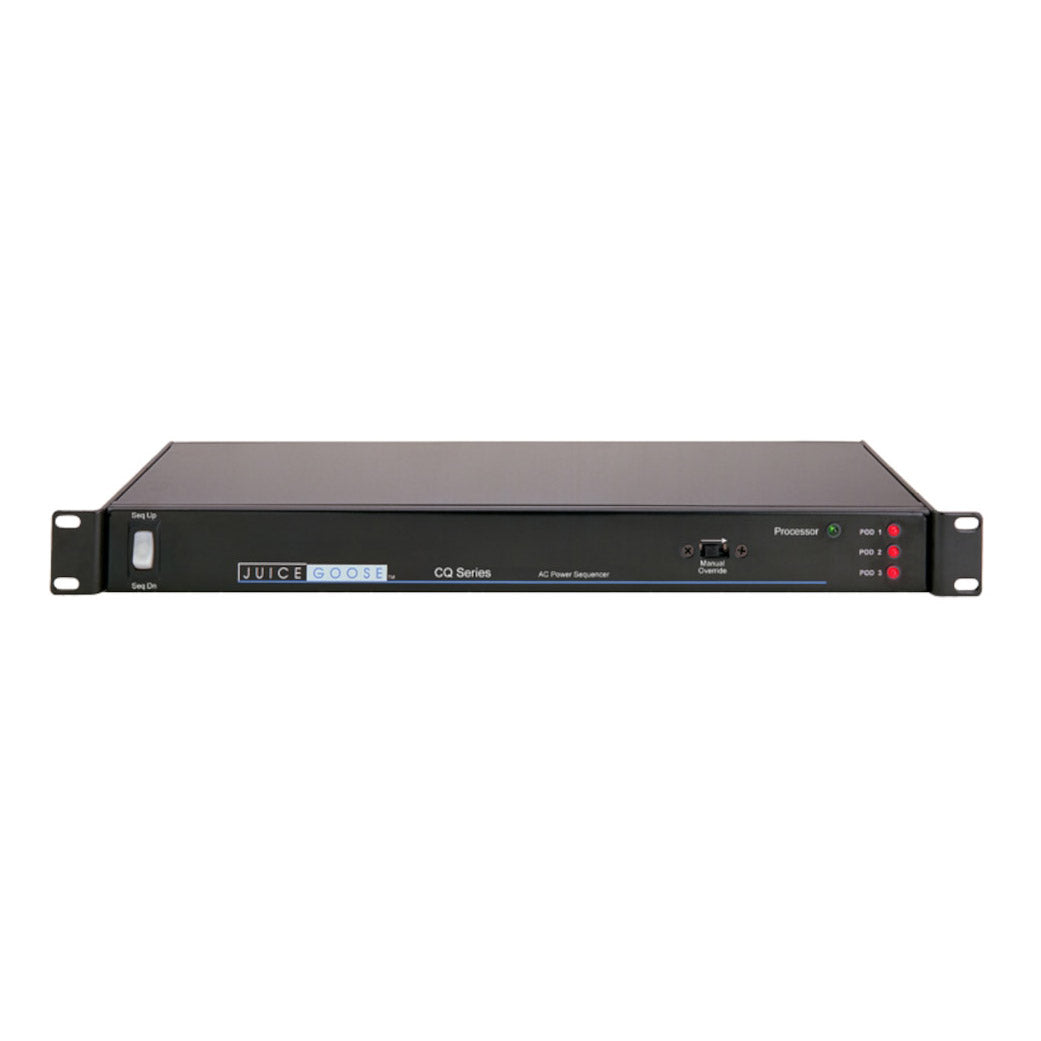

Juice Goose CQ1520-RX 20A Power Sequencer
Juice Goose CQ1520-RX 20A Power Sequencer
SoundPro Item: 23624 | Part Number: CQ1520-RX
Usually ships in 5-7 business days
- Single space rack mount device
- 7 AC power outputs on the rear of the chassis with a combined rating of 20 amps
- 1 output is unswitched.
- 6 outputs are grouped into 3 Power Pods of two outputs each
- Each Power Pod is an individual sequence event
- All outputs have premium, RX Series surge protection and line noise filtration
The CQ 1520-RX combines reliable AC power sequencing with the proven performance of the Juice Goose RX Series surge protection and filtration.
Each CQ Series product contains the circuitry needed for sequenced activation and plug-and-play coordination with other CQ Series models or RC Series accessories. All power up and power down sequences are performed automatically. Commands are passed from one CQ Series unit to the next.
The CQ 1520-RX is a single space rack mount device featuring 7 AC power outputs on the rear of the chassis with a combined rating of 20 amps . One output is unswitched. The remaining 6 outputs are grouped into 3 Power Pods of two outputs each. Each Power Pod is an individual sequence event. All outputs have premium, RX Series surge protection and line noise filtration.
Because the CQ 1520-RX is a self contained sequencing circuit, it can be the master or slave in a power sequencing system. Eight wire RJ-45 cable can be connected to this unit's Signal Input and/or Signal Output connectors to link it's operations with other CQ or control devices.
This product features LEDs on the front of the chassis for real time monitoring of the sequencing functions. Individual LEDs light when power is applied to its power pod.
The 20 amp capacity of this unit requires it to be assembled with a 12 gauge power cable and a NEMA 5/20P plug at the end of the power cord. This cable can be inserted into any AC receptacle with a comparable rating and the configuration of a 20 amp receptacle.
