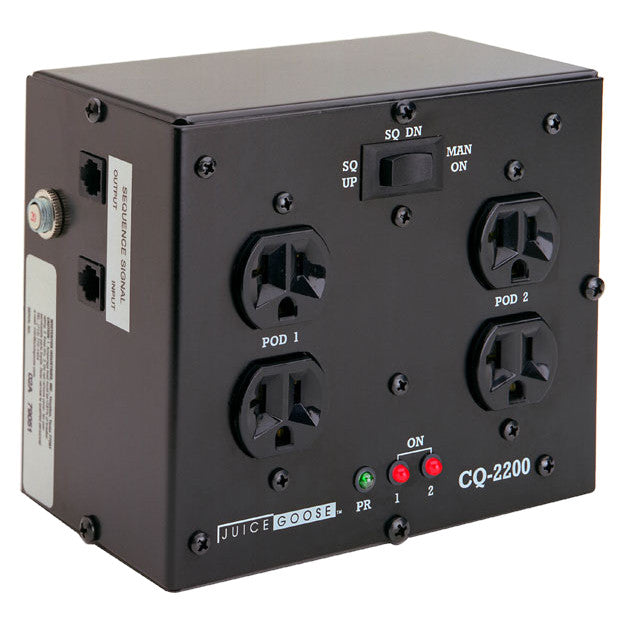

Juice Goose CQ2200 20A Power Distribution System

Juice Goose CQ2200 20A Power Distribution System

SoundPro Item: 48126 | Part Number: CQ2200

$299.99
$356.00 $299.99
Your Price Sold out
MSRP: $356.00 | MAP: $299.99

Usually ships in 5-7 business days

  • The CQ-2200 stages the turn-on thereby reducing the required electric power service
  • Can act as a standalone sequencer for smaller systems
  • Can be controlled by a contact closure
  • Quick and easy to install and operate
Log in or register for YOUR best price

When is more than one sequence event needed? Whenever it's a good idea to reduce the start-up current surge on a single circuit. That's why the CQ-2200 has 2 sequence events...and why it's so popular. This really is an expanded version of the CQ-2000.

Some amplifiers may be able to operate in tandem on a single 20 amp circuit, but would overload the circuit if turned on at the same time. The CQ-2200 stages the turn-on thereby reducing the required electric power service.

For smaller systems the CQ-2200 can act as a stand alone sequencer, activating front end equipment on the first POD and the amplification on the second.

Because the CQ-2200 can be controlled by a contact closure, installation is quick and requires no expensive accessories. Remote activation is very simple and convenient.

So, the CQ-2200 offers several attractive features in a very economical, easy to install and easy to use package. The CQ-2200 is available in an isolated ground version (CQ-2200-IG).

View full details

Specifications

Certifications
Power Output, NEMA 5/20R
Four
Dimensions
Dimensions
5.5”H x 6.4”W x 3.75”D
Electrical
Circuit Breaker
20A thermal on side of the chassis
Relay Current Rating
30A
Connectivity
Power Input
Hard wire through strain relief on back box
Construction
Chassis
16 gauge steel – mounts through holes in back box
Shipping
Weight
5 lbs
General
Number of Sequence Events
Two
Signal Connections
RJ-45, eight wire cable
Monitor Features
Monitor lights correlate to processor and relay operation
Power
Input Voltage
US standard (120 VAC @60Hz)
