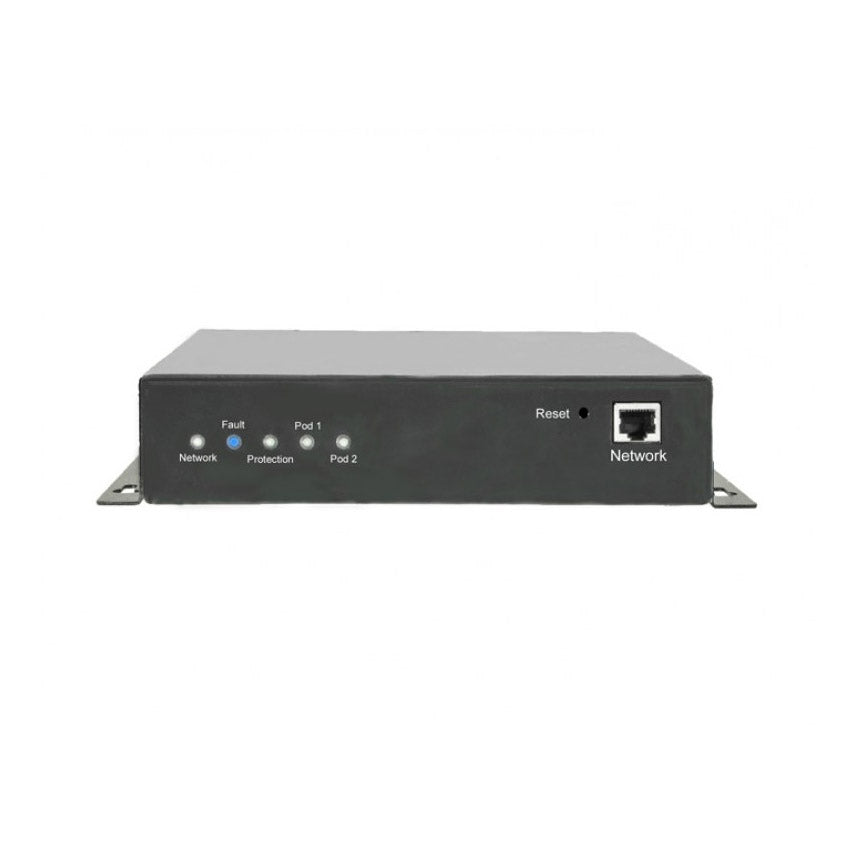

Juice Goose iP 50-RX Web-Based Power Controller
Juice Goose iP 50-RX Web-Based Power Controller
SoundPro Item: 42473 | Part Number: IP-50-RX
Usually ships in 5-7 business days
- 15 amp capacity
- On board web server GUI or TCP/IP or UDP remote control
- Front panel indicators for network connection and outlets on
- Administrator and User login options
- Automatic Power Cycle to reboot a network data router if network connection is lost
- RX Series AC line surge protection
- Convenient installation
The Juice Goose iP 50-RX is a web based power distribution device with RX Series AC power protection that can be accessed via Ethernet connection. With this remote access, two individual AC receptacles can be turned on and off independently. The iP 50-RX has a fifteen amp capacity.
The iP 50-RX can be controlled by the on board web server graphic interface (GUI) that can be accessed by any web browser. It can also be remote controlled by TCP/IP or UDP connection to commercial or proprietary control systems.
The iP 50-RX chassis measures only 1.75” H x 9.0” W x 9.5” D and weighs only five pounds. Side mounting flanges and a detachable power cord make installation convenient. It features high quality, all steel construction as well as the most important features needed for web based remote control.
- Chassis16 gauge steel
- Circuit Breaker (thermal)15A
- Technical Current Rating12A
- Addressable Power Pods2
- Unswitched Outlets1
- Power Inputdetachable NEMA 18 AWG power cord with right angle plug
- Power Outputthree NEMA 5/15R: two addressable, one unswitched
- Input Voltage120VAC @ 60Hz
- Signal ConnectionEthernet (RJ-45)
- Network Communicationon board web server (GUI), TCP/IP or UDP
- LED Indicatorsnetwork, surge protection, external fault (RX model only) and pod status (2)
- Surge Protection
- Transient Energy Absorption: 1020 joules
- Max. Applied Surge Pulse Voltage: 6,000
- Max. Applied Surge Current: 3,000 amps
- Max. Surge Let Through
- Line - Neutral (Normal Mode): 10 volts
- Ground (Common Mode): 0.50 volts
- Dimensions (HxWxD)1.75" x 9" x 9.5" (including mounting flange)
- Weight6 pounds
