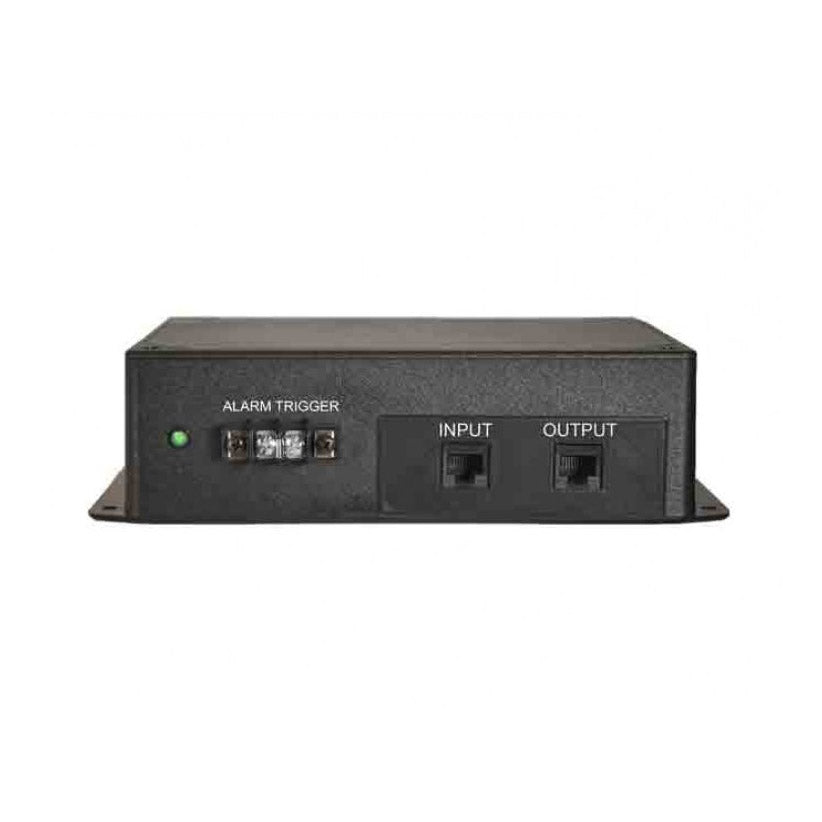

Juice Goose RC DM1 Alarm Panel Interface

The RC-DM1 will initiate a sequence down of CQ Series power sequencers in the event of an alarm. This product features a contact terminal for connection to a contact closure on an alarm control panel. So long as a contact is maintained on the terminal all connected CQ Series products will sequence up and down normally. When that contact is opened the RC-DM1 will begin an orderly sequence down process for all CQ products it controls. Connection of this terminal to a normally open alarm trigger will allow the RC-DM1 to sequence down a powered system in the event of a safety related event.

In order to silence an audio system in the event of an emergency, the RC DM1 provides an interface between a latching, dry contact on an alarm panel and a Juice Goose CQ Series power sequencer. In the event an alarm is activated the power distribution units connected to the control line output from the RC DM1 will sequence down. This product requires a 12 VAC power source (supplied with the unit).

Once the alarm condition has been corrected and a contact between the terminals has been restored, the CQ Series power units on the Output of the RC DM1 will sequence back up starting with the unit closest to the RC DM1.
