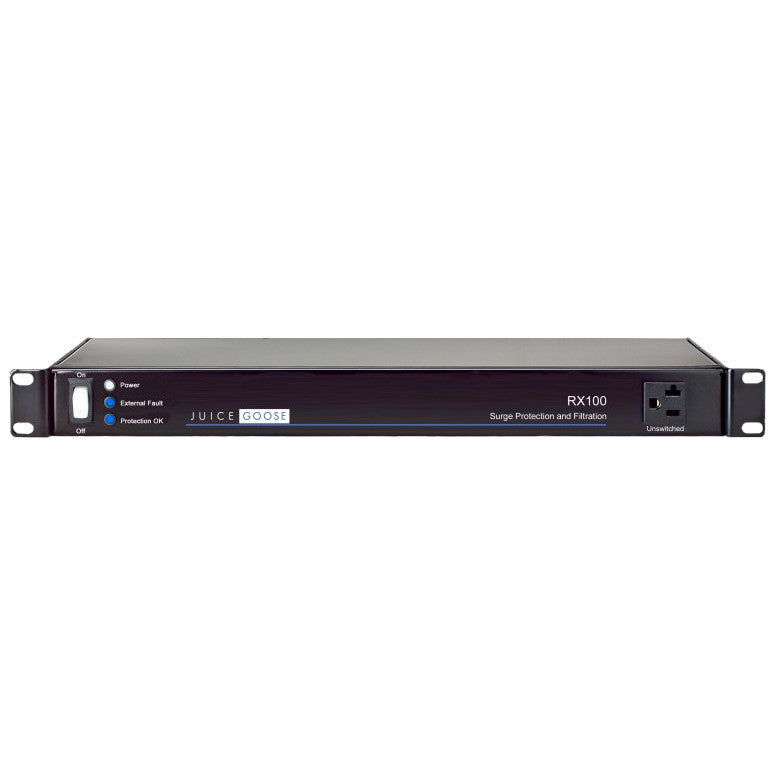

Juice Goose RX 100-20 Rackmount AC Surge Protector
Juice Goose RX 100-20 Rackmount AC Surge Protector
SoundPro Item: 42483 | Part Number: RX100-20A
Usually ships in 5-7 business days
- 20 Amp Capacity (see also RX 100-15)
- Maximum 10 Volt Surge Between Line and Neutral
- Maximum 0.50 Volt Surge On Ground
- High Frequency Normal and Common Mode Noise Filtration
- Over Voltage Shutdown
- Protection Against External Wiring Faults
- 8 AC Outlets
- Sturdy, Tour Class (tm) chassis
The RX 100-20 features the Juice Goose Hybrid Filter Technology to improve electronic performance and protect against power line voltage surges and high frequency interference on the hot, neutral and ground leads.
RX Series protection has been tested and proven effective. Juice Goose RX Series power protection technology works against ground line (common mode) as well as hot-neutral (normal mode) surge events. While common mode surges and disturbances don't typically cause catastrophic damage, they can result in operating failures and improper performance of digital processing equipment. Since a power anomaly of even 1 or 2 volts on logic ground can cause problems, the RX Series is designed to have a voltage surge let through of only 0.50 (one half) volt on the ground.
The Hybrid Filter also protects against more dramatic events. Connected equipment is safe from surges up to 6,000 volts at 3,000 amps between hot and neutral, allowing a maximum 10.0 volt surge let through. The RX Series uses a Hybrid Filter Technology that will not contaminate the ground. Instead, it cleans it up.
- Transient Energy Absorption (Joules)1020
- Maximum Applied Surge Current (Amps) 3000
- Maximum Applied Surge Pulse (Volts) 6000
- Let Through Surge Voltage (Volts)
- N-G: 0.5
- L-N: 10
- Common Mode (N - G) Interference Filter (dB)
- 300kHz: 77
- 1mHz 80
- 10mHz: 80
- 30mHz: 80
- Normal Mode (L-N) Interference Filter (dB)
- 300kHz: 56
- 1mHz: 60
- 10mHz: 60
- 30mHz: 60
- Operating Voltage, Frequency 120vac, 60 Hz
- Maximum Current Load (Amps) 15 Or 20
- Power Cord Length 7 ft
- Weight 10 lbs
- Rx100-15
- Plug: Nema 5-15p
- Receptacle: Nema 5-15r (8)
- Rx100-20
- Plug (Requires A 20 Amp Receptacle): Nema 5-20p
- Receptacle: Nema 5-20r (8)
