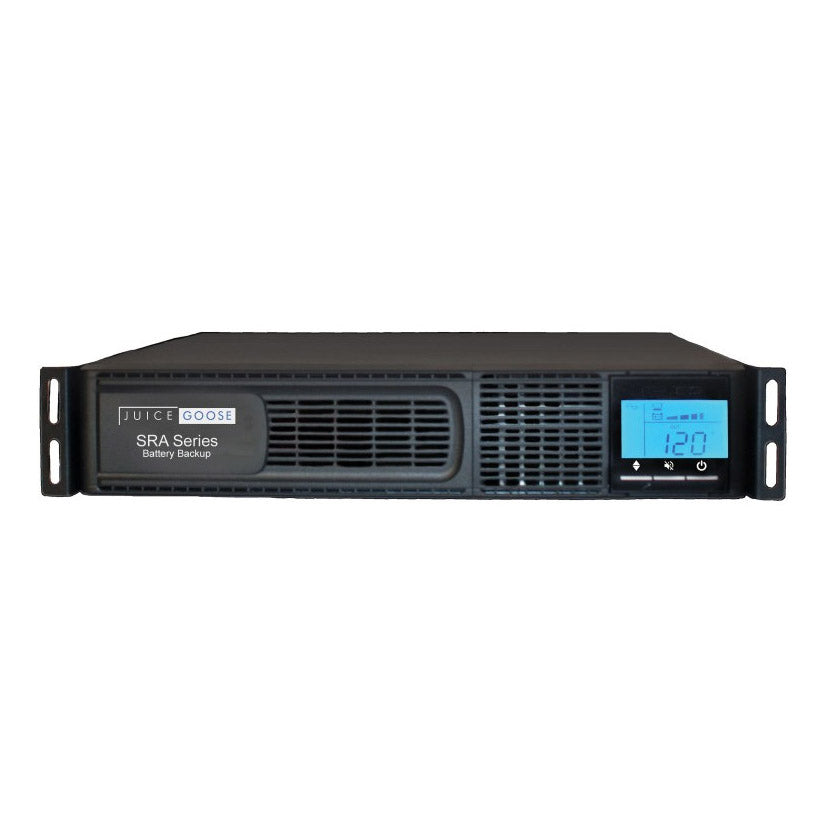

• Juice Goose SRA 15000 1500VA / 1050W Rackmount Line Interactive UPS

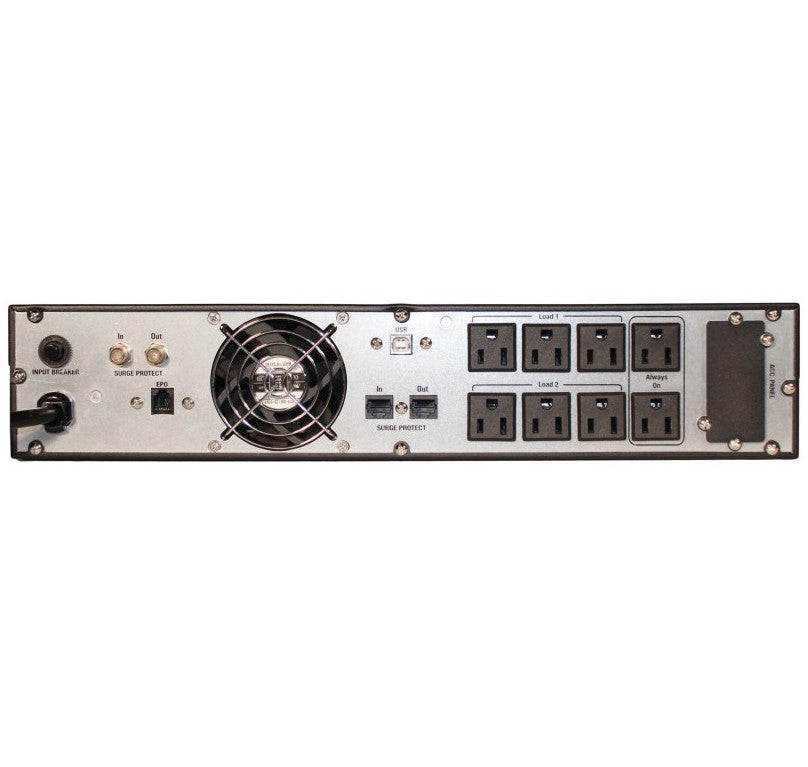

  • Juice Goose SRA 15000 1500VA / 1050W Rackmount Line Interactive UPS back
1 2

Juice Goose SRA 15000 Rackmount Line Interactive UPS

Juice Goose SRA 15000 Rackmount Line Interactive UPS

SoundPro Item: 130404 | Part Number: SRA-15000

$1,076.67
$1,345.83 $1,076.67
Your Price Sold out
MSRP: $1,345.83 | MAP: $1,076.67

Usually ships in 5-7 business days

  • Voltage regulation
  • Emergency Power Off
  • Hot swappable battery design
  • Easy to view LCD panel
  • Maintenance free batteries
Log in or register for YOUR best price

The Juice Goose SRA 15000 Rackmount Line Interactive UPS incorporates automatic voltage regulation (line interactive) function that preserves battery power and supports sensitive electronic equipment during brown outs. Once incoming voltage drops below operational levels, SRA switches to battery to maintain power continuity. These products also provide 960 Joules of power line surge protection.

Line Interactive circuitry monitors the incoming voltage level and routes current through the appropriate taps on a buck/boost transformer to raise or lower output voltage, improving the performance of powered equipment and extending the usable range of the utility power before switching to battery mode.

View full details

Specifications

Dimensions
Dimensions (LxWxH)
20.1" x 18.9" x 3.4"
Electrical
Rated Operating Voltage (VAC)
120 = Nominal, 90 to 150 = Min and Max Range
Low Voltage Transfer to Battery
89 VAC
High Voltage Transfer to Battery
151 VAC
Power Cord
10 Foot, NEMA 5-15P (NEMA 5-20P for SRA 20000)
Audio
Output
Output Voltage
Connectivity
Audible Noise Output @ 3 Ft
< 45 dBA
Environmental
Humidity
20 to 90% RH (non-condensing)
Operating Temperature
32°F to 104°F (0°C to 40°C)
Storage Temperature
-13°F to 104°F (-25°C to 40°C)
Shipping
Weight
48.7 pounds
General
Rating VA
1500
Capacity Watts
1050
Return to Utility Power
94 VAC
Overload Capacity
110% 20 - 60 Seconds, 150% Immediate Shutdown
Harmonic Distortion (THDU)
30.3 % to 37.2 % = Total, 14.5 % to 18.7 % = Single
Transfer Time AC to DC
6-10ms (typical)
Topology (design)
Line Interactive - Simulated Sine Wave
Receptacles
8 x NEMA 5-15R
Load Shedding (outlet control) Requires Third-party Software
2 Banks of 3 Outlets and 2 Unswitched. SRA 20000 has 1 Unswitched L5-20R
Run Time (full load/ Half load)
4 minutes / 14 minutes
Typical Recharge Time
8 hours to 90% from full discharge
Typical Service Life
3 to 5 years with proper operation
Surge Energy Rating
960 joules
Surge Capacity
6,500 amps total (one time)
EMI/RFI Noise Filtration
>45dB normal and common mode
Status Indications
Battery Capacity, Load Percentage, Input Power Source, External Power Line, Fault Indications
Control Select Buttons
On/Off/Test, Alarm Silence, Display Control (Scroll)
Warning Indicators
Low or Bad Battery, Current Overload, Site Wiring Fault, Over Temperature, UPS Failure
RF
Frequency Range
60 Hz +/- 0.8%
Power
Battery Type
Sealed, Non-Spillable, Valve Regulated, Maintenance Free, Lead Acid
