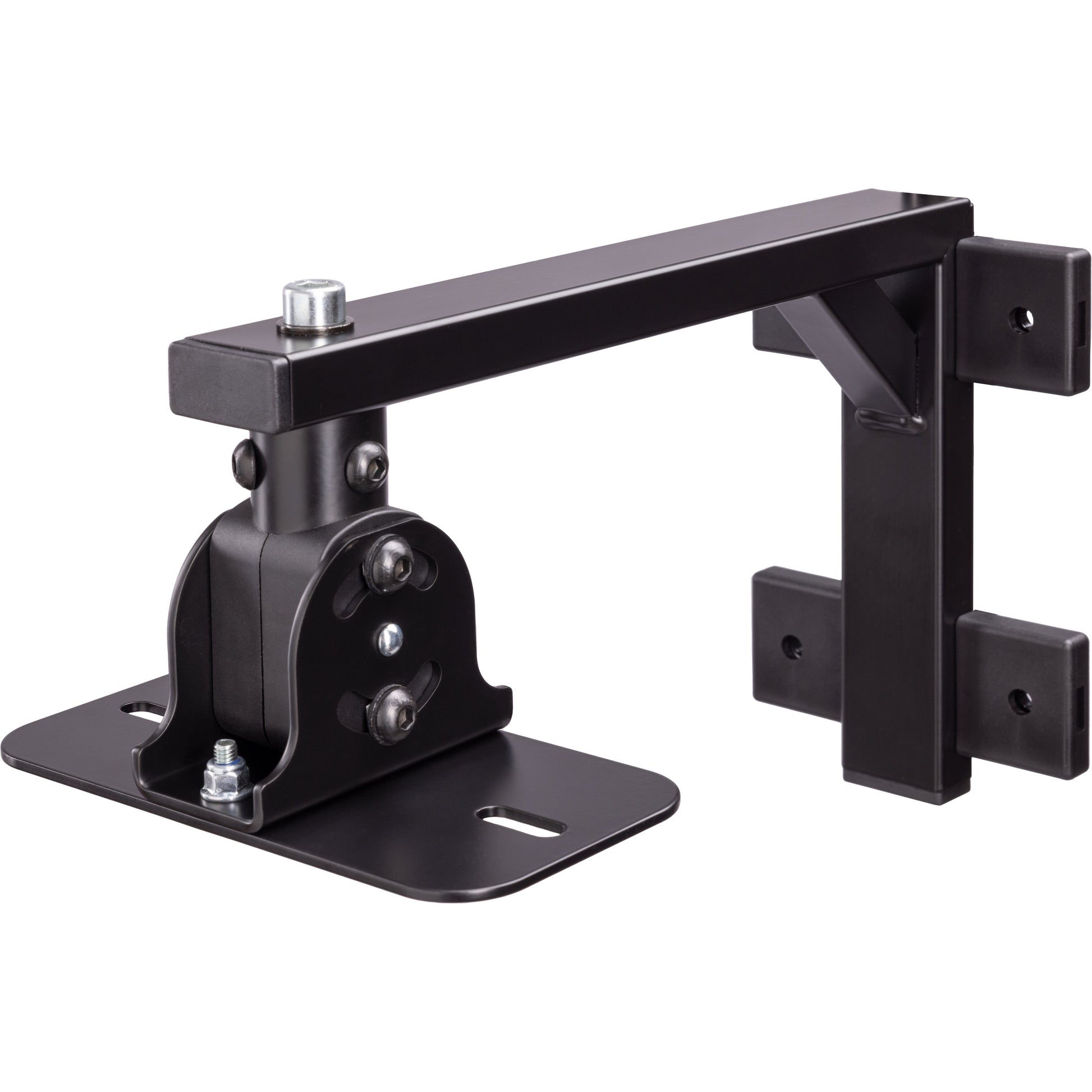

K&M 19430.000.55 Speaker Short Arm Wall Mount With 360° Swivel
K&M 19430.000.55 Speaker Short Arm Wall Mount With 360° Swivel
SoundPro Item: 206886 | Part Number: 19430.000.55
Usually ships in 5-7 business days
- Direct Compatibility With Six Yamaha Loudspeaker Models Eliminates Adapter Requirements
- Extended U-Bracket Support Covers DZR, CZR, DXR, DHR, And CHR Series With Optional Hardware
- Continuous Horizontal Swivel Allows Post-Installation Aiming Without Remounting
- Ninety-Degree Vertical Tilt Arc Accommodates Ceiling Height And Listener Positioning Variables
- All-Steel Welded Design Provides Long-Term Structural Integrity In Fixed Installations
The K&M 19430.000.55 gives integrators a dedicated mounting solution for Yamaha's powered loudspeaker lines, including direct compatibility with DBR12, DBR10, CBR12, CBR10, HS8I, and HS7I models. When paired with Yamaha's optional U-bracket adapter, the mount also accommodates DZR10, CZR10, DXR10mkII, DXR8mkII, DHR10, and CHR10 enclosures. This addresses the need for a universal rigging point across multiple Yamaha product families in conference rooms, small performance venues, and distributed audio systems.
The short-arm design positions the speaker 10.67 inches from the mounting surface, reducing visual obstruction while maintaining mechanical stability for enclosures up to 55 pounds. Continuous 360-degree horizontal rotation and a 90-degree vertical tilt arc from -45 to +45 degrees enable fine-tuning of aim and coverage after installation, particularly valuable in asymmetrical rooms or where seating layouts change. All-steel construction ensures the mount meets the durability expectations of permanent installation environments where service access is limited and long-term reliability is non-negotiable.
Downloads
Downloads
Specifications
