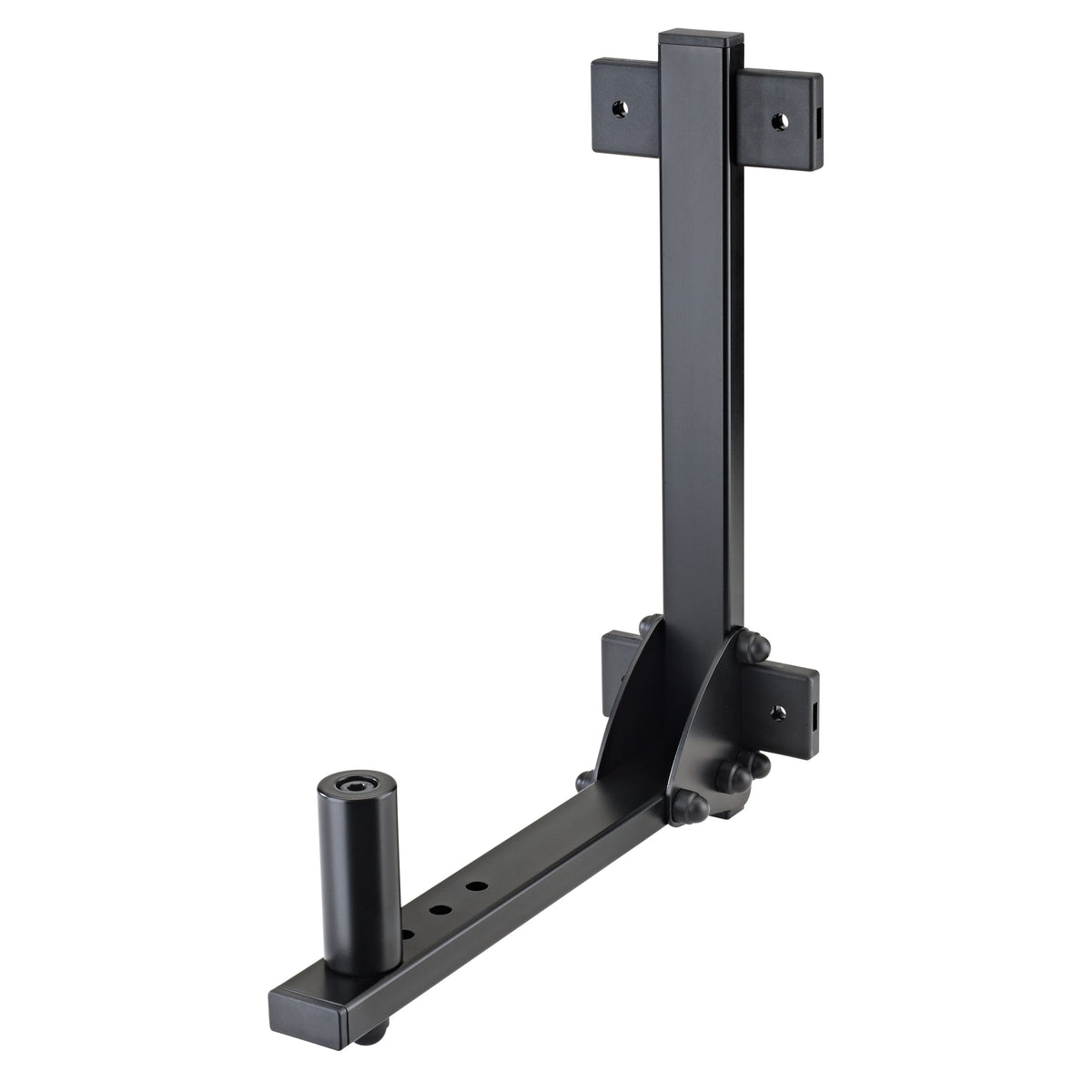

K&M 24140 Steel Speaker Wall Mount Bracket

The K&M 24140 is a heavy-duty steel wall mount designed for installed audio environments where speaker positioning, structural reliability, and a clean visual profile all matter. Built for 36mm flange-mount speaker boxes, it fits the hardware standard used across a wide range of installation-grade loudspeakers from major manufacturers, making it a practical choice for integrators specifying permanent systems in houses of worship, corporate AV, retail, and hospitality venues.

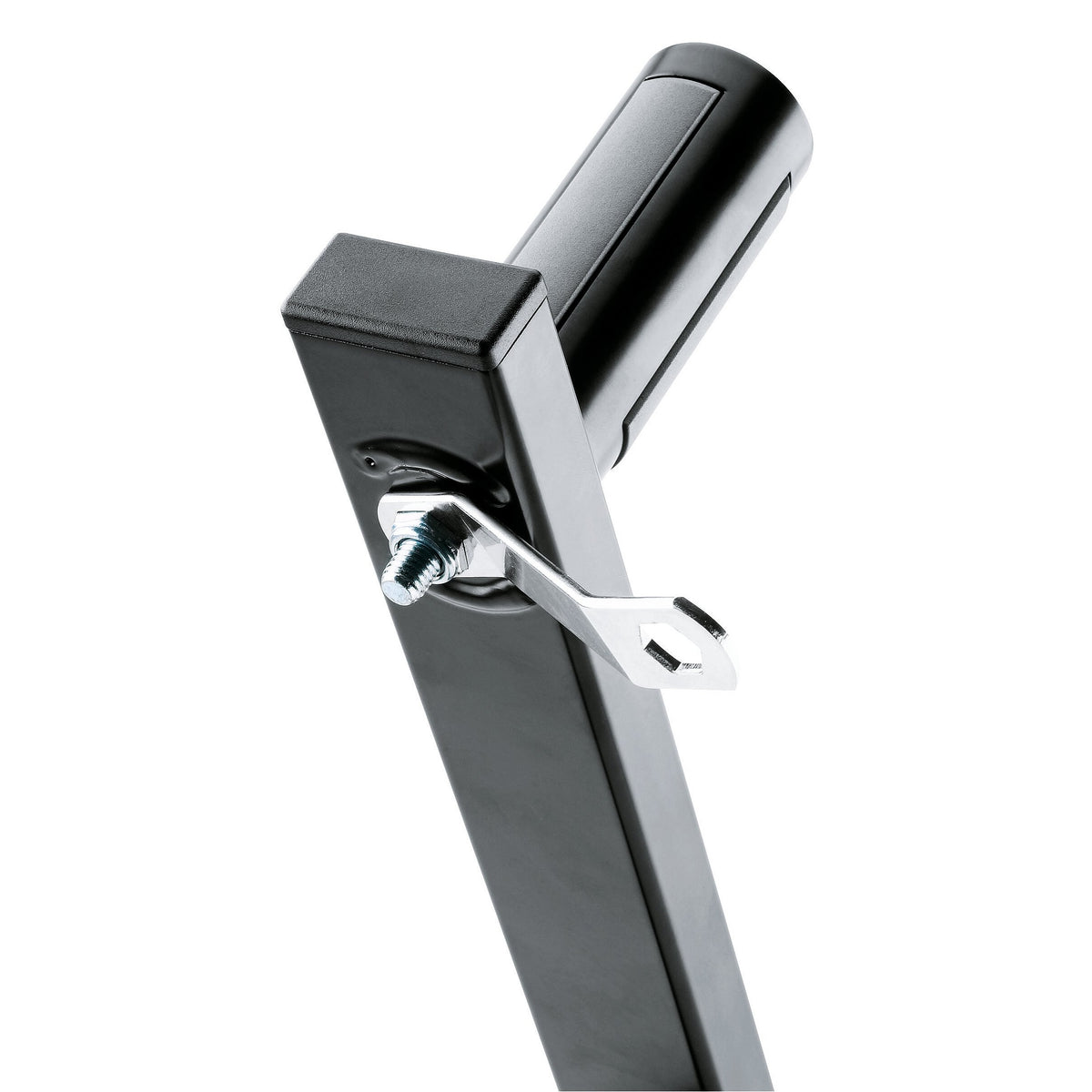

The bracket is engineered to support up to 35 kg, putting it in a class appropriate for full-range installation speakers rather than lightweight satellite units. The wall-to-bolt clearance adjusts across four discrete positions, giving installers control over speaker distance from the wall without requiring custom fabrication or shimming. The design geometry is intentionally low-profile: when the speaker box is mounted, it largely conceals the bracket hardware behind the cabinet, resulting in a finished appearance that suits client-facing environments where exposed rigging hardware is undesirable.

For integrators evaluating steel versus polymer alternatives in the same load class, the all-steel construction of the 24140 offers consistent rigidity and long-term dimensional stability under sustained load, which matters in permanent installs where the bracket will not be revisited regularly. The four-position adjustment is a meaningful advantage over fixed-distance designs, particularly in retrofit projects where wall construction or speaker directivity requirements dictate precise speaker placement.
