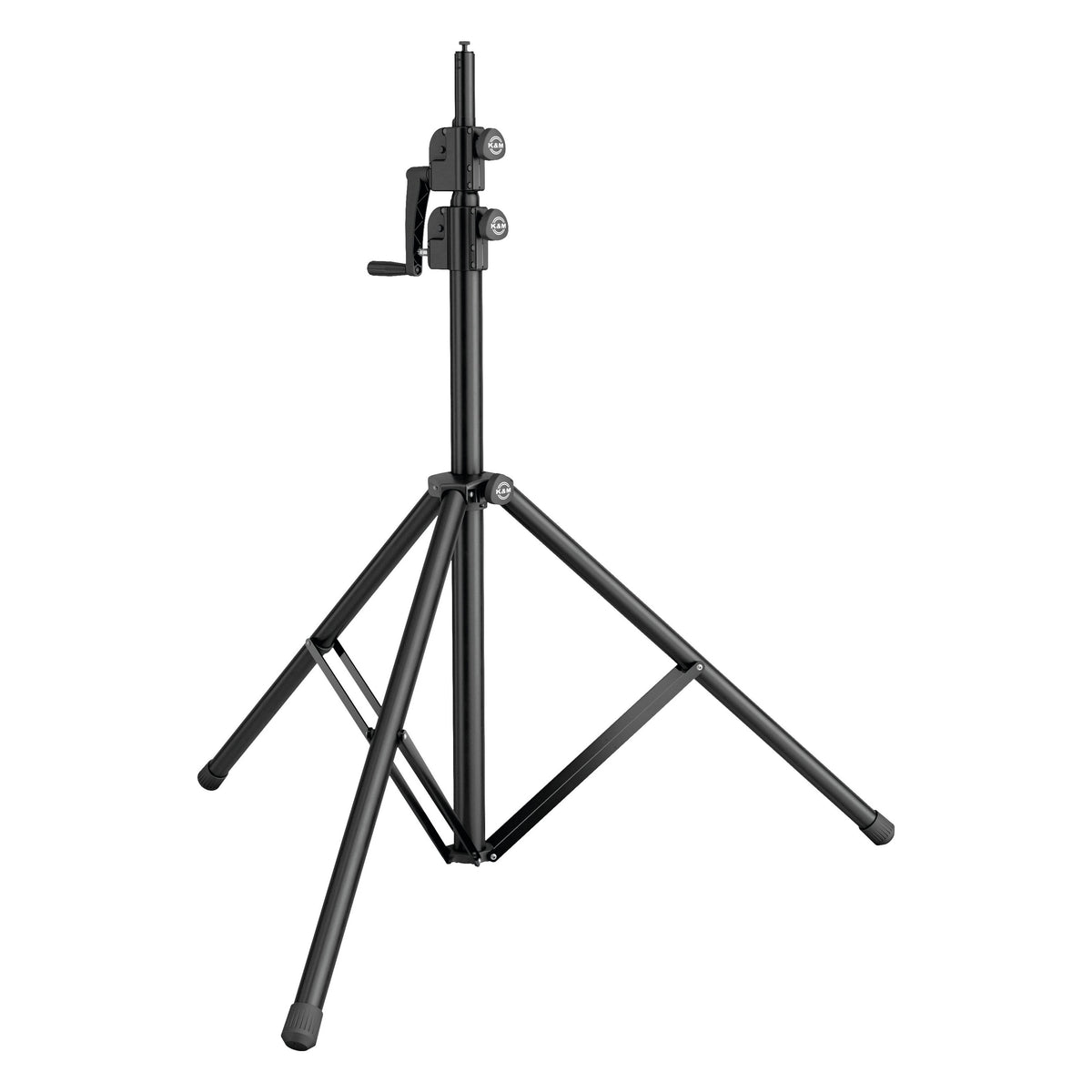

• 24730 wind-up tripod speaker stand front view at lowered height with crank handle and two clamp knobs on the upper column, K&M

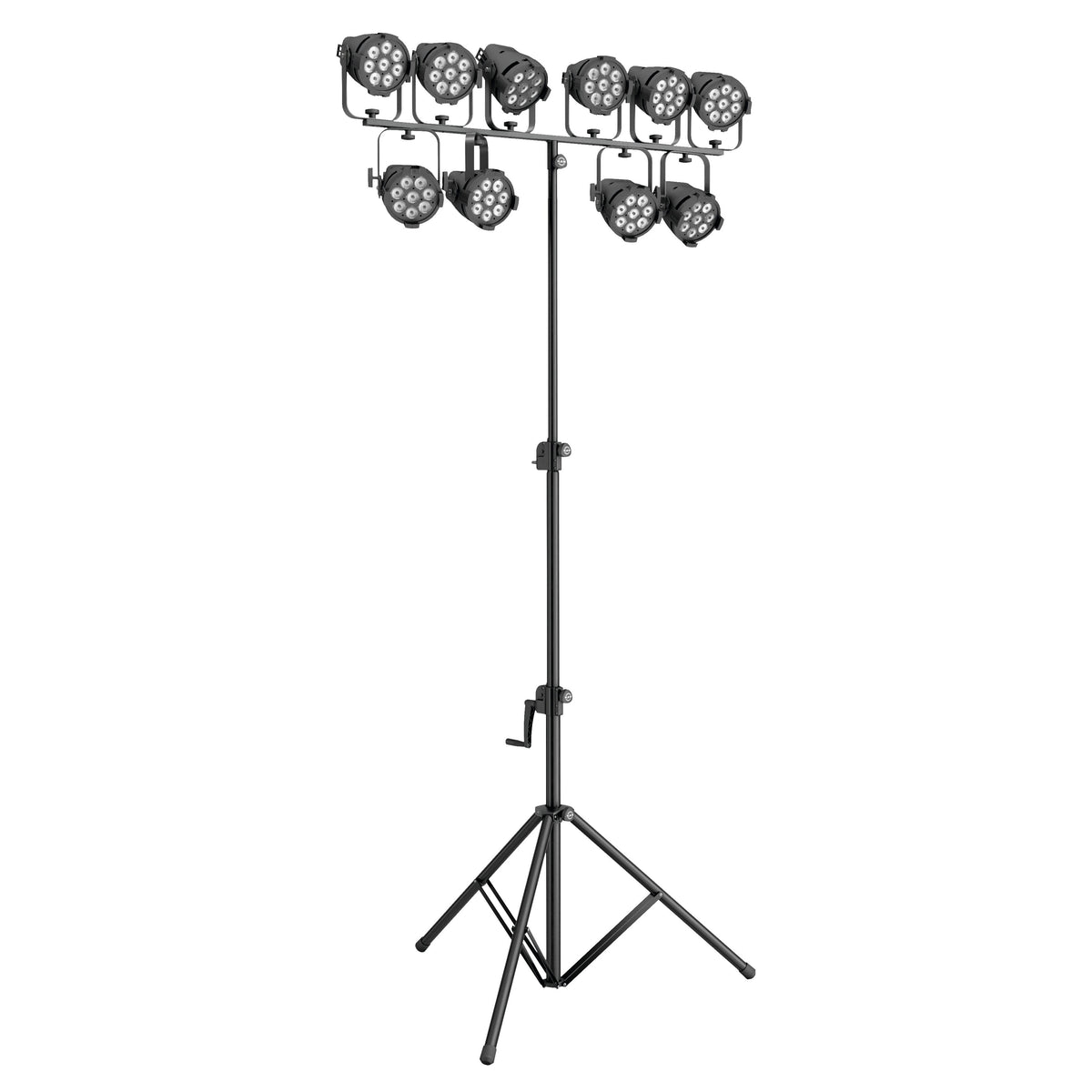

  • 24730 wind-up tripod stand fully extended carrying a T-bar with ten black LED PAR lights, K&M

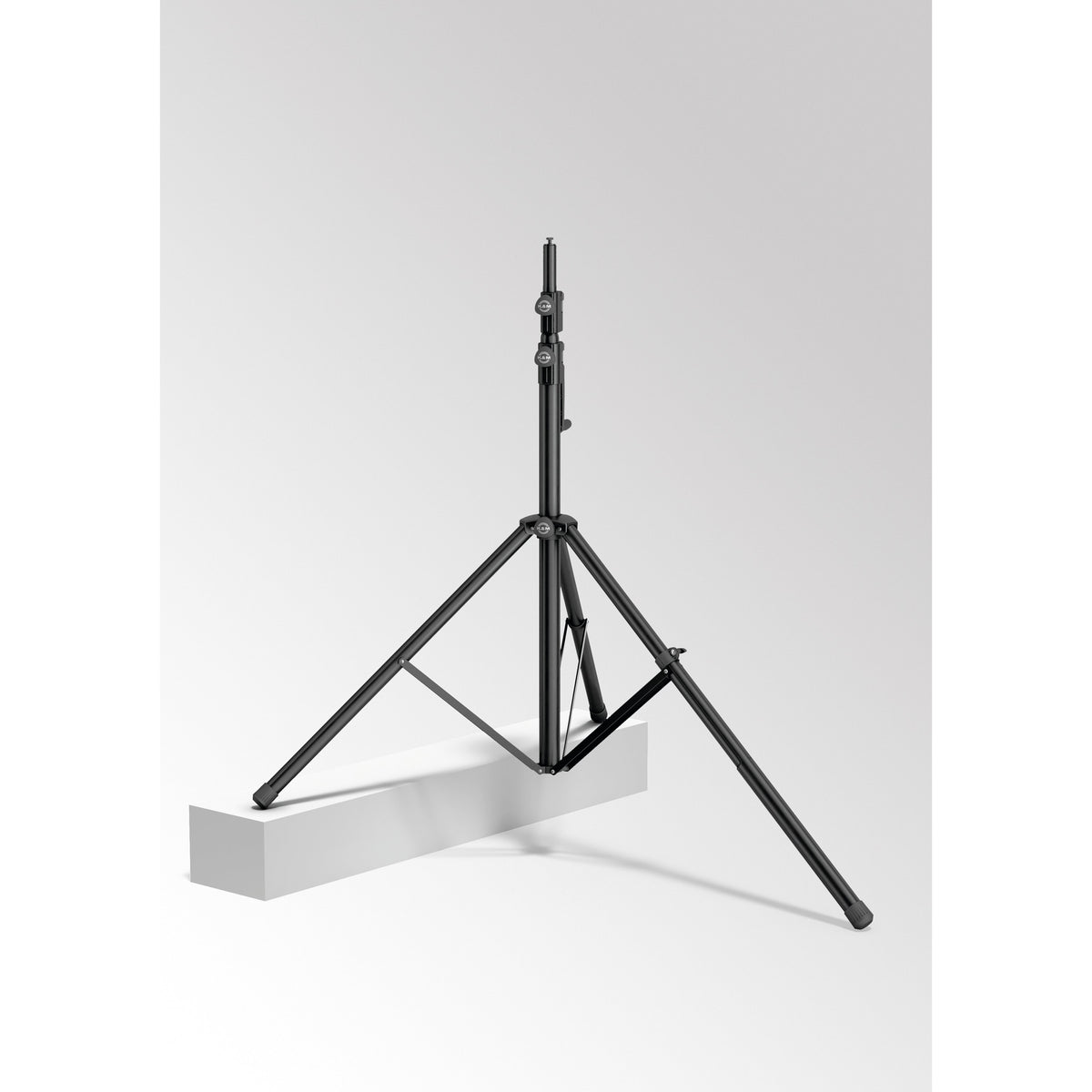

  • 24730 wind-up tripod stand angled view with legs spread over a white block, showing folding leg braces and column clamps, K&M

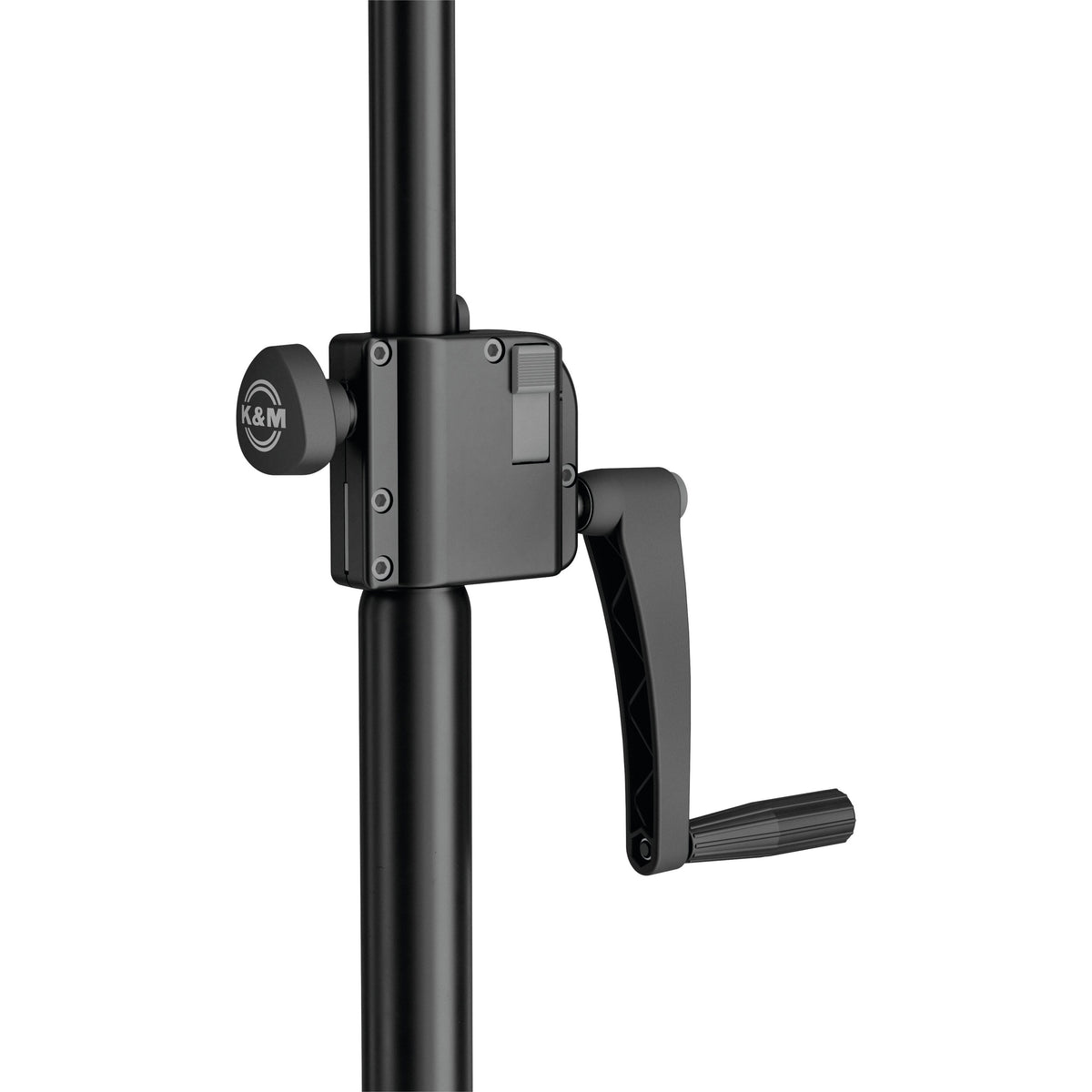

  • 24730 crank mechanism close-up showing housing, K&M logo clamp knob and black crank handle on the column, K&M

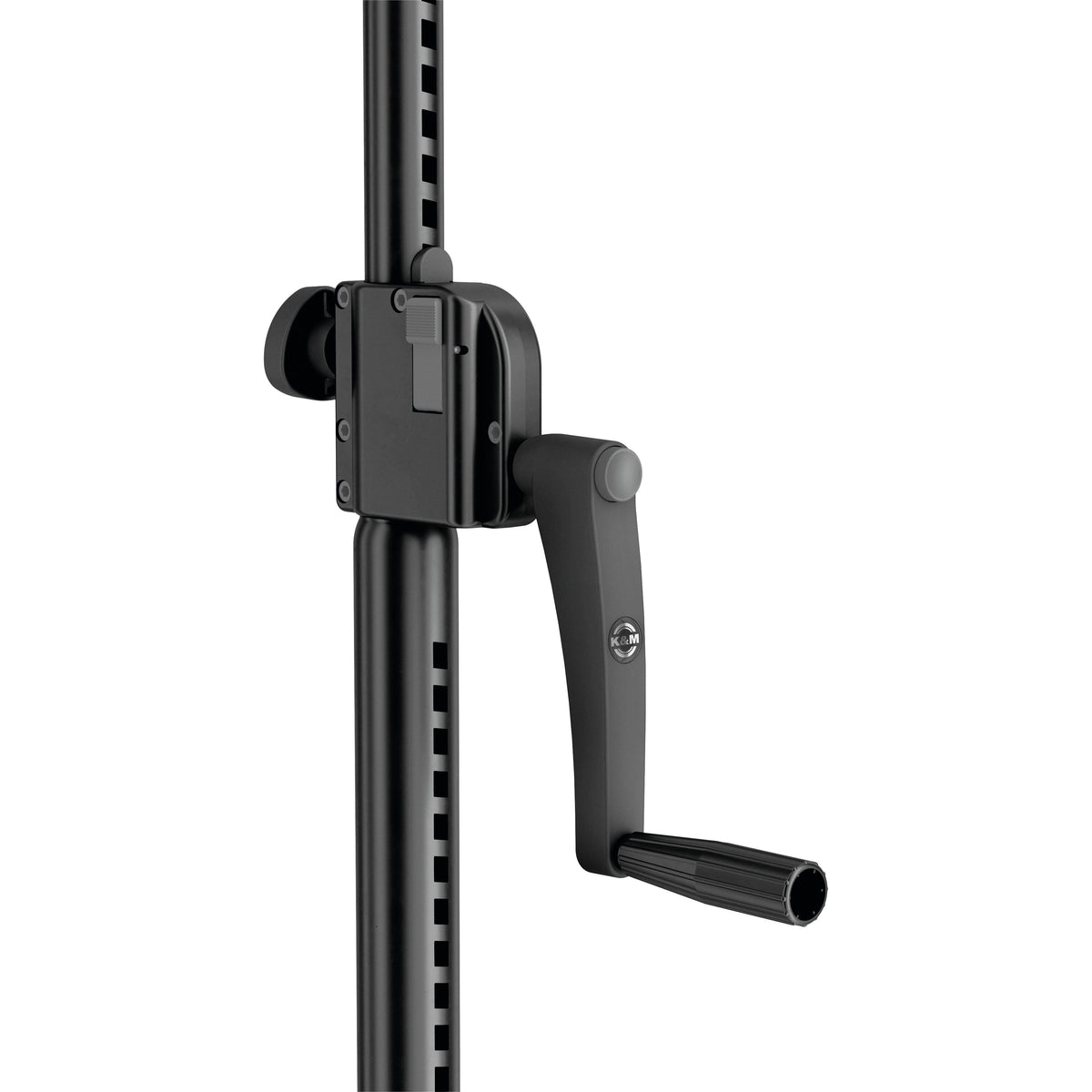

  • 24730 crank mechanism close-up from the opposite side showing slotted column tube, release latch and K&M-badged crank handle, K&M

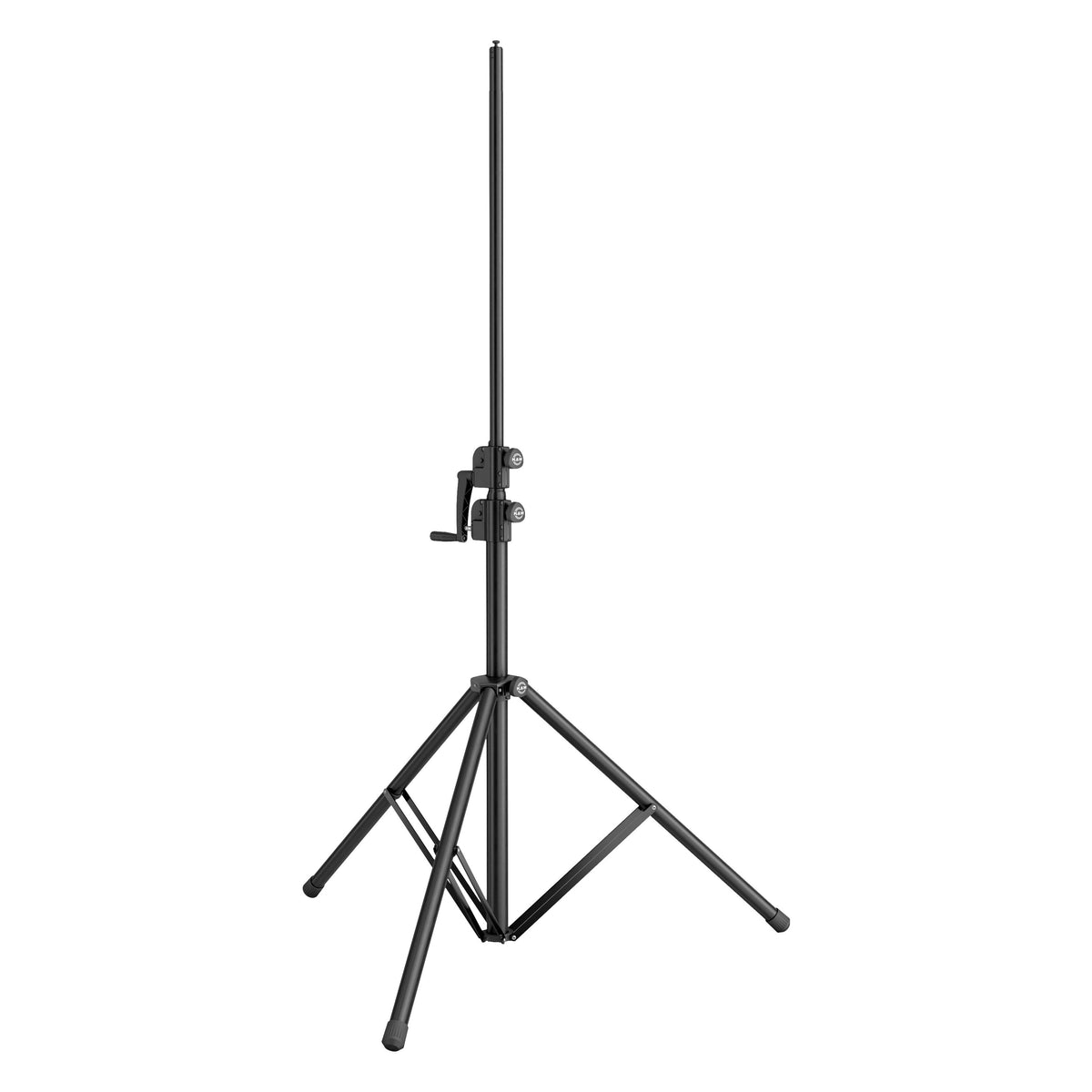

  • 24730 wind-up tripod stand with inner column extended to mid height, crank handle and two clamp knobs visible, K&M

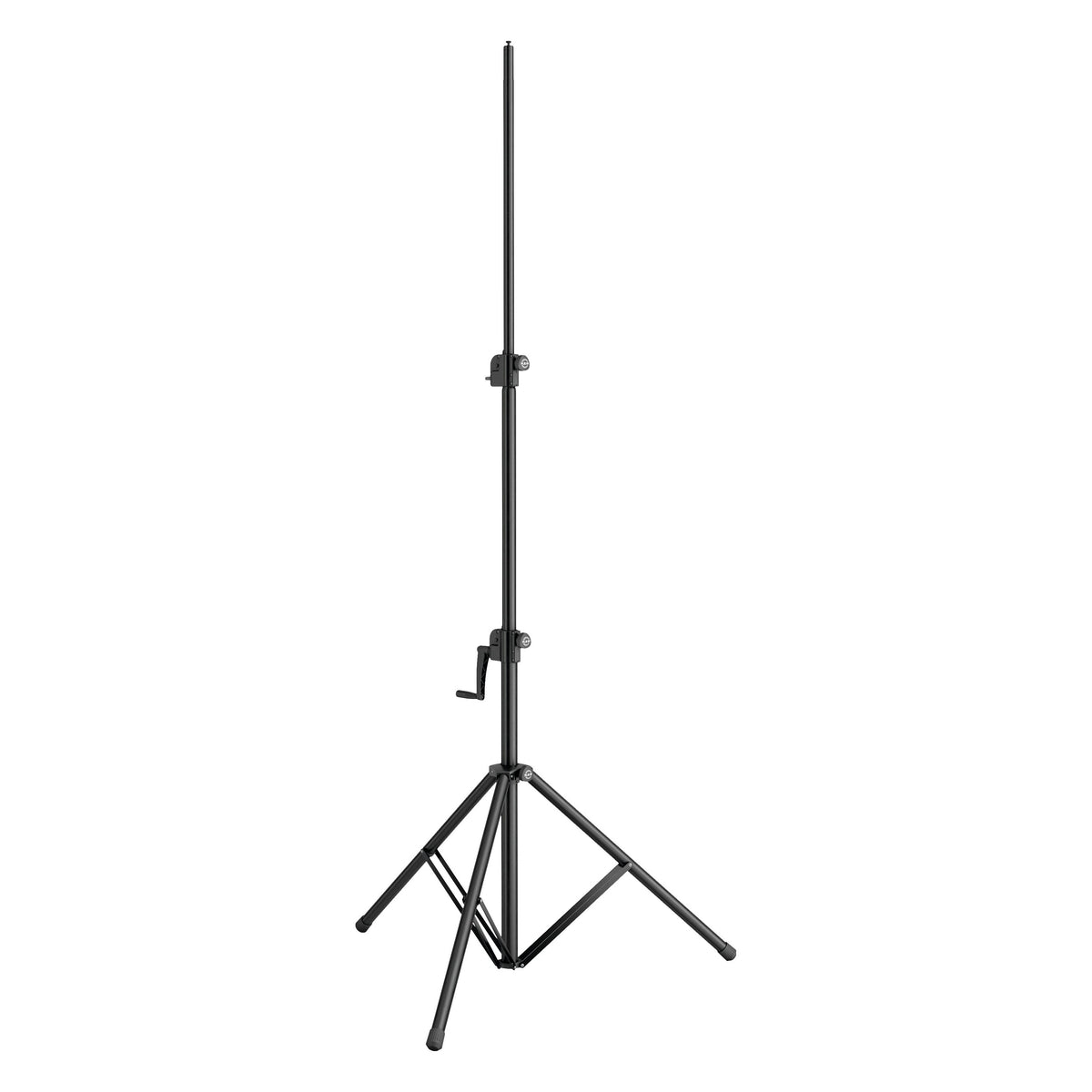

  • 24730 wind-up tripod stand fully extended to maximum height with crank handle on the lower column section, K&M

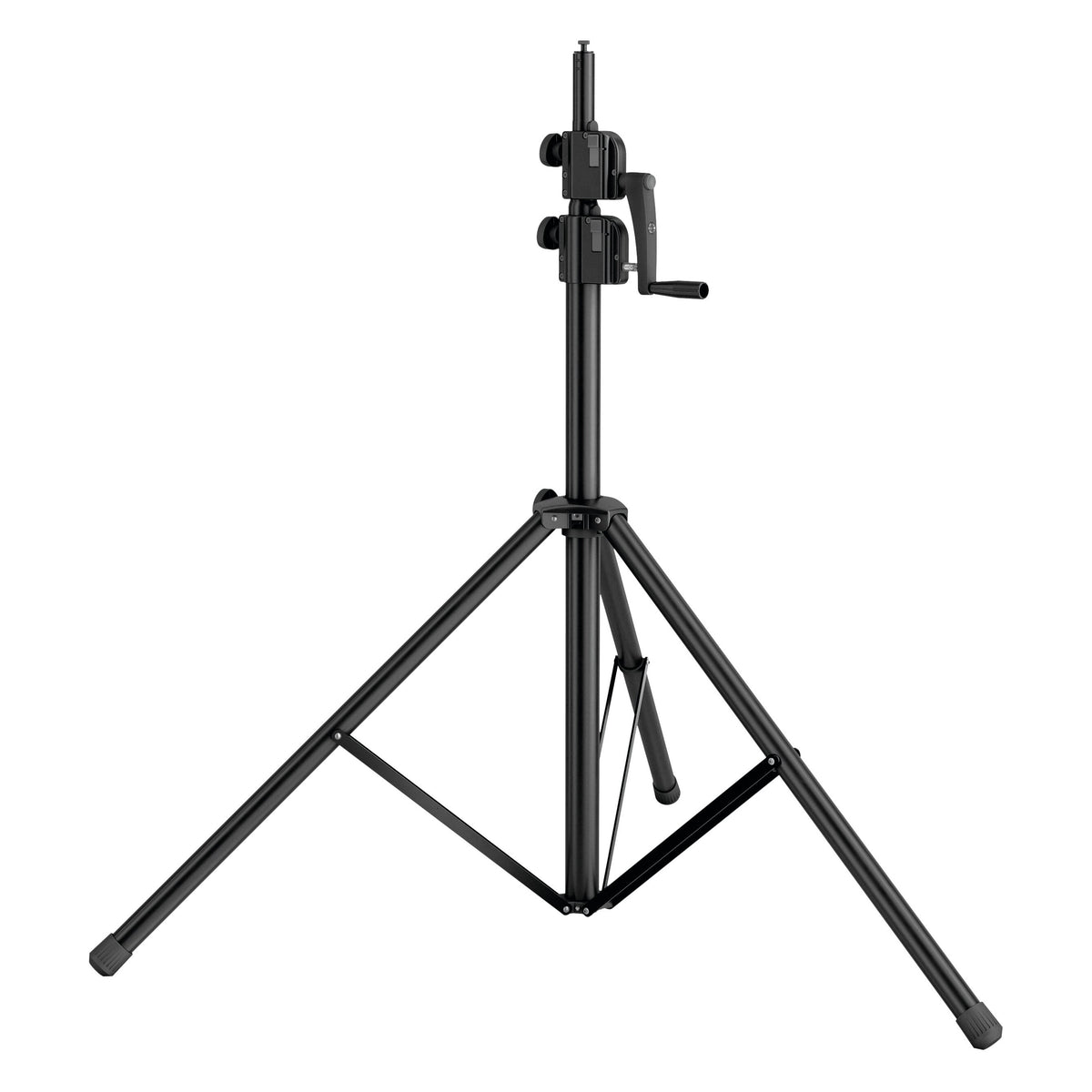

  • 24730 wind-up tripod stand rear three-quarter view with crank handle on the right and folding leg braces, K&M
1 8

K&M 24730 Wind-Up Tripod Speaker Stand With Dual Crank | Black

K&M 24730 Wind-Up Tripod Speaker Stand With Dual Crank | Black

SoundPro Item: 137294 | Part Number: 24730.000.55

$899.99
$1,127.99 $899.99
Your Price Sold out
MSRP: $1,127.99 | MAP: $899.99

Usually ships in 5-7 business days

  • Dual Crank Mechanism Distributes Lifting Effort For Efficient Multi-Stand Setup
  • Push-Button System Prevents Uncontrolled Reverse Motion During Height Adjustment
  • Locking Screw Adds A Redundant Safety Layer For Elevated Heavy Loads
  • Steel Extension Tubes And Zinc Die-Cast Parts Built For Repetitive Rental Cycles
  • Three-Piece Folding Rod Combination Collapses For Manageable Transport
  • Tube Legs With Double Cross Braces Provide Structural Stability Under Load
Log in or register for YOUR best price

The K&M 24730 is built for live production engineers and rental companies who regularly hoist heavy loudspeakers to full working height. A hand crank with integrated push-button system and locking screw gives the operator complete authority over load movement, preventing the uncontrolled reverse motion that makes cheaper friction-lock stands a liability on a busy stage or install site. The three-piece folding tube design collapses to a manageable footprint for transport without sacrificing the structural rigidity that 40 kg loads demand.

A base height of 1,405 mm keeps the crank ergonomically positioned so a single technician can handle positioning without ladders or awkward postures. Steel extension tubes and zinc die-cast connecting parts address the durability requirements of repetitive touring and rental cycles, where stands are assembled and broken down hundreds of times per season. The 1,550 mm base diameter provides the footprint stability that elevated, heavy loads require in live sound environments.

Where standard crank stands offer a single-action lift, the dual crank mechanism on the 24730 distributes the lifting effort more efficiently across the full height range, reducing operator fatigue during multi-stand setups. This makes it a practical choice for front-of-house delay towers, side-fill elevations, and large-venue portable install work where structural confidence and repeatable performance are non-negotiable.

View full details

Specifications

Dimensions
Height Range
1,405 to 3,000 mm
Base Diameter
1,550 mm
Folded Size
1,390 x 200 x 165 mm
Weight
Product Weight
12.33 kg
Construction
Material
Aluminum
Leg Construction
Tube legs with double cross braces
Rod Combination
3-piece folding design
Number Of Legs
3
Quality Level
Starline
Connectivity
Tube End Diameter
35 mm
Thread
Integrated threaded bush M10 for crossbars
Controls
Height Adjustment
Hand crank with push-button system and locking screw
Performance
Max Load Capacity
40 kg
Identifiers
Color
Black
EAN
4016842117062
