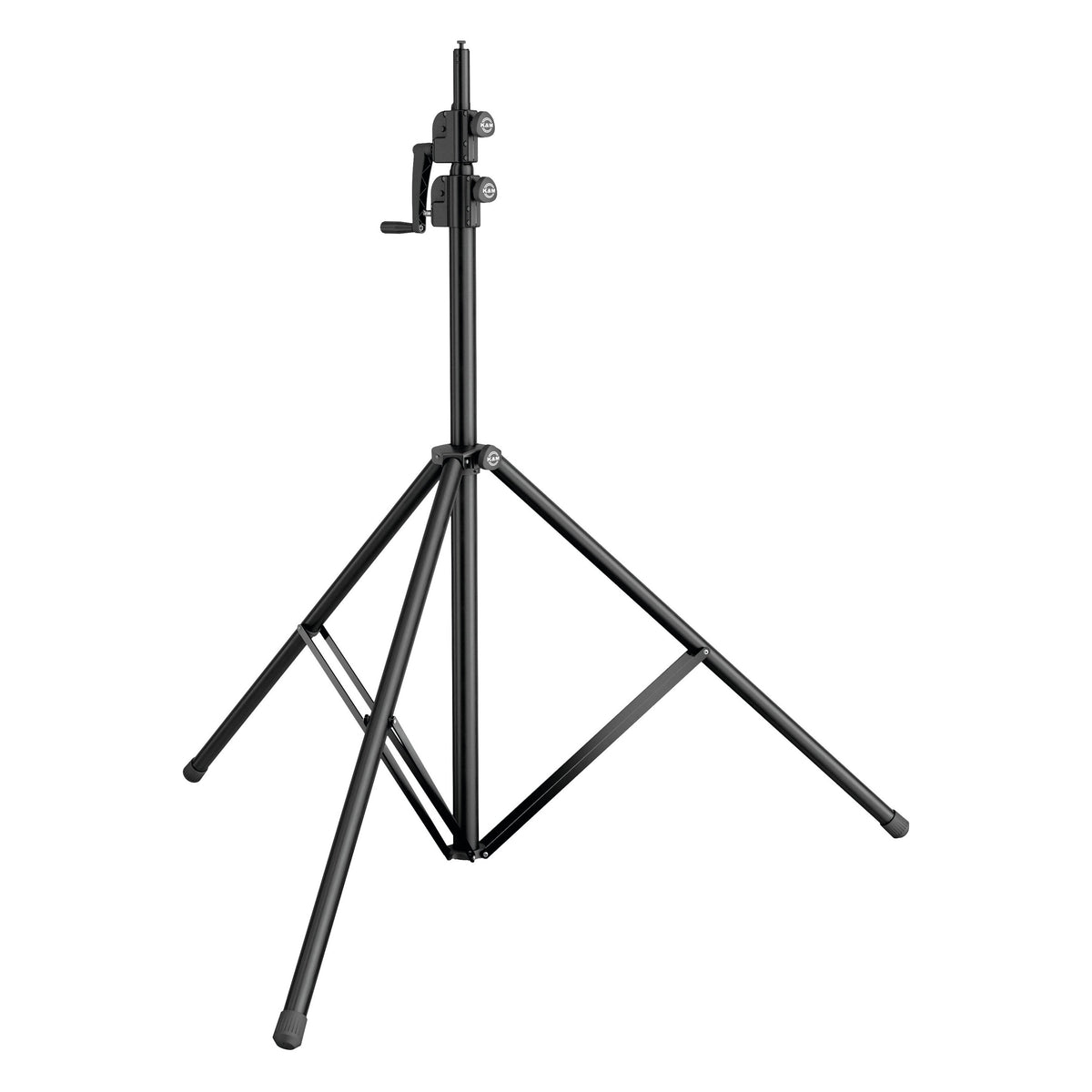

• 24740 wind-up speaker stand front view at low height with dual crank collars and splayed tripod legs, K&M

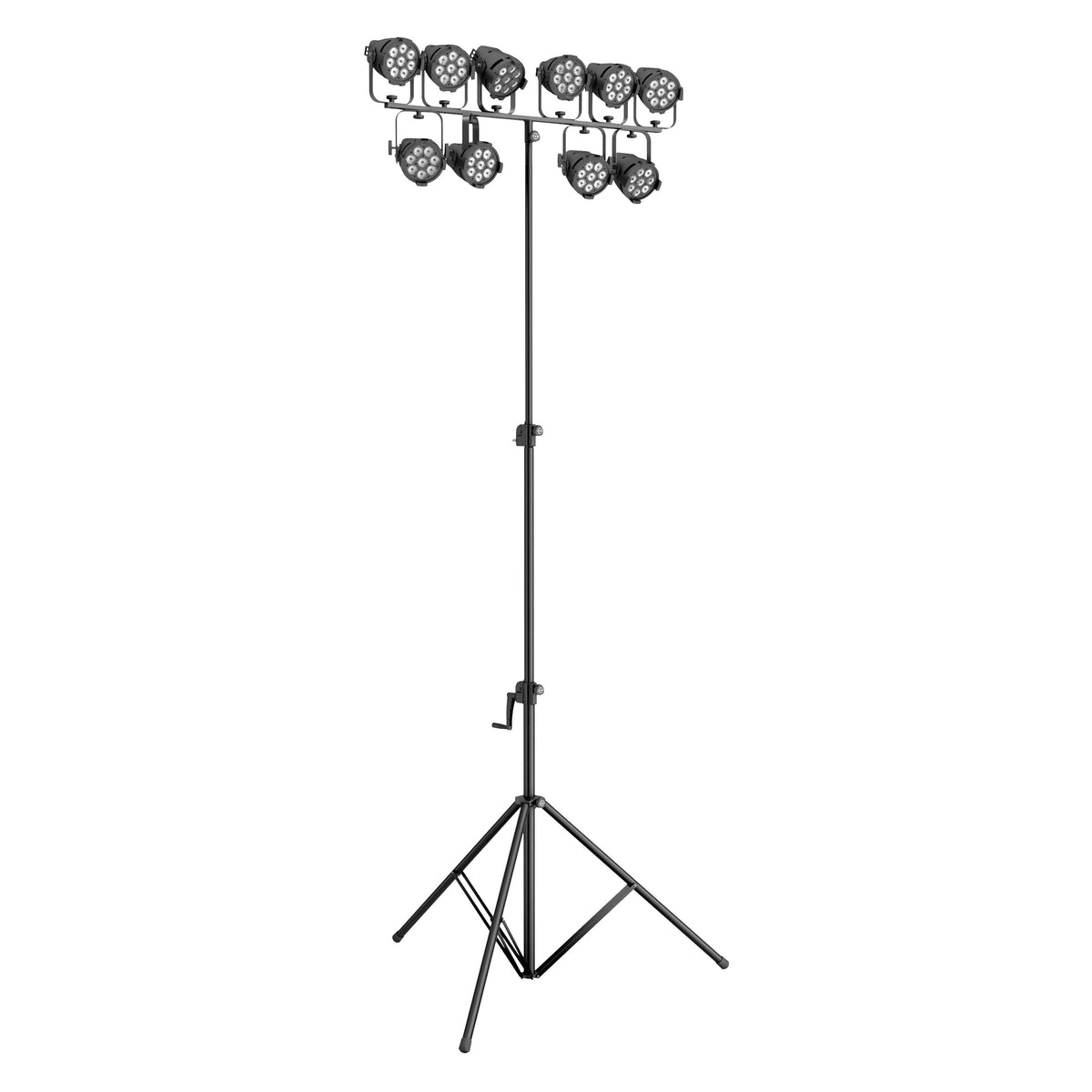

  • 24740 wind-up stand fully extended carrying a T-bar with ten LED par lights, K&M

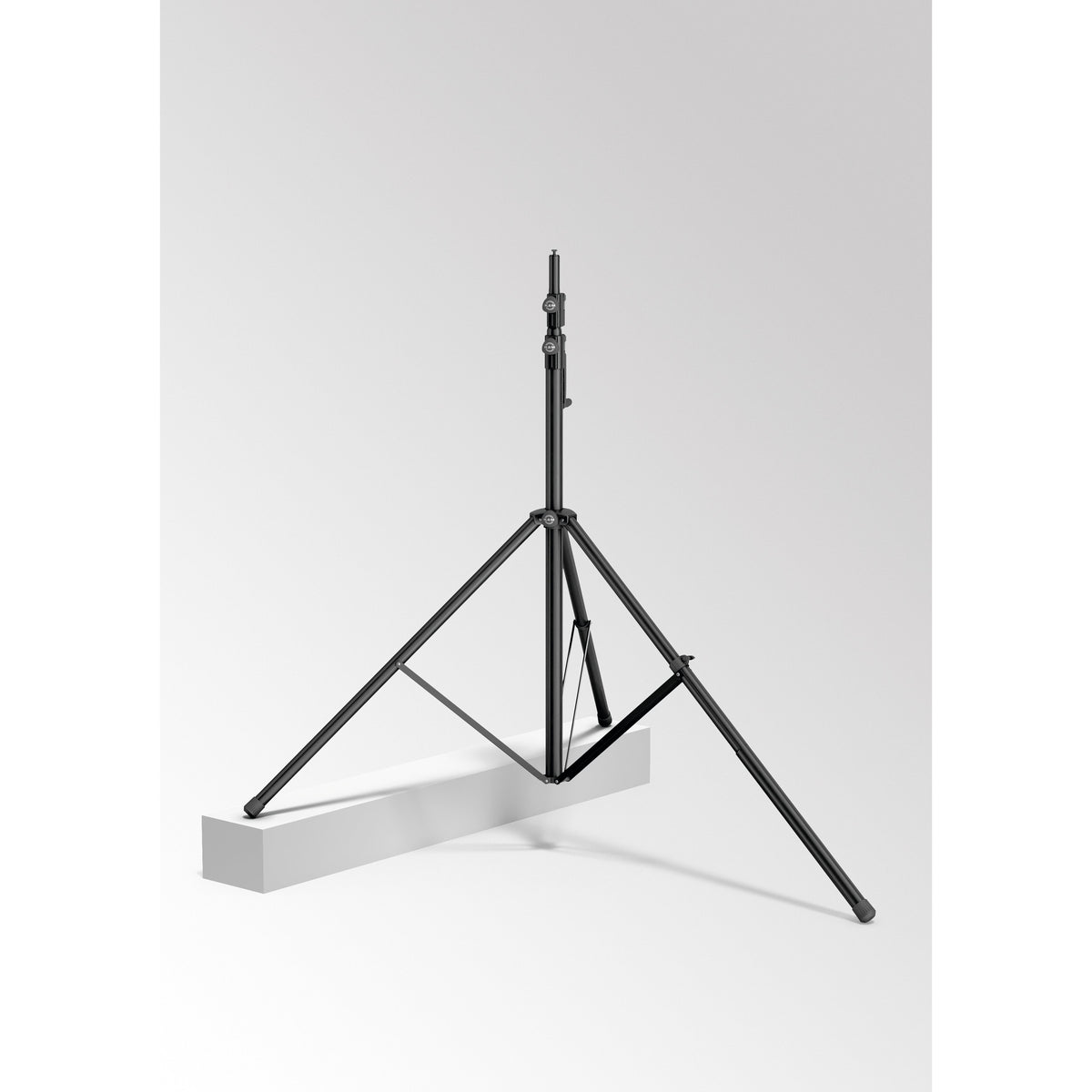

  • 24740 wind-up stand angled studio shot showing tripod legs with folding struts resting on a white block, K&M

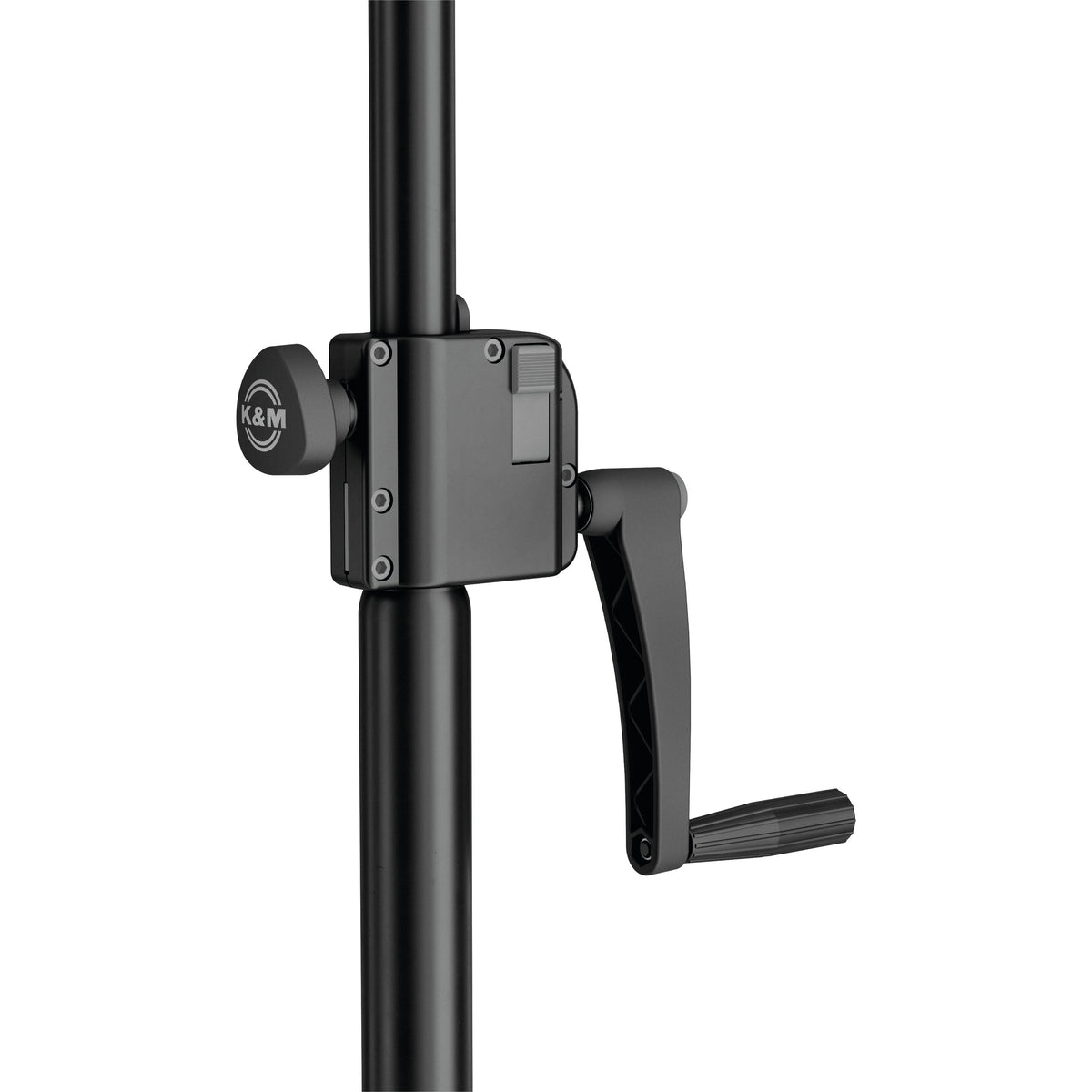

  • 24740 wind-up stand close-up of crank collar with K&M clamp knob and folding crank handle, K&M

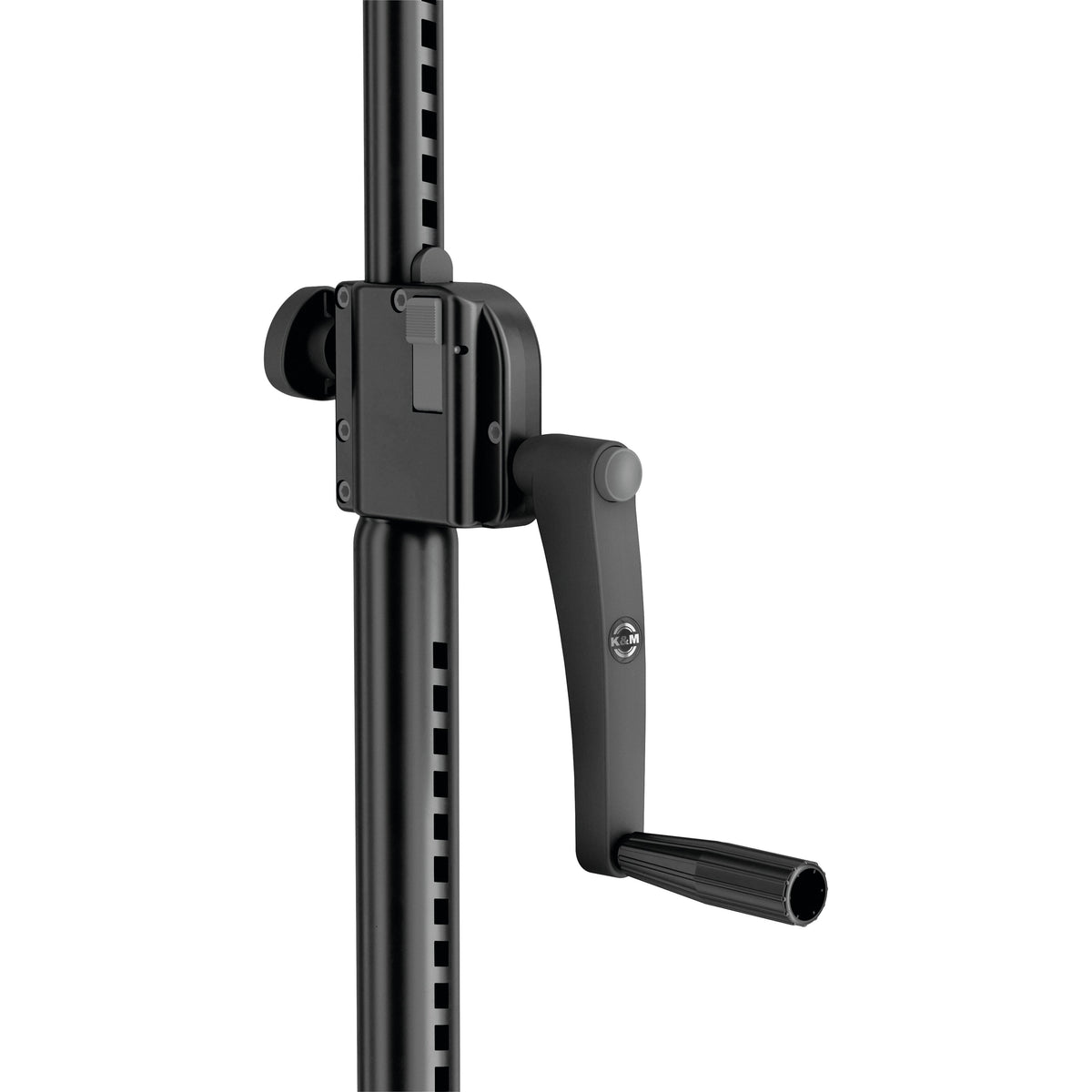

  • 24740 wind-up stand crank mechanism close-up showing slotted inner tube and handle with K&M logo, K&M

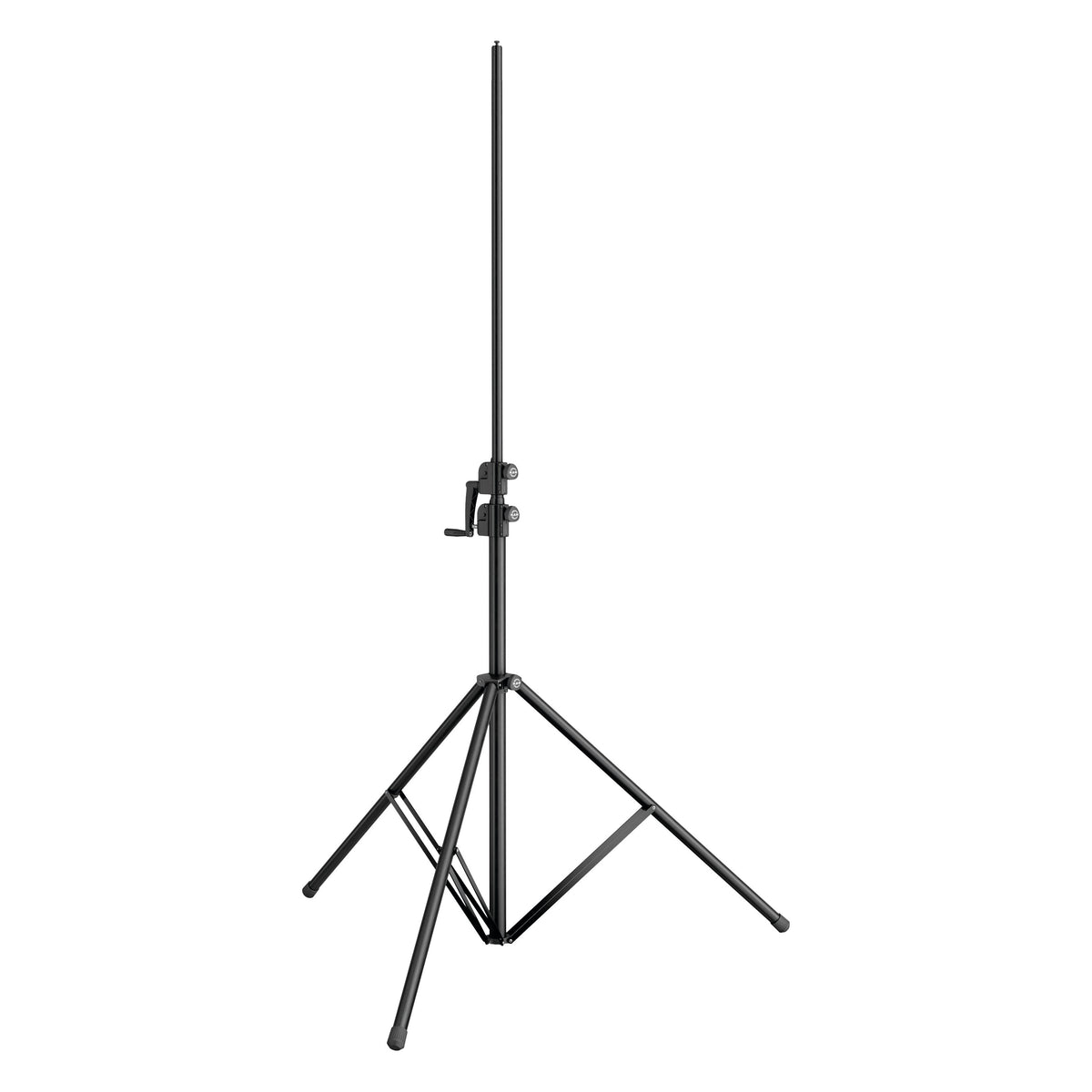

  • 24740 wind-up stand with upper tube extended and dual crank collars at mid height above the tripod base, K&M

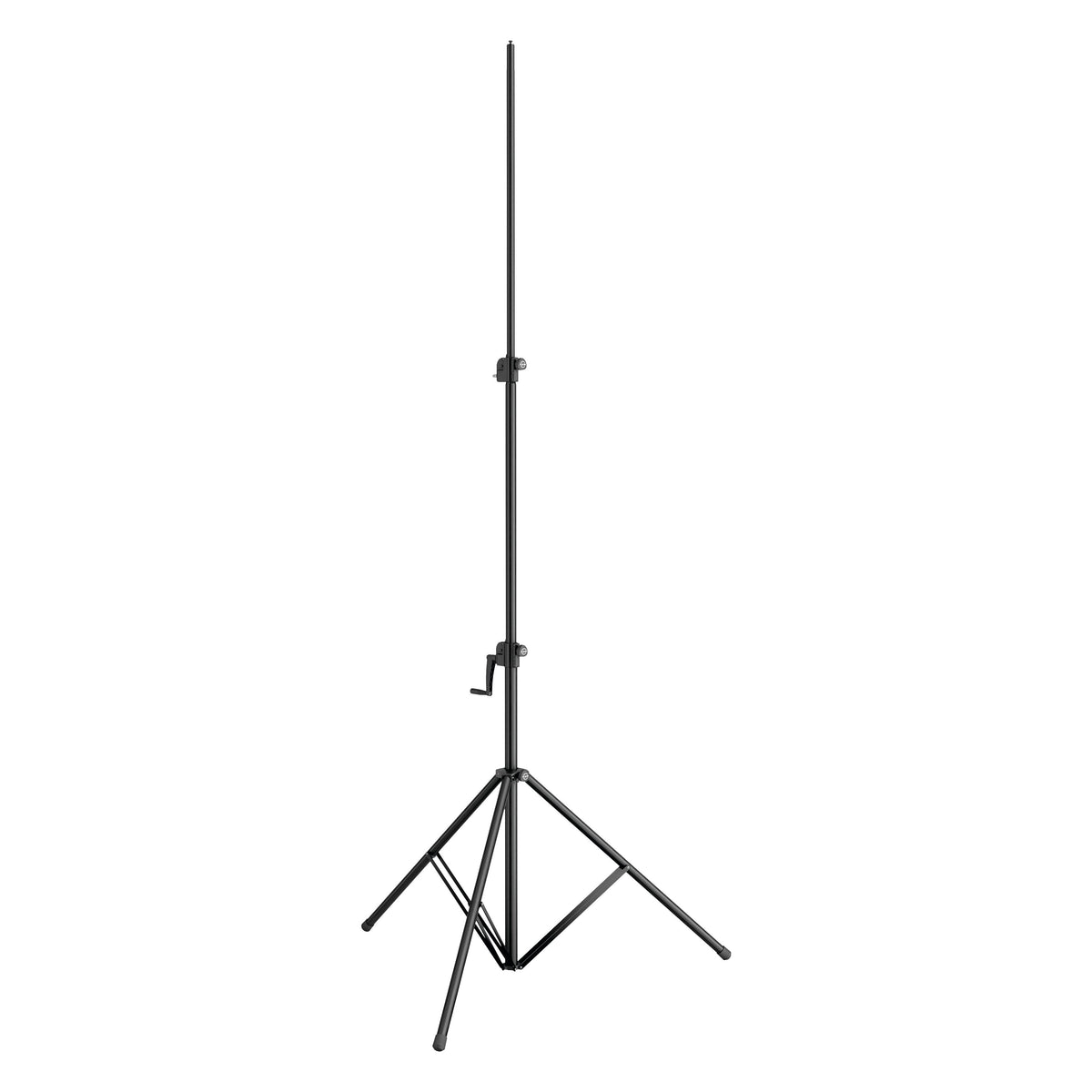

  • 24740 wind-up stand at maximum height showing extended tubes, two clamp collars and crank handle, K&M

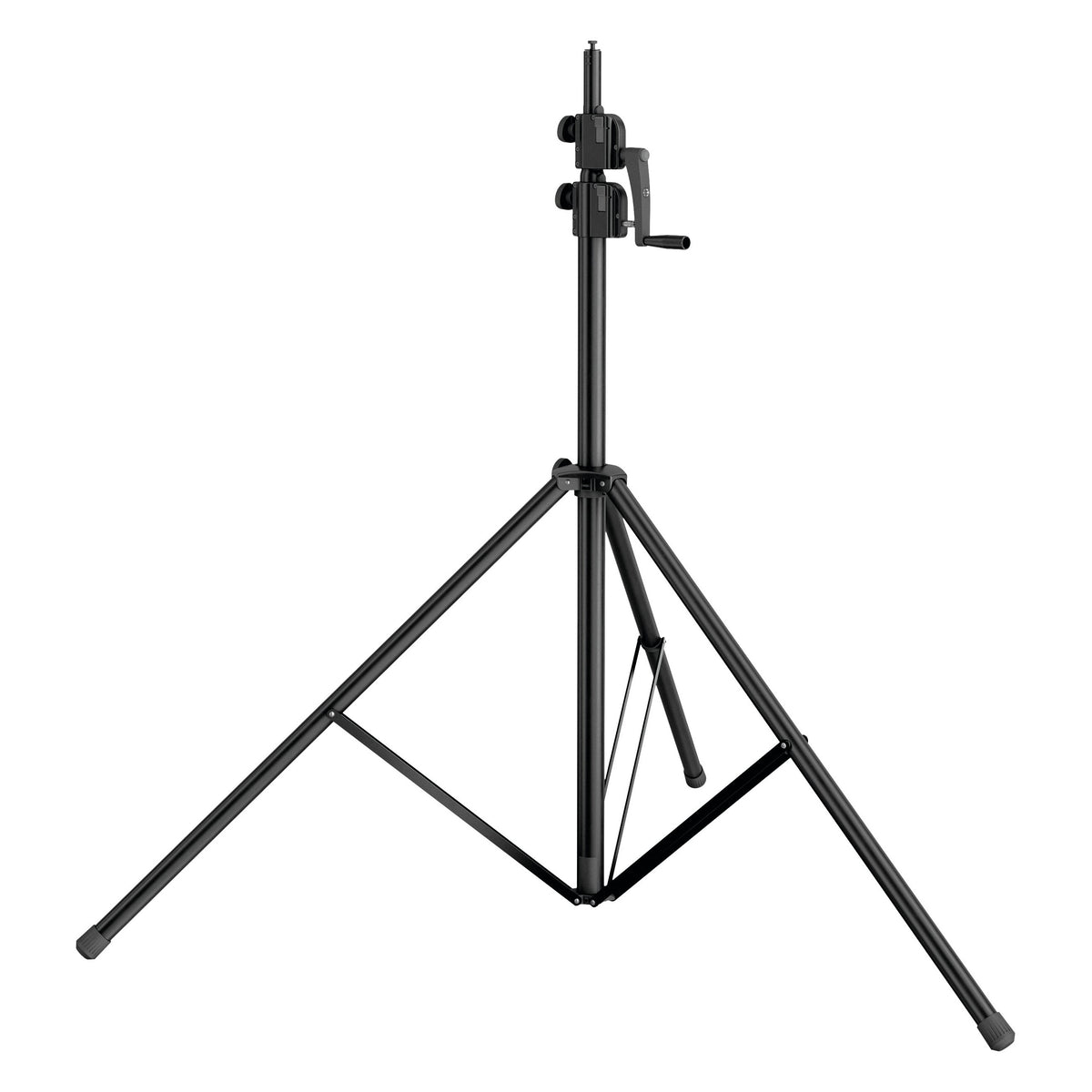

  • 24740 wind-up stand rear three-quarter view with crank handle on the right and tripod legs with bracing struts, K&M
1 8

K&M 24740 Wind-Up Speaker Stand With Dual Crank Mechanism

K&M 24740 Wind-Up Speaker Stand With Dual Crank Mechanism

SoundPro Item: 137296 | Part Number: 24740.000.55

$1,039.99
$1,299.99 $1,039.99
Your Price Sold out
MSRP: $1,299.99 | MAP: $1,039.99

Usually ships in 5-7 business days

  • Dual Crank Gear System Allows Safe Raising And Lowering Of Heavy Loaded Speakers
  • Integrated Auto Lock Prevents Uncontrolled Descent For Added Safety Under Load
  • Push-Button System With Locking Screw Provides Redundant Security At Any Height
  • Aluminum Construction With Zinc Die-Cast Connectors Balances Strength And Portability
  • Three-Piece Folding Rod Design Enables Compact Transport And Fast Setup
  • Tube Legs With Double Cross Braces Deliver Stable Footing On Uneven Surfaces
  • 35mm Tube End With Integrated M10 Threaded Bush Accepts Standard Crossbar Hardware
Log in or register for YOUR best price

The K&M 24740 wind-up stand is engineered for production and install teams that need to place heavy speakers and arrays at significant heights without the safety risks of conventional pin-style stands. The dual crank mechanism allows controlled raising and lowering under load, making single-operator deployment practical for touring and fixed installation alike. The integrated Auto Lock system prevents uncontrolled descent, adding a critical layer of protection when positioning loaded enclosures above audience areas.

The three-piece aluminum tube combination spans a height range that covers low-fill positions through full-flight PA applications, making the stand versatile across club installs, corporate AV, and live event productions. Zinc die-cast connecting parts and steel extension tubes contribute to structural integrity at maximum load. The tripod base with double cross-brace leg construction distributes weight effectively on uneven stage surfaces, and the 35mm diameter tube end accepts standard crossbar hardware for truss and array rigging accessories.

Where conventional crank stands rely on a single gear or friction collar, the 24740 uses two separate crank gears and a supplemental locking screw, giving engineers redundant security under dynamic load conditions. For any production workflow where a speaker stand failure represents a serious safety or equipment risk, the K&M 24740 delivers the mechanical reliability that professionals require.

View full details

Specifications

Dimensions
Height Range
1,715 to 4,000 mm
Size When Folded
1,695 x 200 x 165 mm
Base Diameter
2,000 mm
Weight
Product Weight
14.53 kg
Construction
Material
Aluminum
Rod Combination
3-piece folding design
Leg Construction
Tube legs with double cross braces
Connecting Parts
Zinc die-cast
Extension Tubes
Steel
Quality Level
Starline
Color
Black
Connectivity
Tube End Diameter
35 mm
Tube End Thread
M10 integrated threaded bush for crossbars
Performance
Max. Load Capacity
40 kg
Number Of Legs
3
Height Adjustment
Hand crank with push-button system and locking screw
Identifiers
EAN
4016842117079
