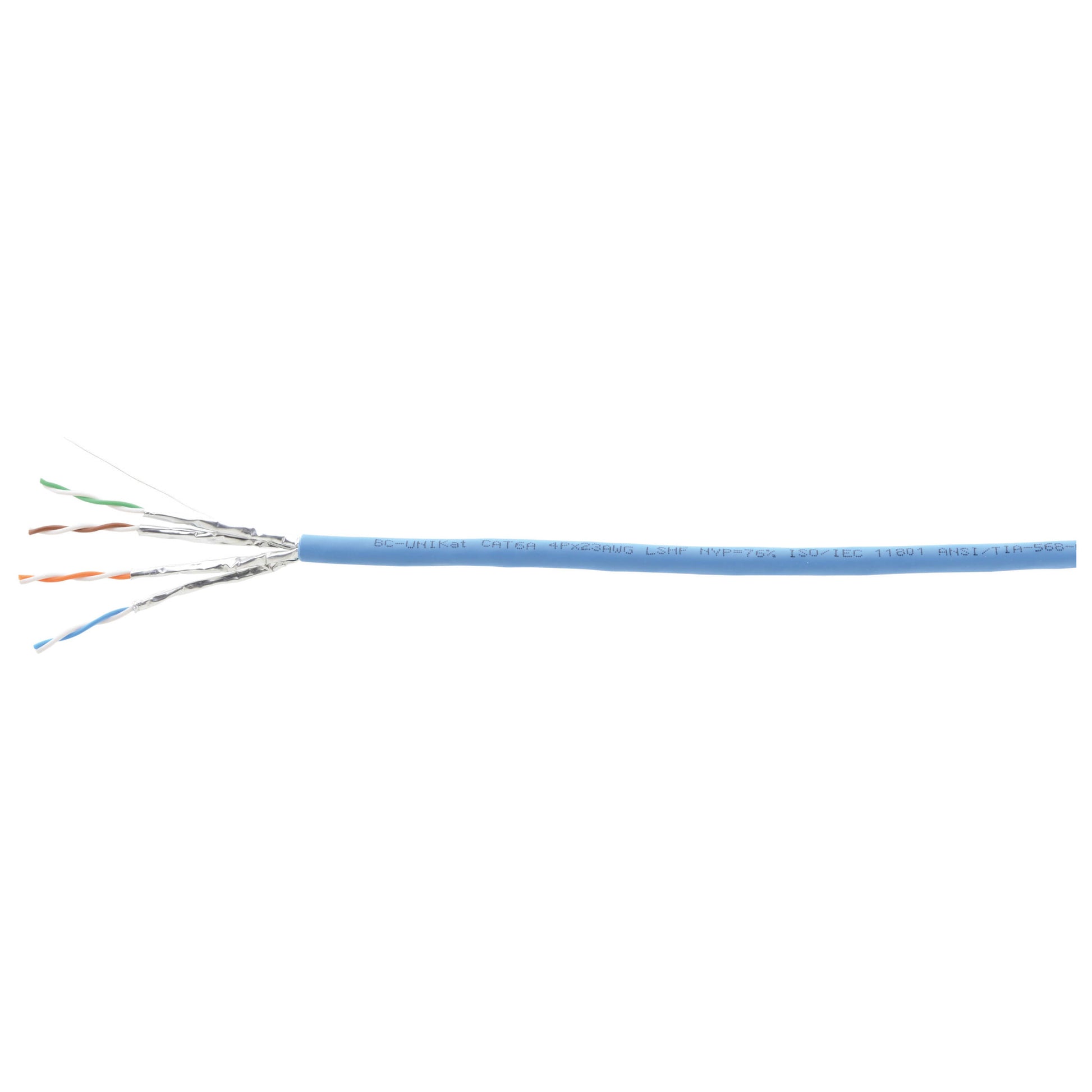

• Kramer BC-UNIKat CAT6A U/FTP Video and LAN Bulk Cable

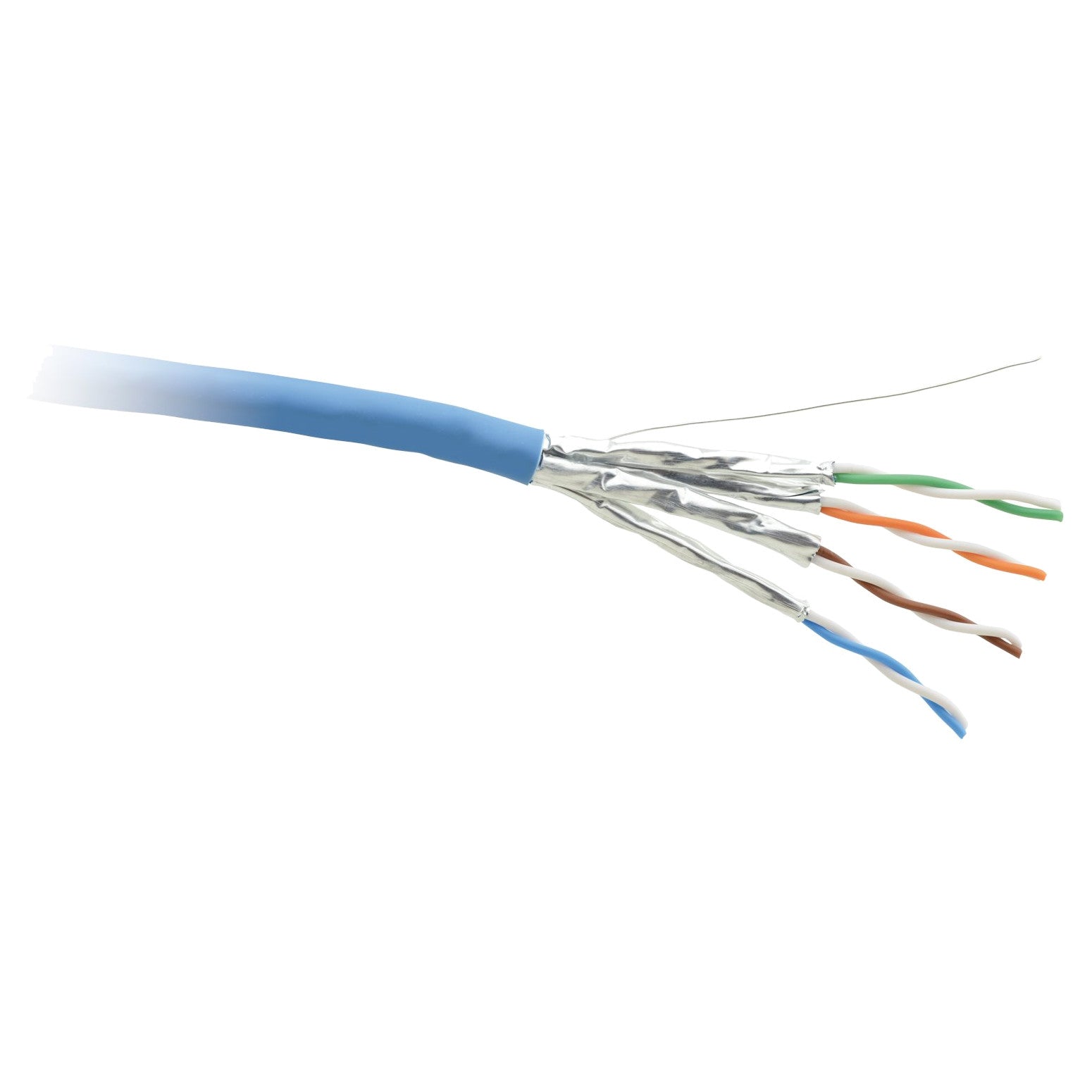

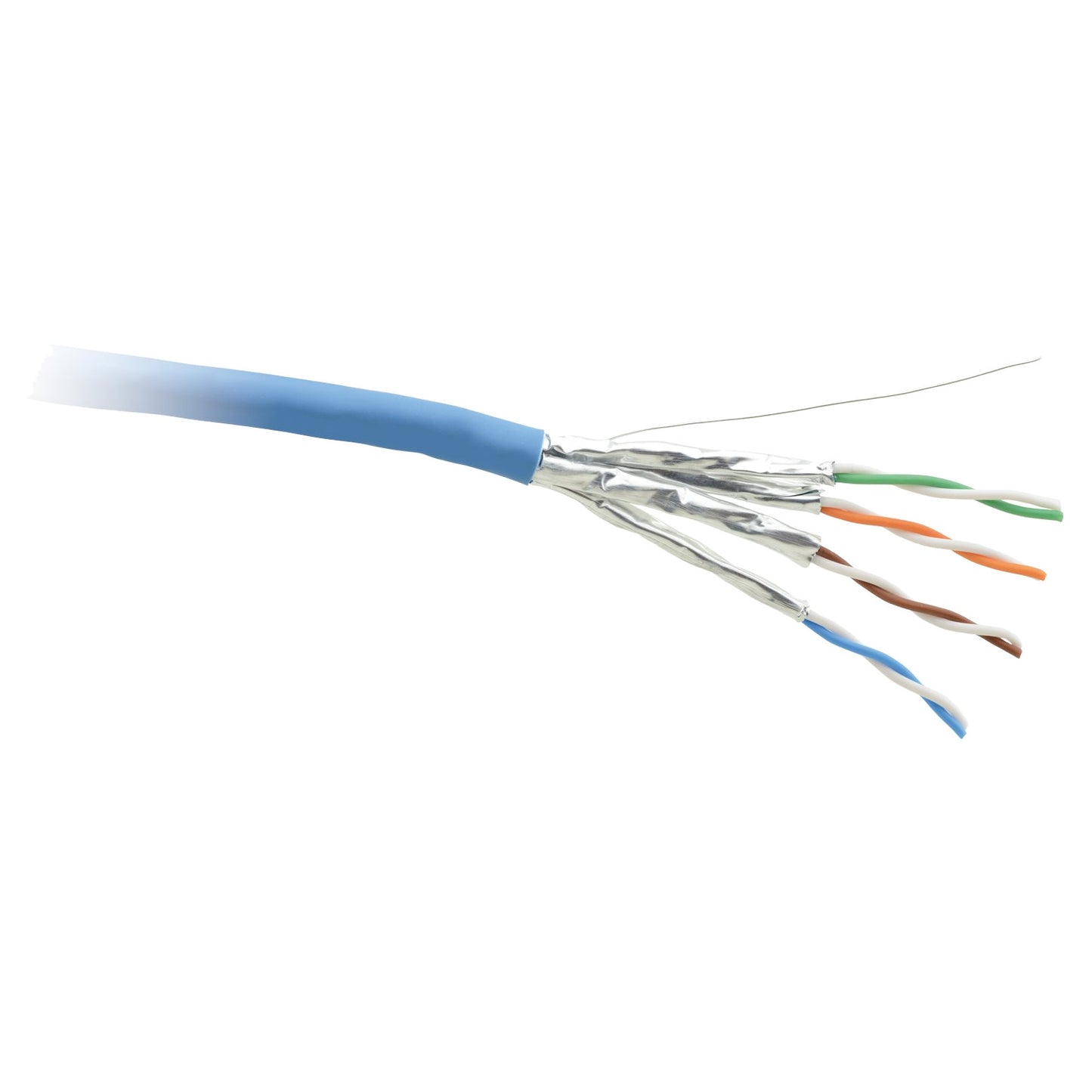

  • Kramer BC-UNIKat CAT6A U/FTP Video and LAN Bulk Cable detail
1 2

Kramer BC-UNIKat CAT6A U/FTP Video and LAN Bulk Cable | Length: 1640 feet

Kramer BC-UNIKat CAT6A U/FTP Video and LAN Bulk Cable | Length: 1640 feet

SoundPro Item: 97205 | Part Number: 99-0461500

$666.00
$850.00 $666.00
Your Price Sold out
MSRP: $850.00 | MAP: $666.00

Usually ships in 5-7 business days

  • Low Smoke & Halogen Free
  • Quality Construction — 4 shielded twisted pairs (U/FTP) of 23AWG solid copper conductors are cabled together in an unshielded outer jacket.
  • Optimized for Kramer Hardware — Use with any of Kramer’s wide range of twisted pair digital transmitter–receiver sets. Terminate with shielded transmitter–receiver sets (DGKat™ and HDBaseT) and shielded RJ–45 connectors.
  • HDBaseT Recommended — www.hdbaset.org/hdbaset–recommended–cables/.
  • Reaction to Fire Classification — Dca–s2,d1,a1 (optional: B2ca–s1,d1,a1).
  • RJ–45 Connector — The larger diameter 23AWG twisted pair cable requires a suited RJ–45 connector. Use the K–LAN CON–RJ45–3.
  • Length — Available in reel boxes of 100m (328ft) & wooden drums of 305/500m (1000/1640ft).
Log in or register for YOUR best price

Kramer's BC−UNIKAT cable is a unified CAT6a cable that handles all Pro AV and IT signals. Over four individually screened twisted pairs, this U/FTP CAT6A cable runs Kramer’s DGKat™ technology, 4K HDBaseT™ technology or LAN applications and ensures optimal signal performance.

View full details

Specifications

Certifications
RoHS
2011/65/EU
Standards of Compliance
Reaction to Fire Classification: Dca–s2,d1,a1 (optional: B2ca–s1,d1,a1)
Dimensions
Size
4x2x23AWG
Diameter
0.56mm ±0.01mm
Electrical
Voltage Rating
60V
Conductor DC Resistance
<79.8Ω/km
Pair Resistance Unbalance DC
<1.5%
Dielectric Strength
2.5kV DC (2s)
Insulation Resistance (500V)
>5000MΩ/km
Electrical
EIA/TIA 568A, ISO/IEC 11801
Audio
Impedance
1–100MHz: 100Ω ±15Ω, 100–250MHz: 100Ω ±20Ω, 250–500MHz: 100Ω ±25Ω
Construction
Material
Annealed copper
Color Code
White/Blue, White/Orange, White/Green, White/Brown
Color
Blue RAL 5012
Environmental
Storage / Transport / Installation Temperature
0°C to +50°C
Operation Temperature
–20°C to +60°C
General
Screening
Material: Alu/PET per pair (Alu side out)
Thickness
≥0.5mm
Propagation Velocity (NVP)
76%
Delay Skew
<45ns
Mutual Pair Capacitance
≤42pF/m
Capacitance Unbalance Pair/ground
≤1500pF/km
Maximum Pulling Tension
: 100N
Bending Radius - Installed
50mm
Bending Radius - During Installation
60mm
Fire Performance
IEC 60332-1
Smoke Density
IEC 61034
Halogen Free
IEC 60754
