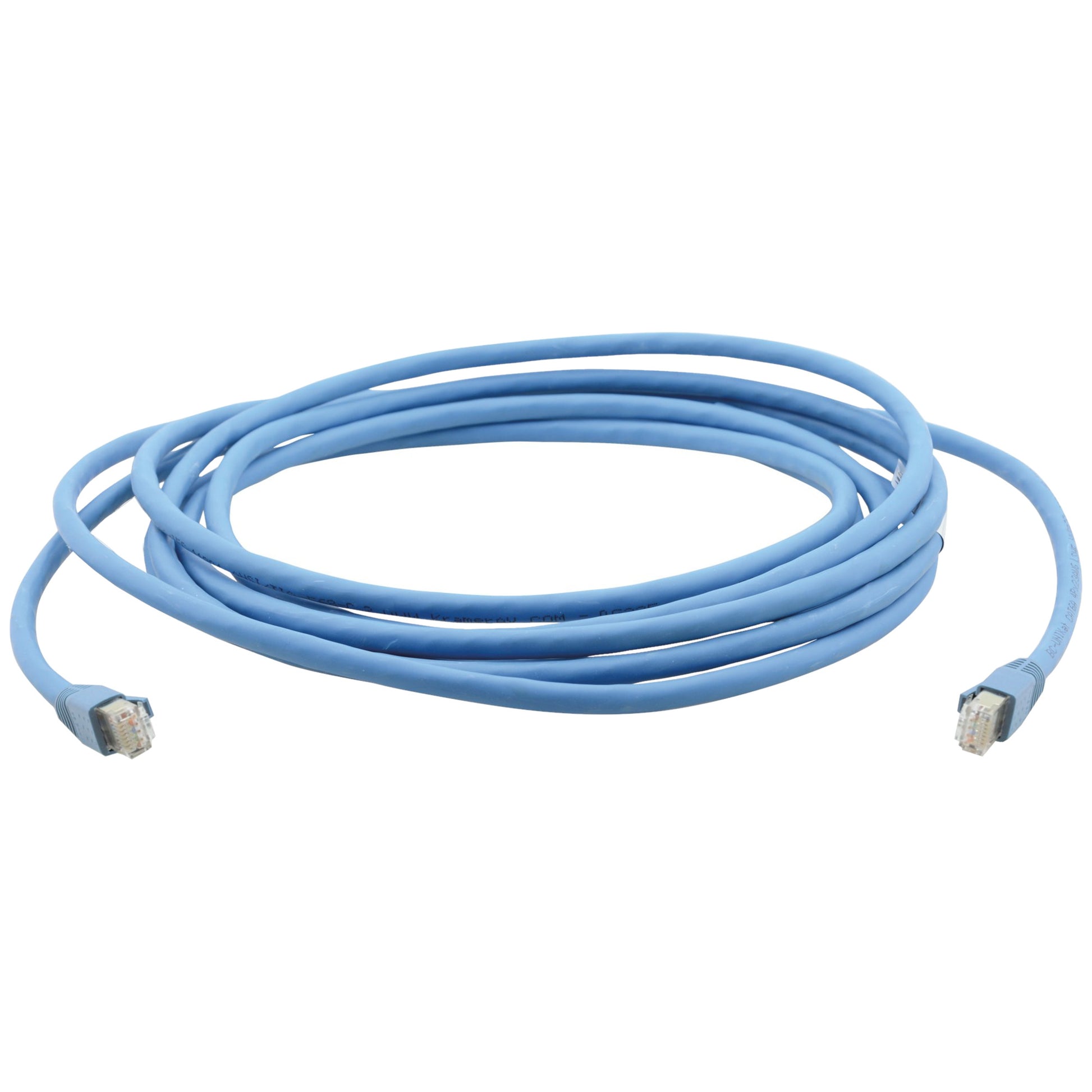

Kramer C-UNIKat CAT6A U/FTP Video/LAN Cable Assembly | Length: 15 feet
Kramer C-UNIKat CAT6A U/FTP Video/LAN Cable Assembly | Length: 15 feet
SoundPro Item: 112359 | Part Number: C-UNIKAT-15
Usually ships in 5-7 business days
- Quality Construction — 4 shielded twisted pairs (U/FTP) of 23AWG solid copper conductors are cabled together in an unshielded outer jacket.
- Optimized for Kramer Hardware — Use with any of Kramer’s wide range of twisted pair digital transmitter–receiver sets (DGKat™ and HDBaseT).
- High–Quality Shielded RJ–45 Connectors — 50u gold plated contacts.
- Varied Selection of Length — 1.8 to 100m (6–328ft).
Kramer's C−UNIKAT cable is a unified CAT6a cable that handles all the latest technology signals. Over four individually screened twisted pairs, this U/FTP CAT6a cable runs Kramer’s DGKat™ technology, 4K HDBaseT™ technology or LAN applications and ensures optimum signal performance.
- Construction
- Conductors: 4 x 2 x 23AWG, annealed copper
- Outer Diameter: 0.56± 0.01mm (0.022in)
- Insulation Material: Skin/foam/skin HDPE
- Outer diameter: 1.33 ± 0.10mm (0.052in)
- Color: Per TIA/EIA 568–B
- Screening: Alu/PET per pair (Alu side out)
- Drain Wire: 90% tinned copper, outer diameter: 0.4 ± 0.01mm (0.016in)
- Jacket: LSHF, blue RAL5012
- Thickness≥0.5mm (0.020in)
- Diameter7.2 ± 0.2mm (0.284in)
- Physical
- Maximum Pulling Tension: 100N
- Bending Radius: Installation 60mm (2.36in), installed 50mm (1.97in)
- Thermal Characteristics: Storage/transport/installation 0° to 50°C (32° to 122°F), operation — 20°to 60°C (–4° to 140°F)
- Regulatory
- Electrical: EIA/TIA 568A, ISO/IEC 11801
- Fire Performance: IEC 60332–1
- Smoke Density: IEC 61034
- Halogen Free: IEC 60754
- Electrical
- Impedance: 1–100MHz : 100 ± 15Ω
- Impedance: 100–250MHz : 100 ± 20Ω
- Impedance: 250–500MHz : 100 ± 50Ω
- Propagation Velocity: 76%
- Mutual Pair Capacitance: ≤42pF/m
- Capacitance Unbalanced Pair/Ground: ≤1500pF/km
- Max. Conductor DC Resistance: <79.8Ω/km
- Pair Resistance Unbalance: DC <1.5%
- Dielectric Strength: 2.5kV DC (2s)
- Insulation Resistance: >5000MΩ/km
- Voltage Rating: 30V
