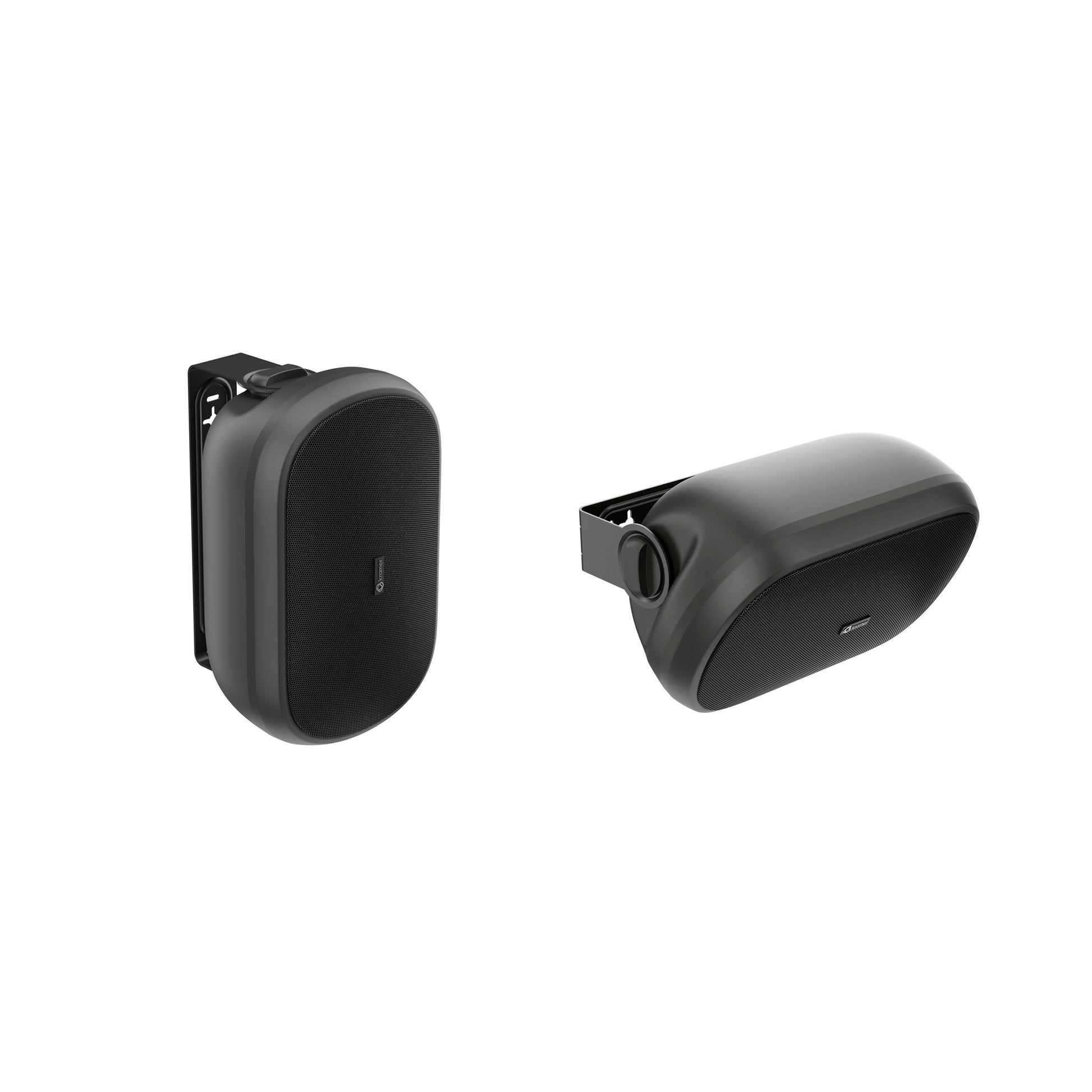

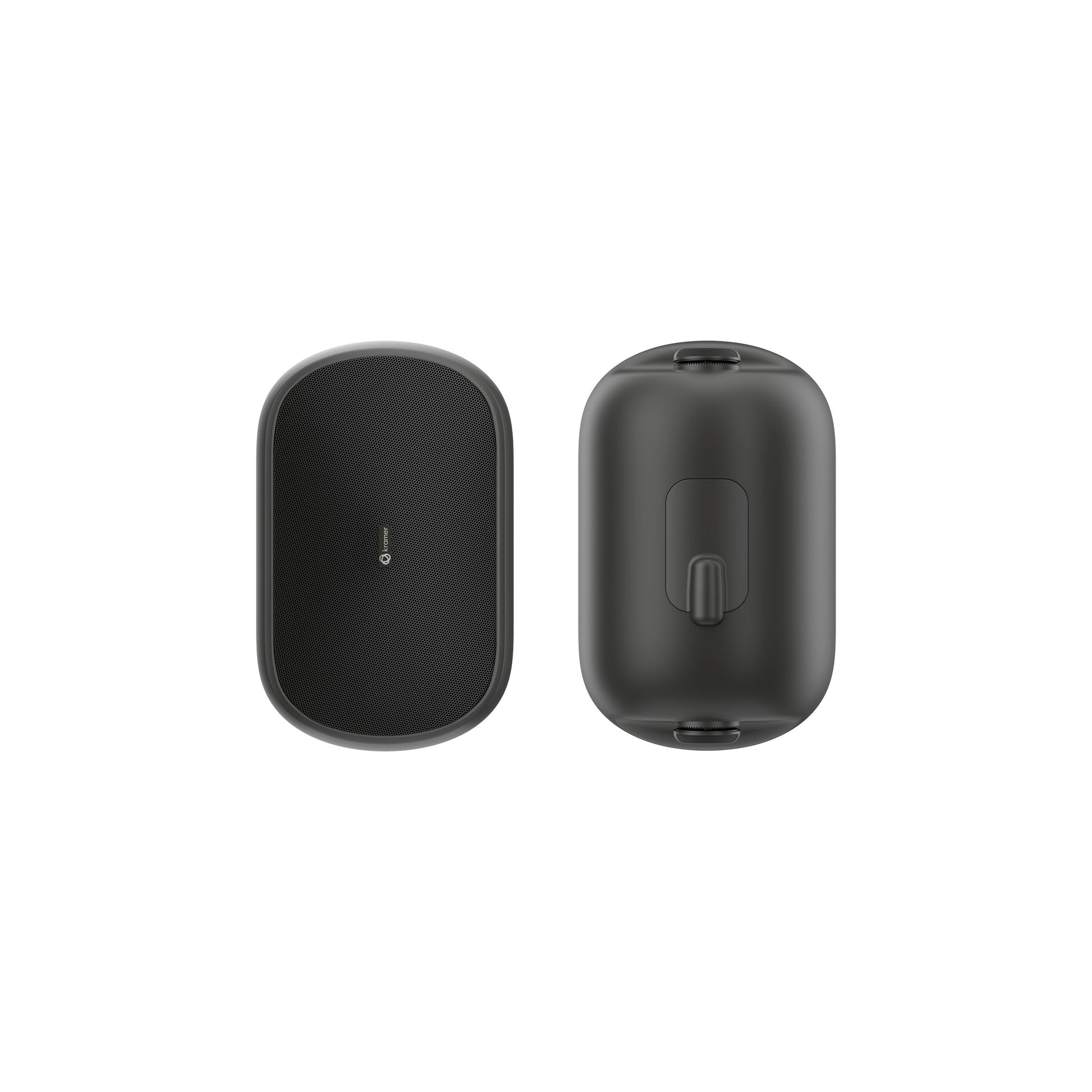

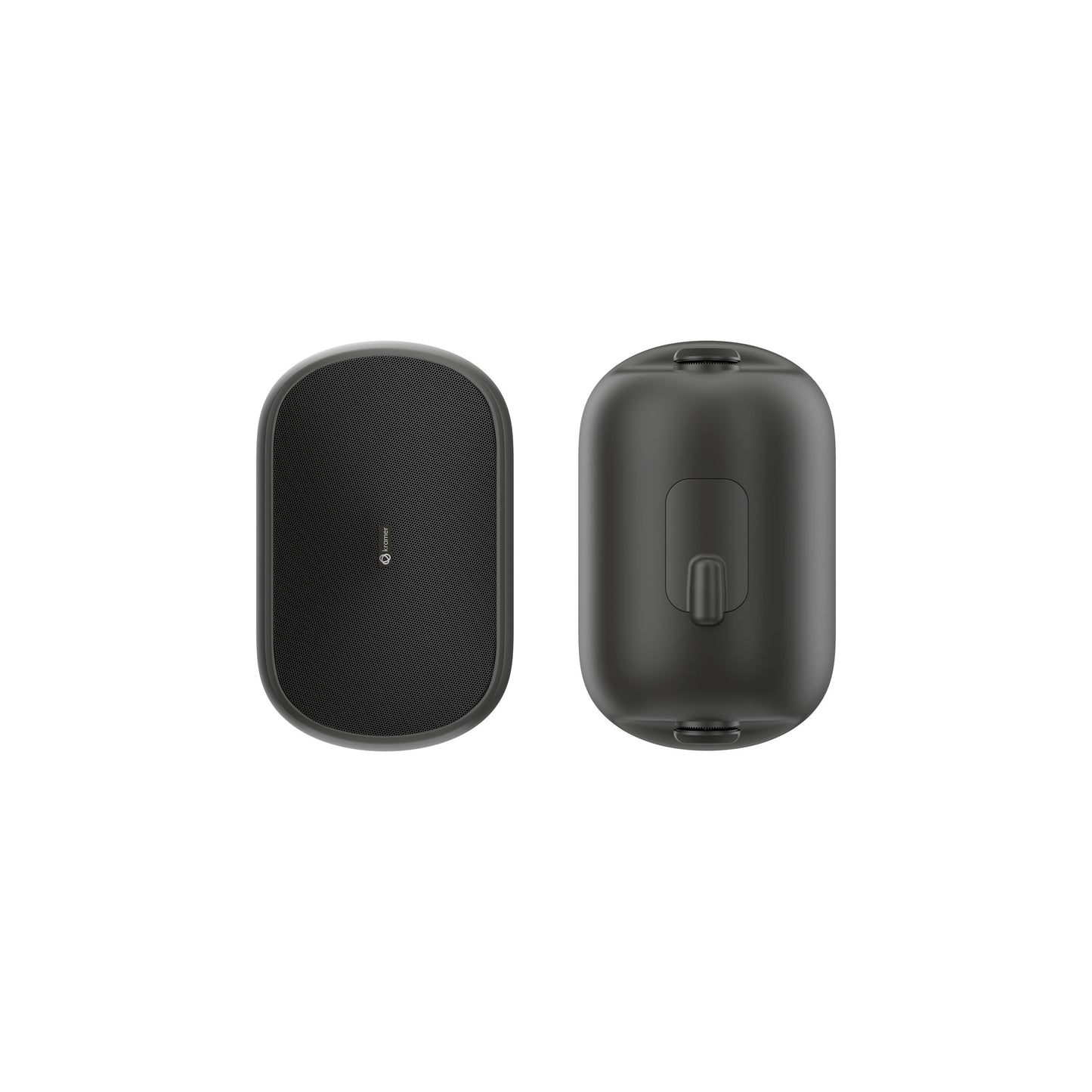

Kramer AW-6D 60-000108 All-Weather PoE Dante Wall Speaker | Black

Kramer AW-6D 60-000108 All-Weather PoE Dante Wall Speaker | Black

SoundPro Item: 208149 | Part Number: AW-6D 60-000108

Pricing available upon request

Pricing available upon request

Your Price Sold out

Usually ships in 5-7 business days

  • IP66 Rating Enables Reliable Operation In Direct Spray And Heavy Dust Environments
  • Built-In Amp, DSP, And Mixer Eliminate External Processing Hardware
  • PoE Auto-Negotiation Across PoE, PoE+, And PoE++ Simplifies Infrastructure Planning
  • Dante Network Audio Integration For Scalable Distributed Audio Deployments
  • Parametric EQ, Filters, Compression, And Limiting Configurable Via Speaker Utility Software
  • Find Me Tone Accelerates Speaker Identification During Large-Scale Installs
  • V-0 Flame Retardant Enclosure Meets UL1480A Requirements For Indoor Installations

The Kramer AW-6D is built for system integrators who need a single, self-contained loudspeaker solution that performs equally in outdoor courtyards, covered walkways, and interior spaces without compromising on audio quality or networked control. The built-in Class-D amplifier, DSP, and two-channel mixer eliminate the need for external processing, reducing rack space and simplifying commissioning on Dante-networked audio systems in corporate campuses, hospitality venues, transit facilities, and houses of worship.

Unlike passive all-weather speakers that require separate amplification and cabling runs, the AW-6D draws power directly over a standard PoE network connection, with auto-negotiation across PoE, PoE+, and PoE++ to maximize output headroom. Parametric EQ, high-pass and low-pass filters, input compression, output limiting, and thermal protection are all configurable through Kramer's Speaker Utility software, giving integrators precise tuning without on-site hardware changes. A built-in Find Me tone simplifies speaker identification across large deployments, and a published API supports Kramer Control as well as third-party control systems for volume, mute, and status monitoring.

V-0 flame-retardant materials on the baffle and back enclosure satisfy UL1480A indoor requirements, while IP66 weatherproofing handles direct water spray and heavy dust exposure outdoors. The toolless mounting bracket accommodates vertical or horizontal surface mounting, and the removable logo and choice of finish allow the enclosure to recede into architectural environments where aesthetics matter as much as performance.

Downloads

View full details

Specifications

Certifications
IP Rating
IP66
Safety
IEC 62368 (CB) / CE LVD, UL 62368-1
EMI
FCC / IC
Regional Compliance
BIS, RCM
Environmental
RoHS, REACH, WEEE
Audio
LF Driver
165 mm (6.5") polypropylene cone with rubber surround
HF Driver
25 mm (1") soft dome with dampening, ferrofluid cooled
Frequency Range (-10dB)
60Hz-20kHz
Frequency Response (±3dB)
84Hz-20kHz
Dispersion Angle
136 degrees (1 kHz to 4 kHz)
Sensitivity (1W@1m, free field)
90dB SPL
Max SPL Continuous (PoE++)
100dB
Max SPL Peak (PoE++)
105dB
Max SPL Continuous (PoE+)
100dB
Max SPL Peak (PoE+)
103dB
Max SPL Continuous (PoE)
100dB
Max SPL Peak (PoE)
100dB
Power Handling (PoE++)
10W continuous / 30W peak
Power Handling (PoE+)
10W continuous / 20W peak
Power Handling (PoE)
10W continuous / 10W peak
Performance
OCM (Over-Current Protection)
Monitors input current and reduces gain to prevent damage
OSP (Output Shortcut Protection)
Shuts down and restarts amplifier if shortcut is detected
OTM (Over-Temperature Protection)
Automatically lowers volume if overheating is detected, restores once temperature normalizes
Connectivity
Connectors
RJ-45, factory reset button
Power
PoE / PoE+ / PoE++ (auto-negotiate)
Construction
Grill
Aluminum, removable logo
Baffle and Back Enclosure
V-0 Flame Retardant
Bracket
Aluminum
Color
Black
Dimensions
Product Dimensions (Without Bracket)
7.91" x 6.63" x 12.6" (201mm x 168mm x 320mm)
Product Dimensions (With Bracket)
7.91" x 8.06" x 12.6" (201mm x 205mm x 320mm)
Product Width
6.63"
Product Length
7.91"
Product Height
12.6"
Weight
Unit Weight (Including Bracket)
2.9kg / 6.4 lbs
Environmental
Operating Temperature
-5 to +50 degrees C (23 to 122 degrees F)
Storage Temperature
-10 to +55 degrees C (14 to 131 degrees F)
Humidity
30% to 85% RH, non-condensing
Shipping
Package Dimensions (Single Unit)
11.3" x 9.3" x 15.2" (287mm x 235mm x 385mm)
Package Dimensions (Master Box, 2 Units)
18.8" x 11.7" x 15.9" (477mm x 296mm x 403mm)
Package Weight (Single Unit)
3.5kg / 7.7 lbs
Package Weight (Master Box)
7.4kg / 16.3 lbs
Included Items
In The Box
1 speaker (single unit)
Mounting Hardware
1 mounting bracket + 2 toolless bracket screws
Accessories
1 silicone grommet
Documentation
Quick Start Guide, Spec Sheet
