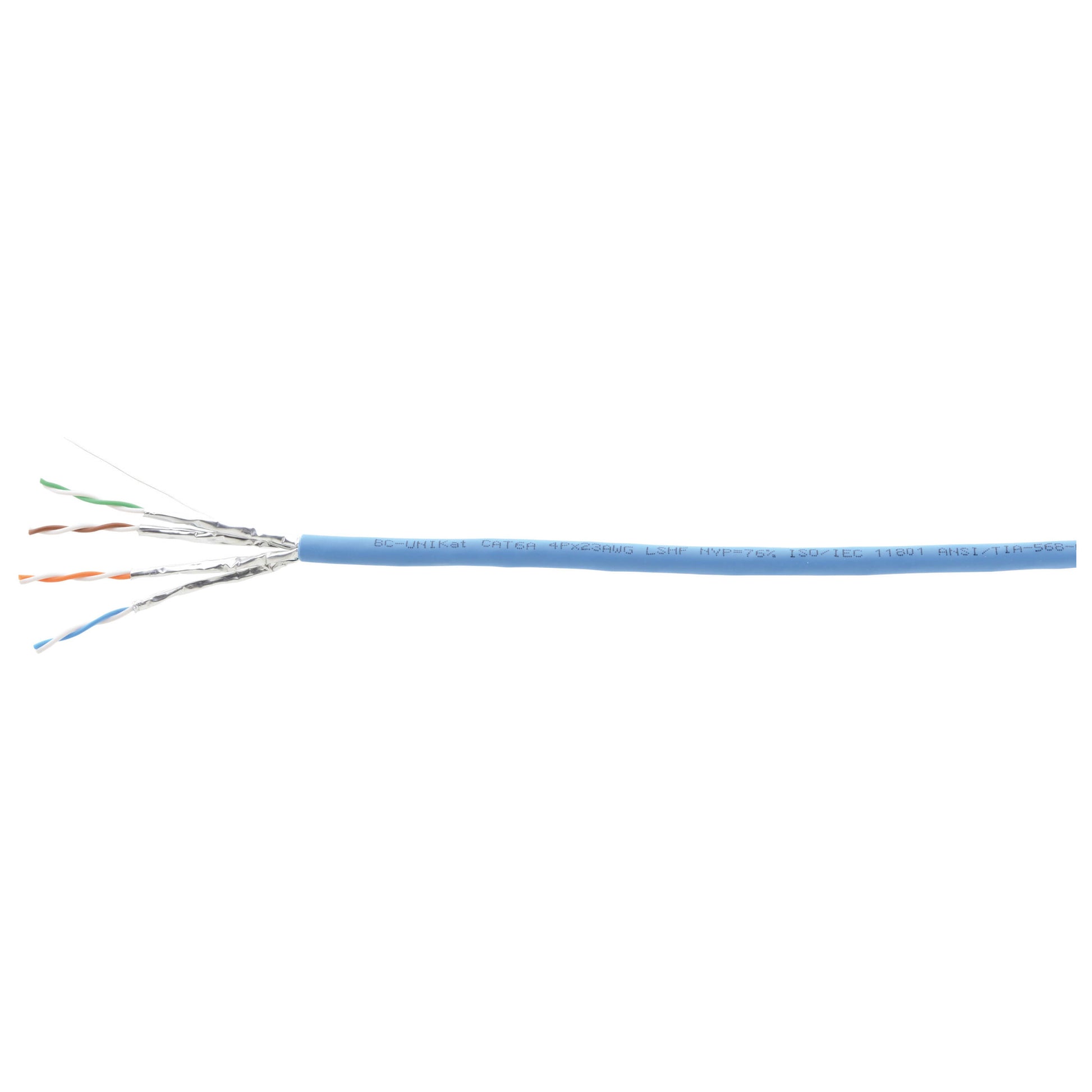

Kramer BC-UNIKat CAT6A U/FTP Video and LAN Bulk Cable | Length: 328 feet
Kramer BC-UNIKat CAT6A U/FTP Video and LAN Bulk Cable | Length: 328 feet
SoundPro Item: 112253 | Part Number: BC-UNIKAT/LSHF-100M
Usually ships in 5-7 business days
- Low Smoke & Halogen Free

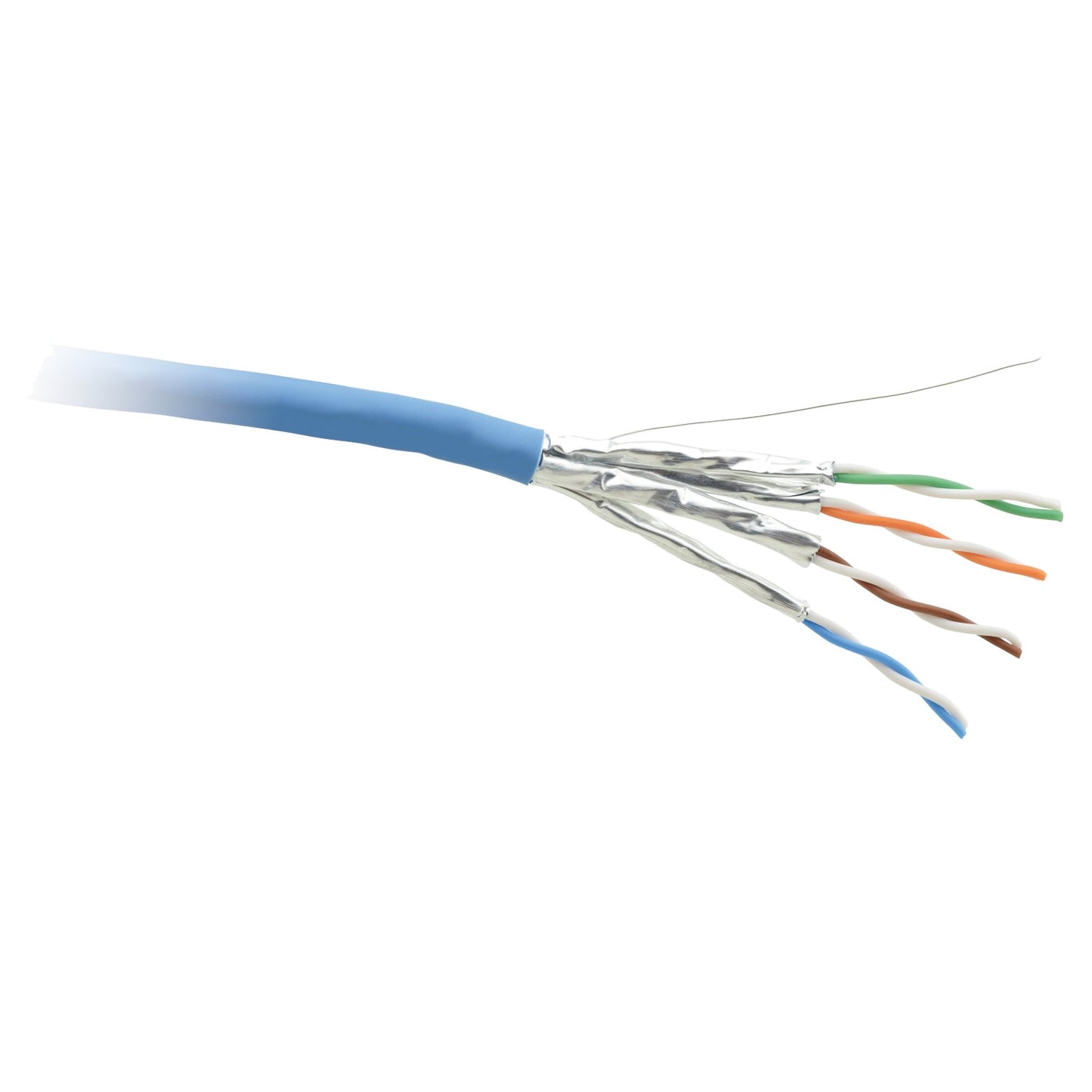

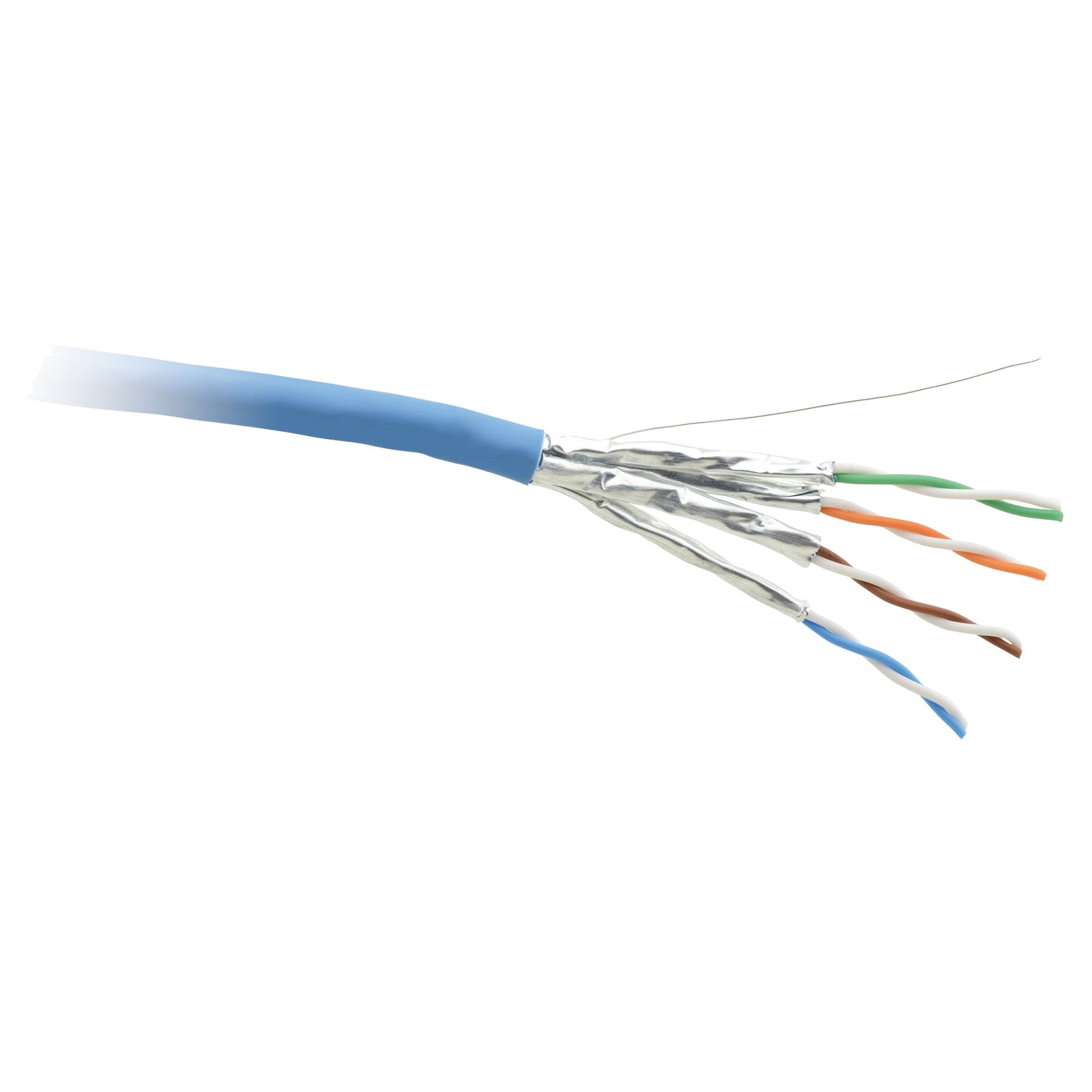

- Quality Construction — 4 shielded twisted pairs (U/FTP) of 23AWG solid copper conductors are cabled together in an unshielded outer jacket.
- Optimized for Kramer Hardware — Use with any of Kramer’s wide range of twisted pair digital transmitter–receiver sets. Terminate with shielded transmitter–receiver sets (DGKat™ and HDBaseT) and shielded RJ–45 connectors.
- HDBaseT Recommended — www.hdbaset.org/hdbaset–recommended–cables/.
- Reaction to Fire Classification — Dca–s2,d1,a1 (optional: B2ca–s1,d1,a1).
- RJ–45 Connector — The larger diameter 23AWG twisted pair cable requires a suited RJ–45 connector. Use the K–LAN CON–RJ45–3.
- Length — Available in reel boxes of 100m (328ft) & wooden drums of 305/500m (1000/1640ft).
Kramer's BC−UNIKAT cable is a unified CAT6a cable that handles all Pro AV and IT signals. Over four individually screened twisted pairs, this U/FTP CAT6A cable runs Kramer’s DGKat™ technology, 4K HDBaseT™ technology or LAN applications and ensures optimal signal performance.
- Conductors
- Size: 4x2x23AWG
- Material: Annealed copper
- Diameter: 0.56mm ±0.01mm
- Insulation
- Material: Skin/Foam/Skin HDPE
- Diameter: 1.33mm ±0.10mm
- Color Code: White/Blue, White/Orange, White/Green, White/Brown
- ScreeningMaterial: Alu/PET per pair (Alu side out)
- Drain Wire
- Material: Tinned copper
- Diameter: 0.4mm ±0.01mm
- Jacket
- Material: LSHF
- Color: Blue RAL 5012
- Thickness: ≥0.5mm
- Diameter: 7.2mm ±0.2mm
- Electrical
- Impedance: 1–100MHz: 100Ω ±15Ω, 100–250MHz: 100Ω ±20Ω, 250–500MHz: 100Ω ±25Ω
- Propagation Velocity (NVP): 76%
- Voltage Rating: 60V
- Delay Skew: <45ns
- Mutual Pair Capacitance: ≤42pF/m
- Capacitance Unbalance Pair/ground: ≤1500pF/km
- Conductor DC Resistance: <79.8Ω/km
- Pair Resistance Unbalance DC: <1.5%
- Dielectric Strength: 2.5kV DC (2s)
- Insulation Resistance (500V): >5000MΩ/km
- Usage and Environmental
- Storage / Transport / Installation Temperature: 0°C to +50°C
- Operation Temperature: –20°C to +60°C
- Mechanical
- Maximum Pulling Tension: : 100N
- Bending Radius - Installed: 50mm
- Bending Radius - During Installation: 60mm
- Standards Compliance - EC Verified
- Electrical: EIA/TIA 568A, ISO/IEC 11801
- Fire Performance: IEC 60332-1
- Smoke Density: IEC 61034
- Halogen Free: IEC 60754
- RoHS: 2011/65/EU
- Standards of ComplianceReaction to Fire Classification: Dca–s2,d1,a1 (optional: B2ca–s1,d1,a1)
