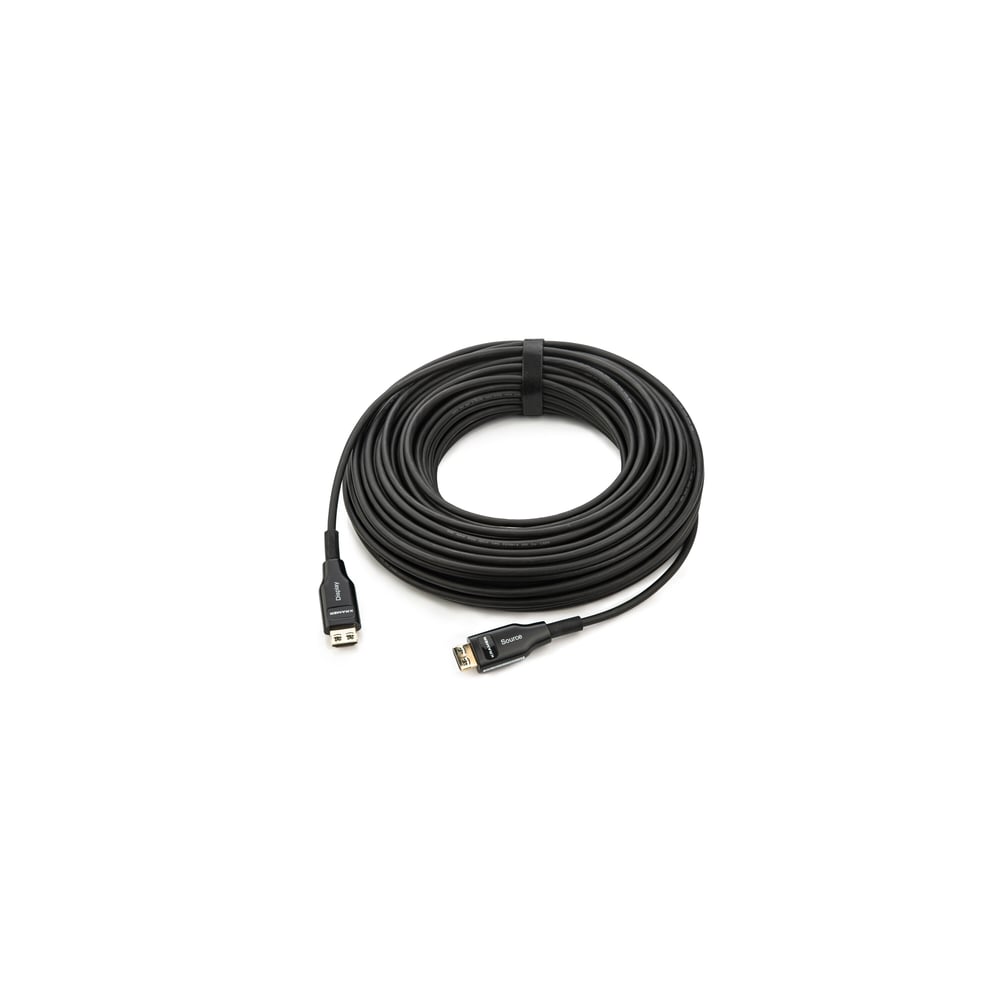

Kramer 97-04161066 Active Optical Uhd Pluggable Hdmi Cable Plenum 20M

Kramer 97-04161066 Active Optical Uhd Pluggable Hdmi Cable Plenum 20M

SoundPro Item: 117070 | Part Number: 97-04161066

$216.00
$275.00 $216.00
Your Price Sold out
| MAP: $216.00

Usually ships in 5-7 business days

  • Max. data rate: 18Gbps
  • Max. resolution: 4K@60Hz
  • Plenum rated
  • K-Lock connectors
  • Lengths - 10-90m (33-295ft)
  • No external power required
Log in or register for YOUR best price

CP-AOCH/60F is an innovative active optical HDMI cable for 4K signals up to 90 meters (295ft).
CP-AOCH/60F cables are thinner, lighter, and more flexible than copper or even standard optical cables. They offer transparent EDID and HDCP support with no signal attenuation and reduced risk of EMI and RFI interference. CP-AOCH/60F cables are an ideal solution for maximizing signal integrity in critical AV installations.

  • Video Resolution - Up to 4K@60Hz (4:4:4).
  • High Data Transfer Rate - Up to 18Gbps.
  • Embedded Audio - PCM 8-channel, Dolby Digital True HD and DTS-HD Master Audio.
  • HDMI Support - HDCP 2.2/1.4, HDR, EDID, ARC and CEC.
  • High-Quality Connectors - 24K gold-plated, corrosion-resistant and best possible connectivity.
  • Reduced EMI & RFI.
  • Thin Construction - 4.5mm diameter.
  • Jacket Construction - Plenum rated.
  • RoHS 2011/65/EU CE,FCC Compliant.
  • Varied Selection of Lengths - Available in versions from 10 to 90m (33 to 295ft).
View full details

Specifications

'General Information
Manufacturer
Kramer Electronics LTD
Manufacturer Part Number
CP-AOCH/60F-66
Brand Name
Kramer
Product Model
CP-AOCH/60F-66
Product Name
CP-AOCH/60F High-Speed HDMI Active Optical Hybrid Cable - Plenum Rated
Product Type
A/V Cable
Technical Information
Cable Type
Hybrid Fiber Optic
Fiber Optic Mode
Multi-mode
Cable Length
66 ft
Connector on First End
1 x HDMI (Type A) Male Digital Audio/Video
Connector on Second End
1 x HDMI (Type A) Male Digital Audio/Video
Connector Plating
Gold
Features
Flexible
Extended Display Identification Data (EDID)
HDCP
EMI/RF Protection
HDCP 2.2
HDCP 1.4
AOC Technology
HDR Support
Audio Return Channel (ARC)
Consumer Electronics Control (CEC)
Corrosion Resistant
K-Lock
Active
Jacket Type
Plenum
Device Supported
Audio/Video Device
Data Transfer Rate
18 Gbit/s
Physical Characteristics
Color
Black Jacket
Material
Bare Copper
Miscellaneous
Environmentally Friendly
Yes
Environmental Certification
EU RoHS
REACH
