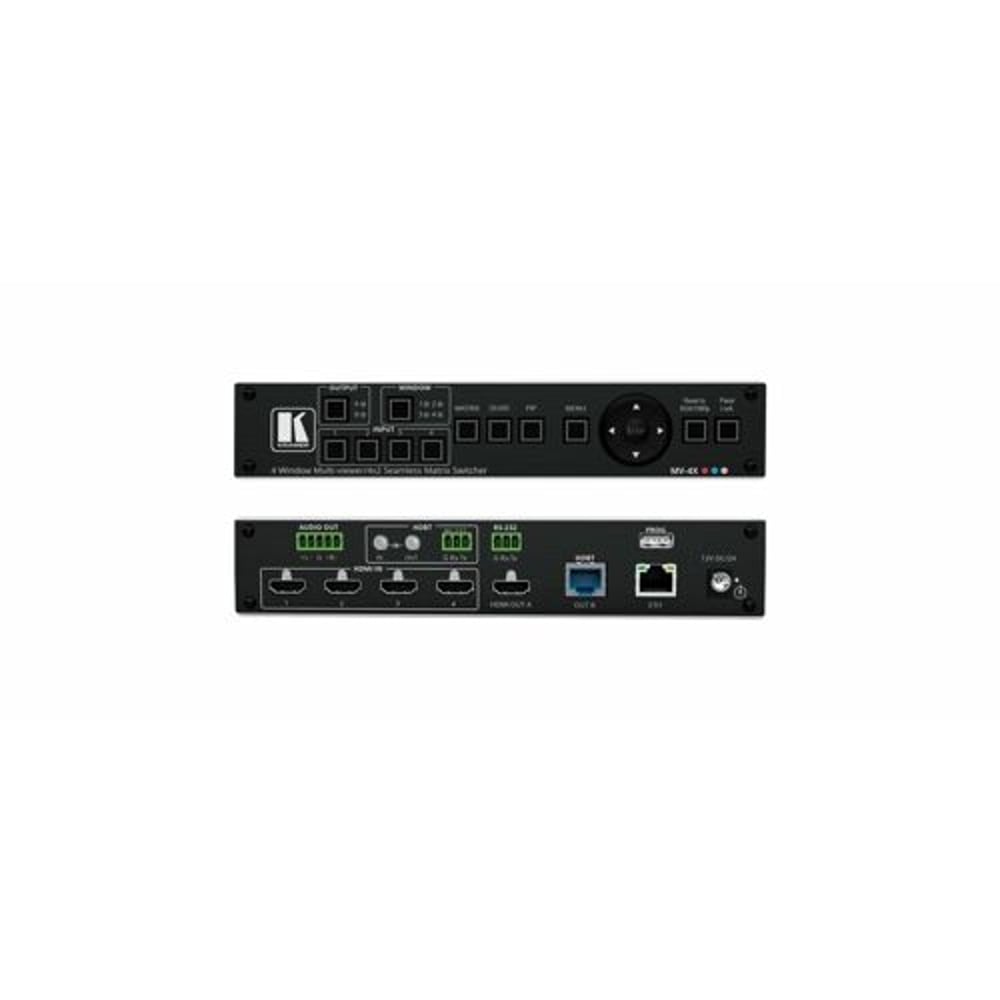

Kramer 72-00004790 4 Window Multi-Viewer/4X2 Seamless Matrix Switcher
Kramer 72-00004790 4 Window Multi-Viewer/4X2 Seamless Matrix Switcher
SoundPro Item: 200107 | Part Number: 72-00004790
Usually ships in 5-7 business days
- 18G 4K HDMI product with 4 HDMI inputs and HDBT and HDMI outputs.
- Matrix mode operation as well as fully customizable multi-window operation modes.
- Supports HDMI up to 4K@50/60Hz 4:4:4 and HDBT up to 4K@50/60Hz 4:2:0.
- Supports chroma keying and an on-screen logo generator.
MV-4X is a high-performance HDMI matrix switcher with integrated scaling technology and multi-windowing options. It is an ideal solution for monitoring or displaying multiple sources simultaneously for use in control rooms, conference rooms or classrooms. Video resolutions up to 4K@60Hz 4:4:4 and LPCM audio up to 7.1 channels and 192kHz are supported on both inputs and outputs. In addition, MV-4X is fully compatible with the HDCP 1.x and 2.3 standards.
The product offers 2 outputs - HDMI and HDBT. Users can choose to display any of the four HDMI sources individually, in full screen, or in a variety of multi-window modes that include quad mode, PiP, and PoP on both outputs. Alternatively, MV-4X offers a seamless (zero-time video cut) 4x2 matrix switcher option. The product also supports chroma-keying and includes a logo overlay feature.
You can control and manage the MV-4X, including the input/window routing, position, and size via the front panel OSD buttons, Ethernet (with embedded webpages), and RS-232.
- High Performance Multi-Viewer - 18G 4K HDMI product with 4 HDMI inputs and HDBT and HDMI outputs that supports HDMI up to 4K@50/60Hz 4:4:4 and HDBT up to 4K@50/60Hz 4:2:0.
- Zero-Time Video Cuts - Connect up to four HDMI sources, an HDMI and an HDBT sink, and seamlessly switch between them.
- HDMI Support - HDR10, CEC (for outputs only), 4K@60Hz, Y420, BT.2020, Deep Color (for inputs only), x.v.Color™, 7.1 PCM, Dolby TrueHD, DTS-HD, as specified in HDMI 2.0.
- Content Protection - Supports HDCP 2.3.
- Chroma Keying Support - select to key the video input using a uniform-colored background.
- Includes numerous filters and algorithms that eliminate picture artifacts.
- Matrix Switching - Truly seamless zero time 4x2 switching in Matrix mode.
- Multiple Display Options - Display any of 4 HDMI sources individually, full screen, with seamless switching in Matrix mode. Or choose to display the sources using multi-window modes such as fully customizable standard views like PiP (Picture in Picture) and PoP (Picture outside of Picture) as well as Quad-window modes.
- 4 Preset Memory Locations - Supports storage of multi-window arrangements as a preset for later use.
- Auto Layout Support - Auto-window mode that automatically changes the number of visible windows based on the number of live sources.
- Independent audio source selection in all modes.
- Image Rotation - 90, 180 and 270-degree rotation support for 4K output resolutions on input 1 in matrix mode.
- Selectable Border Design - Each window can have a border with a selectable color.
- Logo Support - Upload and freely position graphic logo overlay as well as a boot screen logo.
- Multi-view window Setup - Intuitive and easy adjustment of window size, position, and settings.
- User-friendly Control - Via the built-in WebGUI, as well via the OSD-driven front-panel switches.
- EDID Management - Per-input EDID management with internal or external EDID options.
- Local Monitor View - Matrix mode is ideal for applications where the user requires a local monitor to view the image on the display before switching it to the remote display.
APPLICATIONS
- Meeting rooms - Allows users to show multiple presentations simultaneously.
- Distance learning classrooms - Enables to show the main picture content, while the teacher shows in the Picture-in-picture (PiP) window.
- Medical - Quad view for operating theatres.
- Shopping malls and residential - Shows multiple images at the same time.
- Video editing, post production and applications that require chroma keyi
