Kramer 50-8038701190 4K Hdr Hdmi Compact Poc Receiver Over Long-Reach Dgkat 2.0
Kramer 50-8038701190 4K Hdr Hdmi Compact Poc Receiver Over Long-Reach Dgkat 2.0
SoundPro Item: 112601 | Part Number: 50-8038701190
Usually ships in 5-7 business days
- Compact, low-heat DGKat™ 2.0 receiver
- Up to 60m (200ft) at 4K@60Hz (4:4:4)
- Up to 70m (230ft) at 4K@30Hz (4:4:4)
- HDR, HDCP 2.2 compliance
- Two-way powering
- Network (RJ-45): Yes
- HDMI Out: Yes
- Number of Network (RJ-45) Ports: 1
- Number of HDMI Outputs: 1
- Media Type Supported: Twisted Pair
- Receiver Height: 0.96"
- Receiver Width: 2.45"
- Receiver Depth: 2.04"
- Form Factor: Rack-mountable
- Receiver Weight (Approximate): 3.53 oz
- Environmentally Friendly: Yes
- Environmental Certification: WEEE
- Environmental Certification: RoHS

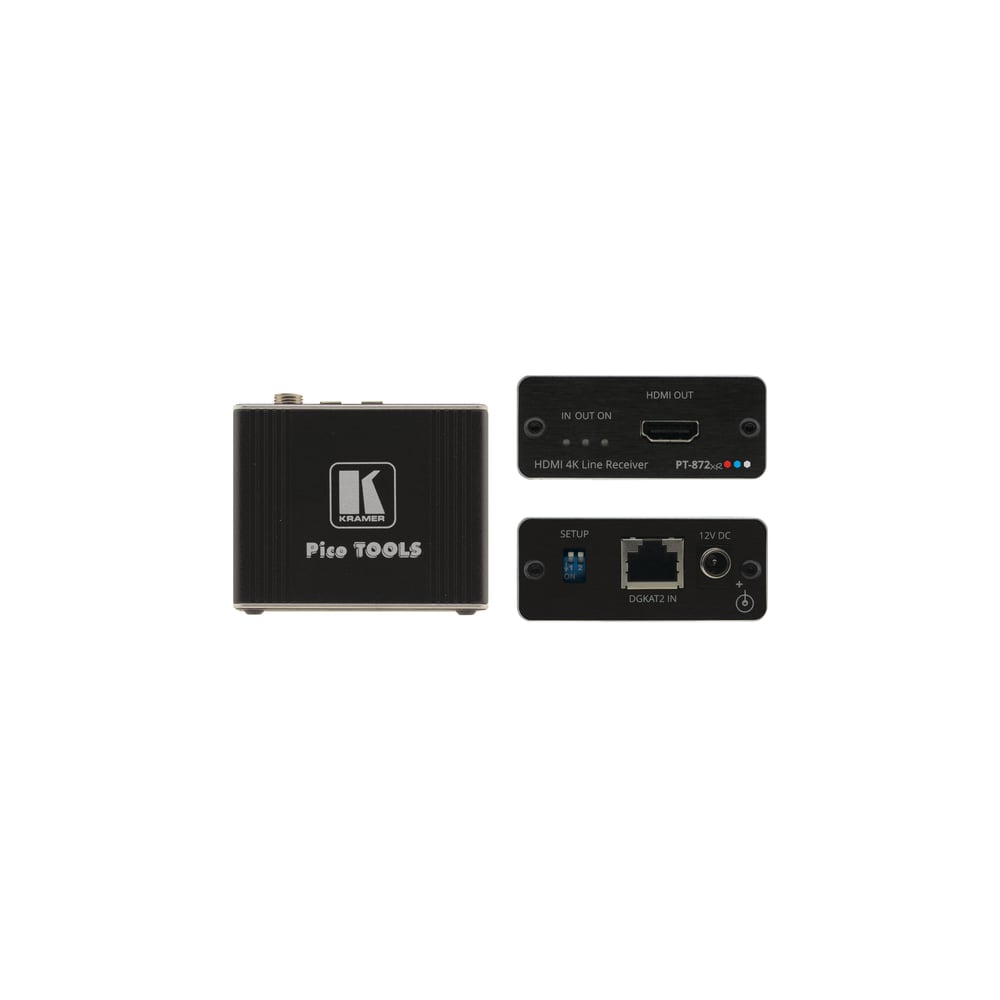

PT-872xr is a high-performance, long-reach DGKat™ 2.0 receiver for 4K@60Hz (4:4:4) HDR HDMI 2.0 and HDCP 2.2 signals and 2-way powering over twisted pair. It converts the transmitted DGKat™ 2.0 signal into an HDMI signal. PT-872xr extends the signal to up to 60m (200ft) at 4K@60Hz (4:4:4) resolution and up to 70m (230ft) at 4K@30Hz (4:4:4) 24bpp resolution over Kramer shielded cables. NOTE: To reach the distances listed, Kramer UNIKAT non-plenum bulk cable or pre-made assemblies MUST be used.
- High Performance Extender - Professional DGKat™ 2.0 receiver for providing long-reach signals and 2-way power over twisted pair copper infrastructures. PT-872xr employs low-level video compression technology that delivers visually lossless performance for 4K@60Hz (4:4:4) HDR signals with near-zero latency. It converts the transmitted DGKat™ 2.0 signal into an HDMI signal.
- HDMI Signal Extension - Supports HDR, HDCP 2.2, deep color, x.v.Color™, lip sync, HDMI uncompressed audio channels, Dolby TrueHD, DTS-HD, 2K, 4K, and 3D as specified in HDMI 2.0.
- EDID Pass-through - Pass-through algorithm ensures Plug and Play operation for HDMI source and display systems.
- Multi-channel Audio Extension - Up to 32 channels of digital stereo uncompressed signals for supporting studio-grade surround sound.
- Cost-effective Maintenance - Status LED indicators for HDMI and DGKat™ 2.0 ports facilitate easy local maintenance and troubleshooting.
- Easy Installation - Single twisted-pair cable for signal and power wiring. Compact PicoTOOLS® fan-less enclosure for device-back mounting, or side-by-side mounting of 4 units in a 1U rack space with the optional, compatible Kramer rack adapter.
APPLICATIONS
- Long-distance AV signal extension for large room connectivity
- AV extension in meeting rooms, boardrooms, hotels and corporate facilities
