Kramer 91-000038 Table Mount Modular Multiconnection Solution Manually Retracting Li

Kramer 91-000038 Table Mount Modular Multiconnection Solution Manually Retracting Li

SoundPro Item: 112180 | Part Number: 91-000038

$160.00
$160.00 $160.00
Your Price Sold out
| MAP: $160.00

Usually ships in 5-7 business days

  • Rectangular
  • Retractable Lid
  • Modular Design
  • Size - TBUS.
  • Audio - N/A
Log in or register for YOUR best price

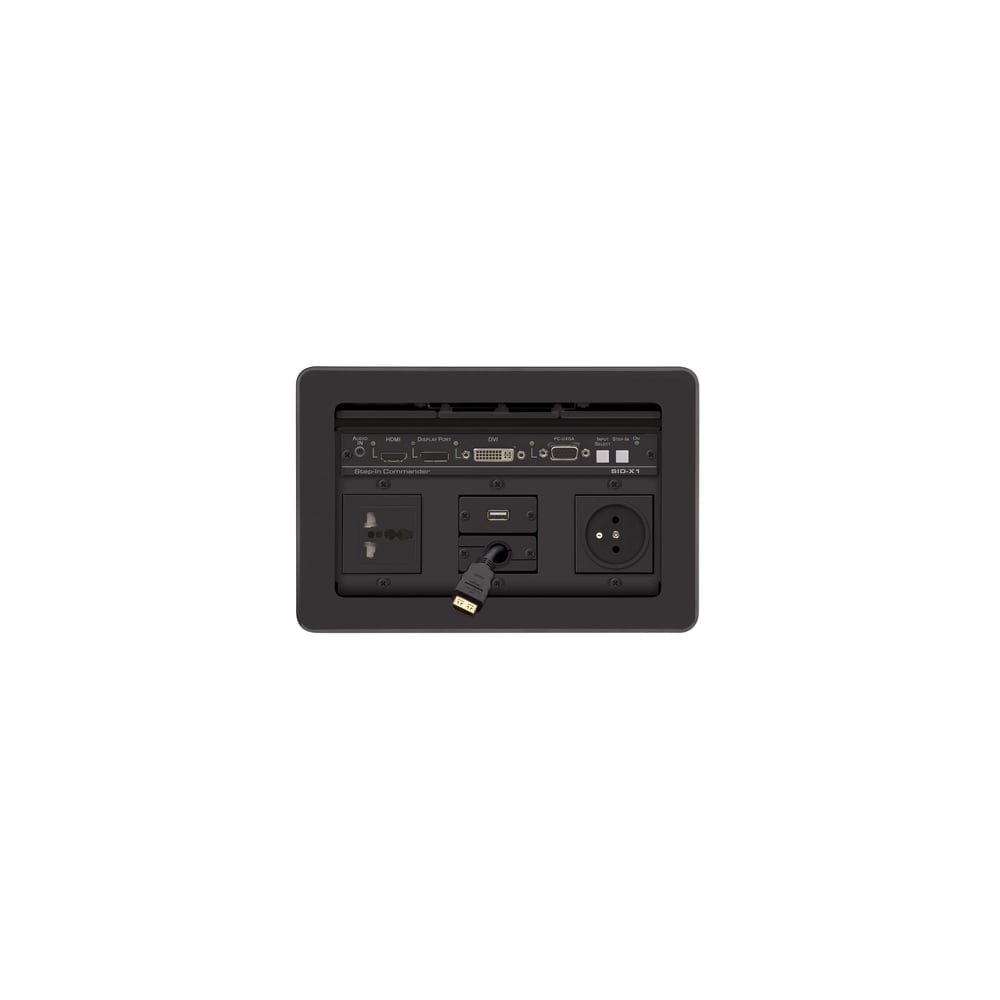

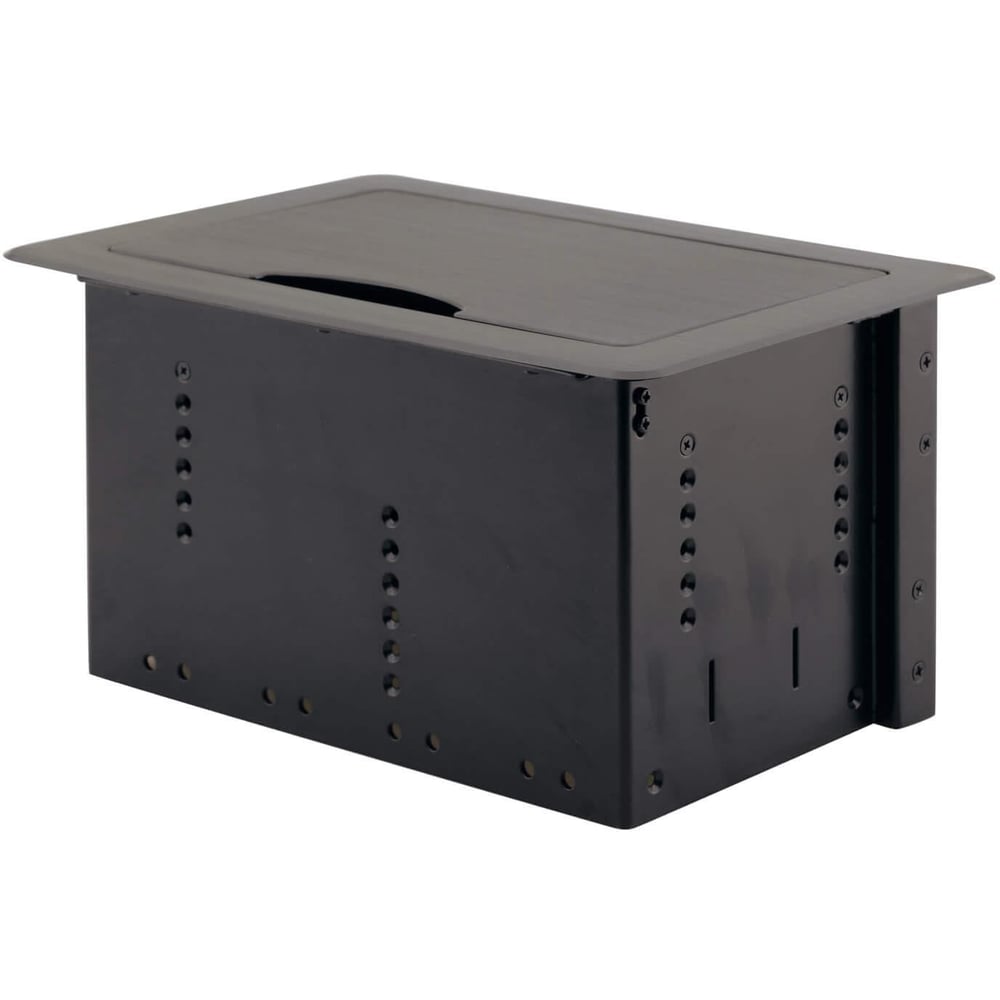

The TBUS-10xl is the enclosure of a new modular system with a manually retracting lid. A complete TBUS system requires the enclosure, an inner frame, a power socket, inserts and a power cord.


NOTE: The TBUS enclosure, inner frame, power socket(s), power cord & inserts are purchased separately.

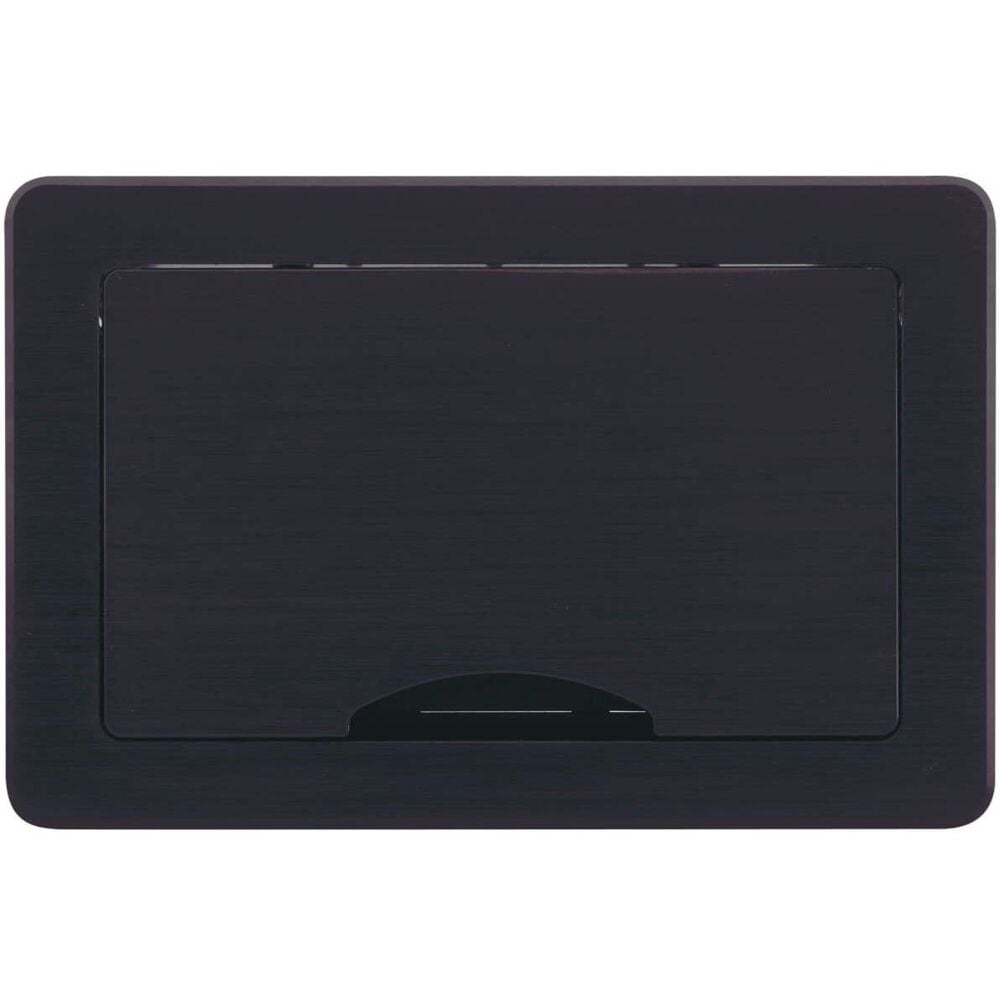

  • Cover - Manually opens & closes.

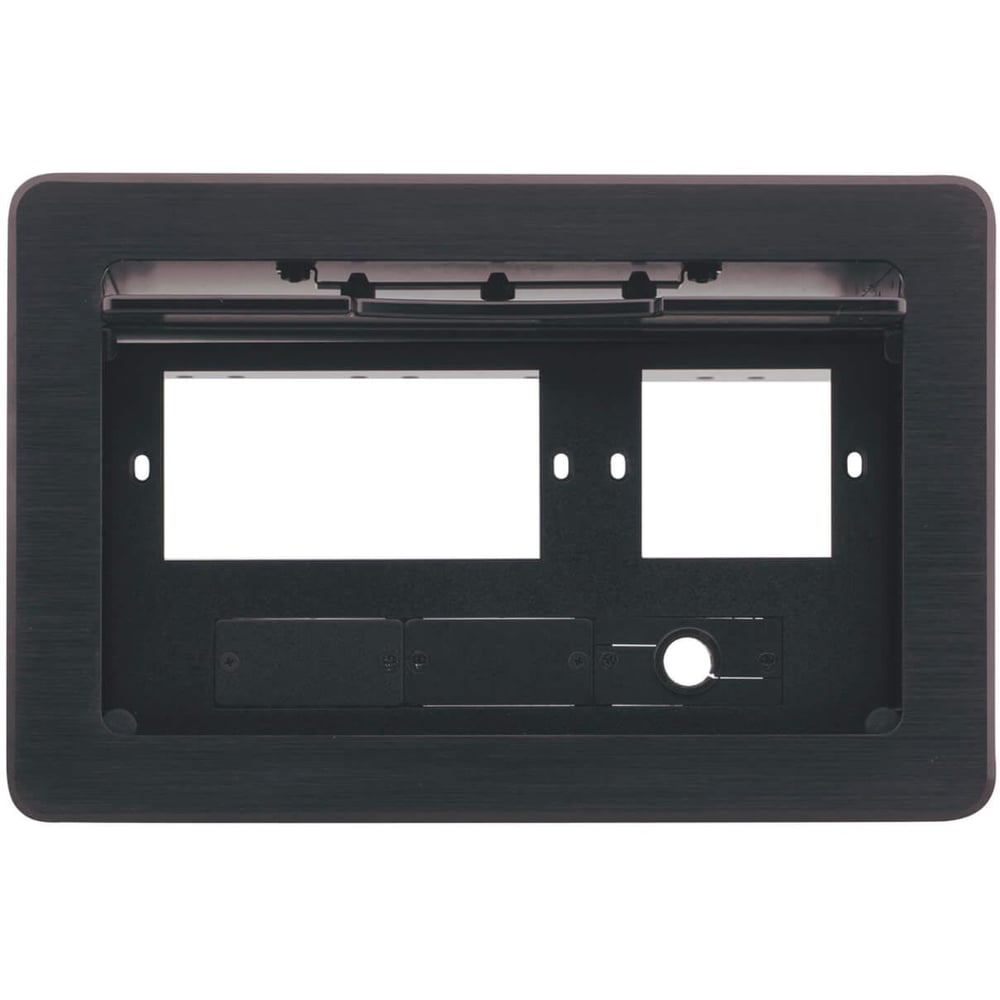

  • Inner Frames - T10F-22M can accommodate a combination of up to 2 power sockets, 2 inserts, 1 opening for a Kramer MegaTOOL SID-X1N; T10F-33 contains 3 power sockets and 3 inserts.
  • Power Sockets - 11 different "TS" single and 10 dual power socket options are available to accommodate the power requirements worldwide.
  • Power Cord - 8 different "C-AC" single power cords (and 3 "Y" power cords) for each power socket. UL and CE qualified.
  • Connector Depth - Adjustable.
  • Installation Requirement - Table cutout of 245mm x 154mm (9.65" x 6.07").
  • Dimensions - Top plate: 171.6mm x 261mm (6.8" x 10.3") W, D.
  • Weight - TBUS-10xl: 1.35kg (2.8lbs) approx.; table clamps: 0.25kg (0.6lbs) approx.
  • Accessories - TBUS clamps (part of the TBUS enclosure), cut-out template, template screws, self-locking ties.
  • Options - Inner frames, passive wall plates and interfaces, power socket kits, power cord, T-2INSERT kit, T-RC-8IR kit, T-RC-76 kit, T-RC-78 kit, Kramer K-Able Box (furniture-mounted cable extension).
View full details

Specifications

'General Information
Manufacturer
Kramer Electronics LTD
Manufacturer Part Number
TBUS-10XL(BA)
Brand Name
Kramer
Product Model
TBUS-10XL
Product Name
Table Mount Modular Multi-Connection Solution - Manually Retracting Lid
Product Type
Power/Data Outlet
Interfaces/Ports
HDMI
Yes
Audio
Yes
USB
Yes
Physical Characteristics
Form Factor
Desktop
Color
Silver Brushed Anodized Aluminum
Shape
Rectangular
