Kramer 50-80023090 Hdmi Rs232/Ir Long-Reach Hdbt Rx
Kramer 50-80023090 Hdmi Rs232/Ir Long-Reach Hdbt Rx
SoundPro Item: 112631 | Part Number: 50-80023090
Usually ships in 5-7 business days
- HDBaseT 1.0 transmitter
- Up to 40m (130ft) at 4K@60Hz (4:4:4)
- Up to 70m (230ft) at up to 4K@30Hz (4:4:4)
- Bidirectional RS-232 & IR control extension
- Maximum Video Resolution: 4096 x 2160
- Network (RJ-45): Yes
- HDMI In: Yes
- Number of Network (RJ-45) Ports: 1
- Number of HDMI Inputs: 1
- Transmitter Height: 0.96"
- Transmitter Width: 4.72"
- Transmitter Depth: 2.81"
- Transmitter Weight (Approximate): 10.58 oz
- Environmentally Friendly: Yes
- Environmental Certification: WEEE
- Environmental Certification: RoHS
- Country of Origin: Israel
TP-583T is a high-performance, long-reach HDBaseT transmitter for 4K HDR HDMI, RS-232 and IR signals over twisted pair. TP-583T converts all input signals into the transmitted HDBaseT signal. It extends video signals to up to 70m (230ft) over Kramer copper cables at up to 4K@60Hz (4:4:4) video resolutions. It is compatible with standard HDBaseT-compliant extenders at 4K@30Hz and HD video resolutions.
- High Performance Standard Extender - Professional HDBaseT extender for providing long-reach signals over twisted-pair copper infrastructures. It employs low-level video compression technology that delivers visually lossless performance for 4K@60 (4:4:4) and HDR signals with near-zero latency. This high-quality compressed signal is extended to almost double the extension reach of the uncompressed signal.
- Future-proof, Standard Extender - TP-583T is a standard HDBaseT extender, backwards compatible with other standard HDBT extenders. It extends either compressed or uncompressed HDBaseT signal, by auto-adapting to the compression capabilities of its connected extender. This enables it to be connected to any market-available HDBaseT-compliant extension product.
- Intelligent Compression Handling - Automatically detects a standard HDBaseT extender without compression and disables the compression to extend the signal in compliance with the detected extender.
- HDMI Signal Extension - HDR HDCP 2.2 compliant. Supports deep color, x.v.Color™, lip sync, HDMI uncompressed audio channels, Dolby TrueHD, DTS-HD, 2K, 4K, and 3D as specified in HDMI 2.0. EDID and CEC signals are passed through from the source to the display.
- I-EDIDPro™ Kramer Intelligent EDID Processing™ - Intelligent EDID pass-through algorithm that ensures Plug and Play operation for HDMI source and display systems.
- Multi-channel Audio Extension - Up to 32 channels of digital stereo uncompressed signals for supporting studio-grade surround sound.
- Bidirectional RS-232 Extension - Serial interface data flows in both directions, allowing data transmission and device control.
- Bidirectional Infrared Extension - IR interface data flows in both directions, allowing remote control of peripheral devices located at either end of the extended line.

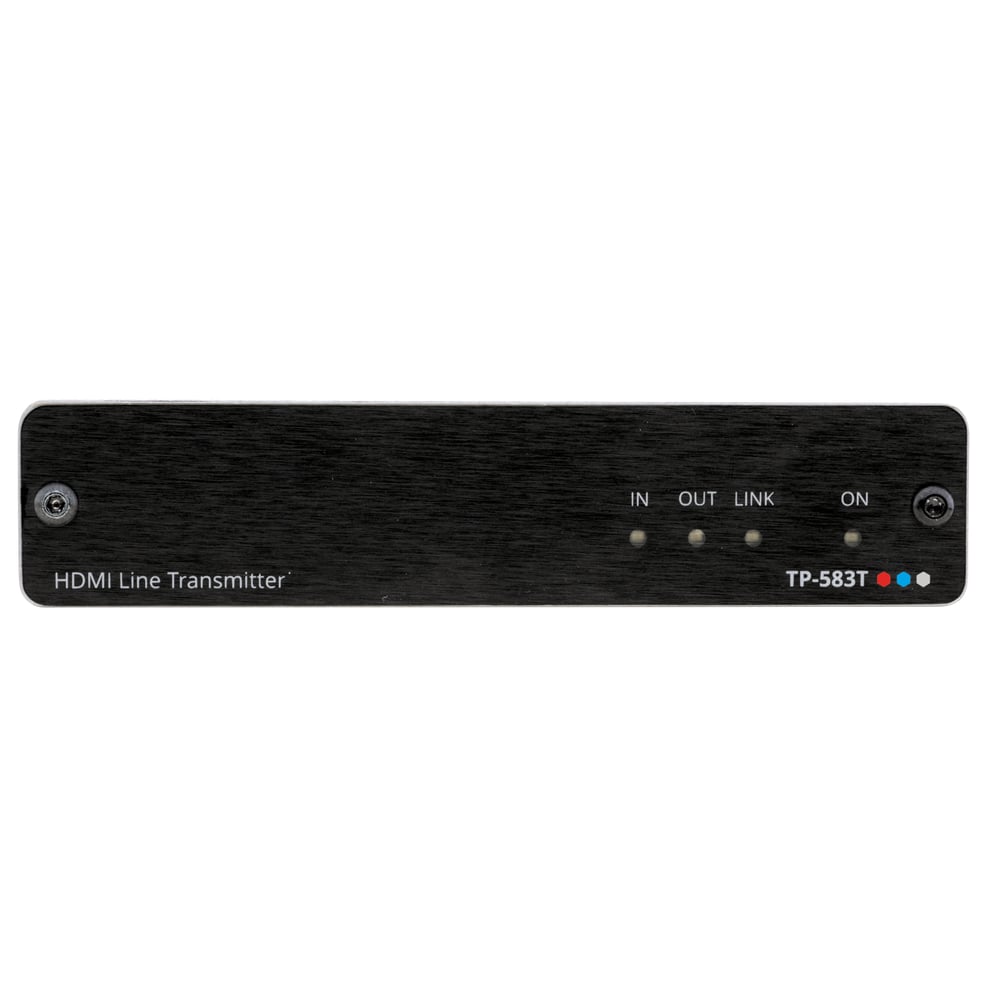

- Cost-Effective Maintenance - Status LED indicators for HDMI and HDBT ports facilitate easy local maintenance and troubleshooting. Local firmware upgrade via RS-232 connection ensures lasting, field-proven deployment.
- Easy Installation - Compact DigiTOOLS® fan-less enclosure for dropped-ceiling mounting, or side-by-side mounting of 3 units in a 1U rack space with the recommended rack adapter.
APPLICATIONS
- Long-distance AV signal extension for multi-room, large dividable auditoriums and lecture hall connectivity
- AV extension in conference rooms, boardrooms, control rooms, hotels and large church facilities
