Kramer 50-805060190 Receiver With Ethernet, Rs?232 & Ir Over Extended?Reach Hdbaset
Kramer 50-805060190 Receiver With Ethernet, Rs?232 & Ir Over Extended?Reach Hdbaset
SoundPro Item: 112636 | Part Number: 50-805060190
Usually ships in 5-7 business days
- Connectivity Technology: Wired
- Number of Output Devices Supported: 1
- Maximum Operating Distance: 590.55 ft
- Graphics Modes: 4K UHD
- Maximum Video Resolution: 4096 x 2160
- Network (RJ-45): Yes
- HDMI Out: Yes
- Number of Network (RJ-45) Ports: 2
- Number of HDMI Outputs: 1
- Media Type Supported: Twisted Pair
- Power over Ethernet (PoE): Yes
- Receiver Height: 0.96"
- Receiver Width: 4.72"
- Receiver Depth: 2.81"
- Form Factor: Rack-mountable
- Receiver Weight (Approximate): 10.58 oz
- Environmentally Friendly: Yes
- Environmental Certification: WEEE
- Environmental Certification: RoHS

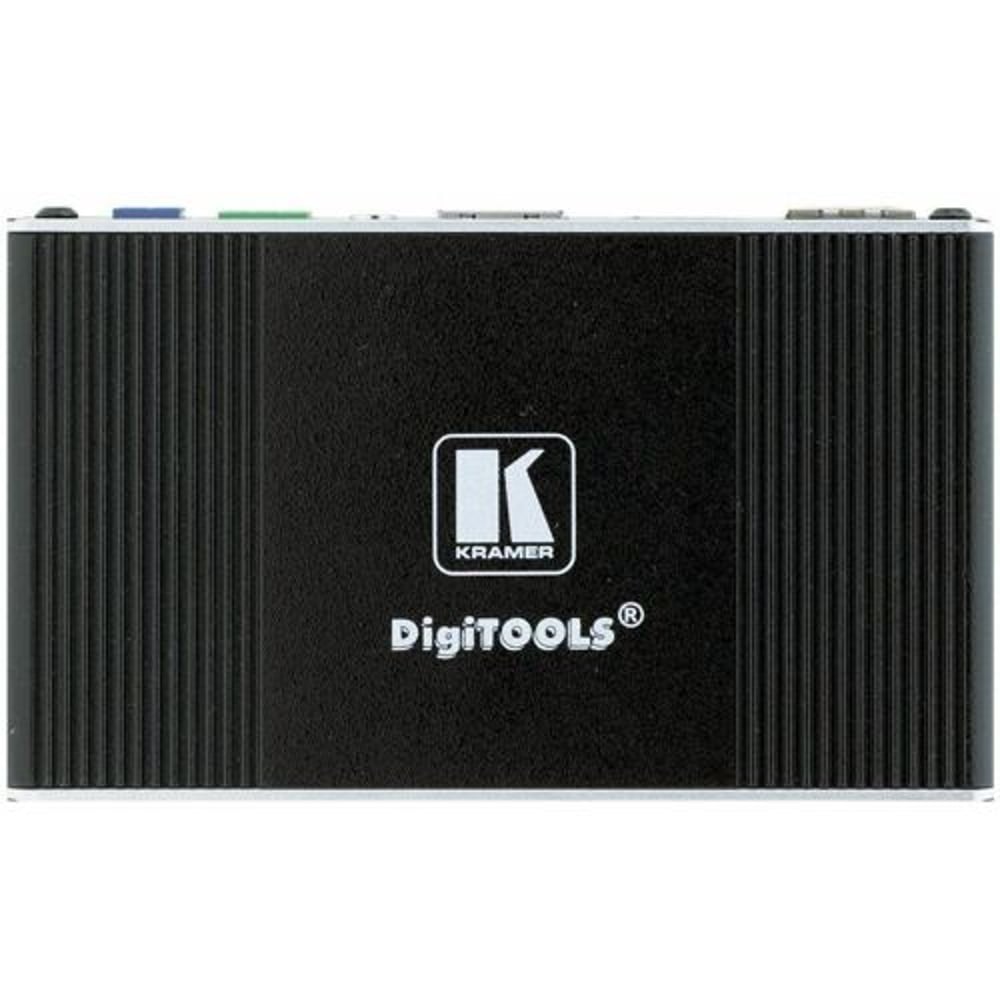

TP-789Rxr is a high-performance, extended-reach HDBaseT receiver for 4K60Hz (4:2:0) HDMI, Ethernet, RS-232 and IR signals and 2-way powering over twisted pair. It extends video signals to up to 100m (330ft) over Kramer copper cables at up to 4K@60Hz (4:2:0) 24bpp video resolution and provides even further reach for lower HD video resolutions. This receiver either provides power over the copper extension cable to a POE (Power over Ethernet) acceptor device such as a PoE wall-plate, or accepts PoE through the extension cable from a PoE provider remote device, as auto-sensed by the receiver
FEATURES
High Performance Standard Extender - Professional HDBaseT extender for providing extended-reach signals and powering over twisted-pair copper infrastructures. TP-789Rxr is a standard extender that can be connected to any market-available HDBaseT-compliant extension product. For optimum extension reach and performance, use recommended Kramer cables
Bidirectional PoE (Power over Ethernet) - Auto-senses the extension line PoE status and either provides power to a remote POE acceptor such as a PoE wall-plate, or accepts power from a remote PoE provider such as a PoE matrix
HDMI Signal Extension - Supports deep color, x.v.Color™, lip sync, HDMI uncompressed audio channels, Dolby TrueHD, DTS-HD, 2K, 4K, and 3D as specified in HDMI 2.0. EDID and CEC signals are passed through from the source to the display
I-EDIDPro™ Kramer Intelligent EDID Processing™ - Intelligent EDID pass-through algorithm that ensures Plug and Play operation for HDMI source and display systems
Multi-channel Audio Extension - Up to 32 channels of digital stereo uncompressed signals for supporting studio-grade surround sound
Ethernet Extension - Ethernet interface data flows in both directions, allowing extension of up to 100Mbps Ethernet connectivity for LAN communication and device control
Bidirectional RS-232 Extension - Serial interface data flows in both directions, allowing data transmission and device control
Bidirectional Infrared Extension - IR interface data flows in both directions, allowing remote control of peripheral devices located at either end of the extended line

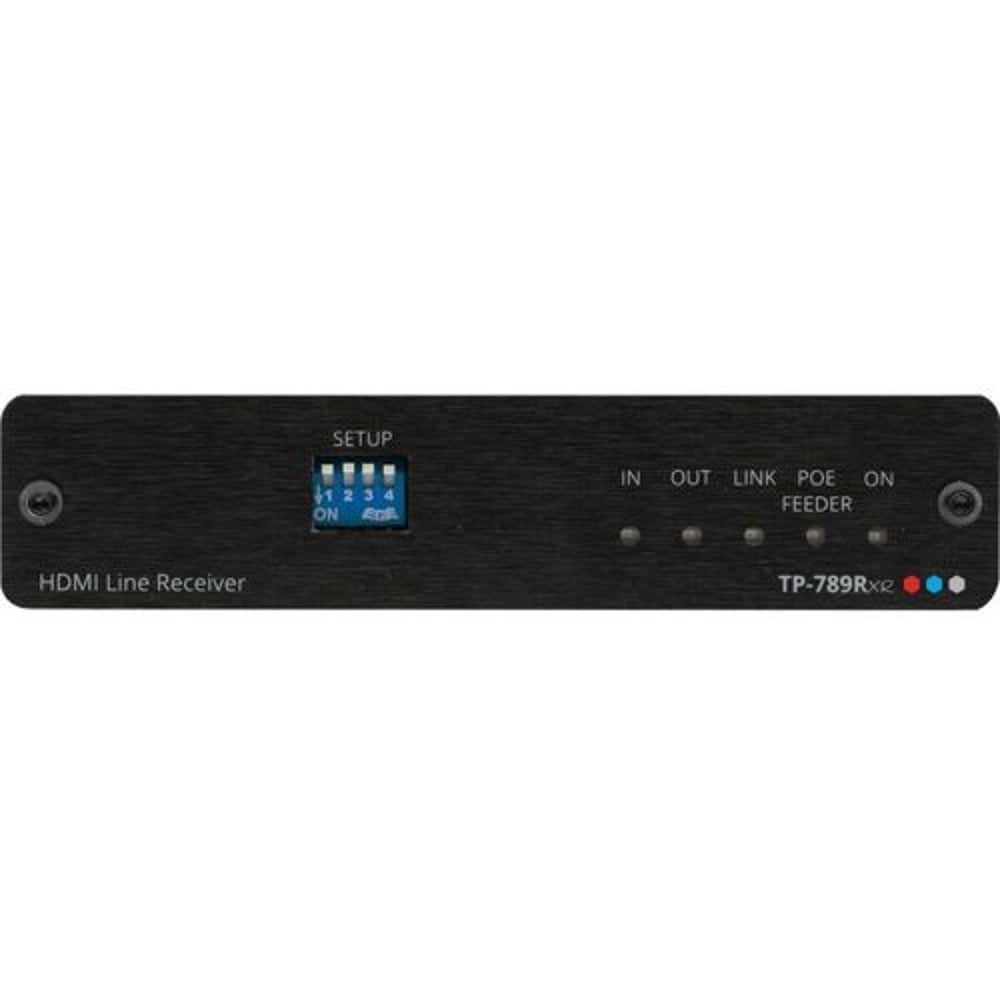

Cost-Effective Maintenance - Status LED indicators for HDMI and HDBT ports and PoE feed status facilitate easy local maintenance and troubleshooting. Local firmware upgrade via RS-232 connection ensures lasting, field-proven deployment
Easy Installation - Single cable connectivity for both HDBaseT signals and power. Compact DigiTOOLS® fan-less enclosure for dropped-ceiling mounting, or side-by-side mounting of 3 units in a 1U rack space with the recommended rack adapter
