Kramer 72-00003790 4K60 4:4:4 Hdmi To Hdbase Transmitter/Scaler
Kramer 72-00003790 4K60 4:4:4 Hdmi To Hdbase Transmitter/Scaler
SoundPro Item: 112825 | Part Number: 72-00003790
Usually ships in 5-7 business days

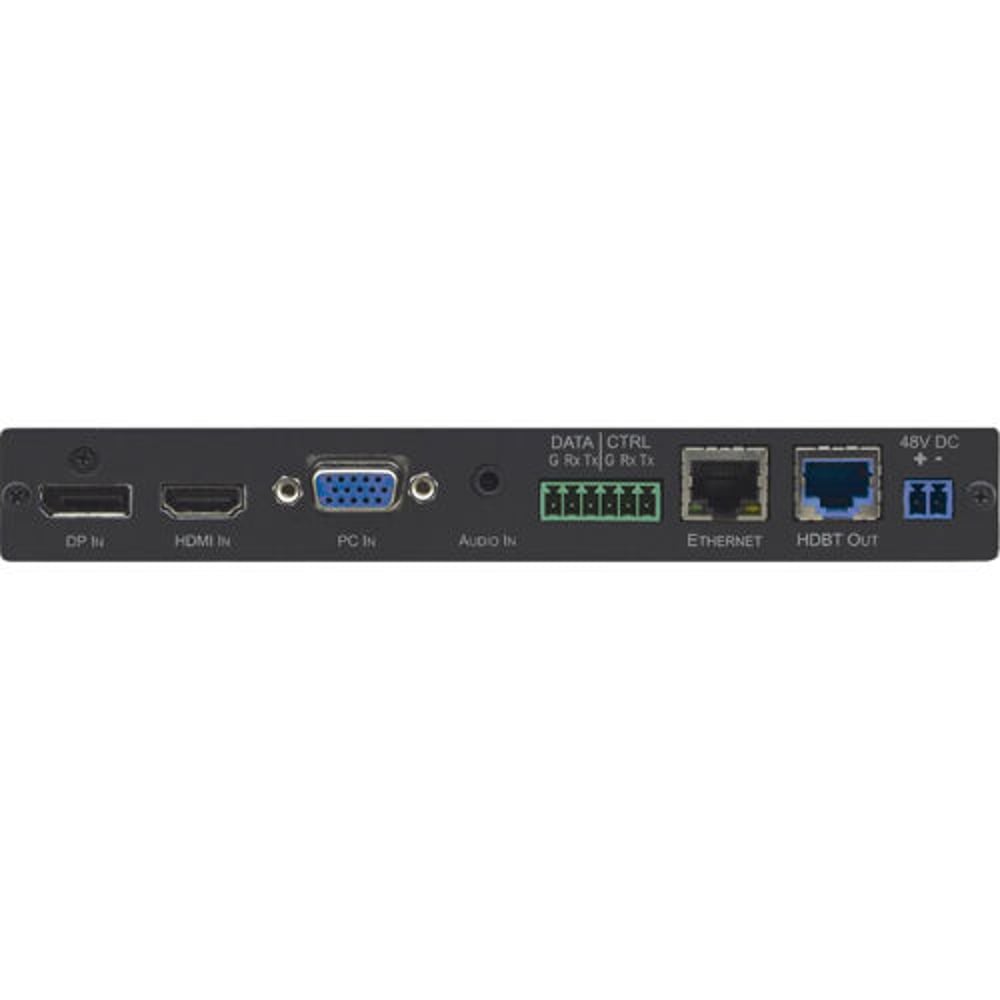

- HDMI, DP, VGA Inputs
- HDBaseT Tunneling of Ethernet, RS-232 and IR signals, and PoE
- Supports up to 4K@60 4:4:4 on the HDMI and DP inputs
- Supports up to 4K@60 4:2:0 on the HDBaseT output
- Upscales and downscales to / from all resolutions
- Network (RJ-45): Yes
- HDMI In: Yes
- VGA In: Yes
- USB: Yes
- DisplayPort: Yes
- Number of Network (RJ-45) Ports: 2
- Number of USB Ports: 1
- Number of HDMI Inputs: 1
- Number of VGA Inputs: 1
- Media Type Supported: Twisted Pair
- Transmitter Height: 1"
- Transmitter Width: 7.38"
- Transmitter Depth: 4.53"
- Transmitter Weight (Approximate): 1.98 lb
VP-428H2 is an HDBaseT 4K transmitter/scaler with HDMI, DP and VGA inputs. VP-428H2 supports HDBaseT tunneling of Ethernet, bidirectional RS-232 and IR signals, as well as PoE to provide power to the HDBaseT receiver. It receives the selected AV signal, up-scales, down scales or bypasses the video, according to the settings selected by the user, and converts it for sending via HDBaseT, together with the tunneled data and PoE.
- PixPerfect™ Scaling Technology - Kramer's precision pixel mapping and high-quality scaling technology.
- HDMI 2.0 Compliant.
- HDCP 2.2 Compliant.
- HDBaseT Certified.
- System Range - For the HDBaseT output, extended reach of up to 100m (330ft) using Kramer recommended cables.
- Provides Power (PoE) on HDBaseT Output to Compatible Devices.
- Max. Resolutions - Input: 4K@60Hz (4:4:4); Output: 4K@60Hz (4:2:0).
- Max. VGA Resolution - 1920 x 1200 @60Hz.
- Built-in ProcAmp - Color, hue, sharpness, noise, contrast and brightness are set individually for each input.
- Constant Output Sync - No output disruption while switching between inputs when no video is detected.
- Audio - Unbalanced stereo and embedded audio.
- Auto Input Switching - Last connected & auto-scan, selectable.
- HDBaseT Tunneling - Supports full HDBaseT tunneling of Ethernet and RS-232 data.
- Non-Volatile Memory - Saves final settings.

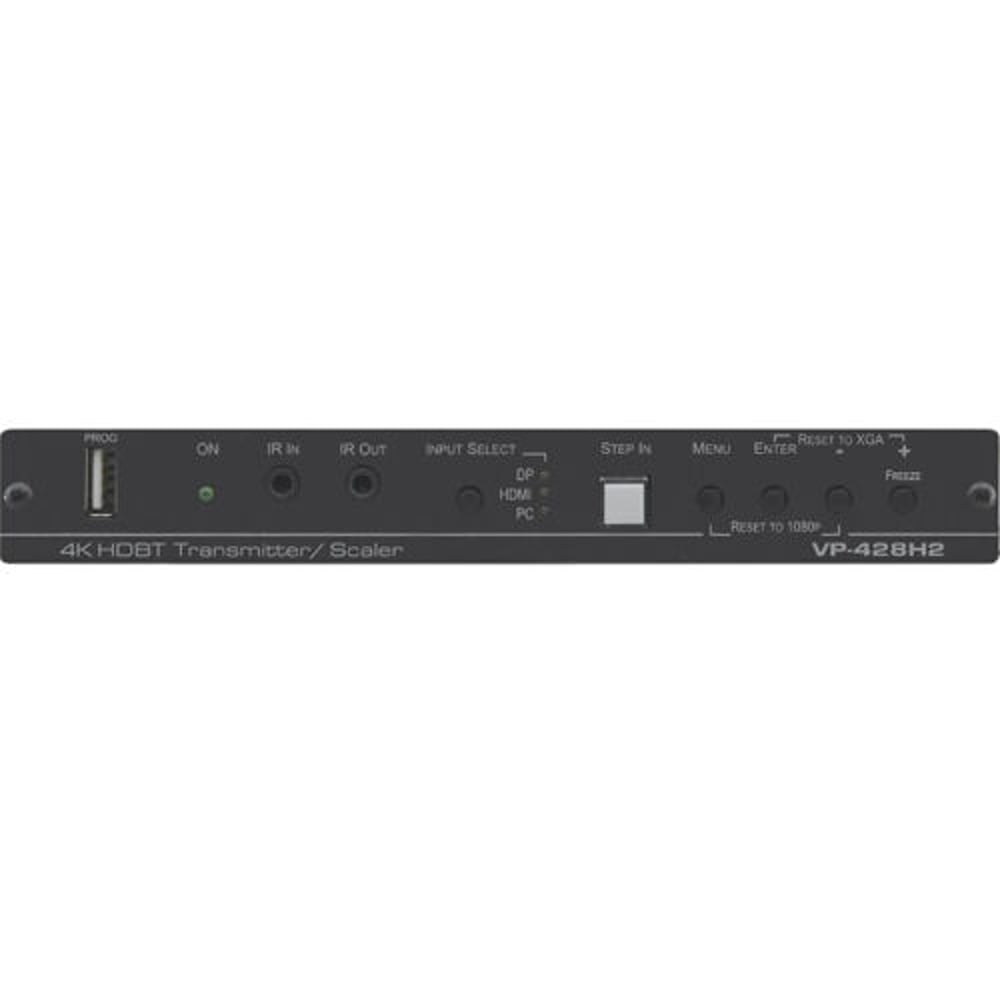

- Flexible Control Options - Front panel push buttons, RS-232, OSD (on-screen display) menu with front panel navigation buttons.
Applications
- Educational - classrooms, lecture theaters
- Projection systems in conference rooms, boardrooms, hotels and churches
- Home theater up-scaling
