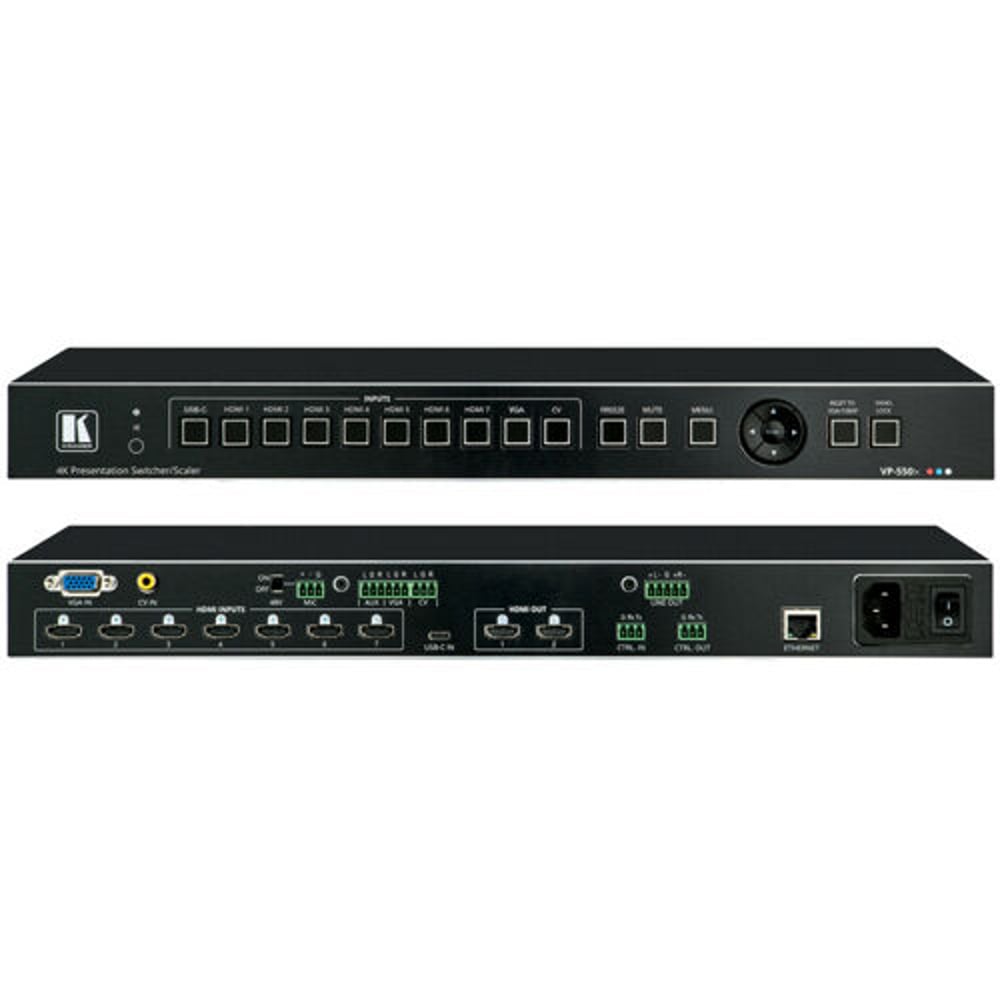

Kramer 54-00086330 18G 4K 10 Input Presentation System/Scaler

Kramer 54-00086330 18G 4K 10 Input Presentation System/Scaler

SoundPro Item: 130141 | Part Number: 54-00086330

$1,818.00
$2,325.00 $1,818.00
Your Price Sold out
| MAP: $1,818.00

Usually ships in 5-7 business days

  • 4K USB-C Input; 7x HDMI inputs; 2 Legacy analog video inputs
  • 4K USB-C Input; 7x HDMI inputs; 2 Legacy analog video inputs
  • Mic Input
  • Mic Input
  • 48V Phantom Power for Microphone
  • 48V Phantom Power for Microphone
  • Control - RS-232, Ethernet & IR
  • Control - RS-232, Ethernet & IR
  • Power provider to USB-C input
  • Power provider to USB-C input
Log in or register for YOUR best price

VP-550X is a versatile, professional presentation scaler/switcher for 4K@60 (4:4:4) HDMI, USB-C, VGA, and composite video signals. The unit scales the video and provides options to use the embedded digital audio or to select analog audio input signals. After processing and scaling, the embedded AV signal is sent to the 2 mirrored HDMI outputs simultaneously, and the audio is also sent to a balanced stereo audio output.

  • High-Performance Switcher/Scaler - Scales HDMI, USB-C (Alt-DP), VGA, and Composite video signals for outputting to two mirrored HDMI outputs. Constant output sync prevents signal disruption when switching between inputs and when no video is detected.
  • High-Resolution Video - Supports and scales to/from resolutions up to 4K@60Hz (4:4:4). Complies with HDCP 2.2. Supports HDR10, CEC, xvYCC color (on input), Dolby TrueHD/DTS-HD Master Audio (by-pass), as specified in HDMI 2.0.
  • Professional Video Quality - Provides selectable aspect ratios (full, best fit, over-scan, under-scan, letter box and pan scan). Includes built-in ProcAmp for color, hue, sharpness, noise, contrast, and brightness control. Supports PixPerfect™, Kramer's precision pixel mapping and high-quality scaling technology with full up-scaling and down-scaling of all video input signals.
  • Versatile Audio Options - Includes a companion analog audio input for each of the 2analog video inputs and an additional AUX audio input - enabling the user to embed analog audio channel into the video signal or to bypass an embedded audio input (for example, to support multi-channel, compressed audio formats like Dolby and DTS). Provides an independent microphone input (with optional 48V phantom power) for mixing, switching or talk-over. On the output, besides the audio embedded on the HDMI outputs, the audio signal is also extracted (de-embedded) and output as a balanced stereo analog audio signal.
  • Powerful Audio Features - Includes DSP with audio equalization, mixing, delay and more.
  • Versatile Powering Options - Receives power from a universal power supply (100-240V AC) and provides up to 18W of power to the USB-C input, HDTV Compatible.
  • 4K and Legacy Inputs - 7 HDMI and 1 USB-C 4K@60 (4:4:4) inputs, 1 VGA input, and 1 CV (composite video) input.
  • Non-Volatile Memory - Saves final settings before shutdown and retains them for next power up.
  • Convenient Control Options - Local control via front panel buttons (input selection, audio mute, freeze and front panel lock), RS-232, IR remote, and OSD. Long-distance control via Ethernet using embedded web pages.
  • Easy Installation - 19" enclosure for rack mounting a unit in a 1U rack space with included rack ears and universal 100-240V AC power connection.

APPLICATIONS

  • Projection systems in conference rooms, boardrooms, hotels and churches
  • Home theater up-scaling
View full details

Specifications

'General Information
Manufacturer
Kramer Electronics LTD
Manufacturer Part Number
VP-550X
Brand Name
Kramer
Product Model
VP-550X
Product Name
VP-550X 10-Input 4K HDR HDMI Presentation Switcher/Scaler
Product Type
Audio/Video Switchbox
Technical Information
Connectivity Technology
Cable
Number of Input Devices Supported
8
Device Supported
Display
Number of Displays Supported
2
Video
Graphics Modes
4K
Interfaces/Ports
HDMI In
Yes
HDMI Out
Yes
VGA In
Yes
USB
Yes
Connectivity (RJ-45)
Yes
Number of Connectivity (RJ-45) Ports
1
Number of USB Ports
1
Number of HDMI Inputs
7
Number of HDMI Outputs
2
Number of VGA Inputs
1
Media & Performance
Media Type Supported
Twisted Pair
Power Description
Frequency
50 Hz
60 Hz
Physical Characteristics
Form Factor
Desktop
Rack-mountable
Miscellaneous
Package Contents
VP-550X 10-Input 4K HDR HDMI Presentation Switcher/Scaler Power Cord Rubber Feet Rack Ears IR Remote Control with Batteries
Warranty
Limited Warranty
7 Year
