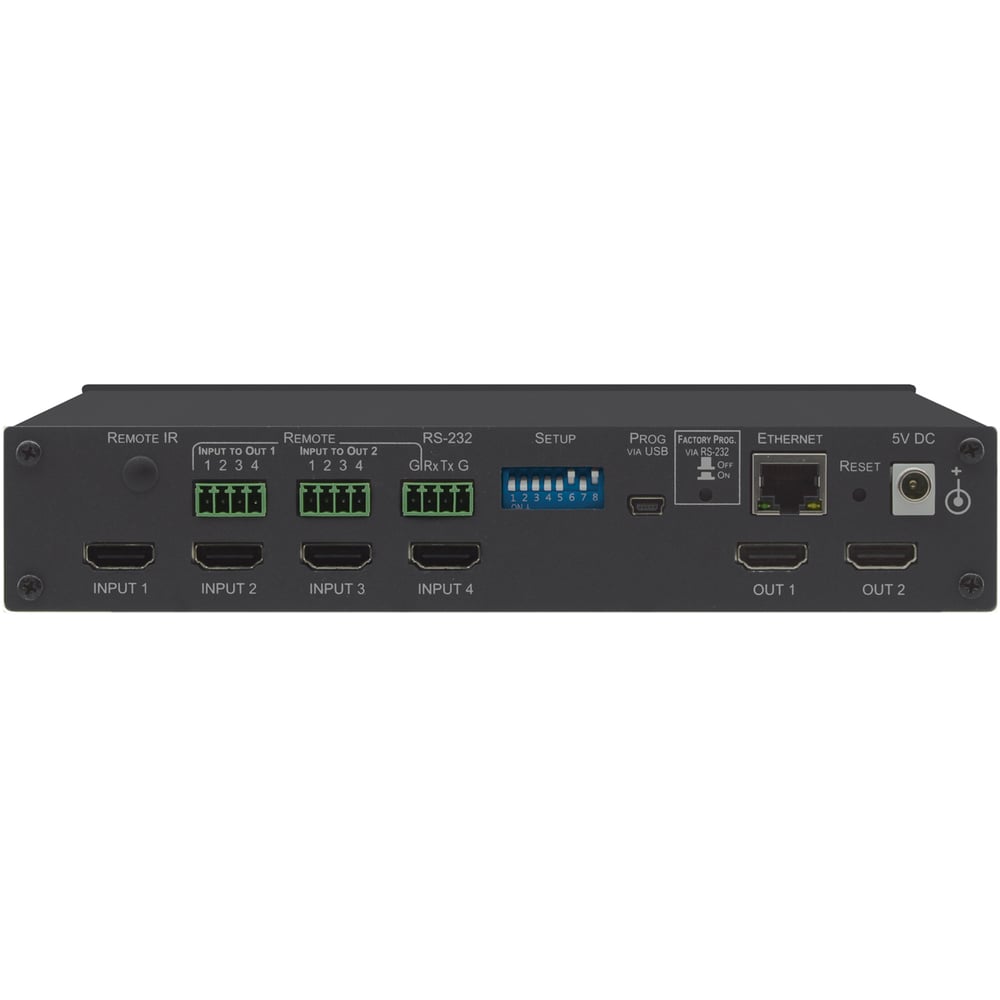

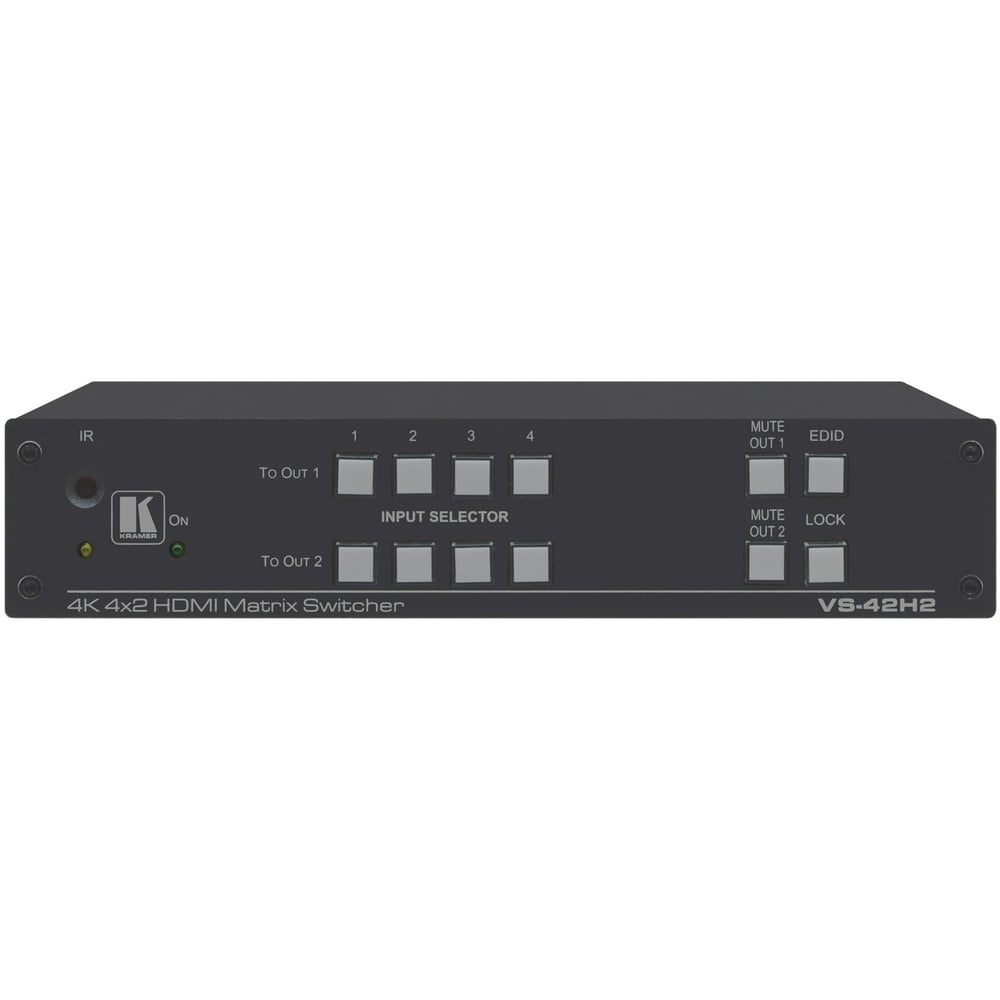

Kramer 20-00018290 4X2 4K Hdmi2.0 Matrix Switcher
Kramer 20-00018290 4X2 4K Hdmi2.0 Matrix Switcher
SoundPro Item: 112818 | Part Number: 20-00018290
Usually ships in 5-7 business days
- Connectivity Technology: Cable
- Number of Input Devices Supported: 4
- Device Supported: Display
- Number of Displays Supported: 2
- Graphics Modes: 4K
- HDMI In: Yes
- HDMI Out: Yes
- Connectivity (RJ-45): Yes
- Number of Connectivity (RJ-45) Ports: 1
- Number of USB Ports: 1
- Number of HDMI Inputs: 4
- Number of HDMI Outputs: 2
- Media Type Supported: Twisted Pair
- Form Factor: Rack-mountable
- Form Factor: Desktop
- Height: 1.7"
- Width: 8.5"
- Depth: 6.4"
- Weight (Approximate): 2.20 lb
VS-42H2 is a high-performance 4x2 matrix switcher for 4K HDR HDMI signals. It reclocks and equalizes the signals and can route any one of four HDMI, HDCP-compliant sources (selectable) to any or all outputs simultaneously.
- High-Performance AV Matrix - Switches 4 4K@60Hz (4:4:4) HDR HDMI HDCP-compliant signals to 2 18G 4K@60Hz (4:4:4) HDR HDMI HDCP-compliant outputs at up to 18G data rate. Signals are HDCP 2.2/1.4 compliant.
- Kramer Equalization & reKlocking™ Technology - Rebuilds the digital signal to travel longer distances.
- EDID Management - Individual EDID management per input. Captures and stores the EDID from a display device.
- Flexible Content Protection - Selectable HDCP per input.
- Quick Access to Common Configurations - Save up to six preset configurations.
- Convenient Unit Control and Configuration - Local control via front panel switching, mute, lock and EDID buttons, and IR remote control. Distance control via user-friendly embedded web pages via the Ethernet, Protocol 3000 API, and RS-232 serial commands transmitted by a PC, touch screen system or other serial controller.
- Cost-Effective Maintenance - Power status, IR and Input Selection indicators facilitate easy local maintenance and troubleshooting. Local firmware upgrade via USB or RS-232 connection ensures lasting, field-proven deployment.
- Easy Installation - Half-19" size enables mounting in a 1U rack space with the recommended rack adapter.
