LEA CONNECT 124D 4-Channel Networked DSP Dante Power Amplifier

LEA CONNECT 124D 4-Channel Networked DSP Dante Power Amplifier

SoundPro Item: 143405 | Part Number: CONNECT 124D

$1,890.00
$1,890.00 $1,890.00
Your Price Sold out
MSRP: $1,890.00 | MAP: $1,890.00

In stock and ready to ship

  • 4-Channel Smart Amplifier with Dante® – Delivers up to 120W per channel with 4×4 Dante networking at 48kHz and AES67 compatibility.
  • Advanced 96 kHz / 32-bit DSP Processing – Includes input routing, 8-band parametric EQ, crossover filters up to 48 dB/octave, delay, and speaker protection limiting.
  • Smart Power Bridge Technology – Enables bridged outputs for higher power without sacrificing amplifier channels.

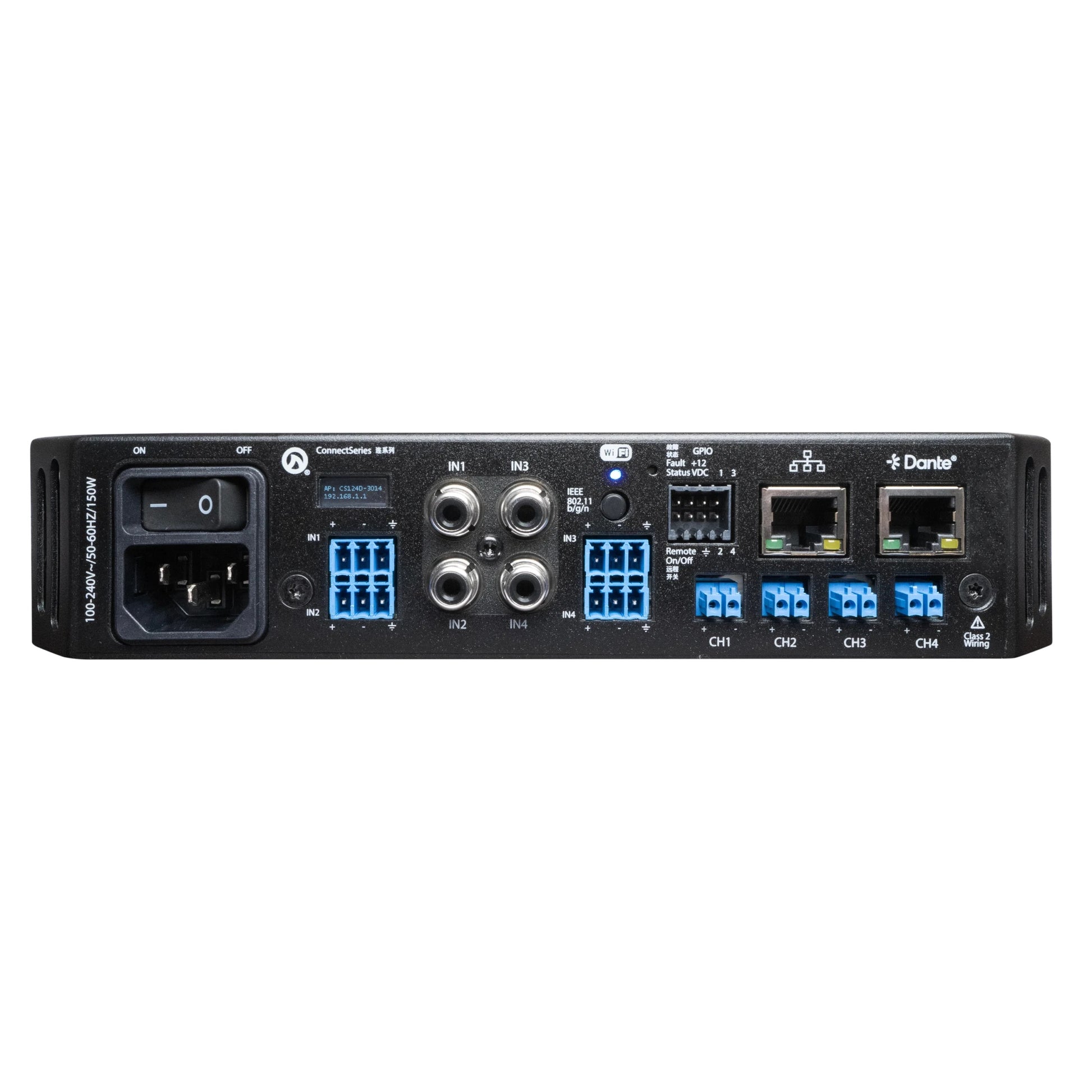

  • Flexible Connectivity – Supports balanced analog inputs, unbalanced RCA inputs, and Dante network audio.
  • Multiple Network Control Options – Built-in Wi-Fi access point, connection to existing Wi-Fi networks, or wired Ethernet control.
  • Web Browser & Cloud Management – Monitor and control the amplifier through a browser interface, LEA Cloud, or SharkWare software.
  • Selectable Lo-Z and Hi-Z Operation – Compatible with 2Ω, 4Ω, 8Ω, 70V, and 100V speaker systems for versatile installation.
Log in or register for YOUR best price

The Connect Series 124D delivers one of the most feature-rich amplifier experiences available in the industry in a smaller form factor. Featuring 96kHz DSP, WebUI, SharkWare, LEA Cloud, third-party APIs, speaker tunings, and more, this amplifier is the right choice for your next install. The Connect Series Half-Rack is built with fully routable analog inputs, four amplifier channels with Lo-Z, 70V, or 100V selectable by channel and D-units include Dante and AES67 connectivity. All models boast three different ways of network connection: using the built-in Wi-Fi Access Point, connecting to an existing Wi-Fi network, or using a Local Area Network Ethernet connection.

View full details

Specifications

AUDIO INPUTS
Analog Inputs
4 balanced inputs; selectable 26 dB; 34 dB; mic level sensitivity
RCA Inputs
4 unbalanced RCA inputs; selectable 26 dB; 34 dB sensitivity
Input Sharing
Unbalanced and RCA inputs share the same analog input channel
Dante Audio
4 x 4 Dante @ 48 kHz; multicast or unicast
AES67
Supported; configurable via Dante Controller
AUDIO PERFORMANCE
Frequency Response
20 Hz – 20 kHz; ±0.5 dB @ 4Ω; 8Ω; 70V; 100V; -2.5 dB @ 20 kHz @ 2Ω
THD+N
0.1%; 20 Hz – 20 kHz
Signal to Noise
102 dB; 20 Hz – 20 kHz; referenced to 8Ω
Crosstalk
70 dB; 20 Hz – 20 kHz
AMPLIFIER DESIGN
Amplifier Class
Class D; proprietary Smart Power Bridge technology
Bridging
Bridged output functionality without sacrificing an amplifier channel
DSP PROCESSING
DSP Architecture
Analog Devices Sigma DSP; 96 kHz; 32-bit core; sample rate converters
Input Matrix
Fully routable; any input to any output; primary and secondary priority
Crossovers
Up to 48 dB/octave IIR filters; Linkwitz-Riley; Butterworth
Parametric EQ
8-band parametric EQ per channel
Output Delay
Up to 100 ms per channel
PROTECTION & MONITORING
Output Protection
DC; VHF; AC mains protection; over-temperature; current limiter; fan fault detection
User Adjustable Limiting
Peak voltage; RMS voltage
Load Monitoring
Real-time load monitoring; pilot tone detection; internal or external sources
CONTROL & NETWORKING
User Interface
Web browser interface; 3rd-party API; cloud control; SharkWare software
External I/O In
Remote on/off toggle
External I/O Out
Amplifier health indication
General Purpose I/O
4 configurable GPIO pins; triggering and status outputs (coming soon)
POWER
AC Mains
100 – 240 VAC ±15%; 50/60 Hz
Power Supply
Universal switch-mode power supply
PHYSICAL
Product Dimensions
11.82 x 8.58 x 1.71 in; 300.11 x 218 x 43.5 mm
Shipping Dimensions
18 x 11 x 2.75 in; 457.2 x 300 x 69.85 mm
Weight
7 lb; 4.1 kg
Cooling
Front-to-rear variable-speed fan cooling
FAN NOISE
Idle
50 dB @ 1 m
50% Speed
57 dB @ 1 m
Full Speed
63 dB @ 1 m
