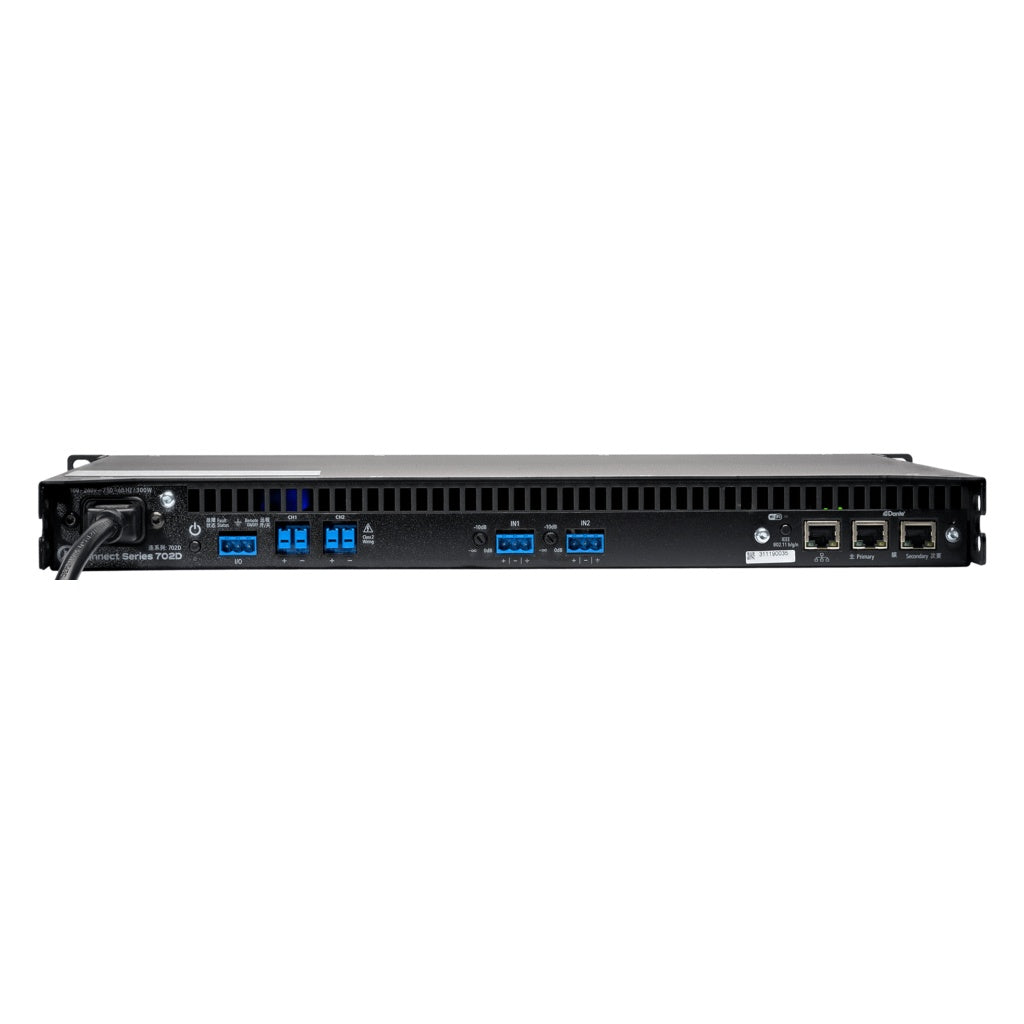

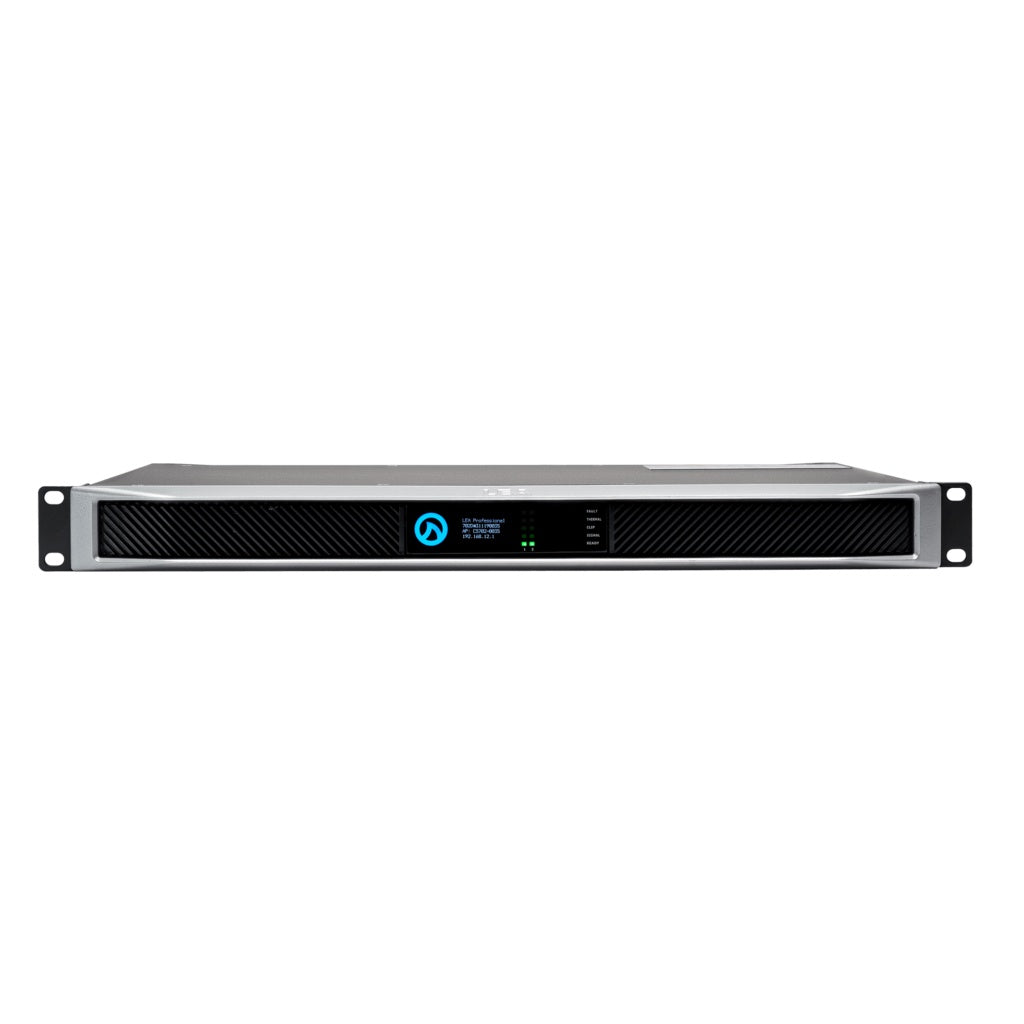

LEA Professional CONNECT CS702D 2-Channel 700W Dante Power Amplifier

LEA Professional CONNECT CS702D 2-Channel 700W Dante Power Amplifier

SoundPro Item: 200264 | Part Number: CS702D

$3,292.80
$3,292.80 $3,292.80
Your Price Sold out
MSRP: $3,292.80 | MAP: $3,292.80

In stock and ready to ship

  • 2-Channel 700W Smart Amplifier – Delivers up to 700W per channel for commercial and installed audio systems.
  • Integrated Dante Network Audio – Sends uncompressed multi-channel audio over Ethernet with near-zero latency.
  • Direct Hi-Z and Lo-Z Output Modes – Supports 2Ω, 4Ω, 8Ω, 70V, and 100V speaker systems, selectable per channel.
  • Smart Power Bridge Technology – Bridge a channel to double the output power without sacrificing other amplifier channels.
  • 96 kHz / 32-bit DSP Processing – Includes input routing, 48 dB/octave crossovers, 8-band parametric EQ, output delay, and speaker limiters.
  • Three Network Connection Options – Built-in Wi-Fi access point, connection to existing Wi-Fi network, or wired Ethernet LAN.
  • Cloud-Enabled Remote Control – Monitor and control the amplifier from anywhere using LEA Cloud.
  • Web Browser-Based Interface – Configure and manage the amplifier from any device with no software installation.
  • Real-Time Load Monitoring – Tracks speaker impedance and system status with pilot-tone detection.
  • Highly Efficient Class-D Output Stage – Provides high power with low AC current draw for efficient operation.
  • External I/O Port – Enables remote power control and amplifier fault monitoring.
Log in or register for YOUR best price

The CONNECTSERIES 702D is a 2-channel amplifier with 700 watts per channel. As part of the Dante CONNECTSERIES, the world’s first Internet of Things- (IoT) enabled professional-grade amplifiers, perfectly suited for small to medium-scale installations. The 702D features direct HiZ (70V or 100V) or LoZ selectable by channel. With three ways to connect, you can engage the built-in Wi-Fi access point, connect to the venue’s Wi-Fi, or use the FAST Ethernet to connect to any local area network via Cat5 or Cat6 cable.

DANTE CONNECTSERIES is the first professional amplifier family to feature Cloud connectivity. Harness the power of the Cloud for remote control, monitoring, notifications, and more from any of your personal devices. Just connect your amp to a network and start commanding your systems.

The DANTE CONNECTSERIES also features analog inputs and Dante inputs and external I/O control for remote on/off and fault monitoring.

View full details

Specifications

AMPLIFIER
Channels
2
Amplifier Class
Class D
Output Power
2 × 700 W @ 4Ω; 8Ω; 70V; 100V
Output Power @ 2Ω
350 W per channel
Smart Power Bridge
Supported
AUDIO INPUTS
Analog Inputs
2 balanced inputs; selectable 26 dB or 34 dB input sensitivity
Dante Audio
8 × 8 Dante @ 96 kHz or 48 kHz; multicast or unicast
AES67
Configurable via Dante Controller software
AUDIO PERFORMANCE
THD+N
0.1%; 20 Hz – 20 kHz
Frequency Response
20 Hz – 20 kHz; ±0.5 dB @ 4Ω; 8Ω; 70V; 100V; −2.5 dB @ 20 kHz @ 2Ω
Signal-to-Noise
105 dB; 20 Hz – 20 kHz referenced to 8Ω
Crosstalk
70 dB; 20 Hz – 20 kHz
DSP
DSP Architecture
Analog Devices Sigma DSP; 96 kHz; 32-bit core with sample rate converters
Input Matrix
Fully routable matrix; any input to any output; primary and secondary priority
Crossovers
Up to 48 dB/octave IIR filters; Linkwitz-Riley; Butterworth
Parametric EQ
8-band parametric EQ per channel
Output Delay
Up to 100 ms per channel
User Adjustable Limiting
Peak voltage and RMS voltage limiting
Load Monitoring
Real-time load monitoring with pilot tone detection
PROTECTION & MONITORING
Protection
DC; VHF; AC mains protection; over-temperature; current limiter; fan fault detection
External Monitoring
External I/O for remote on/off and fault monitoring
CONTROL & NETWORKING
User Interface
Web browser interface; 3rd-party API control; LEA Cloud management
Network Connectivity
Built-in Wi-Fi access point; connection to existing Wi-Fi network; Ethernet LAN
Dante Networking
Integrated Dante digital audio networking over Ethernet
POWER
AC Mains
100 – 240 VAC ±15%; 50/60 Hz
Power Supply
Universal switch-mode power supply with PFC
PHYSICAL
Product Dimensions
14.25 × 19 × 1U in; 362 × 482 × 1U mm
Shipping Dimensions
20 × 22.75 × 3.75 in; 508 × 578 × 95.25 mm
Weight
10 lb; 3.4 kg
Shipping Weight
17.4 lb; 7.9 kg
COOLING
Cooling System
Front-to-rear variable-speed fan cooling
Fan Noise
50 dB @ 1 m (idle); 57 dB @ 1 m (50% speed); 63 dB @ 1 m (full speed)
