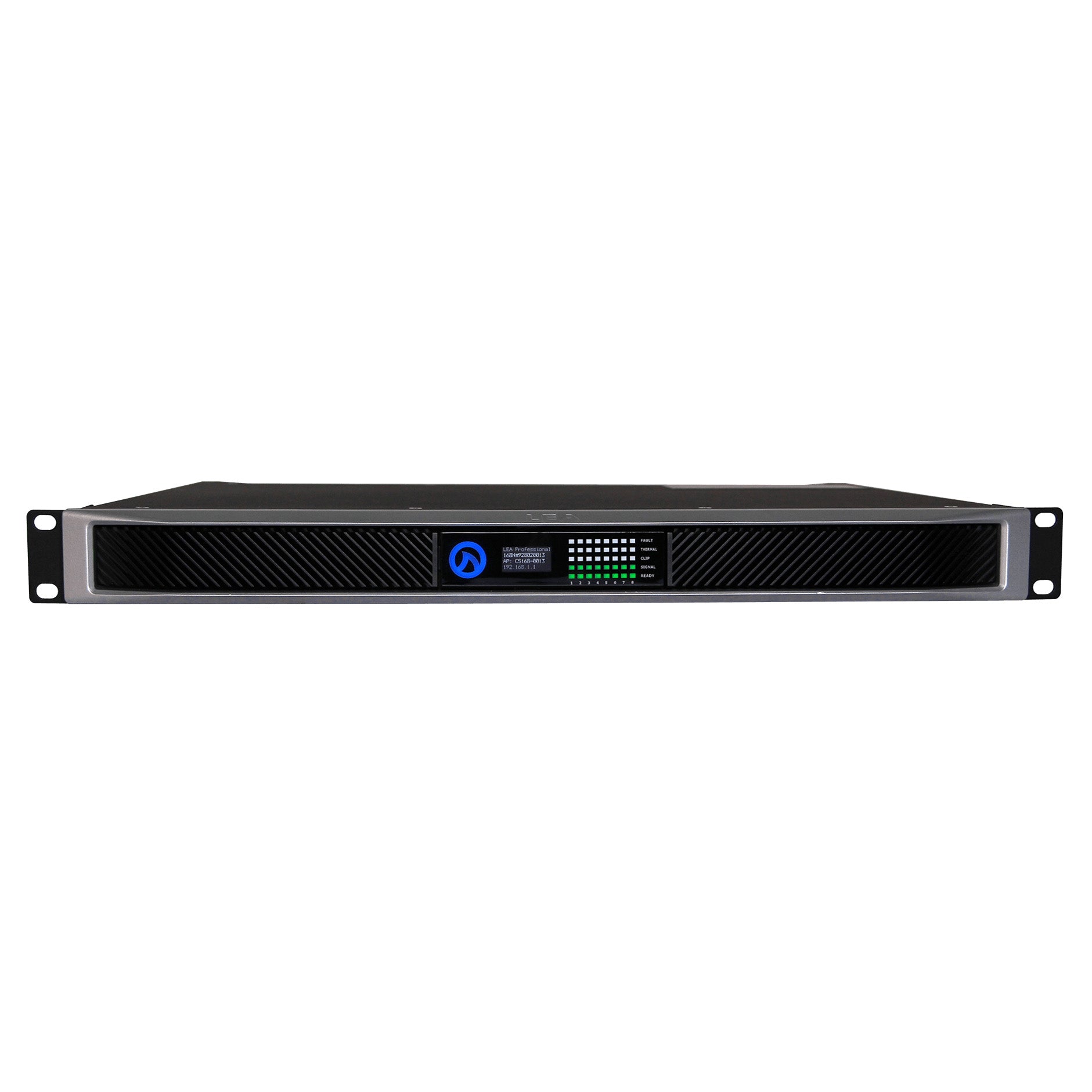

LEA Professional CONNECT 168 8-Channel 160W Power Amplifier

LEA Professional CONNECT 168 8-Channel 160W Power Amplifier

SoundPro Item: 117919 | Part Number: CONNECT 168

$3,605.70
$3,605.70 $3,605.70
Your Price Sold out
MSRP: $3,605.70 | MAP: $3,605.70

Usually ships in 5-7 business days

  • CONNECT 168 uses 80 watts per channel with 2Ω; 4Ω, 8Ω, and 70V / 100V use 160 watts per channel
  • Web browser-based UI – works on any device with no software to download
  • Direct LoZ and HiZ (70V or 100V) selectable per channel
  • Proprietary Smart Power Bridge allows user to bridge a channel to achieve double the power of that channel without sacrificing an amplifier channel
  • 3 ways to connect: built in WiFi access point, existing WiFi network, Local Area Network Ethernet connection
  • 96kHz analog devices DSP with input routing, multiple 48dB/Oct crossover filters, 8 parametric EQ filters, user configurable speaker limiters, and real time load monitoring
  • Universal switch mode power supply with PFC: operation from 100VAC – 240VAC +/-15%
  • Analog fully routable inputs
  • External I/O port for remote on/off and fault monitoring
  • Highly efficient Class D output stage for low AC current draw
Log in or register for YOUR best price

The 168 8-channel 160 watt power amplifier is part of the Internet of Things- (IoT) enabled, professional-grade amplifier NETWORK CONNECTSERIES. Perfectly suited for small to medium scale installations, this eight channel amp features direct HiZ (70V or 100V) or LoZ selectable by channel. With three ways to connect, you can engage the built in Wi-Fi access point, connect to the venue’s Wi-Fi, or use the FAST Ethernet to connect to any local area network via Cat5 or Cat6 cable. Cloud connectivity is a popular feature. Harness the power of the Cloud for remote control, monitoring, notifications and more from any of your personal devices. Just connect your amp to a network and start commanding your systems.

View full details

Specifications

Electrical
THD+N
0.1% (20Hz to 20kHz)
Audio
Frequency Response
20Hz to 20kHz, +/- 0.5 dB @ 4Ω, 8Ω, 70V, 100V, -2.5dB @ 20kHz at 2Ω
Crosstalk
70dB (20Hz to 20kHz)
Connectivity
Inputs
Analog: Balanced Inputs with user selectable 26 dB and 34 dB input sensitivity (8CH = 8 inputs)
Amplifier Output Classification
Class D with Proprietary Smart Power Bridge Technology allowing bridged output functionality without sacrificing an amplifier channel
Input Matrix
Routable matrix; any input to any output with primary and secondary input priority
Output Delay
100ms per channel
Output Protection
DC, VHF, and AC Mains Protection, Overtemp and Current Limiter, fan fault detection
Shipping
Shipping
17.95lbs / 8.14kg
General
Signal to Noise Level
105dB (20Hz to 20kHz referenced to 8Ω)
DSP Architecture
Analog Devices Sigma 96kHz DSP Processor with 32-bit Core with Sample Rate Converters
Crossovers
Up to 48 dB/Octave IIR Filters (Linkwitz Riley and Butterworth)
Parametric EQ
8 Band Parametric EQ per channel
User Adjustable Limiting
Peak Voltage and RMS Voltage
Load Monitoring
Realtime Load Monitoring and Pilot Tone Detection from Internal or External Sources
User Interface
Web Browser User Interface, 3rd Party API control, or CLOUD control
I/O External I/O in
Toggles
Remote On/OffExternal I/O Out
Indicates Amplifier Health
AC Mains
100VAC - 240VAC +/- 15% 50Hz or 60Hz
Power Supply
Universal Switch Mode Power Supply
W X H) Product
14.25” x 19” x 1U (362mm x 482mm x 1U) x 1U (362mm x 482mm x 1U)Shipping: 20” x 22.75” x 3.75” (508mm x 578mm x 95.25mm)Weight: 13.55lbs / 6.15kg |
Cooling
Front to Rear Variable Fan Speed Cooling
Physical
Fan Noise at idle is 50dB @ 1m, Fan Noise at 50% is 57dB @1m, Fan Noise at full speed is 63dB @ 1m
